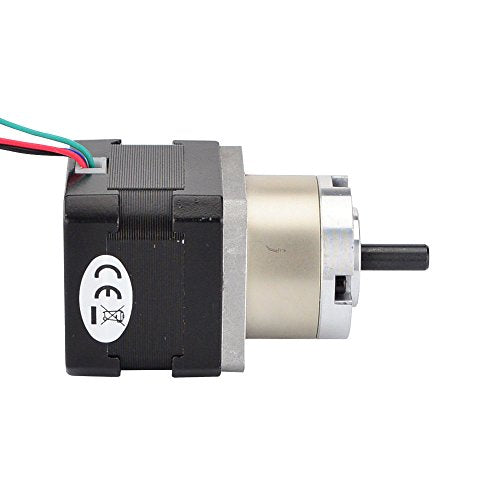

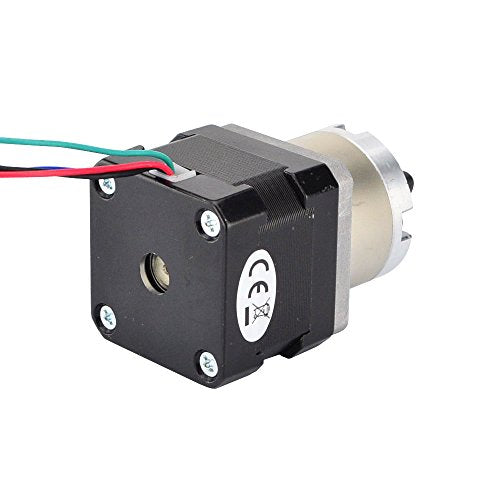

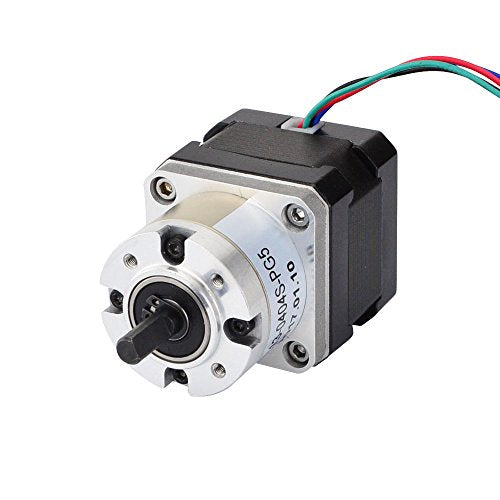

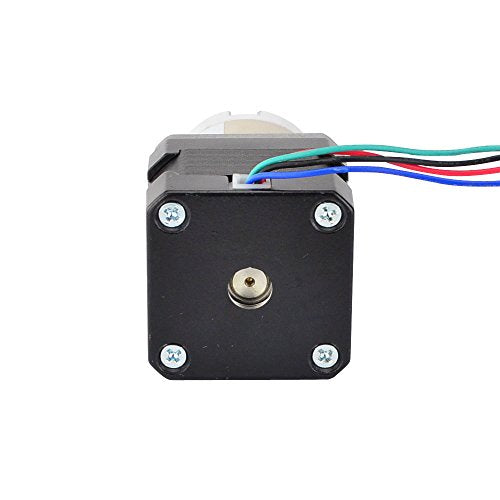

{"id":8115582697652,"title":"STEPPERONLINE Nema 17 Gearbox Step Motor Planetary Gear 5:1 0.4A","handle":"stepperonline-nema-17-gearbox-step-motor-planetary-gear-5-1-0-4a","description":"\u003ch3\u003eSTEPPERONLINE Nema 17 Gearbox Step Motor Planetary Gear 5:1 0.4A\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eElectrical specification: Manufacturer Part Number: 17HS13-0404S-PG5 Motor\ntype: bipolar Step angle: 0.35 deg. Holding torque without transmission:\n26Ncm(36.82oz.in) Rated current\/phase: 0.4 A. Phase resistance: 30 ohms \nVoltage: 12V Inductance: 34mH±20% (1KHz) Gear specification: Transmission\ntype: planets Gear Ratio: 5.18:1 Transmission efficiency: 90%. Reverse\nreaction in idle: \u0026lt;= 1°. Max. permissible torque: 2Nm (283oz.in) Momentary\npermitted torque: 4Nm (566oz.in) Maximum Axial Wave Load: 5N Maximum\nradial wave load: 100N Physical specification: Frame size: 42 x 42 mm. \nBody length: 34 mm. Transmission length: 27.3 mm. Shaft diameter: 6 mm. \nShaft length: 18 mm. D-cut length: 12 mm. Number of leads: 4. Lead\nrotation: 500 mm. Weight: 380g Connection: Black (A +), Green (A-), Red (B\n+), Blue (B-). Warning: As a stepper motor, it should be connected to a\nconstant current or chopper driver. If you connect the motor directly to a\npower supply, the motor will be destroyed. Please pay attention to order\nfour wire coils when you connect to the driver, or it will damage your driver.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eThis Nema 17 stepper motor with 33 mm housing length and 0.4 A rated current, integrated a planetary gear of 5.18: 1 gear ratio.\u003c\/li\u003e\n \u003cli\u003eIt is a good solution for applications that require low speed and\/or high torque when space is limited\u003c\/li\u003e\n \u003cli\u003e100% brand new from \"STEPPERONLINE\" and ROHS and CE certified\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2026-09-03T00:42:15+10:00","created_at":"2026-09-02T20:12:06+10:00","vendor":"STEPPERONLINE","type":"3D Printer Motors","tags":["industrial_UK_Aug2026"],"price":29900,"price_min":29900,"price_max":29900,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44375671898292,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"uk-B0785PJRNR","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"STEPPERONLINE Nema 17 Gearbox Step Motor Planetary Gear 5:1 0.4A","public_title":null,"options":["Default Title"],"price":29900,"weight":400,"compare_at_price":null,"inventory_management":"shopify","barcode":"715776399264","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/uk-B0785PJRNR.jpg?v=1788343928","\/\/auspowers.com\/cdn\/shop\/files\/412JzSGxfEL.jpg?v=1788343928","\/\/auspowers.com\/cdn\/shop\/files\/41Lzzq3uctL.jpg?v=1788343928","\/\/auspowers.com\/cdn\/shop\/files\/41IdsSgxDHL.jpg?v=1788343928","\/\/auspowers.com\/cdn\/shop\/files\/41WgHM-6TbL.jpg?v=1788343928"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/uk-B0785PJRNR.jpg?v=1788343928","options":["Title"],"media":[{"alt":null,"id":33276460040372,"position":1,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/uk-B0785PJRNR.jpg?v=1788343928"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/uk-B0785PJRNR.jpg?v=1788343928","width":500},{"alt":null,"id":33276460073140,"position":2,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/412JzSGxfEL.jpg?v=1788343928"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/412JzSGxfEL.jpg?v=1788343928","width":500},{"alt":null,"id":33276460105908,"position":3,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/41Lzzq3uctL.jpg?v=1788343928"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/41Lzzq3uctL.jpg?v=1788343928","width":500},{"alt":null,"id":33276460138676,"position":4,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/41IdsSgxDHL.jpg?v=1788343928"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/41IdsSgxDHL.jpg?v=1788343928","width":500},{"alt":null,"id":33276460171444,"position":5,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/41WgHM-6TbL.jpg?v=1788343928"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/41WgHM-6TbL.jpg?v=1788343928","width":500}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eSTEPPERONLINE Nema 17 Gearbox Step Motor Planetary Gear 5:1 0.4A\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eElectrical specification: Manufacturer Part Number: 17HS13-0404S-PG5 Motor\ntype: bipolar Step angle: 0.35 deg. Holding torque without transmission:\n26Ncm(36.82oz.in) Rated current\/phase: 0.4 A. Phase resistance: 30 ohms \nVoltage: 12V Inductance: 34mH±20% (1KHz) Gear specification: Transmission\ntype: planets Gear Ratio: 5.18:1 Transmission efficiency: 90%. Reverse\nreaction in idle: \u0026lt;= 1°. Max. permissible torque: 2Nm (283oz.in) Momentary\npermitted torque: 4Nm (566oz.in) Maximum Axial Wave Load: 5N Maximum\nradial wave load: 100N Physical specification: Frame size: 42 x 42 mm. \nBody length: 34 mm. Transmission length: 27.3 mm. Shaft diameter: 6 mm. \nShaft length: 18 mm. D-cut length: 12 mm. Number of leads: 4. Lead\nrotation: 500 mm. Weight: 380g Connection: Black (A +), Green (A-), Red (B\n+), Blue (B-). Warning: As a stepper motor, it should be connected to a\nconstant current or chopper driver. If you connect the motor directly to a\npower supply, the motor will be destroyed. Please pay attention to order\nfour wire coils when you connect to the driver, or it will damage your driver.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eThis Nema 17 stepper motor with 33 mm housing length and 0.4 A rated current, integrated a planetary gear of 5.18: 1 gear ratio.\u003c\/li\u003e\n \u003cli\u003eIt is a good solution for applications that require low speed and\/or high torque when space is limited\u003c\/li\u003e\n \u003cli\u003e100% brand new from \"STEPPERONLINE\" and ROHS and CE certified\u003c\/li\u003e\n \u003c\/ul\u003e"}
