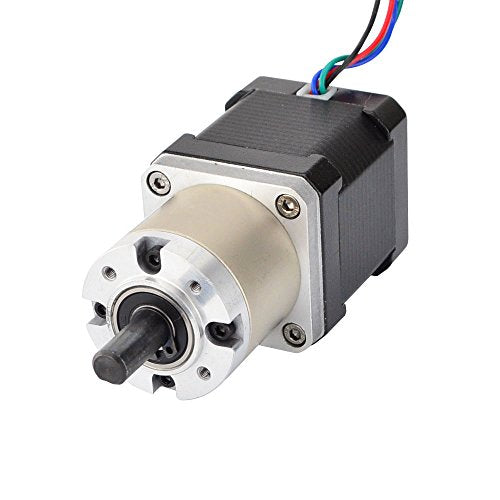

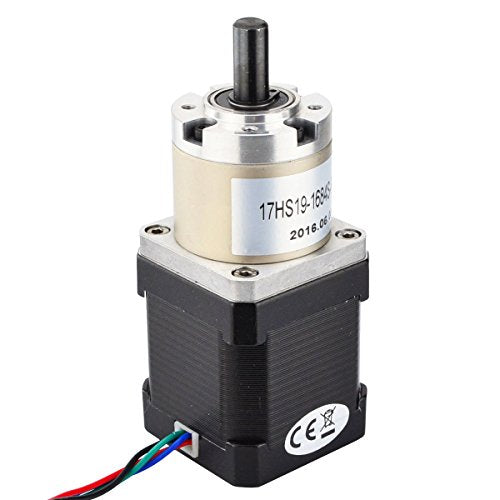

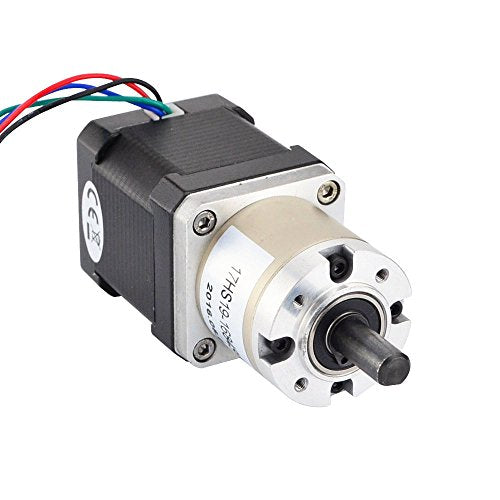

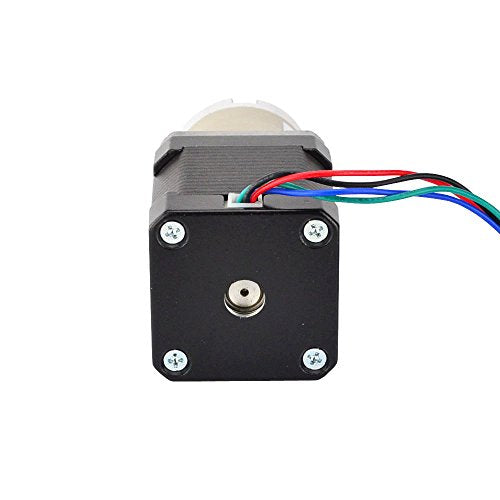

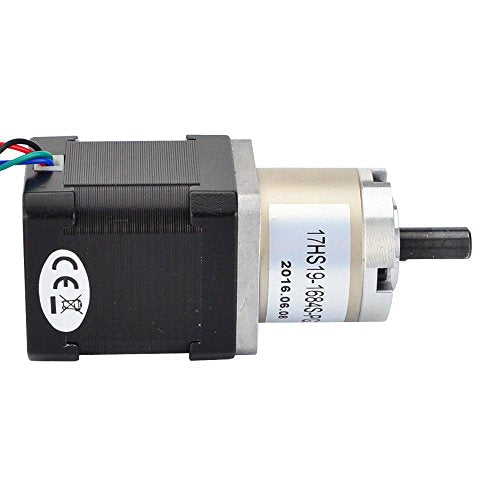

{"id":8115568902324,"title":"STEPPERONLINE Nema 17 Gear Stepper Motor Bipolar L = 48 mm with Gear Ratio 27:1 Planetary Gear for 3D Printer, CNC Machine","handle":"stepperonline-nema-17-gear-stepper-motor-bipolar-l-48-mm-with-gear-ratio-27-1-planetary-gear-for-3d-printer-cnc-machine","description":"\u003ch3\u003eSTEPPERONLINE Nema 17 Gear Stepper Motor Bipolar L = 48 mm with Gear Ratio 27:1 Planetary Gear for 3D Printer, CNC Machine\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eThis Nema 17 stepper motor with 48 mm length and 1.68 A rated current,\nintegrates a planetary gear of 26.85: 1 gear ratio. It is a good solution for\napplications that require low speed and\/or high torque when space is limited.\nElectrical specification: Manufacturer part number: 17HS19-1684S-PG27 Motor\ntype: bipolar Step angle: 0.067 deg. Holding torque without transmission: 44\nNcm (62.31 oz). Current\/phase: 1.68 A. Resistance\/phase: 1.65 ohms. Voltage:\n2.8 V. Inductance: 2.8mH ± 20% (1KHz) Gear specifications: Gear Type:\nPlanetary Gear Ratio: 26.85: 1 Transmission efficiency: 80% Reverse game at no\nload: \u0026lt;=3 deg. Max. Permissible torque: 3 Nm (425 oz.in) Torque: 5 Nm (708\noz.in) Maximum axial load of the shaft: 50N. Maximum radial load of the shaft:\n100 N. Physical Specification Frame size: 42 x 42 mm. Motor length: 48 mm.\nTransmission length: 35 mm. Shaft diameter: 8 mm. Shaft length: 20 mm.\nD-cutting length: 15 mm. Number of conductors: 4. Cable length: 500 mm.\nWeight: 570 g. Connection A+: Black, A-: Green, B+: Red, B-: Blue Warning: As\na stepper motor, it should be connected to a constant current or chopper\ndriver. If you connect the motor directly to a power supply, the motor will be\ndestroyed. Please pay attention to order four wire coils when you connect to\nthe driver, or it will damage your driver.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eHigh torque, good speed\u003c\/li\u003e\n \u003cli\u003e0.067 degree step angle\u003c\/li\u003e\n \u003cli\u003eNEMA 17 Bipolar 4-wire\u003c\/li\u003e\n \u003cli\u003ePlanetary gear ratio 26.85: 1\u003c\/li\u003e\n \u003cli\u003eRated current 1.68A \u0026amp; resistance 1.65ohm\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2026-09-03T00:46:11+10:00","created_at":"2026-09-02T20:06:40+10:00","vendor":"STEPPERONLINE","type":"3D Printer Motors","tags":["industrial_UK_Aug2026"],"price":34200,"price_min":34200,"price_max":34200,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44375658004660,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"uk-B07SPK6SVC","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"STEPPERONLINE Nema 17 Gear Stepper Motor Bipolar L = 48 mm with Gear Ratio 27:1 Planetary Gear for 3D Printer, CNC Machine","public_title":null,"options":["Default Title"],"price":34200,"weight":615,"compare_at_price":null,"inventory_management":"shopify","barcode":"DE-17HS19-1684S-PG27","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/uk-B07SPK6SVC.jpg?v=1788343602","\/\/auspowers.com\/cdn\/shop\/files\/4177rTmBKxL.jpg?v=1788343602","\/\/auspowers.com\/cdn\/shop\/files\/41C4j5XL2qL.jpg?v=1788343602","\/\/auspowers.com\/cdn\/shop\/files\/41X1-v7-7FL.jpg?v=1788343602","\/\/auspowers.com\/cdn\/shop\/files\/41zJxF3gEwL.jpg?v=1788343602"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/uk-B07SPK6SVC.jpg?v=1788343602","options":["Title"],"media":[{"alt":null,"id":33276371763380,"position":1,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/uk-B07SPK6SVC.jpg?v=1788343602"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/uk-B07SPK6SVC.jpg?v=1788343602","width":500},{"alt":null,"id":33276371796148,"position":2,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/4177rTmBKxL.jpg?v=1788343602"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/4177rTmBKxL.jpg?v=1788343602","width":500},{"alt":null,"id":33276371828916,"position":3,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/41C4j5XL2qL.jpg?v=1788343602"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/41C4j5XL2qL.jpg?v=1788343602","width":500},{"alt":null,"id":33276371861684,"position":4,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/41X1-v7-7FL.jpg?v=1788343602"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/41X1-v7-7FL.jpg?v=1788343602","width":500},{"alt":null,"id":33276371894452,"position":5,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/41zJxF3gEwL.jpg?v=1788343602"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/41zJxF3gEwL.jpg?v=1788343602","width":500}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eSTEPPERONLINE Nema 17 Gear Stepper Motor Bipolar L = 48 mm with Gear Ratio 27:1 Planetary Gear for 3D Printer, CNC Machine\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eThis Nema 17 stepper motor with 48 mm length and 1.68 A rated current,\nintegrates a planetary gear of 26.85: 1 gear ratio. It is a good solution for\napplications that require low speed and\/or high torque when space is limited.\nElectrical specification: Manufacturer part number: 17HS19-1684S-PG27 Motor\ntype: bipolar Step angle: 0.067 deg. Holding torque without transmission: 44\nNcm (62.31 oz). Current\/phase: 1.68 A. Resistance\/phase: 1.65 ohms. Voltage:\n2.8 V. Inductance: 2.8mH ± 20% (1KHz) Gear specifications: Gear Type:\nPlanetary Gear Ratio: 26.85: 1 Transmission efficiency: 80% Reverse game at no\nload: \u0026lt;=3 deg. Max. Permissible torque: 3 Nm (425 oz.in) Torque: 5 Nm (708\noz.in) Maximum axial load of the shaft: 50N. Maximum radial load of the shaft:\n100 N. Physical Specification Frame size: 42 x 42 mm. Motor length: 48 mm.\nTransmission length: 35 mm. Shaft diameter: 8 mm. Shaft length: 20 mm.\nD-cutting length: 15 mm. Number of conductors: 4. Cable length: 500 mm.\nWeight: 570 g. Connection A+: Black, A-: Green, B+: Red, B-: Blue Warning: As\na stepper motor, it should be connected to a constant current or chopper\ndriver. If you connect the motor directly to a power supply, the motor will be\ndestroyed. Please pay attention to order four wire coils when you connect to\nthe driver, or it will damage your driver.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eHigh torque, good speed\u003c\/li\u003e\n \u003cli\u003e0.067 degree step angle\u003c\/li\u003e\n \u003cli\u003eNEMA 17 Bipolar 4-wire\u003c\/li\u003e\n \u003cli\u003ePlanetary gear ratio 26.85: 1\u003c\/li\u003e\n \u003cli\u003eRated current 1.68A \u0026amp; resistance 1.65ohm\u003c\/li\u003e\n \u003c\/ul\u003e"}
