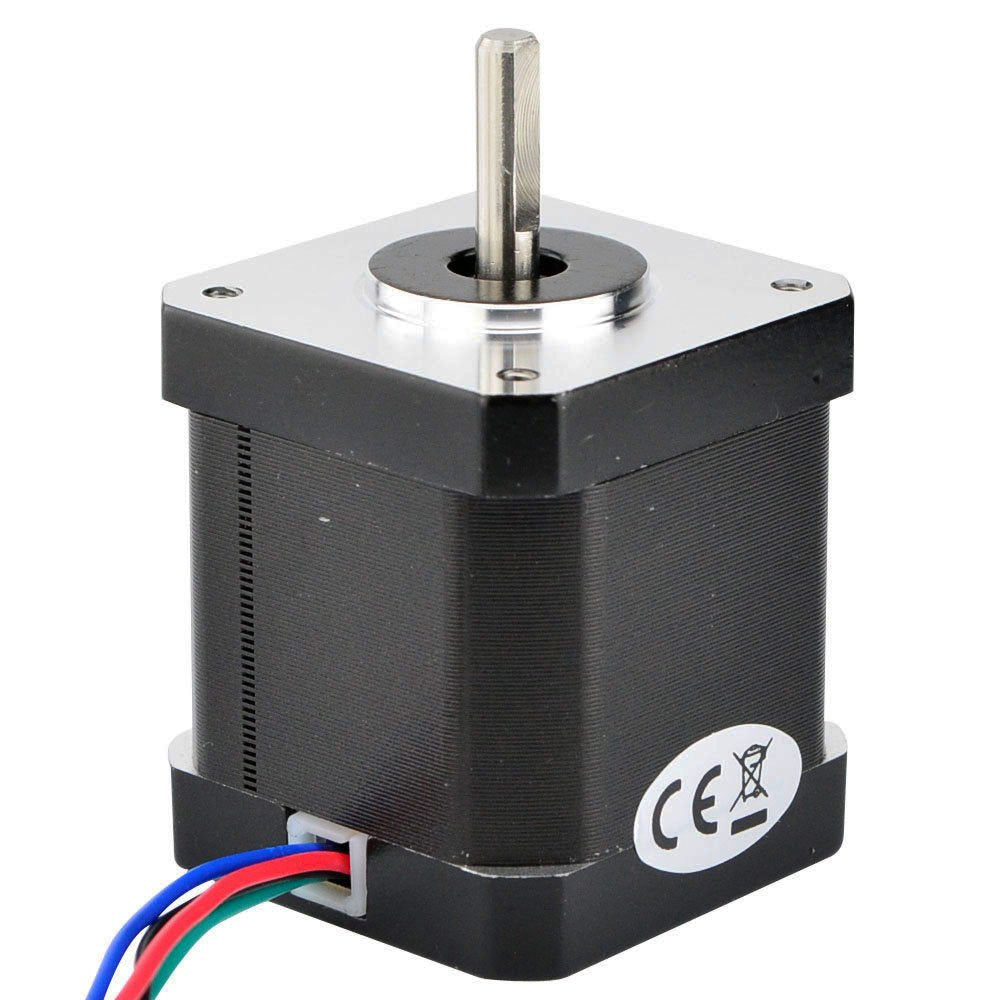

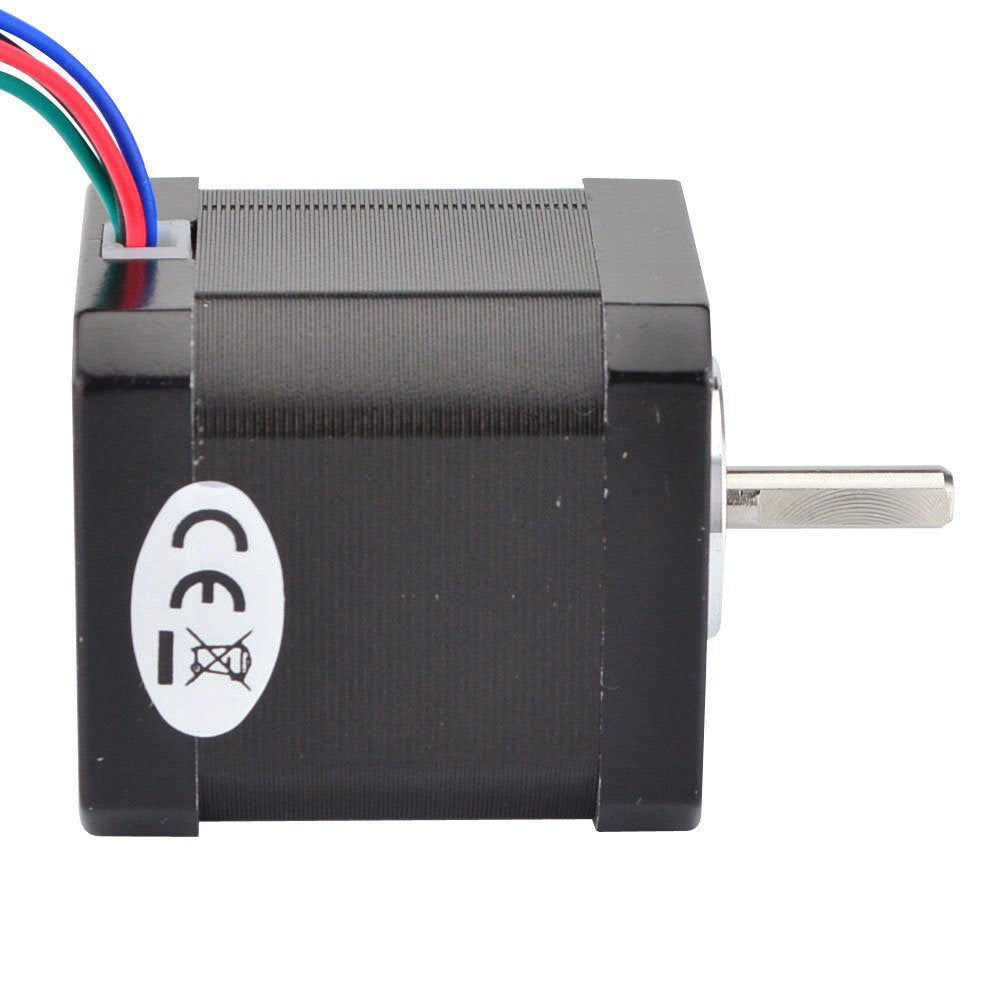

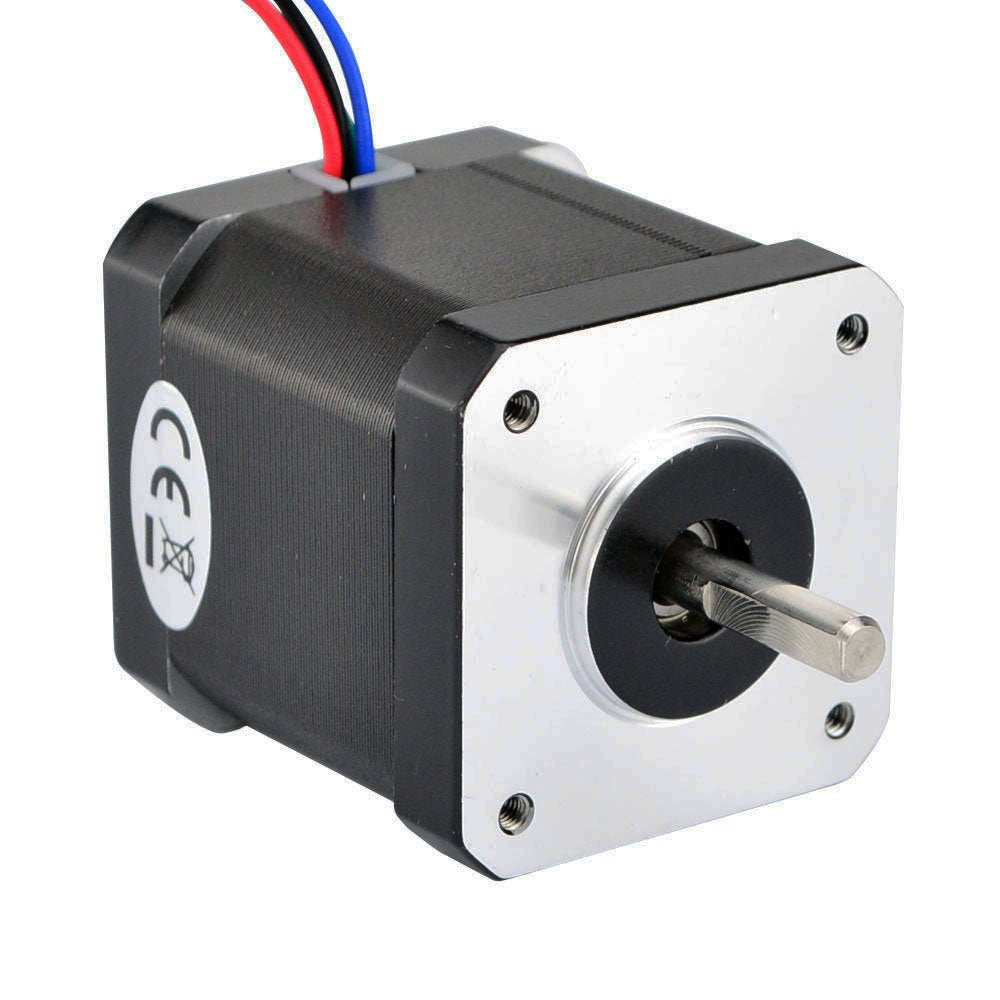

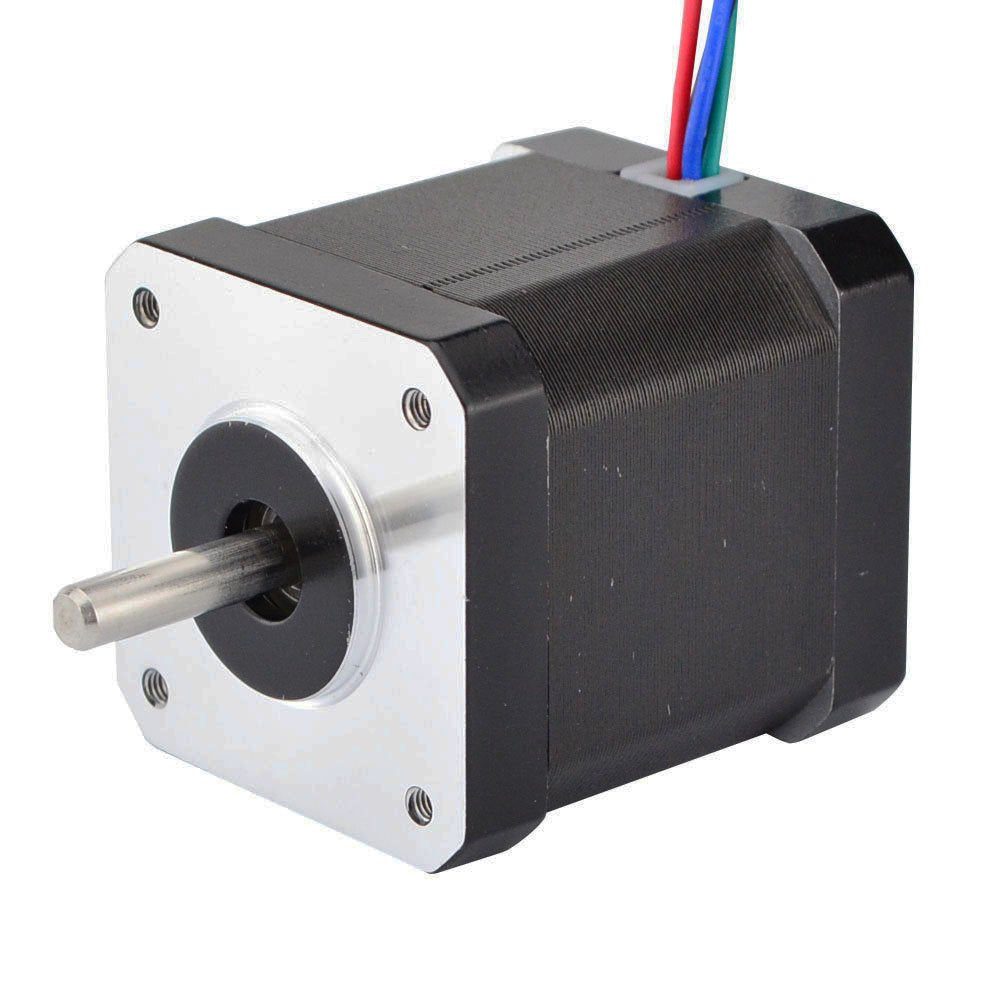

{"id":7164432548020,"title":"STEPPERONLINE Nema 17 Bipolar Stepper 0.9deg(400 steps\/rev) 1.68A 44Ncm(62.3oz.in) Motor","handle":"stepperonline-nema-17-bipolar-stepper-0-9deg400-steps-rev-1-68a-44ncm62-3oz-in-motor","description":"\u003ch3\u003eSTEPPERONLINE Nema 17 Bipolar Stepper 0.9deg(400 steps\/rev) 1.68A 44Ncm(62.3oz.in) Motor\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eThis is high precision bipolar Nema 17 stepper motor with 0.9 deg. step angle\n(400 steps\/revolution). Each phase draws current 1.68A, allowing for a holding\ntorque of 44Ncm(62.3oz.in). Electrical Specification: Manufacturer Part\nNumber: 17HM19-1684S Motor Type: Bipolar Stepper Step Angle: 0.9 deg. \nHolding Torque: 44Ncm(62.3oz.in) Rated Current\/phase: 1.68A Phase\nResistance: 1.65ohms Inductance: 4.1mH+\/-20%(1KHz) Physical Specification: \nFrame Size: 42 x 42mm Body Length: 47mm Shaft Diameter: 5mm Shaft\nLength: 20mm D-cut Length: 15mm Number of Leads: 4 Lead Length: 500mm \nWeight: 370g Connection: Black(A+), Green(A-), Red(B+), Blue(B-) Warning: Make\nsure the motor connect to a constant current or chopper drive controller\nbefore you test motor. Connecting the motor directly to a power supply will\ndestroy the motor.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eFine Resolution High Torque\u003c\/li\u003e\n \u003cli\u003e44Ncm(62.3oz.in) holding torque\u003c\/li\u003e\n \u003cli\u003eNEMA 17 bipolar 1.65\"x1.65\"x1.85\" 4-wire\u003c\/li\u003e\n \u003cli\u003e0.9 deg. step angle(400 steps\/rev)\u003c\/li\u003e\n \u003cli\u003eRated current 1.68A \u0026amp; resistance 1.65ohms\u003c\/li\u003e\n \u003c\/ul\u003e\n\n","published_at":"2022-06-22T05:38:47+10:00","created_at":"2022-06-22T05:38:52+10:00","vendor":"STEPPERONLINE","type":"Mounts","tags":["industrial"],"price":18800,"price_min":18800,"price_max":18800,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":41597833216180,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B00PNEQMLY","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"STEPPERONLINE Nema 17 Bipolar Stepper 0.9deg(400 steps\/rev) 1.68A 44Ncm(62.3oz.in) Motor","public_title":null,"options":["Default Title"],"price":18800,"weight":408,"compare_at_price":null,"inventory_management":null,"barcode":"701056306435","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/products\/B00PNEQMLY.jpg?v=1655881533","\/\/auspowers.com\/cdn\/shop\/products\/61Kt8QZS2PL.jpg?v=1655840333","\/\/auspowers.com\/cdn\/shop\/products\/61r7MUi1q-L.jpg?v=1655840333","\/\/auspowers.com\/cdn\/shop\/products\/61iK4SoSNYL.jpg?v=1655840333","\/\/auspowers.com\/cdn\/shop\/products\/41BJoNEeALL.jpg?v=1655840333","\/\/auspowers.com\/cdn\/shop\/products\/31cKfwDcIqL_e5d4433c-0a2c-4151-9354-e449009e0b09.jpg?v=1655840333"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/products\/B00PNEQMLY.jpg?v=1655881533","options":["Title"],"media":[{"alt":"[Australia - AusPower] - STEPPERONLINE Nema 17 Bipolar Stepper 0.9deg(400 steps\/rev) 1.68A 44Ncm(62.3oz.in) Motor ","id":26241772355764,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/products\/B00PNEQMLY.jpg?v=1655881533"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/B00PNEQMLY.jpg?v=1655881533","width":1000},{"alt":"[Australia - AusPower] - STEPPERONLINE Nema 17 Bipolar Stepper 0.9deg(400 steps\/rev) 1.68A 44Ncm(62.3oz.in) Motor ","id":26234623983796,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/products\/61Kt8QZS2PL.jpg?v=1655840333"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/61Kt8QZS2PL.jpg?v=1655840333","width":1000},{"alt":"[Australia - AusPower] - STEPPERONLINE Nema 17 Bipolar Stepper 0.9deg(400 steps\/rev) 1.68A 44Ncm(62.3oz.in) Motor ","id":26234624016564,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/products\/61r7MUi1q-L.jpg?v=1655840333"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/61r7MUi1q-L.jpg?v=1655840333","width":1000},{"alt":"[Australia - AusPower] - STEPPERONLINE Nema 17 Bipolar Stepper 0.9deg(400 steps\/rev) 1.68A 44Ncm(62.3oz.in) Motor ","id":26234624049332,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/products\/61iK4SoSNYL.jpg?v=1655840333"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/61iK4SoSNYL.jpg?v=1655840333","width":1000},{"alt":"[Australia - AusPower] - STEPPERONLINE Nema 17 Bipolar Stepper 0.9deg(400 steps\/rev) 1.68A 44Ncm(62.3oz.in) Motor ","id":26234624082100,"position":5,"preview_image":{"aspect_ratio":2.066,"height":242,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/products\/41BJoNEeALL.jpg?v=1655840333"},"aspect_ratio":2.066,"height":242,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/41BJoNEeALL.jpg?v=1655840333","width":500},{"alt":"[Australia - AusPower] - STEPPERONLINE Nema 17 Bipolar Stepper 0.9deg(400 steps\/rev) 1.68A 44Ncm(62.3oz.in) Motor ","id":26234624114868,"position":6,"preview_image":{"aspect_ratio":2.632,"height":190,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/products\/31cKfwDcIqL_e5d4433c-0a2c-4151-9354-e449009e0b09.jpg?v=1655840333"},"aspect_ratio":2.632,"height":190,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/31cKfwDcIqL_e5d4433c-0a2c-4151-9354-e449009e0b09.jpg?v=1655840333","width":500}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eSTEPPERONLINE Nema 17 Bipolar Stepper 0.9deg(400 steps\/rev) 1.68A 44Ncm(62.3oz.in) Motor\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eThis is high precision bipolar Nema 17 stepper motor with 0.9 deg. step angle\n(400 steps\/revolution). Each phase draws current 1.68A, allowing for a holding\ntorque of 44Ncm(62.3oz.in). Electrical Specification: Manufacturer Part\nNumber: 17HM19-1684S Motor Type: Bipolar Stepper Step Angle: 0.9 deg. \nHolding Torque: 44Ncm(62.3oz.in) Rated Current\/phase: 1.68A Phase\nResistance: 1.65ohms Inductance: 4.1mH+\/-20%(1KHz) Physical Specification: \nFrame Size: 42 x 42mm Body Length: 47mm Shaft Diameter: 5mm Shaft\nLength: 20mm D-cut Length: 15mm Number of Leads: 4 Lead Length: 500mm \nWeight: 370g Connection: Black(A+), Green(A-), Red(B+), Blue(B-) Warning: Make\nsure the motor connect to a constant current or chopper drive controller\nbefore you test motor. Connecting the motor directly to a power supply will\ndestroy the motor.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eFine Resolution High Torque\u003c\/li\u003e\n \u003cli\u003e44Ncm(62.3oz.in) holding torque\u003c\/li\u003e\n \u003cli\u003eNEMA 17 bipolar 1.65\"x1.65\"x1.85\" 4-wire\u003c\/li\u003e\n \u003cli\u003e0.9 deg. step angle(400 steps\/rev)\u003c\/li\u003e\n \u003cli\u003eRated current 1.68A \u0026amp; resistance 1.65ohms\u003c\/li\u003e\n \u003c\/ul\u003e\n\n"}
