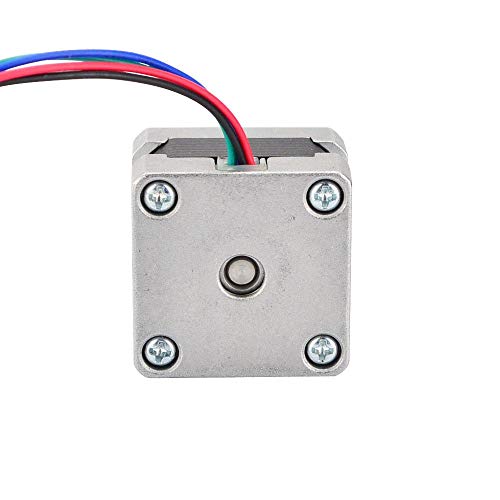

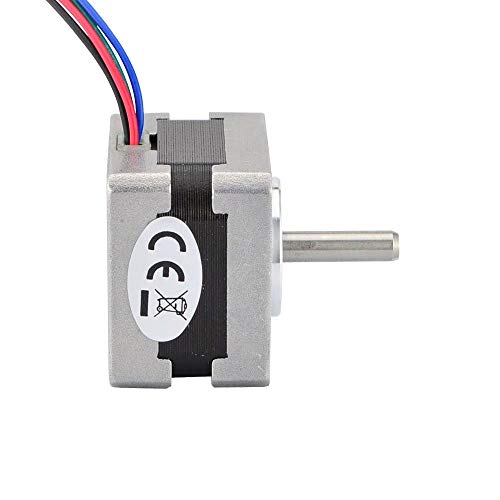

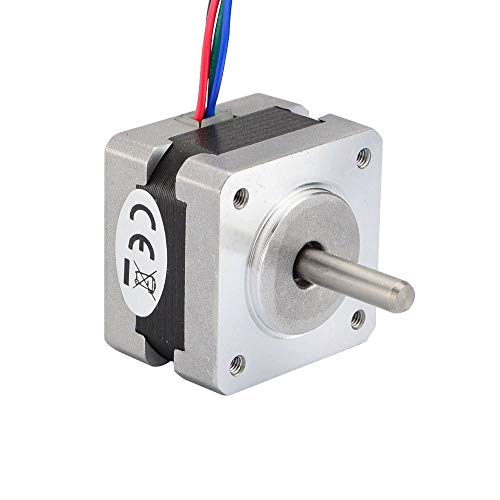

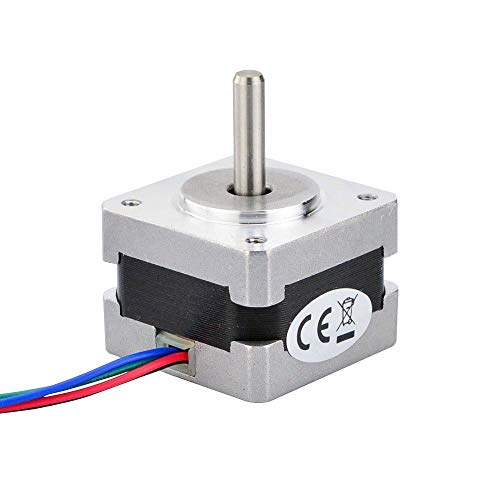

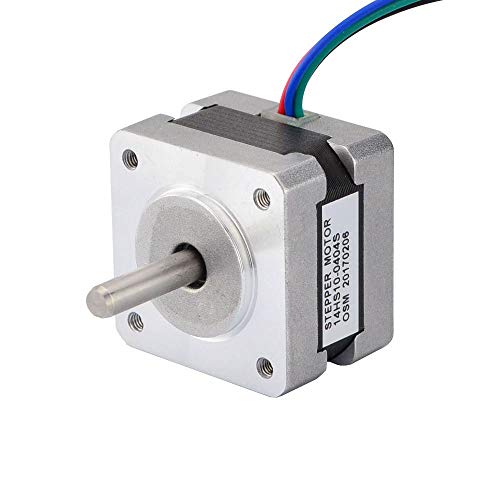

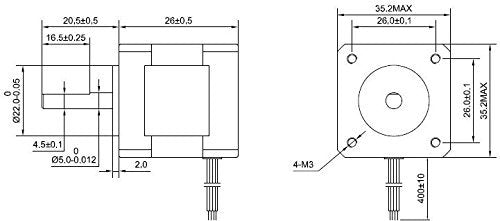

{"id":8115613139124,"title":"STEPPERONLINE Nema 14 Stepper Motor 1.8 deg 14Ncm 0.4A 4-lead 35x35x26mm for DIY 3D Printer Extruder","handle":"stepperonline-nema-14-stepper-motor-1-8-deg-14ncm-0-4a-4-lead-35x35x26mm-for-diy-3d-printer-extruder","description":"\u003ch3\u003eSTEPPERONLINE Nema 14 Stepper Motor 1.8 deg 14Ncm 0.4A 4-lead 35x35x26mm for DIY 3D Printer Extruder\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eThis bipolar Nema 14 stepper motor with step angle 1.8deg and size 35x35x26mm.\nIt has 4 wires, each phase draws 0.4A at 12V, with holding torque 14Ncm\n(20oz.in). Electrical Specification Manufacturer Part Number: 14HS10-0404S\nMotor Type: Bipolar Stepper Step Angle: 1.8 deg Holding Torque:\n14Ncm(20oz.in) Rated Current\/phase: 0.4A Voltage: 12V Phase Resistance:\n30ohms Inductance : 30mH ± 20%(1KHz) Physical Specification Frame Size: 35\nx 35mm Body Length: 26mm Shaft Diameter: Φ5mm Shaft Length: 20.5mm D-cut\nLength: 16.5mm Number of Leads: 4 Lead Length: 400mm Weight : 140g\nConnection Black(A+), Green(A-), Red(B+), Blue(B-) Warning: Make sure the\nmotor connect to a constant current or chopper drive controller before you\ntest motor. Connecting the motor directly to a power supply will destroy the\nmotor.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eShort Height Good Torque\u003c\/li\u003e\n \u003cli\u003eNEMA-14 bipolar 26mm 4-wire\u003c\/li\u003e\n \u003cli\u003e1.8 step angle(200 steps\/rev)\u003c\/li\u003e\n \u003cli\u003eRated current 0.4A \u0026amp; resistance 30ohms\u003c\/li\u003e\n \u003cli\u003e14Ncm(20oz.in) holding torque\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2026-09-03T00:33:34+10:00","created_at":"2026-09-02T20:22:45+10:00","vendor":"STEPPERONLINE","type":"3D Printer Motors","tags":["industrial_UK_Aug2026"],"price":21800,"price_min":21800,"price_max":21800,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44375702798516,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"uk-B00PNEPQ8E","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"STEPPERONLINE Nema 14 Stepper Motor 1.8 deg 14Ncm 0.4A 4-lead 35x35x26mm for DIY 3D Printer Extruder","public_title":null,"options":["Default Title"],"price":21800,"weight":150,"compare_at_price":null,"inventory_management":"shopify","barcode":"701056365364","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/uk-B00PNEPQ8E.jpg?v=1788344567","\/\/auspowers.com\/cdn\/shop\/files\/41u5RG1LTfL.jpg?v=1788344567","\/\/auspowers.com\/cdn\/shop\/files\/41W6JBGPrmL.jpg?v=1788344567","\/\/auspowers.com\/cdn\/shop\/files\/41YRu7kL9xL.jpg?v=1788344567","\/\/auspowers.com\/cdn\/shop\/files\/41GBDpjCy0L.jpg?v=1788344567","\/\/auspowers.com\/cdn\/shop\/files\/41P46Bn5MxL.jpg?v=1788344567","\/\/auspowers.com\/cdn\/shop\/files\/31jOMrsSxTL.jpg?v=1788344566"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/uk-B00PNEPQ8E.jpg?v=1788344567","options":["Title"],"media":[{"alt":null,"id":33276649504948,"position":1,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/uk-B00PNEPQ8E.jpg?v=1788344567"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/uk-B00PNEPQ8E.jpg?v=1788344567","width":500},{"alt":null,"id":33276649537716,"position":2,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/41u5RG1LTfL.jpg?v=1788344567"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/41u5RG1LTfL.jpg?v=1788344567","width":500},{"alt":null,"id":33276649570484,"position":3,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/41W6JBGPrmL.jpg?v=1788344567"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/41W6JBGPrmL.jpg?v=1788344567","width":500},{"alt":null,"id":33276649603252,"position":4,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/41YRu7kL9xL.jpg?v=1788344567"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/41YRu7kL9xL.jpg?v=1788344567","width":500},{"alt":null,"id":33276649636020,"position":5,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/41GBDpjCy0L.jpg?v=1788344567"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/41GBDpjCy0L.jpg?v=1788344567","width":500},{"alt":null,"id":33276649668788,"position":6,"preview_image":{"aspect_ratio":2.262,"height":221,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/41P46Bn5MxL.jpg?v=1788344567"},"aspect_ratio":2.262,"height":221,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/41P46Bn5MxL.jpg?v=1788344567","width":500},{"alt":null,"id":33276649701556,"position":7,"preview_image":{"aspect_ratio":2.632,"height":190,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/31jOMrsSxTL.jpg?v=1788344566"},"aspect_ratio":2.632,"height":190,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/31jOMrsSxTL.jpg?v=1788344566","width":500}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eSTEPPERONLINE Nema 14 Stepper Motor 1.8 deg 14Ncm 0.4A 4-lead 35x35x26mm for DIY 3D Printer Extruder\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eThis bipolar Nema 14 stepper motor with step angle 1.8deg and size 35x35x26mm.\nIt has 4 wires, each phase draws 0.4A at 12V, with holding torque 14Ncm\n(20oz.in). Electrical Specification Manufacturer Part Number: 14HS10-0404S\nMotor Type: Bipolar Stepper Step Angle: 1.8 deg Holding Torque:\n14Ncm(20oz.in) Rated Current\/phase: 0.4A Voltage: 12V Phase Resistance:\n30ohms Inductance : 30mH ± 20%(1KHz) Physical Specification Frame Size: 35\nx 35mm Body Length: 26mm Shaft Diameter: Φ5mm Shaft Length: 20.5mm D-cut\nLength: 16.5mm Number of Leads: 4 Lead Length: 400mm Weight : 140g\nConnection Black(A+), Green(A-), Red(B+), Blue(B-) Warning: Make sure the\nmotor connect to a constant current or chopper drive controller before you\ntest motor. Connecting the motor directly to a power supply will destroy the\nmotor.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eShort Height Good Torque\u003c\/li\u003e\n \u003cli\u003eNEMA-14 bipolar 26mm 4-wire\u003c\/li\u003e\n \u003cli\u003e1.8 step angle(200 steps\/rev)\u003c\/li\u003e\n \u003cli\u003eRated current 0.4A \u0026amp; resistance 30ohms\u003c\/li\u003e\n \u003cli\u003e14Ncm(20oz.in) holding torque\u003c\/li\u003e\n \u003c\/ul\u003e"}
