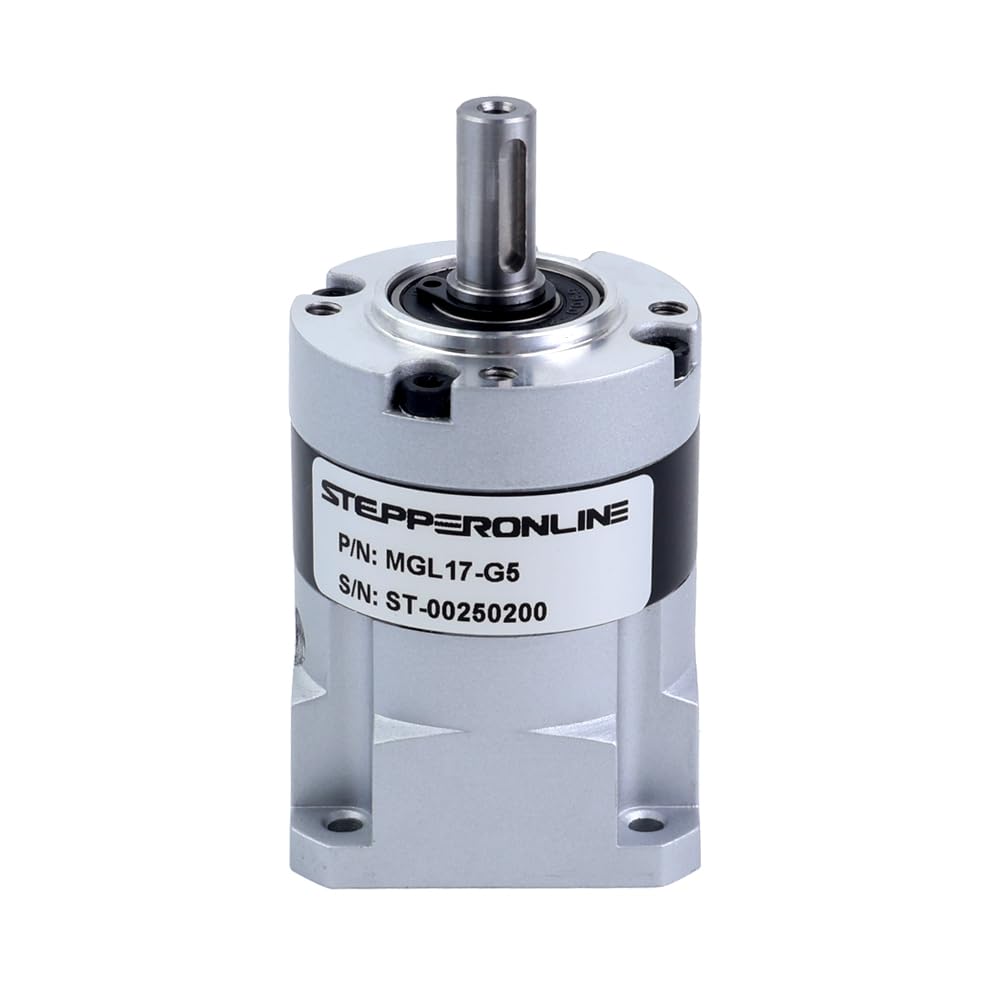

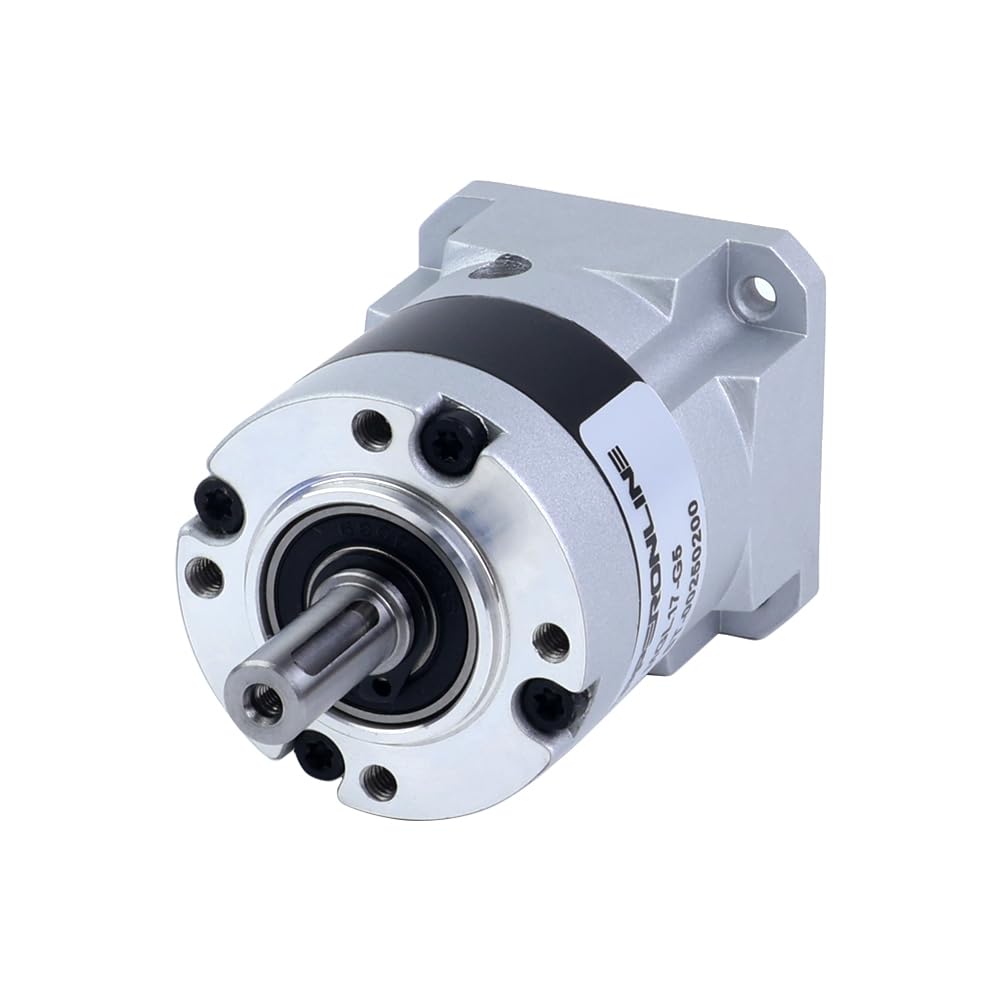

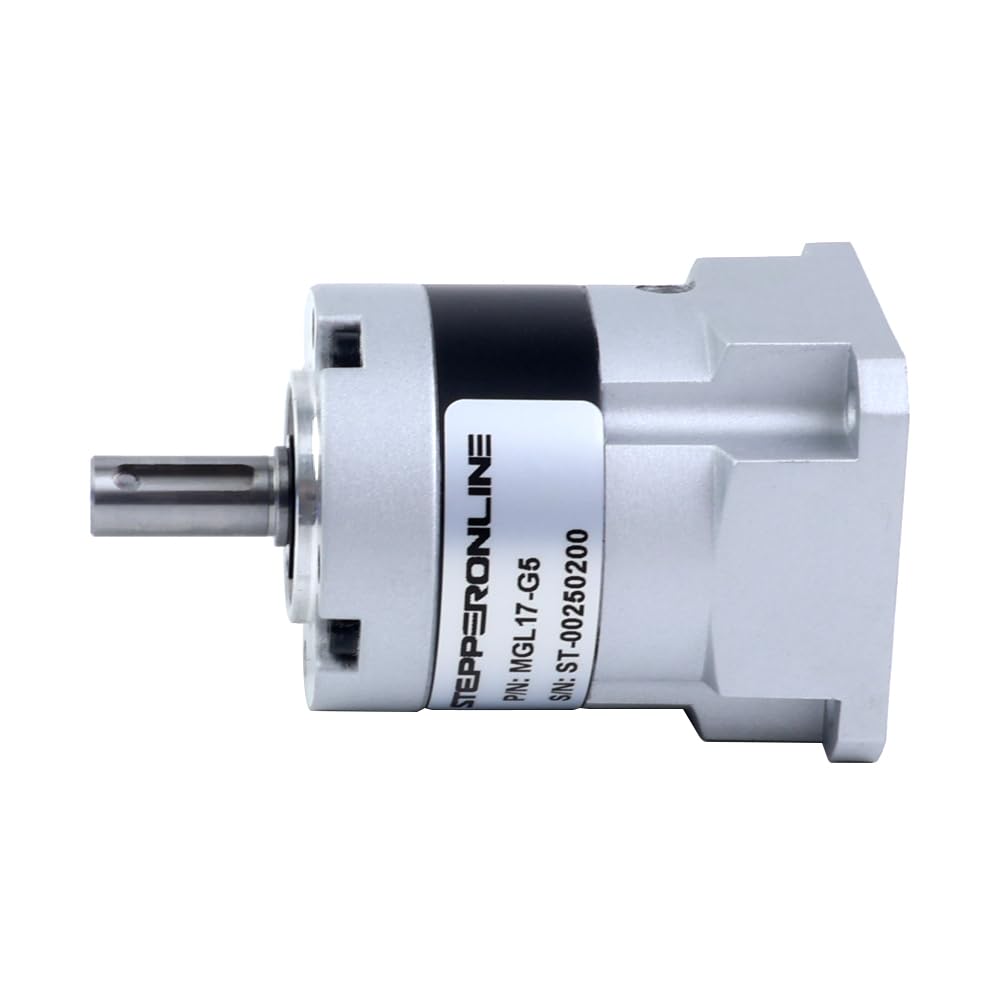

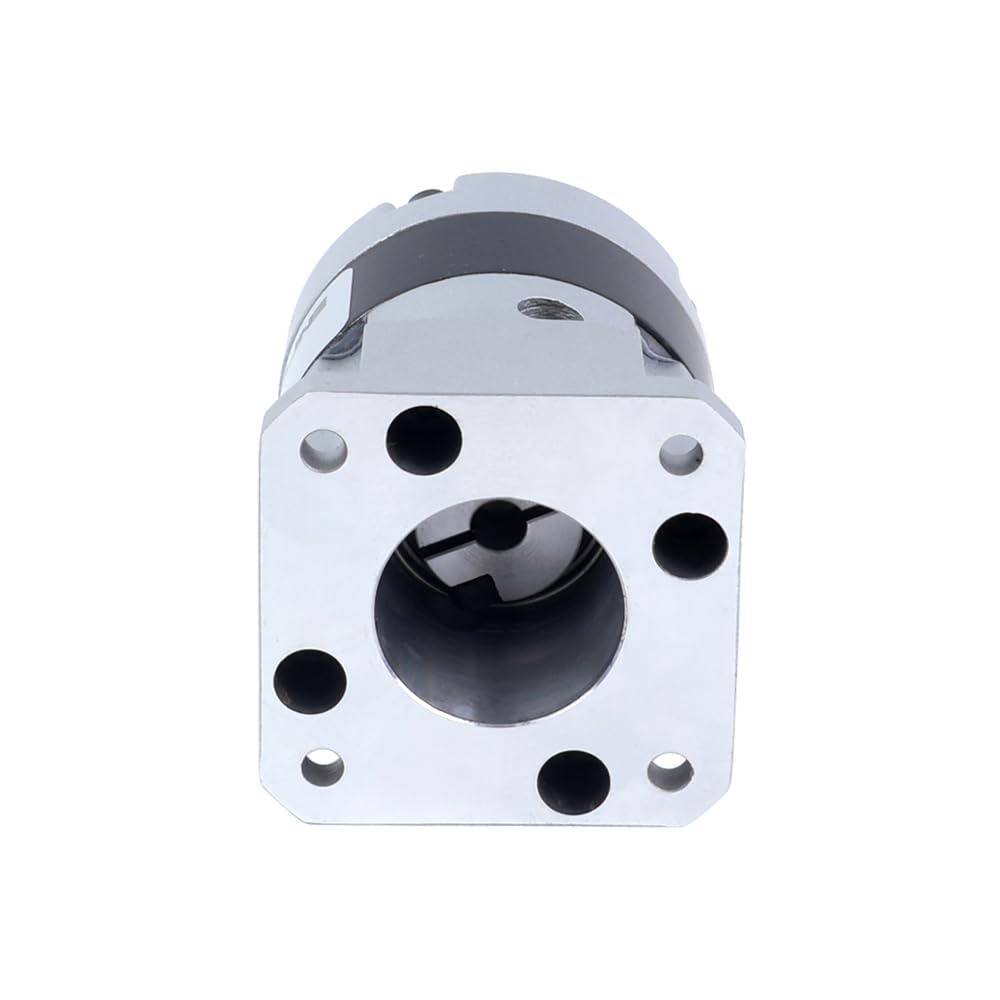

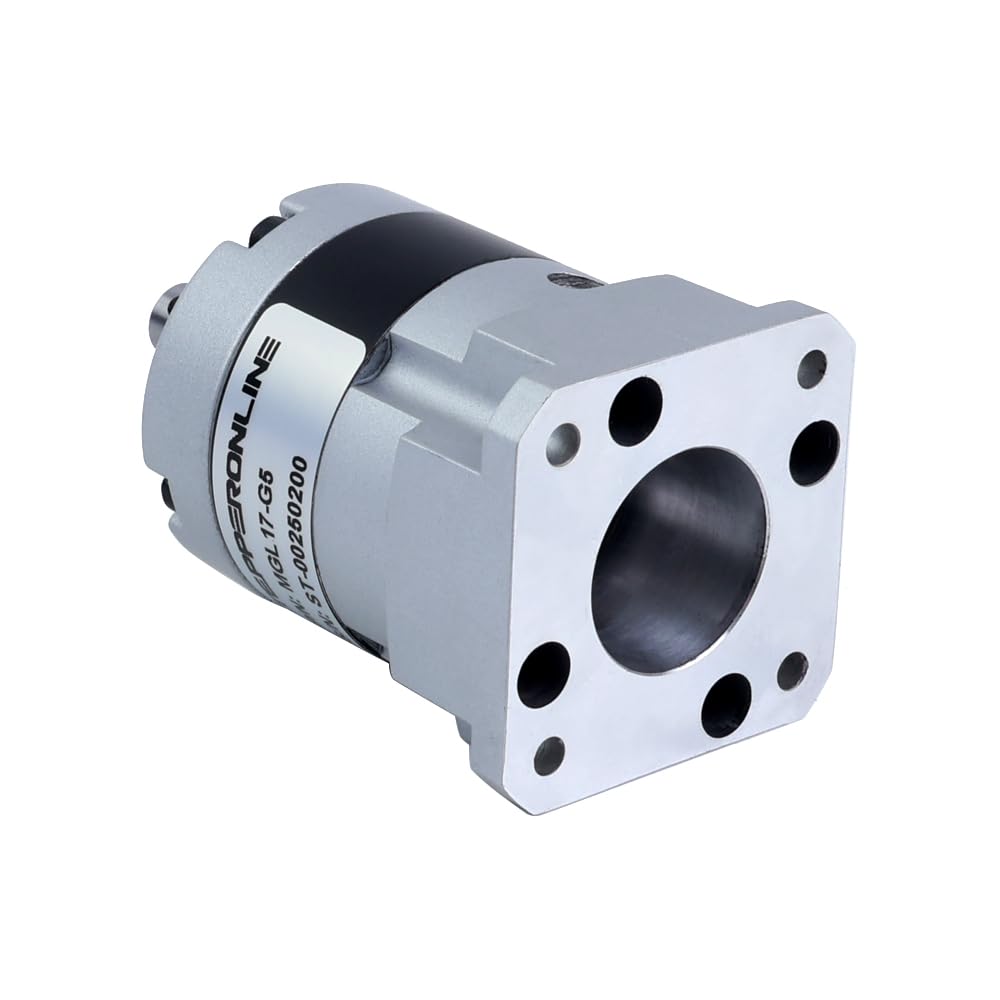

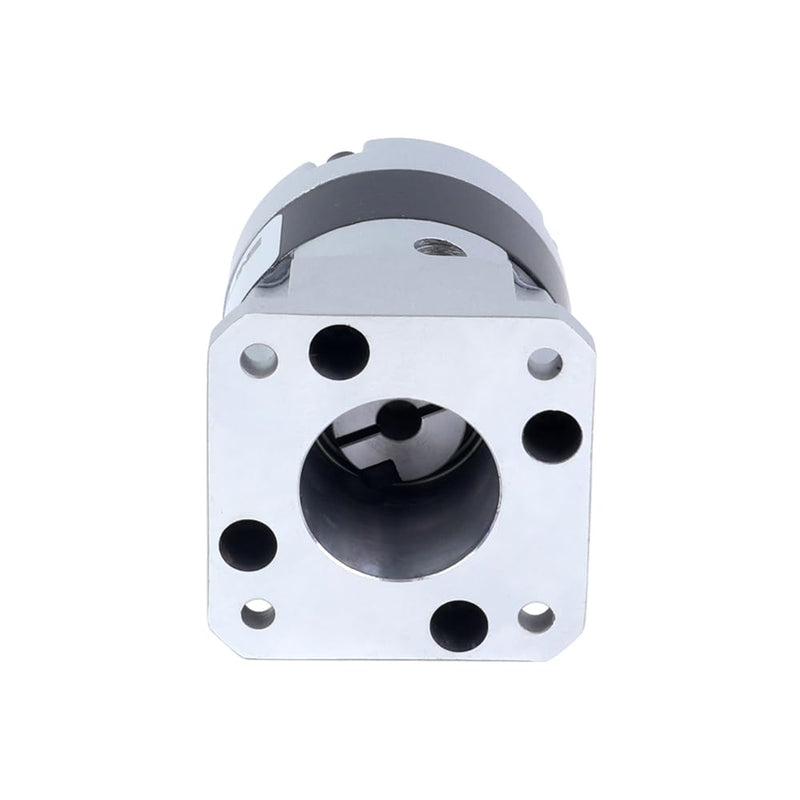

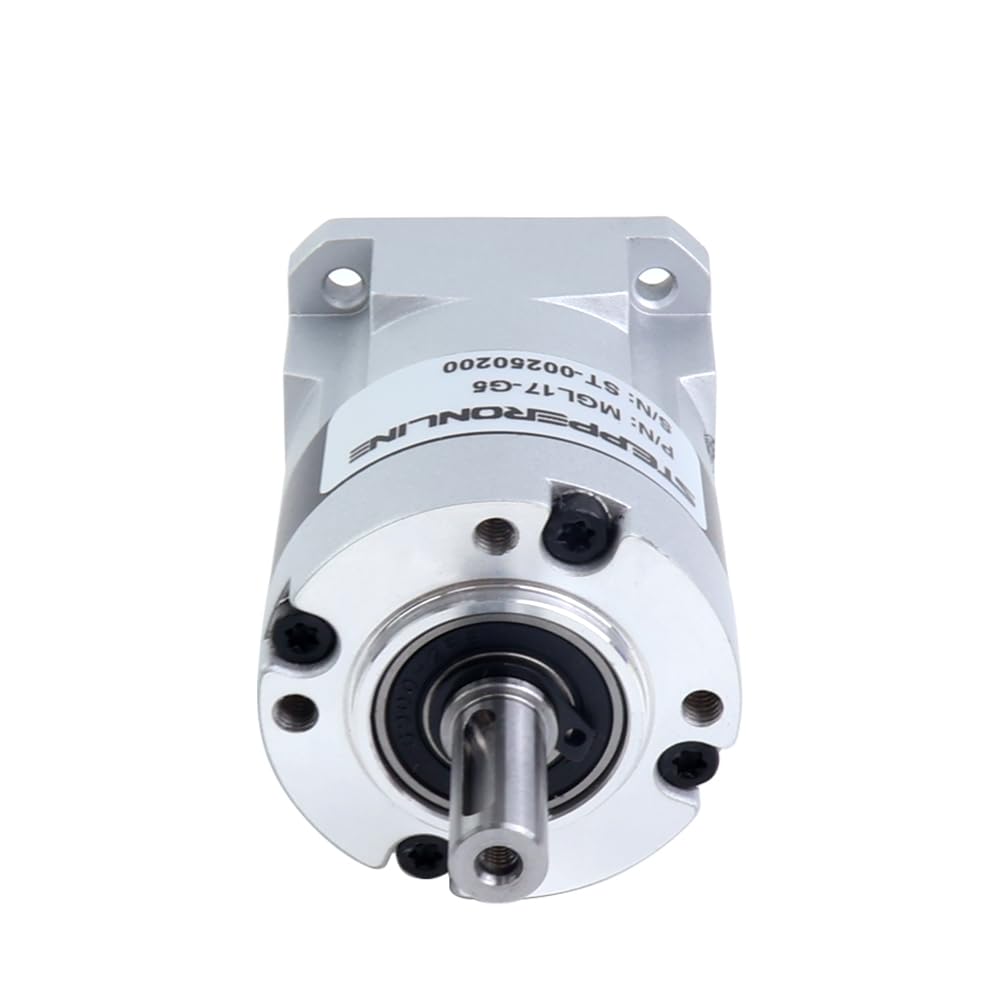

{"id":7960647631028,"title":"STEPPERONLINE MGL Series Planetary Gearbox Gear Ratio 5:1 Backlash 30arc-min for 5mm Shaft Standard Nema 17 Stepper Motor","handle":"stepperonline-mgl-series-planetary-gearbox-gear-ratio-5-1-backlash-30arc-min-for-5mm-shaft-standard-nema-17-stepper-motor","description":"\u003ch3\u003eSTEPPERONLINE MGL Series Planetary Gearbox Gear Ratio 5:1 Backlash 30arc-min for 5mm Shaft Standard Nema 17 Stepper Motor\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eThe MGL series high-precision planetary gearboxes of the MGL series offers a\ngear ratio of 5:1 and a maximum backlash of 30arc-min. In contrast to the MG\nseries, the MGL series is specially designed to support standard Nema 17\nmotors with standard shafts and therefore offers greater flexibility in the\ncombination of motor and gearbox. This in-line planetary gearbox is equipped\nwith a built-in input shaft coupling that ensures compatibility with standard\n5mm diameter shafts used in Nema 17 stepper motors, brushless DC motors and\nbrushed DC motors. Gearbox Specifications Part Number: MGL17-G5 Gearbox\nType: Spur Planetary Gear Material: Powder Metallurgy Gear Ratio: 5:1\nEfficiency: 90% Rotor Inertia: 0.03kg·cm² Backlash at No-load: ≤30arcmin\nMaximum Permissible Torque: 9Nm(79.66lb-in) Moment Permissible Torque:\n18Nm(159.31lb-in) Shaft Maximum Axial Load: 100N Shaft Maximum Radial Load:\n300N Noise: ≤55dB Waterproof Rating: IP54 Lifetime: 20000hours Physical\nSpecifications Frame Size: 42 x 42mm Gearbox Length: 55mm Rated Input\nSpeed: 1000rpm Maximum Input Speed: 2000rpm Output Shaft Type: KeyWay\nOutput Shaft Diameter: φ8mm Output Shaft Length: 21.5mm Input Shaft\nDiameter: φ5mm Input Shaft Length: 21.5-25mm\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eThis MGL series gearboxes are ideally suited for standard Nema 17 motors featuring a long shaft length of 21.5-25mm.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-06-25T00:58:19+10:00","created_at":"2025-06-25T00:58:16+10:00","vendor":"STEPPERONLINE","type":"Gearboxes, Gearheads \u0026 Speed Reducers","tags":["industrial_best_sellers_Jun2025"],"price":23100,"price_min":23100,"price_max":23100,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":43956944273588,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B0DZGVDD5D","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"STEPPERONLINE MGL Series Planetary Gearbox Gear Ratio 5:1 Backlash 30arc-min for 5mm Shaft Standard Nema 17 Stepper Motor","public_title":null,"options":["Default Title"],"price":23100,"weight":330,"compare_at_price":null,"inventory_management":"shopify","barcode":"MGL17-G5","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/B0DZGVDD5D.jpg?v=1775758191","\/\/auspowers.com\/cdn\/shop\/files\/41B0Z9GAXvL.jpg?v=1750777098","\/\/auspowers.com\/cdn\/shop\/files\/51_cIGUCqRL.jpg?v=1750777098","\/\/auspowers.com\/cdn\/shop\/files\/41bl-pkuV2L.jpg?v=1750777098","\/\/auspowers.com\/cdn\/shop\/files\/51yaWbB7xLL.jpg?v=1750777098","\/\/auspowers.com\/cdn\/shop\/files\/51z9iO4MMGL.jpg?v=1750777098","\/\/auspowers.com\/cdn\/shop\/files\/31kzozbHrpL.jpg?v=1750777098"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/B0DZGVDD5D.jpg?v=1775758191","options":["Title"],"media":[{"alt":"[Australia - AusPower] - STEPPERONLINE MGL Series Planetary Gearbox Gear Ratio 5:1 Backlash 30arc-min for 5mm Shaft Standard Nema 17 Stepper Motor ","id":31730930286772,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/B0DZGVDD5D.jpg?v=1775758191"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/B0DZGVDD5D.jpg?v=1775758191","width":1000},{"alt":"[Australia - AusPower] - STEPPERONLINE MGL Series Planetary Gearbox Gear Ratio 5:1 Backlash 30arc-min for 5mm Shaft Standard Nema 17 Stepper Motor ","id":31730930319540,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/41B0Z9GAXvL.jpg?v=1750777098"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/41B0Z9GAXvL.jpg?v=1750777098","width":1000},{"alt":"[Australia - AusPower] - STEPPERONLINE MGL Series Planetary Gearbox Gear Ratio 5:1 Backlash 30arc-min for 5mm Shaft Standard Nema 17 Stepper Motor ","id":31730930352308,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51_cIGUCqRL.jpg?v=1750777098"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51_cIGUCqRL.jpg?v=1750777098","width":1000},{"alt":"[Australia - AusPower] - STEPPERONLINE MGL Series Planetary Gearbox Gear Ratio 5:1 Backlash 30arc-min for 5mm Shaft Standard Nema 17 Stepper Motor ","id":31730930385076,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/41bl-pkuV2L.jpg?v=1750777098"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/41bl-pkuV2L.jpg?v=1750777098","width":1000},{"alt":"[Australia - AusPower] - STEPPERONLINE MGL Series Planetary Gearbox Gear Ratio 5:1 Backlash 30arc-min for 5mm Shaft Standard Nema 17 Stepper Motor ","id":31730930417844,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51yaWbB7xLL.jpg?v=1750777098"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51yaWbB7xLL.jpg?v=1750777098","width":1000},{"alt":"[Australia - AusPower] - STEPPERONLINE MGL Series Planetary Gearbox Gear Ratio 5:1 Backlash 30arc-min for 5mm Shaft Standard Nema 17 Stepper Motor ","id":31730930450612,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51z9iO4MMGL.jpg?v=1750777098"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51z9iO4MMGL.jpg?v=1750777098","width":1000},{"alt":"[Australia - AusPower] - STEPPERONLINE MGL Series Planetary Gearbox Gear Ratio 5:1 Backlash 30arc-min for 5mm Shaft Standard Nema 17 Stepper Motor ","id":31730930483380,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/31kzozbHrpL.jpg?v=1750777098"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/31kzozbHrpL.jpg?v=1750777098","width":1000}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eSTEPPERONLINE MGL Series Planetary Gearbox Gear Ratio 5:1 Backlash 30arc-min for 5mm Shaft Standard Nema 17 Stepper Motor\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eThe MGL series high-precision planetary gearboxes of the MGL series offers a\ngear ratio of 5:1 and a maximum backlash of 30arc-min. In contrast to the MG\nseries, the MGL series is specially designed to support standard Nema 17\nmotors with standard shafts and therefore offers greater flexibility in the\ncombination of motor and gearbox. This in-line planetary gearbox is equipped\nwith a built-in input shaft coupling that ensures compatibility with standard\n5mm diameter shafts used in Nema 17 stepper motors, brushless DC motors and\nbrushed DC motors. Gearbox Specifications Part Number: MGL17-G5 Gearbox\nType: Spur Planetary Gear Material: Powder Metallurgy Gear Ratio: 5:1\nEfficiency: 90% Rotor Inertia: 0.03kg·cm² Backlash at No-load: ≤30arcmin\nMaximum Permissible Torque: 9Nm(79.66lb-in) Moment Permissible Torque:\n18Nm(159.31lb-in) Shaft Maximum Axial Load: 100N Shaft Maximum Radial Load:\n300N Noise: ≤55dB Waterproof Rating: IP54 Lifetime: 20000hours Physical\nSpecifications Frame Size: 42 x 42mm Gearbox Length: 55mm Rated Input\nSpeed: 1000rpm Maximum Input Speed: 2000rpm Output Shaft Type: KeyWay\nOutput Shaft Diameter: φ8mm Output Shaft Length: 21.5mm Input Shaft\nDiameter: φ5mm Input Shaft Length: 21.5-25mm\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eThis MGL series gearboxes are ideally suited for standard Nema 17 motors featuring a long shaft length of 21.5-25mm.\u003c\/li\u003e\n \u003c\/ul\u003e"}
