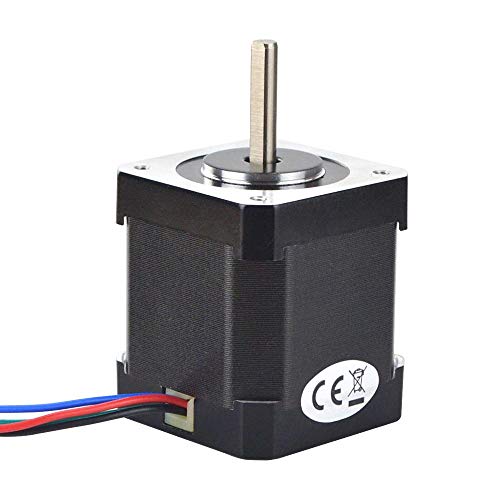

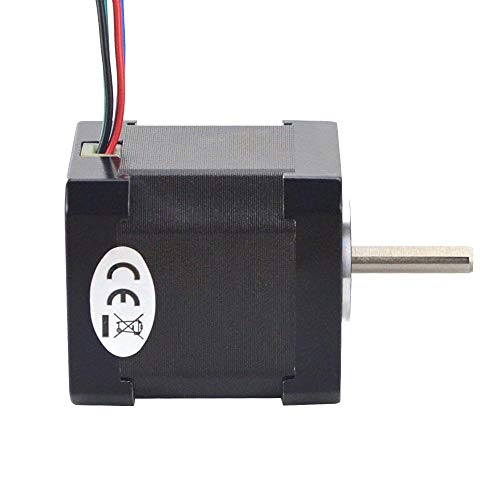

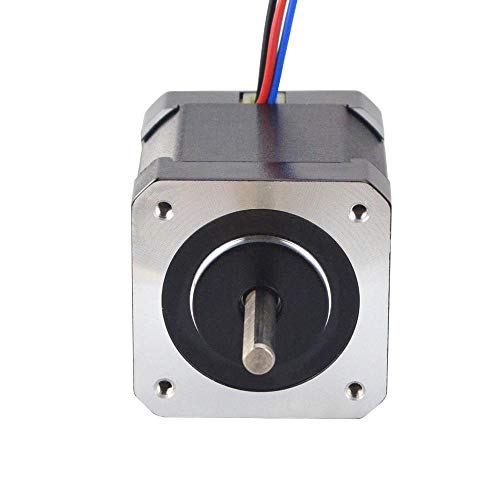

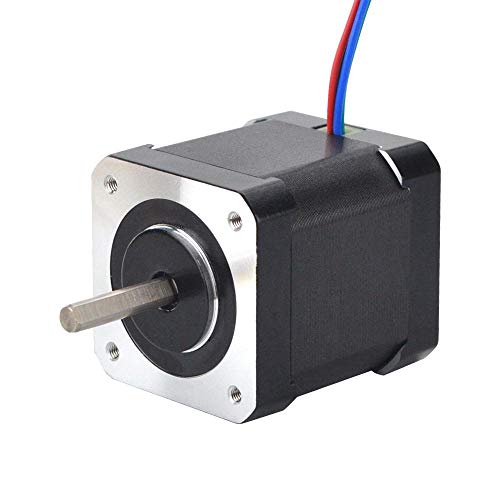

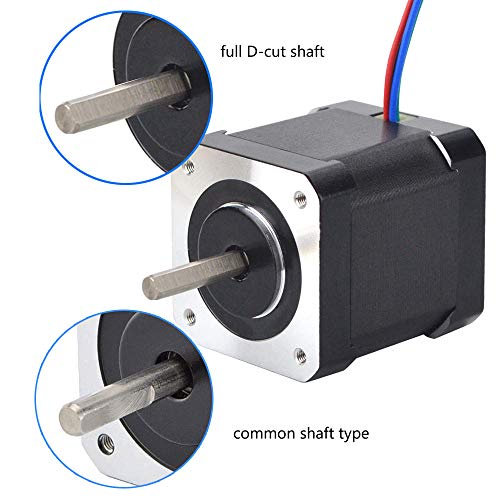

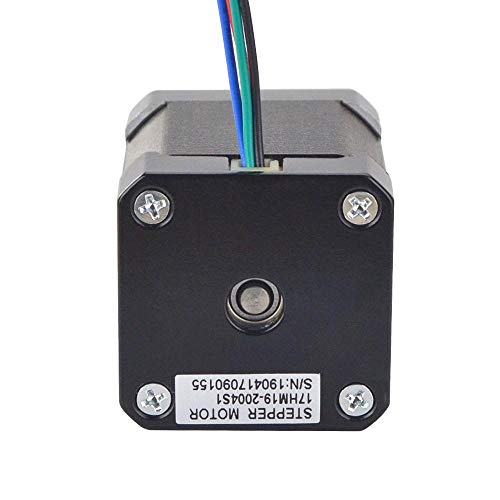

{"id":8115651150004,"title":"STEPPERONLINE Full D-Cut Shaft Stepper Motor Nema 17 0.9deg 46Ncm (65.1oz.in) 2A 42x48mm CNC 3D Printer","handle":"stepperonline-full-d-cut-shaft-stepper-motor-nema-17-0-9deg-46ncm-65-1oz-in-2a-42x48mm-cnc-3d-printer","description":"\u003ch3\u003eSTEPPERONLINE Full D-Cut Shaft Stepper Motor Nema 17 0.9deg 46Ncm (65.1oz.in) 2A 42x48mm CNC 3D Printer\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eThis high torque and precision bipolar Nema 17 stepper motor with 0.9° step\nangle (400 steps\/revolution). Each phase draws current 2A, allowing for a\nholding torque of 46Ncm(65.1oz.in). Electrical Specification Manufacturer\nPart Number: 17HM19-2004S1 Motor Type: Bipolar Stepper Step Angle: 0.9° \nHolding Torque: 46Ncm(65.1oz.in) Rated Current\/phase: 2.0A Phase\nResistance: 1.4ohms Recommended Voltage: 12-24V Inductance :\n3.0mH±20%(1KHz) Physical Specification Frame Size: 42 x 42mm Body Length:\n48mm Shaft Diameter: Φ5mm Shaft Length: 24mm D-cut Length: 24mm Number\nof Leads: 4 Lead Length: 500mm Weight : 370g Connection: Black(A+),\nGreen(A-), Red(B+), Blue(B-) Warning: Make sure the motor connect to a\nconstant current or chopper drive controller before you test motor. Connecting\nthe motor directly to a power supply will destroy the motor.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eFull D cut, high torque\u003c\/li\u003e\n \u003cli\u003e46Ncm(65.1oz.in) holding torque\u003c\/li\u003e\n \u003cli\u003eNEMA 17 bipolar 42x42x48mm mm 4-wire\u003c\/li\u003e\n \u003cli\u003e0.9 deg. step angle(400 steps\/rev)\u003c\/li\u003e\n \u003cli\u003eRated current 2A \u0026amp; resistance 1.4 ohms\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2026-09-03T00:22:18+10:00","created_at":"2026-09-02T20:34:28+10:00","vendor":"STEPPERONLINE","type":"3D Printer Motors","tags":["industrial_UK_Aug2026"],"price":25500,"price_min":25500,"price_max":25500,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44375804838068,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"uk-B07Z1D1ZJY","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"STEPPERONLINE Full D-Cut Shaft Stepper Motor Nema 17 0.9deg 46Ncm (65.1oz.in) 2A 42x48mm CNC 3D Printer","public_title":null,"options":["Default Title"],"price":25500,"weight":318,"compare_at_price":null,"inventory_management":"shopify","barcode":"17HM19-2004S1","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/uk-B07Z1D1ZJY.jpg?v=1788345270","\/\/auspowers.com\/cdn\/shop\/files\/410ceBIfVML.jpg?v=1788345270","\/\/auspowers.com\/cdn\/shop\/files\/41raC2J8fiL.jpg?v=1788345270","\/\/auspowers.com\/cdn\/shop\/files\/411pM2wsGBL.jpg?v=1788345270","\/\/auspowers.com\/cdn\/shop\/files\/41BdtEukINL.jpg?v=1788345270","\/\/auspowers.com\/cdn\/shop\/files\/41JGUQk_qgL.jpg?v=1788345270"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/uk-B07Z1D1ZJY.jpg?v=1788345270","options":["Title"],"media":[{"alt":null,"id":33276877209780,"position":1,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/uk-B07Z1D1ZJY.jpg?v=1788345270"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/uk-B07Z1D1ZJY.jpg?v=1788345270","width":500},{"alt":null,"id":33276877242548,"position":2,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/410ceBIfVML.jpg?v=1788345270"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/410ceBIfVML.jpg?v=1788345270","width":500},{"alt":null,"id":33276877275316,"position":3,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/41raC2J8fiL.jpg?v=1788345270"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/41raC2J8fiL.jpg?v=1788345270","width":500},{"alt":null,"id":33276877308084,"position":4,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/411pM2wsGBL.jpg?v=1788345270"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/411pM2wsGBL.jpg?v=1788345270","width":500},{"alt":null,"id":33276877340852,"position":5,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/41BdtEukINL.jpg?v=1788345270"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/41BdtEukINL.jpg?v=1788345270","width":500},{"alt":null,"id":33276877373620,"position":6,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/41JGUQk_qgL.jpg?v=1788345270"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/41JGUQk_qgL.jpg?v=1788345270","width":500}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eSTEPPERONLINE Full D-Cut Shaft Stepper Motor Nema 17 0.9deg 46Ncm (65.1oz.in) 2A 42x48mm CNC 3D Printer\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eThis high torque and precision bipolar Nema 17 stepper motor with 0.9° step\nangle (400 steps\/revolution). Each phase draws current 2A, allowing for a\nholding torque of 46Ncm(65.1oz.in). Electrical Specification Manufacturer\nPart Number: 17HM19-2004S1 Motor Type: Bipolar Stepper Step Angle: 0.9° \nHolding Torque: 46Ncm(65.1oz.in) Rated Current\/phase: 2.0A Phase\nResistance: 1.4ohms Recommended Voltage: 12-24V Inductance :\n3.0mH±20%(1KHz) Physical Specification Frame Size: 42 x 42mm Body Length:\n48mm Shaft Diameter: Φ5mm Shaft Length: 24mm D-cut Length: 24mm Number\nof Leads: 4 Lead Length: 500mm Weight : 370g Connection: Black(A+),\nGreen(A-), Red(B+), Blue(B-) Warning: Make sure the motor connect to a\nconstant current or chopper drive controller before you test motor. Connecting\nthe motor directly to a power supply will destroy the motor.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eFull D cut, high torque\u003c\/li\u003e\n \u003cli\u003e46Ncm(65.1oz.in) holding torque\u003c\/li\u003e\n \u003cli\u003eNEMA 17 bipolar 42x42x48mm mm 4-wire\u003c\/li\u003e\n \u003cli\u003e0.9 deg. step angle(400 steps\/rev)\u003c\/li\u003e\n \u003cli\u003eRated current 2A \u0026amp; resistance 1.4 ohms\u003c\/li\u003e\n \u003c\/ul\u003e"}
