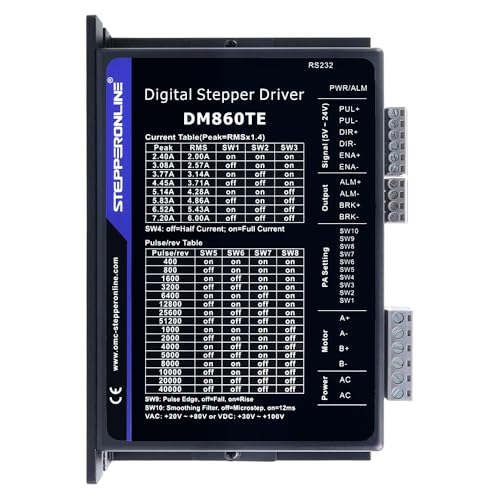

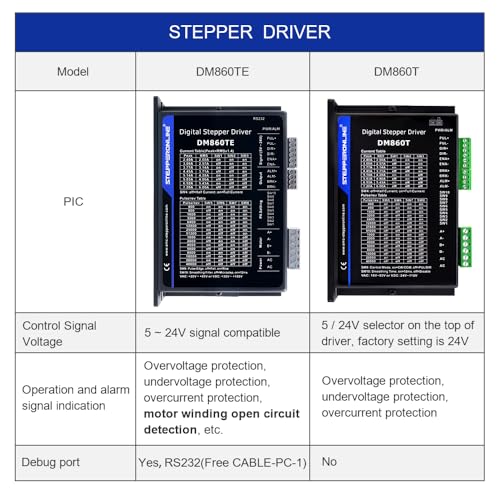

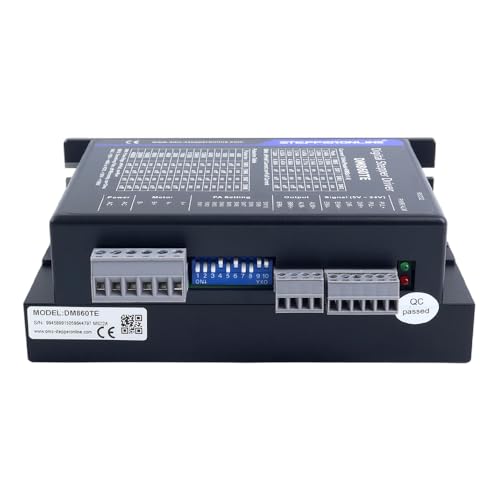

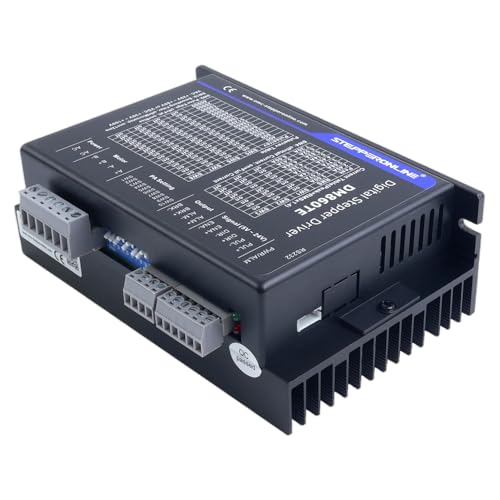

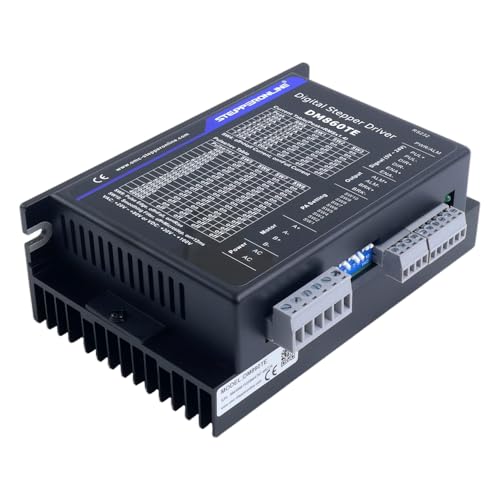

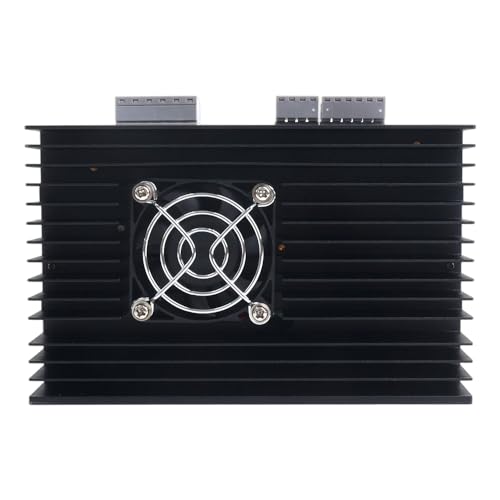

{"id":8115075612852,"title":"STEPPERONLINE DM860TE Stepper Motor Driver 2.4-7.2A 20-80VAC\/30-100VDC | TE series, for Nema 34 stepper motor","handle":"stepperonline-dm860te-stepper-motor-driver-2-4-7-2a-20-80vac-30-100vdc-te-series-for-nema-34-stepper-motor","description":"\u003ch3\u003eSTEPPERONLINE DM860TE Stepper Motor Driver 2.4-7.2A 20-80VAC\/30-100VDC | TE series, for Nema 34 stepper motor\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eThe TE series stepper motor drivers are T-Series based advancements that offer\nexceptional value for money. With virtually identical functionality and\nperformance as the T Series, we have significantly reduced the entry barrier\nfor the product by optimizing costs, making high-quality stepper motor drivers\nmore accessible. This is a TE series digital stepper motor driver with an\noutput peak current of 2.4-7.2A and an input voltage of 20-80V AC\/30-100V DC.\nIt is designed for Nema 23, 24 and 34 sizes stepper motors and offers a more\ncompetitive price than the DM860T. Functionally, the TE has an exclusive\n\"detection of interruptions in the motor windings\". This real-time monitoring\nalerts the risks of interruptions, reducing equipment damage and downtime,\nincreasing reliability. Optically isolated inputs with 5V to 24V allow easy\nintegration into a variety of control systems and simplify commissioning. Note\nthat the TE series drivers only support single pulse input. Key Features\nDetection of interruptions in the motor windings Optically isolated inputs\nwith 5V to 24V Only supports single pulse Automatic reduction of quiescent\ncurrent. Suitable for 2-phase and 4-phase engines Supports PUL\/DIR and\nCW\/CCW modes Over voltage and over-current protection. Soft start without\n\"jerking\" when switched on. Anti-resonance ensures optimal torque and\neliminates mid-RPM instability Pulse input frequency up to 200 kHz, TTL\ncompatible and optically isolated input 8 selectable peak currents: 2.40A,\n3.08A, 3.77A, 4.45A, 5.14A, 5.83A, 6.52A, 7.20A. Engine car identification\nand parameter car configuration for optimal adaptation to different engines.\nMicrostepping allows low resolution step input to produce higher microstep\noutput, providing smoother motor movement 16 selectable microstep\nresolutions: 400, 800, 1600, 3200, 6400, 12800, 25600, 51200, 1000, 2000,\n4000, 5000, 8000, 10000, 20000, 40000. Electrical specifications: Output Peak\nCurrent: 2.4-7.2A(2.0-6.0A RM) Input voltage: 20-80V AC \/ 30-100V DC Logic\ninput voltage: DC 5-24V Logic input current: 7-20mA Pulse input frequency:\n0-200kHz Pulse width: 2.5µs. Insulation resistance: 500MΩ Operating\nenvironment and other specifications (Tj = 25°C \/ 77°F). Cooling: Natural\nconvection or forced cooling Environment: avoid dust, oil mist and corrosive\ngases. Humidity: 40%RH - 90%RH Operating Temperature: 0℃-40℃ Storage\ntemperature: -20℃ - 65℃ Packing list 1 x DM860TE: TE series digital stepper\nmotor driver 2.4-7.2A 20-80VAC\/30-100VDC for Nema 34 motors. 1 x CABLE-PC-1:\nRS232 cable for drivers\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eUnbeatable value in the performance class: As the successor to the established DM860T, this driver offers nearly identical high-end performance and functionality but at a significantly more competitive price. A cost-effective solution for high-performance drives without compromising on quality.\u003c\/li\u003e\n \u003cli\u003eExclusive fault detection for maximum system availability: The patented \"detection of interruptions in the motor windings\" monitors the cable status in real time. It warns of interruption risks early on minimizing expensive machine damage and significantly reducing unplanned downtime.\u003c\/li\u003e\n \u003cli\u003eMaximum flexibility in power supply: With an extremely wide input voltage range (20-80 V AC \/ 30-100 V DC), the driver can be used universally in a wide range of systems. This greatly simplifies system integration and warehousing.\u003c\/li\u003e\n \u003cli\u003ePerfect smoothness and torque for large engines: anti-resonance technology reliably eliminates mid-speed instability and ensures optimal torque - ideal for demanding Nema 34 applications. The extremely high microstep resolution (up to 51,200 steps\/u) guarantees an absolutely smooth and precise motor characteristic.\u003c\/li\u003e\n \u003cli\u003eIntelligent self-optimisation and flexible control: the automatic motor identification and parameter configuration when switched on ensures optimal adaptation to a wide range of motors. In addition, the driver supports both common control modes (PUL\/DIR and CW\/CCW), which ensures maximum compatibility with different controls.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2026-09-02T12:26:36+10:00","created_at":"2026-09-01T21:55:07+10:00","vendor":"STEPPERONLINE","type":"Motor Drivers","tags":["industrial_DE_Aug2026"],"price":27200,"price_min":27200,"price_max":27200,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44374783295668,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B0FYDBTZQY","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"STEPPERONLINE DM860TE Stepper Motor Driver 2.4-7.2A 20-80VAC\/30-100VDC | TE series, for Nema 34 stepper motor","public_title":null,"options":["Default Title"],"price":27200,"weight":640,"compare_at_price":null,"inventory_management":"shopify","barcode":"DM860TE","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/B0FYDBTZQY.jpg?v=1788263710","\/\/auspowers.com\/cdn\/shop\/files\/51tR5u-ZVXL.jpg?v=1788263709","\/\/auspowers.com\/cdn\/shop\/files\/410fZkEh72L.jpg?v=1788263709","\/\/auspowers.com\/cdn\/shop\/files\/41TbECpCYdL.jpg?v=1788263709","\/\/auspowers.com\/cdn\/shop\/files\/41ynt62M01L.jpg?v=1788263709","\/\/auspowers.com\/cdn\/shop\/files\/313oOiIhNCL.jpg?v=1788263709","\/\/auspowers.com\/cdn\/shop\/files\/41lfs86GteL.jpg?v=1788263709"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/B0FYDBTZQY.jpg?v=1788263710","options":["Title"],"media":[{"alt":null,"id":33271966236852,"position":1,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/B0FYDBTZQY.jpg?v=1788263710"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/B0FYDBTZQY.jpg?v=1788263710","width":500},{"alt":null,"id":33271966269620,"position":2,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51tR5u-ZVXL.jpg?v=1788263709"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51tR5u-ZVXL.jpg?v=1788263709","width":500},{"alt":null,"id":33271966302388,"position":3,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/410fZkEh72L.jpg?v=1788263709"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/410fZkEh72L.jpg?v=1788263709","width":500},{"alt":null,"id":33271966335156,"position":4,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/41TbECpCYdL.jpg?v=1788263709"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/41TbECpCYdL.jpg?v=1788263709","width":500},{"alt":null,"id":33271966367924,"position":5,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/41ynt62M01L.jpg?v=1788263709"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/41ynt62M01L.jpg?v=1788263709","width":500},{"alt":null,"id":33271966400692,"position":6,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/313oOiIhNCL.jpg?v=1788263709"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/313oOiIhNCL.jpg?v=1788263709","width":500},{"alt":null,"id":33271966433460,"position":7,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/41lfs86GteL.jpg?v=1788263709"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/41lfs86GteL.jpg?v=1788263709","width":500}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eSTEPPERONLINE DM860TE Stepper Motor Driver 2.4-7.2A 20-80VAC\/30-100VDC | TE series, for Nema 34 stepper motor\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eThe TE series stepper motor drivers are T-Series based advancements that offer\nexceptional value for money. With virtually identical functionality and\nperformance as the T Series, we have significantly reduced the entry barrier\nfor the product by optimizing costs, making high-quality stepper motor drivers\nmore accessible. This is a TE series digital stepper motor driver with an\noutput peak current of 2.4-7.2A and an input voltage of 20-80V AC\/30-100V DC.\nIt is designed for Nema 23, 24 and 34 sizes stepper motors and offers a more\ncompetitive price than the DM860T. Functionally, the TE has an exclusive\n\"detection of interruptions in the motor windings\". This real-time monitoring\nalerts the risks of interruptions, reducing equipment damage and downtime,\nincreasing reliability. Optically isolated inputs with 5V to 24V allow easy\nintegration into a variety of control systems and simplify commissioning. Note\nthat the TE series drivers only support single pulse input. Key Features\nDetection of interruptions in the motor windings Optically isolated inputs\nwith 5V to 24V Only supports single pulse Automatic reduction of quiescent\ncurrent. Suitable for 2-phase and 4-phase engines Supports PUL\/DIR and\nCW\/CCW modes Over voltage and over-current protection. Soft start without\n\"jerking\" when switched on. Anti-resonance ensures optimal torque and\neliminates mid-RPM instability Pulse input frequency up to 200 kHz, TTL\ncompatible and optically isolated input 8 selectable peak currents: 2.40A,\n3.08A, 3.77A, 4.45A, 5.14A, 5.83A, 6.52A, 7.20A. Engine car identification\nand parameter car configuration for optimal adaptation to different engines.\nMicrostepping allows low resolution step input to produce higher microstep\noutput, providing smoother motor movement 16 selectable microstep\nresolutions: 400, 800, 1600, 3200, 6400, 12800, 25600, 51200, 1000, 2000,\n4000, 5000, 8000, 10000, 20000, 40000. Electrical specifications: Output Peak\nCurrent: 2.4-7.2A(2.0-6.0A RM) Input voltage: 20-80V AC \/ 30-100V DC Logic\ninput voltage: DC 5-24V Logic input current: 7-20mA Pulse input frequency:\n0-200kHz Pulse width: 2.5µs. Insulation resistance: 500MΩ Operating\nenvironment and other specifications (Tj = 25°C \/ 77°F). Cooling: Natural\nconvection or forced cooling Environment: avoid dust, oil mist and corrosive\ngases. Humidity: 40%RH - 90%RH Operating Temperature: 0℃-40℃ Storage\ntemperature: -20℃ - 65℃ Packing list 1 x DM860TE: TE series digital stepper\nmotor driver 2.4-7.2A 20-80VAC\/30-100VDC for Nema 34 motors. 1 x CABLE-PC-1:\nRS232 cable for drivers\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eUnbeatable value in the performance class: As the successor to the established DM860T, this driver offers nearly identical high-end performance and functionality but at a significantly more competitive price. A cost-effective solution for high-performance drives without compromising on quality.\u003c\/li\u003e\n \u003cli\u003eExclusive fault detection for maximum system availability: The patented \"detection of interruptions in the motor windings\" monitors the cable status in real time. It warns of interruption risks early on minimizing expensive machine damage and significantly reducing unplanned downtime.\u003c\/li\u003e\n \u003cli\u003eMaximum flexibility in power supply: With an extremely wide input voltage range (20-80 V AC \/ 30-100 V DC), the driver can be used universally in a wide range of systems. This greatly simplifies system integration and warehousing.\u003c\/li\u003e\n \u003cli\u003ePerfect smoothness and torque for large engines: anti-resonance technology reliably eliminates mid-speed instability and ensures optimal torque - ideal for demanding Nema 34 applications. The extremely high microstep resolution (up to 51,200 steps\/u) guarantees an absolutely smooth and precise motor characteristic.\u003c\/li\u003e\n \u003cli\u003eIntelligent self-optimisation and flexible control: the automatic motor identification and parameter configuration when switched on ensures optimal adaptation to a wide range of motors. In addition, the driver supports both common control modes (PUL\/DIR and CW\/CCW), which ensures maximum compatibility with different controls.\u003c\/li\u003e\n \u003c\/ul\u003e"}
