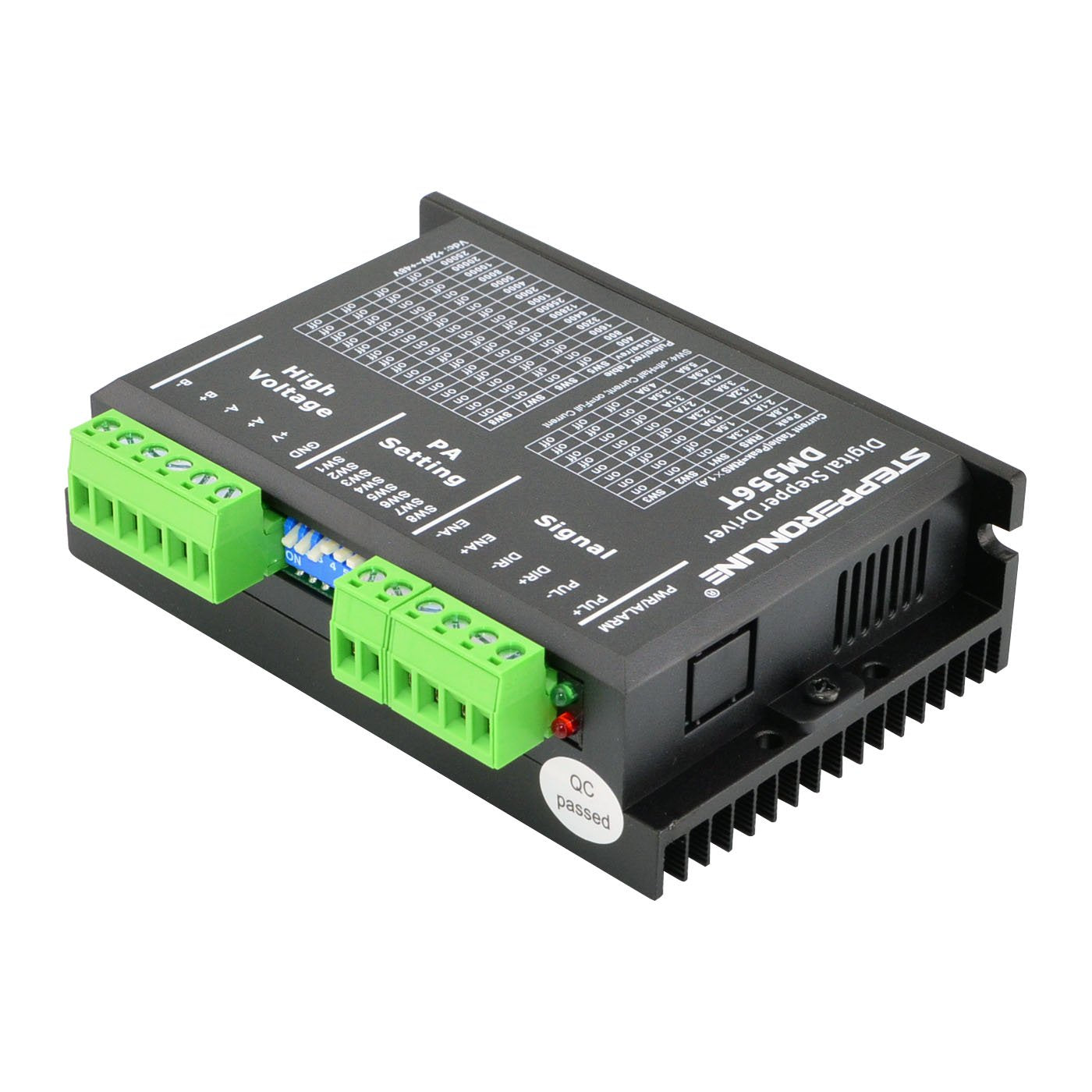

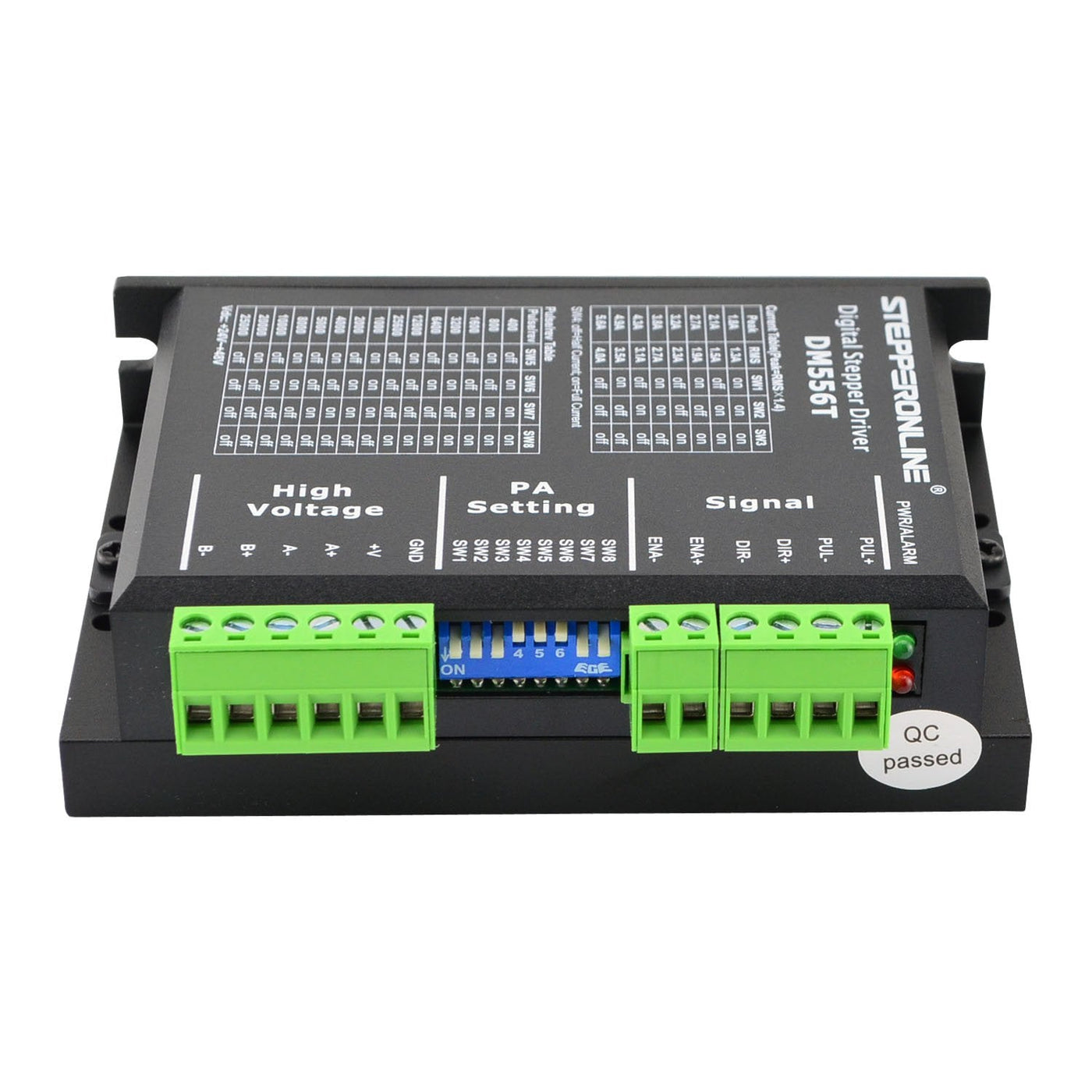

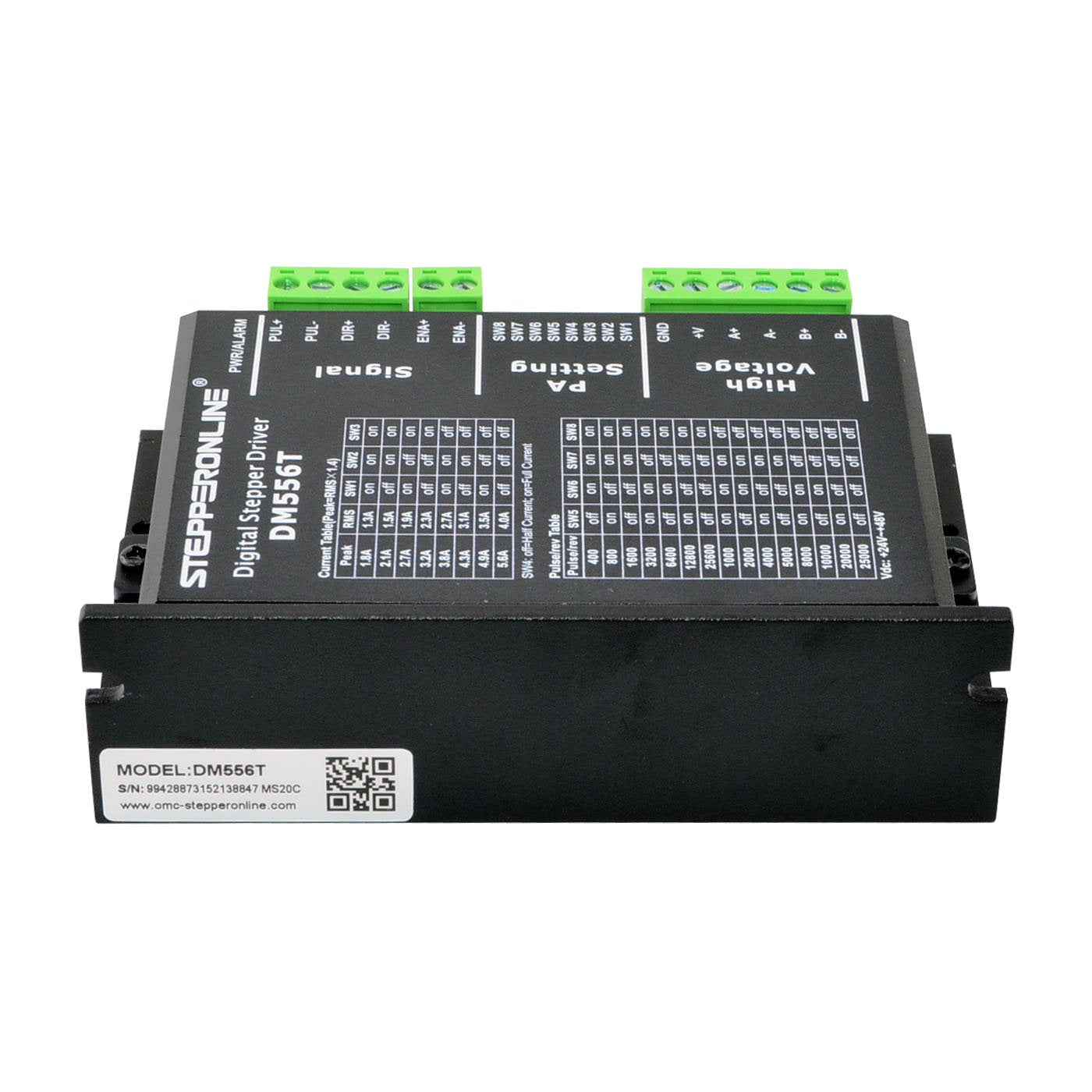

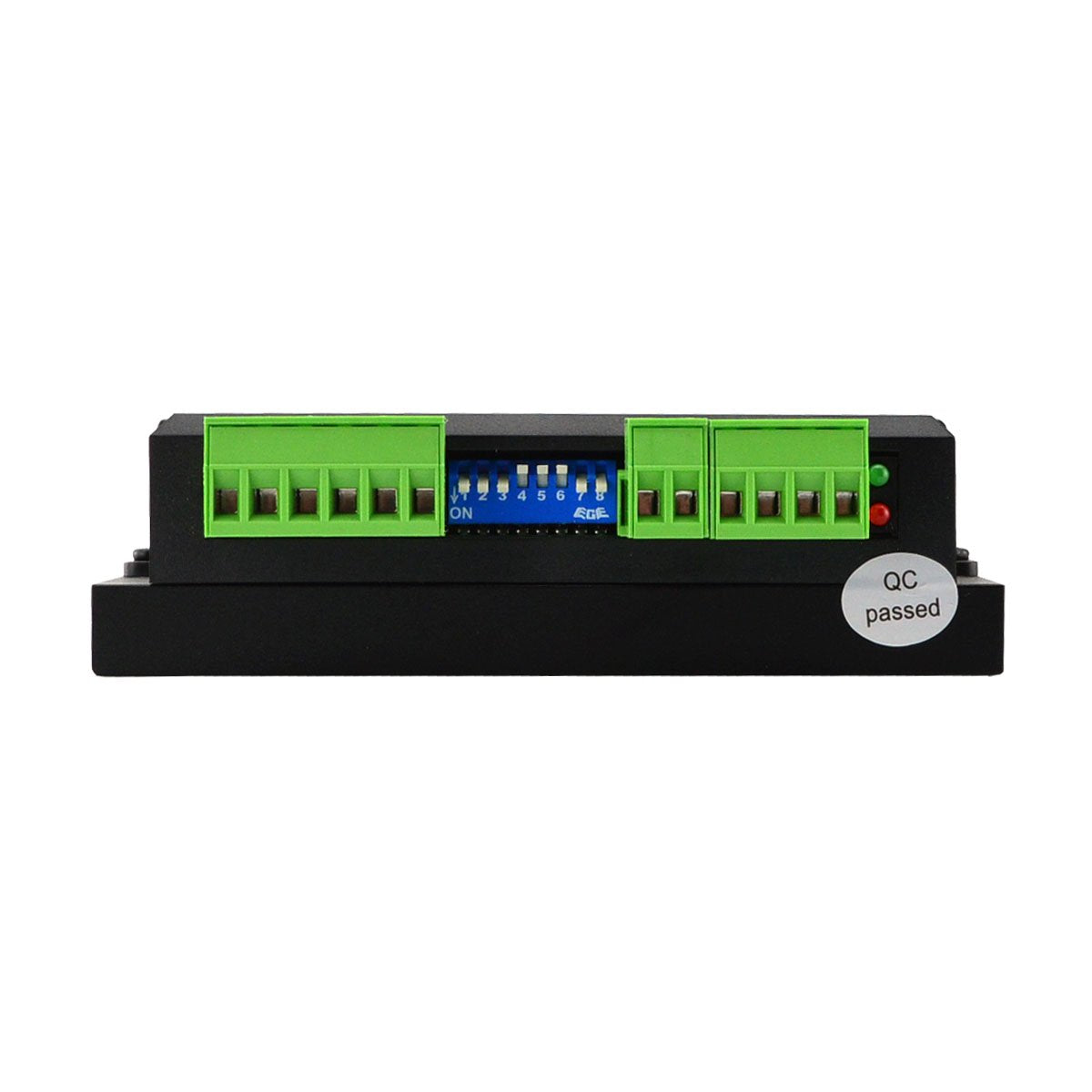

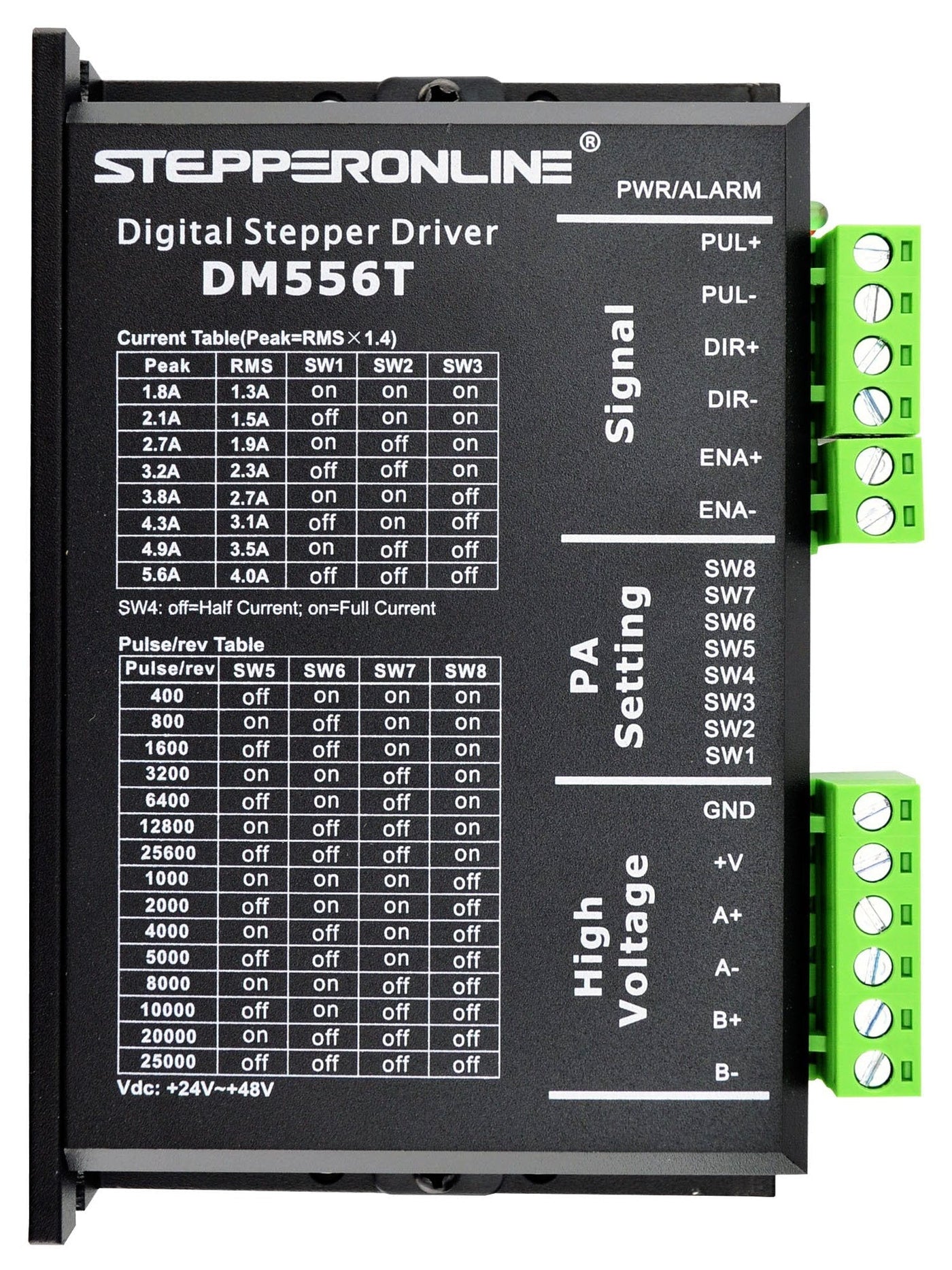

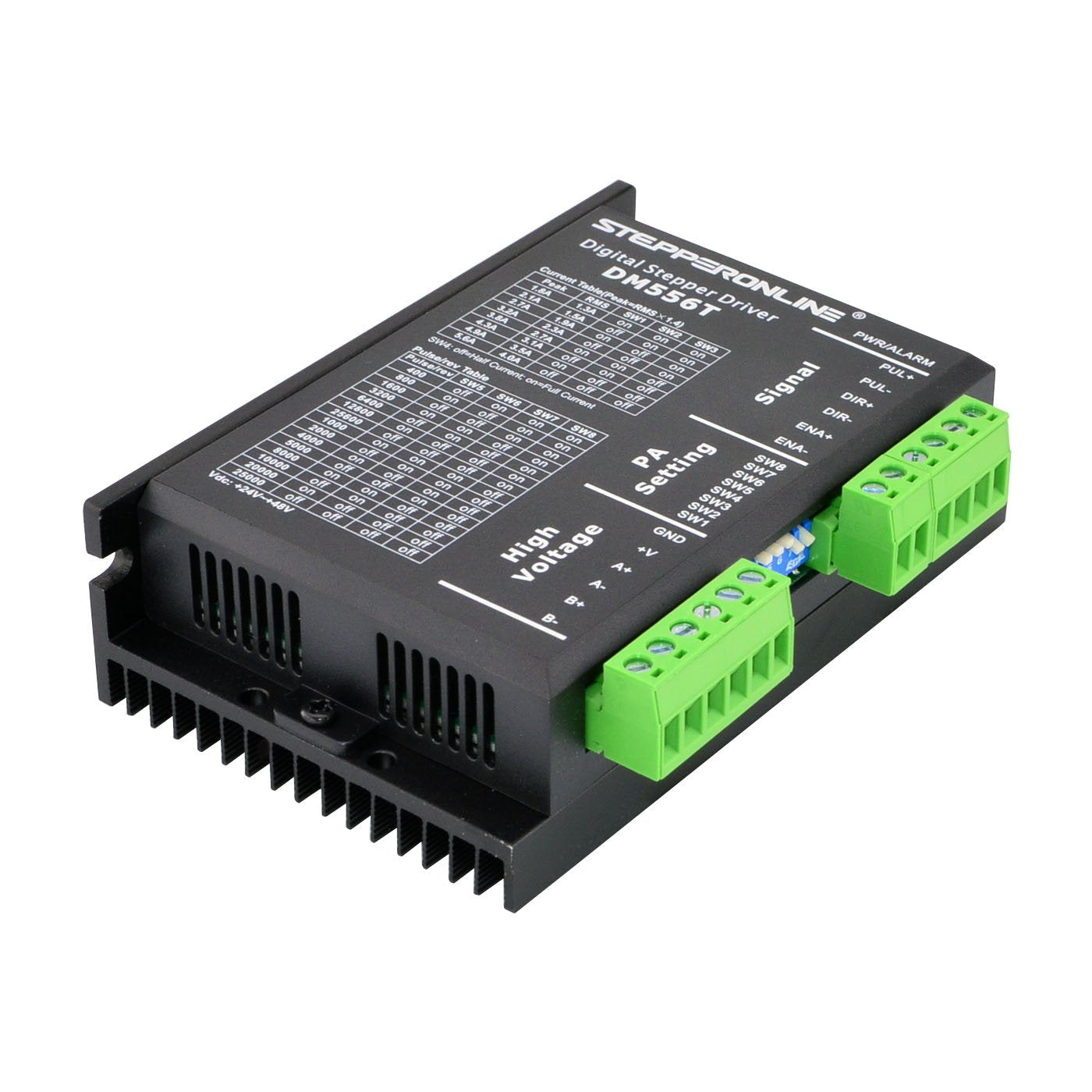

{"id":7164452372660,"title":"STEPPERONLINE Digital Stepper Driver 1.8~5.6A 20-50VDC for Nema 23, 24 Stepper Motor","handle":"stepperonline-digital-stepper-driver-1-8-5-6a-20-50vdc-for-nema-23-24-stepper-motor","description":"\u003ch3\u003eSTEPPERONLINE Digital Stepper Driver 1.8~5.6A 20-50VDC for Nema 23, 24 Stepper Motor\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eOverview The DM556T is a digital stepper driver with\nsimple design and easy setup. By implementing advanced stepper control\ntechnology, this stepper driver is able to power 2-phase and 4 phase stepper\nmotors smoothly with optimal torque and low motor heating \u0026amp; noise.Its\noperating voltage is 20-50VDC and it can output up to 5.6A current. All the\nmicro step and output current are done via DIP switches. Therefore, the DM556T\nare ideal choices for applications requiring simple step \u0026amp; direction control\nof NEMA 23, 24 and 34 stepper motors. Features Step \u0026amp; direction (PUL\/DIR)\ncontrol Input voltage 20-50VDC Pulse input frequency up to 200 KHz. 8\nselectable micro-step resolutions of 400-25,600 via DIP switches 8 selectable\noutput current settings of 1.8 – 5.6A via DIP switches Soft-start with no\n“jump” when powered on Read more Specifications Mechanical Specfications DIP\nSwitch Configurations Protection Functions Troubleshooting In the event that\nyour drive doesn’t operate properly, the first step is to identify whether the\nproblem is electrical or mechanical in nature. The next step is to isolate the\nsystem component that is causing the problem. As part of this process you may\nhave to disconnect the individual components that make up your system and\nverify that they operate independently. It is important to document each step\nin the troubleshooting process. You may need this documentation to refer back\nto at a later date, and these details will greatly assist our Technical\nSupport staff in determining the problem should you need assistance.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eTop-level Quality, Affordable Price\u003c\/li\u003e\n \u003cli\u003eProfessional Driver, Manufactured by Leadshine\u003c\/li\u003e\n \u003cli\u003eSuit for 23 and 24 Stepper Motor\u003c\/li\u003e\n \u003c\/ul\u003e\n\n","published_at":"2022-06-22T06:11:25+10:00","created_at":"2022-06-22T06:11:33+10:00","vendor":"STEPPERONLINE","type":"Controls","tags":["industrial"],"price":22400,"price_min":22400,"price_max":22400,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":41597884006580,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B074TBMC7N","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"STEPPERONLINE Digital Stepper Driver 1.8~5.6A 20-50VDC for Nema 23, 24 Stepper Motor","public_title":null,"options":["Default Title"],"price":22400,"weight":349,"compare_at_price":null,"inventory_management":null,"barcode":"715776786842","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/products\/B074TBMC7N.jpg?v=1655882476","\/\/auspowers.com\/cdn\/shop\/products\/71wP3ZGh_7L.jpg?v=1655842293","\/\/auspowers.com\/cdn\/shop\/products\/71Sn9Pfnv_L.jpg?v=1655842293","\/\/auspowers.com\/cdn\/shop\/products\/714whHCCM-L.jpg?v=1655842293","\/\/auspowers.com\/cdn\/shop\/products\/717SQx4NlIL.jpg?v=1655842293","\/\/auspowers.com\/cdn\/shop\/products\/51rq74jGwsL.jpg?v=1655842293"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/products\/B074TBMC7N.jpg?v=1655882476","options":["Title"],"media":[{"alt":"[Australia - AusPower] - STEPPERONLINE Digital Stepper Driver 1.8~5.6A 20-50VDC for Nema 23, 24 Stepper Motor ","id":26241973715124,"position":1,"preview_image":{"aspect_ratio":0.75,"height":2000,"width":1500,"src":"\/\/auspowers.com\/cdn\/shop\/products\/B074TBMC7N.jpg?v=1655882476"},"aspect_ratio":0.75,"height":2000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/B074TBMC7N.jpg?v=1655882476","width":1500},{"alt":"[Australia - AusPower] - STEPPERONLINE Digital Stepper Driver 1.8~5.6A 20-50VDC for Nema 23, 24 Stepper Motor ","id":26235165442228,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/auspowers.com\/cdn\/shop\/products\/71wP3ZGh_7L.jpg?v=1655842293"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/71wP3ZGh_7L.jpg?v=1655842293","width":1500},{"alt":"[Australia - AusPower] - STEPPERONLINE Digital Stepper Driver 1.8~5.6A 20-50VDC for Nema 23, 24 Stepper Motor ","id":26235165474996,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1400,"width":1400,"src":"\/\/auspowers.com\/cdn\/shop\/products\/71Sn9Pfnv_L.jpg?v=1655842293"},"aspect_ratio":1.0,"height":1400,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/71Sn9Pfnv_L.jpg?v=1655842293","width":1400},{"alt":"[Australia - AusPower] - STEPPERONLINE Digital Stepper Driver 1.8~5.6A 20-50VDC for Nema 23, 24 Stepper Motor ","id":26235165507764,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1400,"width":1400,"src":"\/\/auspowers.com\/cdn\/shop\/products\/714whHCCM-L.jpg?v=1655842293"},"aspect_ratio":1.0,"height":1400,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/714whHCCM-L.jpg?v=1655842293","width":1400},{"alt":"[Australia - AusPower] - STEPPERONLINE Digital Stepper Driver 1.8~5.6A 20-50VDC for Nema 23, 24 Stepper Motor ","id":26235165540532,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1400,"width":1400,"src":"\/\/auspowers.com\/cdn\/shop\/products\/717SQx4NlIL.jpg?v=1655842293"},"aspect_ratio":1.0,"height":1400,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/717SQx4NlIL.jpg?v=1655842293","width":1400},{"alt":"[Australia - AusPower] - STEPPERONLINE Digital Stepper Driver 1.8~5.6A 20-50VDC for Nema 23, 24 Stepper Motor ","id":26235165573300,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/products\/51rq74jGwsL.jpg?v=1655842293"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/51rq74jGwsL.jpg?v=1655842293","width":1200}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eSTEPPERONLINE Digital Stepper Driver 1.8~5.6A 20-50VDC for Nema 23, 24 Stepper Motor\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eOverview The DM556T is a digital stepper driver with\nsimple design and easy setup. By implementing advanced stepper control\ntechnology, this stepper driver is able to power 2-phase and 4 phase stepper\nmotors smoothly with optimal torque and low motor heating \u0026amp; noise.Its\noperating voltage is 20-50VDC and it can output up to 5.6A current. All the\nmicro step and output current are done via DIP switches. Therefore, the DM556T\nare ideal choices for applications requiring simple step \u0026amp; direction control\nof NEMA 23, 24 and 34 stepper motors. Features Step \u0026amp; direction (PUL\/DIR)\ncontrol Input voltage 20-50VDC Pulse input frequency up to 200 KHz. 8\nselectable micro-step resolutions of 400-25,600 via DIP switches 8 selectable\noutput current settings of 1.8 – 5.6A via DIP switches Soft-start with no\n“jump” when powered on Read more Specifications Mechanical Specfications DIP\nSwitch Configurations Protection Functions Troubleshooting In the event that\nyour drive doesn’t operate properly, the first step is to identify whether the\nproblem is electrical or mechanical in nature. The next step is to isolate the\nsystem component that is causing the problem. As part of this process you may\nhave to disconnect the individual components that make up your system and\nverify that they operate independently. It is important to document each step\nin the troubleshooting process. You may need this documentation to refer back\nto at a later date, and these details will greatly assist our Technical\nSupport staff in determining the problem should you need assistance.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eTop-level Quality, Affordable Price\u003c\/li\u003e\n \u003cli\u003eProfessional Driver, Manufactured by Leadshine\u003c\/li\u003e\n \u003cli\u003eSuit for 23 and 24 Stepper Motor\u003c\/li\u003e\n \u003c\/ul\u003e\n\n"}
