STEPPERONLINE CNC Digital Stepper Motor Driver 2.4-7.2A 18-80VAC or 36-110VDC for Nema 34 and 42 Motor

In Stock. Leaves warehouse within 2 - 3 business days

$248.00 AUD
Maximum quantity available reached.
Free Shipping Australia Wide
100% Safe & Secure Checkout
100 Days Return Policy *
1 Year Warranty *

STEPPERONLINE CNC Digital Stepper Motor Driver 2.4-7.2A 18-80VAC or 36-110VDC for Nema 34 and 42 Motor

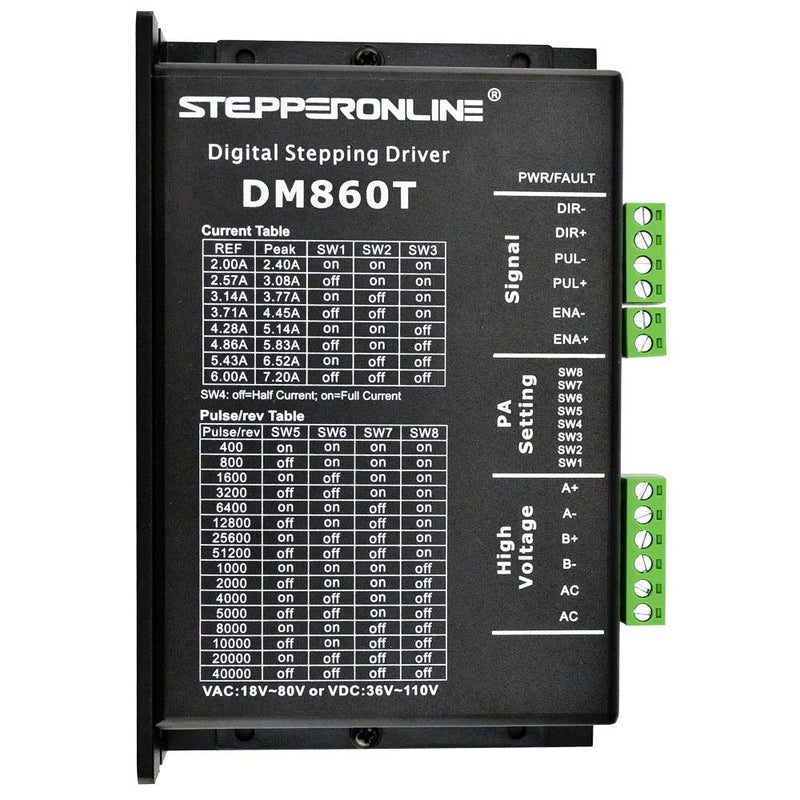

Overview The DM860T is a fully digital stepper driver developed with advanced DSP control algorithm based on the latest motion control technology.It has achieved a unique level of system smoothness, providing optimal torque and nulls mid-range instability. Its motor auto- identification and parameter auto-configuration feature offers quick setup to optimal modes with different motors. Compared with traditional analog drives, DM860T can drive a stepper motor at much lower noise, lower heating, and smoother movement. Its unique features make DM860T an ideal choice for high requirement applications. Features Step & direction (PUL/DIR) control Input voltage 18-80VAC or 36-110VDC Pulse input frequency up to 200 KHz. 16 selectable microstep resolutions from 400 to 40000 8 selectable peak current including 2.40A, 3.08A, 3.77A, 4.45A, 5.14A, 5.83A, 6.52A, 7.20A Soft-start with no “jump” when powered on Read more Specifications Mechanical Specfications DIP Switch Configurations Protection Functions Troubleshooting In the event that your drive doesn’t operate properly, the first step is to identify whether the problem is electrical or mechanical in nature. The next step is to isolate the system component that is causing the problem. As part of this process you may have to disconnect the individual components that make up your system and verify that they operate independently. It is important to document each step in the troubleshooting process. You may need this documentation to refer back to at a later date, and these details will greatly assist our Technical Support staff in determining the problem should you need assistance.

Product Features

  • Stepper motor driver DM860T is updated to version V3.0, If you want to buy the new V3.0 version, you can only choose to ship from the Chinese warehouse, other overseas warehouses can only offer the old version at the moment.
  • Top-level Quality, Affordable Price, Professional Driver, Manufactured by Leadshine
  • Suit for Nema 34 and 42 Stepper Motor
  • 2.4~7.20A, 18-80VAC or 36-110VDC, 1/256 Microstep Resolution
  • Ideal solution for applications that require low-speed smoothness
