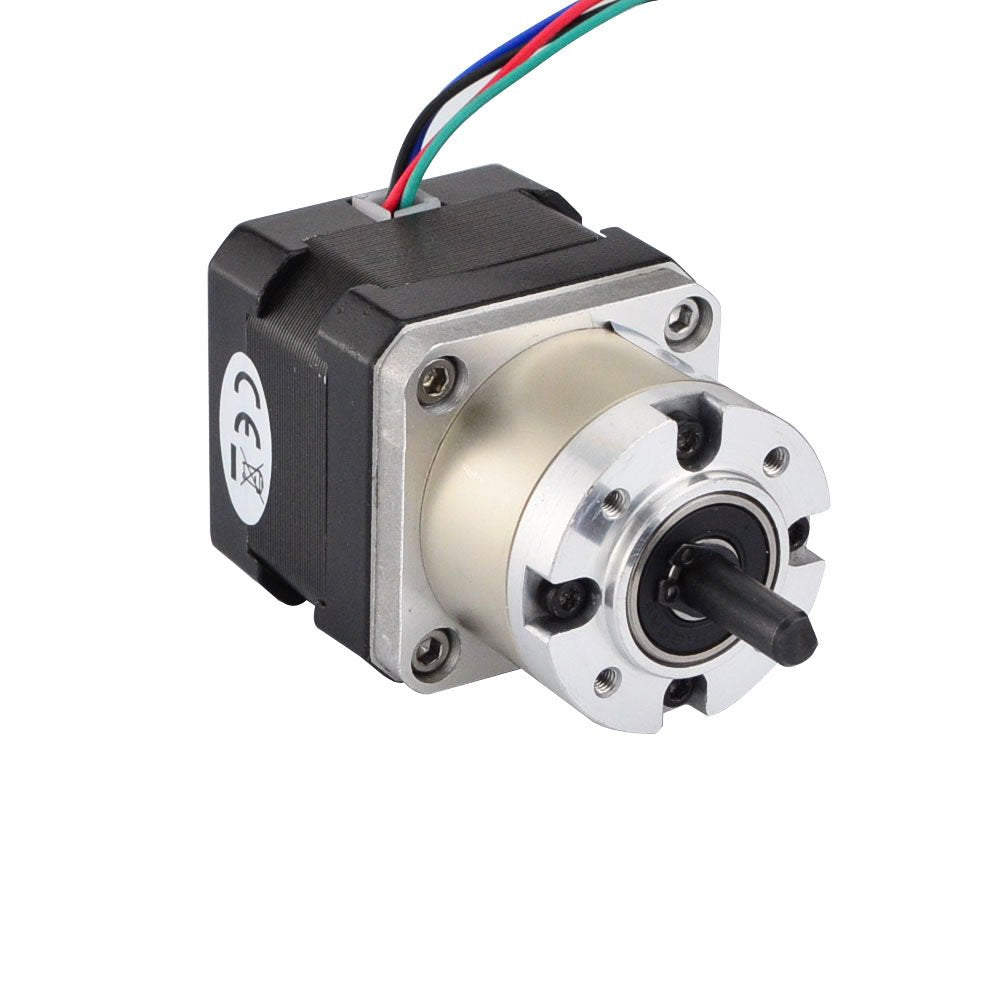

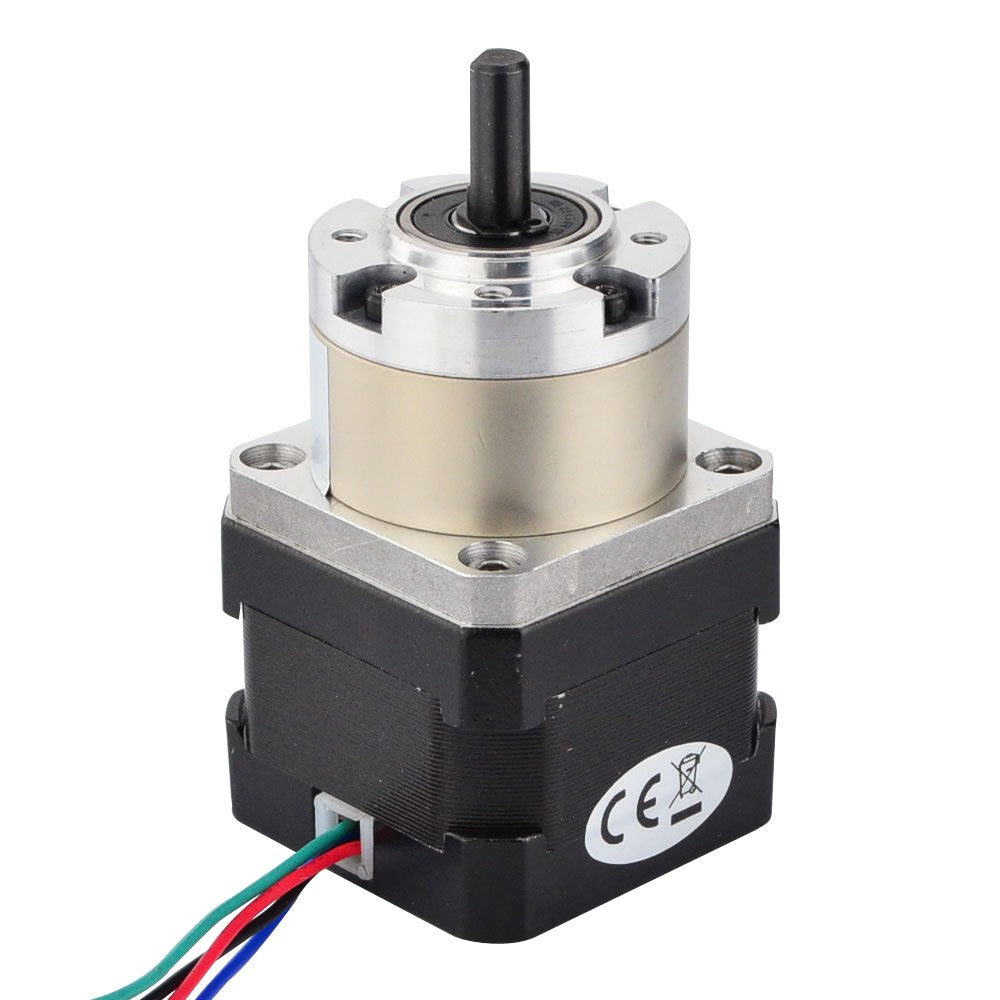

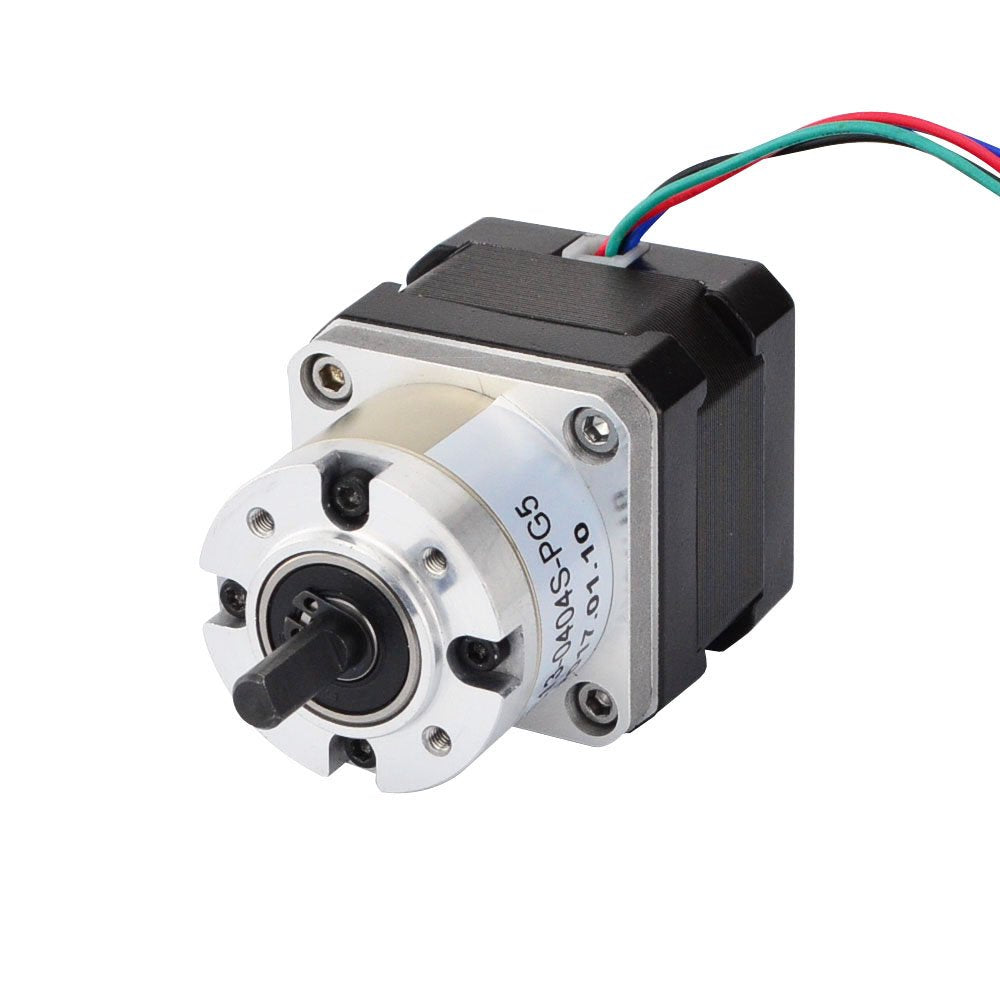

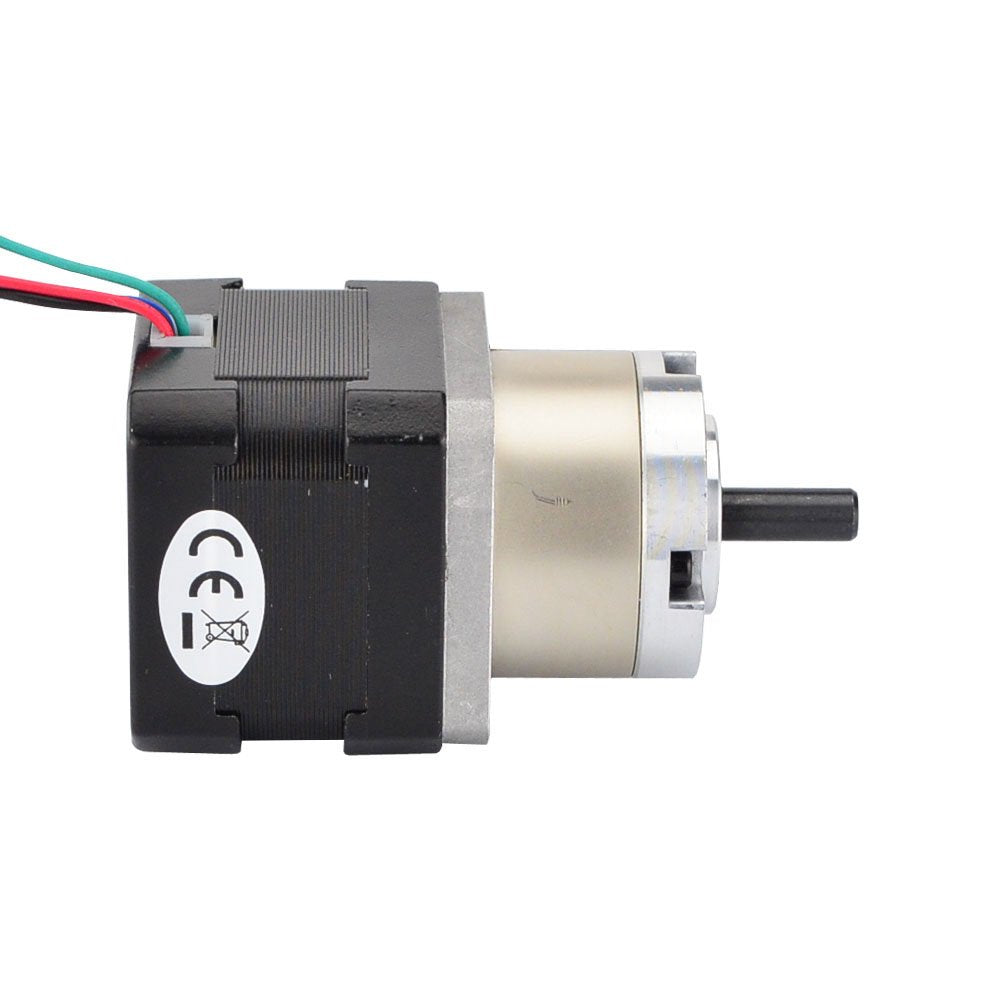

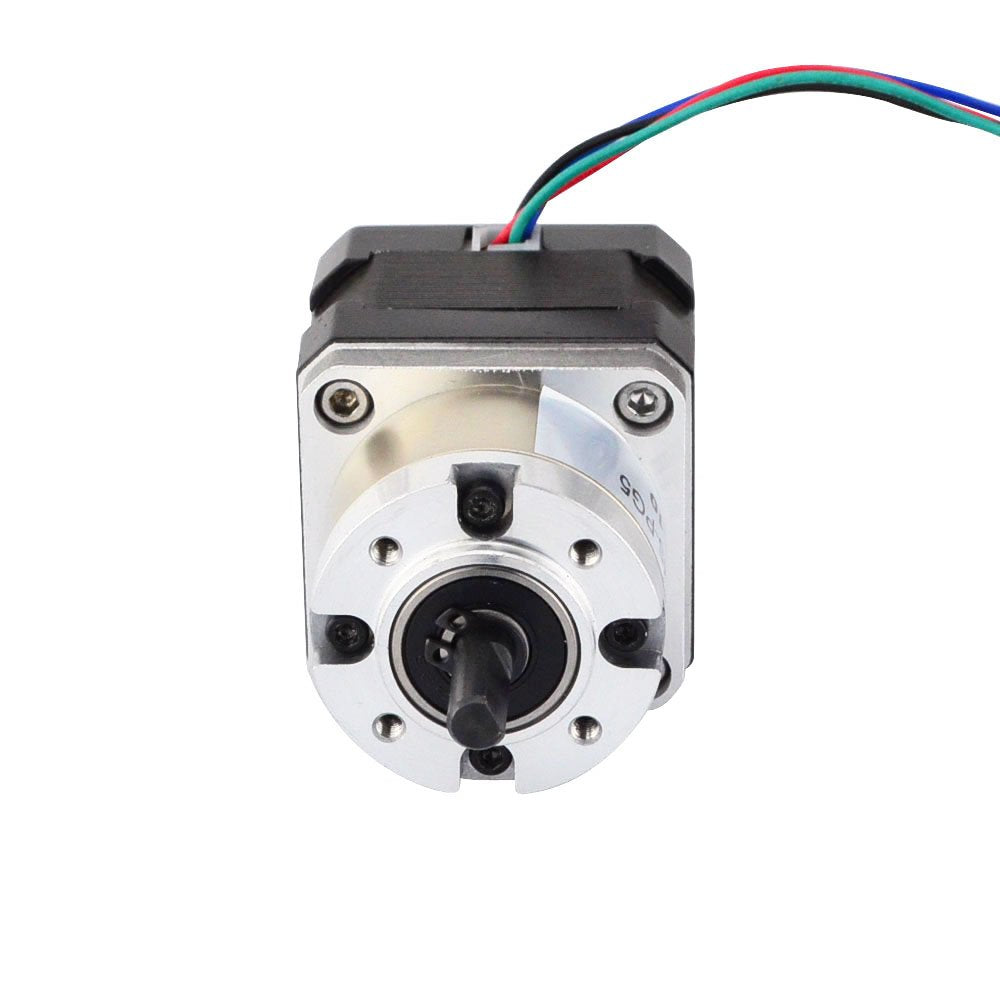

{"id":8044813189300,"title":"STEPPERONLINE 5:1 Planetary Gearbox Nema 17 Stepper Motor 0.4A for DIY CNC Robot 3D Printer","handle":"stepperonline-5-1-planetary-gearbox-nema-17-stepper-motor-0-4a-for-diy-cnc-robot-3d-printer","description":"\u003ch3\u003eSTEPPERONLINE 5:1 Planetary Gearbox Nema 17 Stepper Motor 0.4A for DIY CNC Robot 3D Printer\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003eThis is a short geared NEMA 17 Stepper motor, total length inlcuding shaft\r\nbelow 80mm, and with 6mm diameter shaft. It has an integrated planetary\r\ngearbox with a 5.18:1 gear ratio, the resolution reach 0.35 deg. step angle.\r\nIt's a good solution in applications that need very low rotation speeds and\/or\r\nlots of torque. Electrical Specification: Manufacturer Part Number:\r\n17HS13-0404S-PG5 Motor Type: Bipolar Stepper Step Angle: 0.35 deg.\r\nHolding Torque without Gearbox: 25Ncm(31.2oz.in) Rated Current\/phase: 0.4A\r\n Phase Resistance: 27ohms Inductance: 28.5mH+\/-20%(1KHz) Gearbox\r\nSpecifications: Gearbox Type: Planetary Gear Ratio: 5.18:1 Efficiency:\r\n90% Backlash at No-load: \u0026lt;=3 deg. Max.Permissible Torque: 3Nm(424.83oz.in)\r\n Moment Permissible Torque: 5Nm(708.06oz.in) Shaft Maximum Axial Load: 50N\r\n Shaft Maximum Radial Load: 100N Physical Specifications: Frame Size: 42 x\r\n42mm Motor Length: 34mm Gearbox Length: 27.3mm Shaft Diameter: 6mm \r\nShaft Length: 18mm D-cut Length: 12mm Number of Leads: 4 Lead Length:\r\n500mm Weight: 380g Connection: Black(A+), Green(A-), Red(B+), Blue(B-)\r\nWarning: Make sure the motor connect to a constant current or chopper drive\r\ncontroller before you test motor. Connecting the motor directly to a power\r\nsupply will destroy the motor.\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003eGood Torque Good Speed\u003c\/li\u003e\r\n \u003cli\u003e0.35 deg. Step Angle\u003c\/li\u003e\r\n \u003cli\u003eNEMA 17 bipolar 4-wire\u003c\/li\u003e\r\n \u003cli\u003ePlanetary Gearbox Ratio 5.18:1\u003c\/li\u003e\r\n \u003cli\u003eRated current 0.4A \u0026amp; resistance 27ohms\u003c\/li\u003e\r\n \u003c\/ul\u003e","published_at":"2026-04-20T09:36:55+10:00","created_at":"2026-04-20T09:36:51+10:00","vendor":"STEPPERONLINE","type":"3D Printer Motors","tags":["industrial_April2026"],"price":20500,"price_min":20500,"price_max":20500,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44180518273204,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B00PNER4V6","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"STEPPERONLINE 5:1 Planetary Gearbox Nema 17 Stepper Motor 0.4A for DIY CNC Robot 3D Printer","public_title":null,"options":["Default Title"],"price":20500,"weight":399,"compare_at_price":null,"inventory_management":"shopify","barcode":"701056330867","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/B00PNER4V6.jpg?v=1777261756","\/\/auspowers.com\/cdn\/shop\/files\/61ewFeTuQPL.jpg?v=1776641814","\/\/auspowers.com\/cdn\/shop\/files\/51h3QQrUr0L.jpg?v=1776641814","\/\/auspowers.com\/cdn\/shop\/files\/61iUvdhgvxL.jpg?v=1776641814","\/\/auspowers.com\/cdn\/shop\/files\/51-N6hD9W3L.jpg?v=1776641814","\/\/auspowers.com\/cdn\/shop\/files\/51f2lwQpxJL.jpg?v=1776641814","\/\/auspowers.com\/cdn\/shop\/files\/41bEioSjcpL.jpg?v=1776641814"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/B00PNER4V6.jpg?v=1777261756","options":["Title"],"media":[{"alt":"[Australia - AusPower] - STEPPERONLINE 5:1 Planetary Gearbox Nema 17 Stepper Motor 0.4A for DIY CNC Robot 3D Printer ","id":32869270061236,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/B00PNER4V6.jpg?v=1777261756"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/B00PNER4V6.jpg?v=1777261756","width":1000},{"alt":"[Australia - AusPower] - STEPPERONLINE 5:1 Planetary Gearbox Nema 17 Stepper Motor 0.4A for DIY CNC Robot 3D Printer ","id":32869270094004,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61ewFeTuQPL.jpg?v=1776641814"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61ewFeTuQPL.jpg?v=1776641814","width":1000},{"alt":"[Australia - AusPower] - STEPPERONLINE 5:1 Planetary Gearbox Nema 17 Stepper Motor 0.4A for DIY CNC Robot 3D Printer ","id":32869270126772,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51h3QQrUr0L.jpg?v=1776641814"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51h3QQrUr0L.jpg?v=1776641814","width":1000},{"alt":"[Australia - AusPower] - STEPPERONLINE 5:1 Planetary Gearbox Nema 17 Stepper Motor 0.4A for DIY CNC Robot 3D Printer ","id":32869270159540,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61iUvdhgvxL.jpg?v=1776641814"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61iUvdhgvxL.jpg?v=1776641814","width":1000},{"alt":"[Australia - AusPower] - STEPPERONLINE 5:1 Planetary Gearbox Nema 17 Stepper Motor 0.4A for DIY CNC Robot 3D Printer ","id":32869270192308,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51-N6hD9W3L.jpg?v=1776641814"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51-N6hD9W3L.jpg?v=1776641814","width":1000},{"alt":"[Australia - AusPower] - STEPPERONLINE 5:1 Planetary Gearbox Nema 17 Stepper Motor 0.4A for DIY CNC Robot 3D Printer ","id":32869270225076,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51f2lwQpxJL.jpg?v=1776641814"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51f2lwQpxJL.jpg?v=1776641814","width":1000},{"alt":"[Australia - AusPower] - STEPPERONLINE 5:1 Planetary Gearbox Nema 17 Stepper Motor 0.4A for DIY CNC Robot 3D Printer ","id":32869270257844,"position":7,"preview_image":{"aspect_ratio":2.591,"height":193,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/41bEioSjcpL.jpg?v=1776641814"},"aspect_ratio":2.591,"height":193,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/41bEioSjcpL.jpg?v=1776641814","width":500}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eSTEPPERONLINE 5:1 Planetary Gearbox Nema 17 Stepper Motor 0.4A for DIY CNC Robot 3D Printer\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003eThis is a short geared NEMA 17 Stepper motor, total length inlcuding shaft\r\nbelow 80mm, and with 6mm diameter shaft. It has an integrated planetary\r\ngearbox with a 5.18:1 gear ratio, the resolution reach 0.35 deg. step angle.\r\nIt's a good solution in applications that need very low rotation speeds and\/or\r\nlots of torque. Electrical Specification: Manufacturer Part Number:\r\n17HS13-0404S-PG5 Motor Type: Bipolar Stepper Step Angle: 0.35 deg.\r\nHolding Torque without Gearbox: 25Ncm(31.2oz.in) Rated Current\/phase: 0.4A\r\n Phase Resistance: 27ohms Inductance: 28.5mH+\/-20%(1KHz) Gearbox\r\nSpecifications: Gearbox Type: Planetary Gear Ratio: 5.18:1 Efficiency:\r\n90% Backlash at No-load: \u0026lt;=3 deg. Max.Permissible Torque: 3Nm(424.83oz.in)\r\n Moment Permissible Torque: 5Nm(708.06oz.in) Shaft Maximum Axial Load: 50N\r\n Shaft Maximum Radial Load: 100N Physical Specifications: Frame Size: 42 x\r\n42mm Motor Length: 34mm Gearbox Length: 27.3mm Shaft Diameter: 6mm \r\nShaft Length: 18mm D-cut Length: 12mm Number of Leads: 4 Lead Length:\r\n500mm Weight: 380g Connection: Black(A+), Green(A-), Red(B+), Blue(B-)\r\nWarning: Make sure the motor connect to a constant current or chopper drive\r\ncontroller before you test motor. Connecting the motor directly to a power\r\nsupply will destroy the motor.\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003eGood Torque Good Speed\u003c\/li\u003e\r\n \u003cli\u003e0.35 deg. Step Angle\u003c\/li\u003e\r\n \u003cli\u003eNEMA 17 bipolar 4-wire\u003c\/li\u003e\r\n \u003cli\u003ePlanetary Gearbox Ratio 5.18:1\u003c\/li\u003e\r\n \u003cli\u003eRated current 0.4A \u0026amp; resistance 27ohms\u003c\/li\u003e\r\n \u003c\/ul\u003e"}
