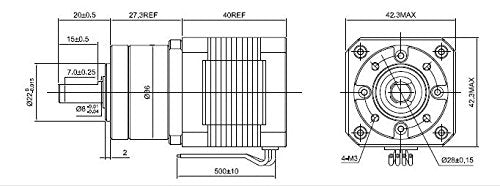

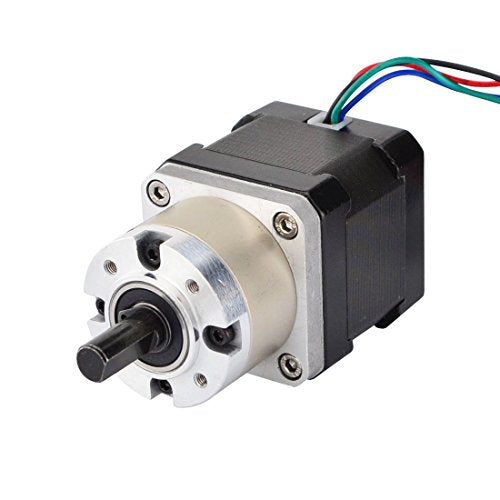

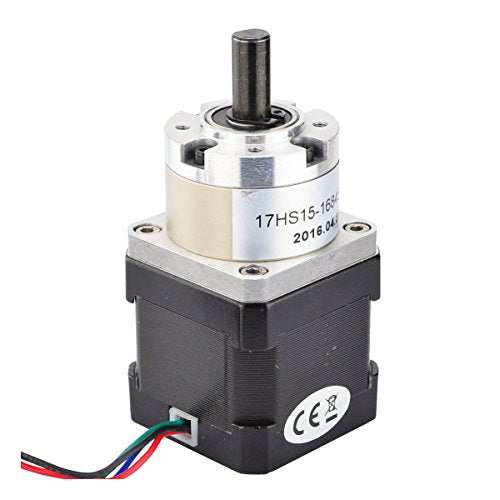

{"id":8115619889332,"title":"STEPPERONLINE 5:1 Planetary Gearbox Nema 17 Geared Stepper Motor 1.68A for DIY 3D Printer\/CNC Extruder","handle":"stepperonline-5-1-planetary-gearbox-nema-17-geared-stepper-motor-1-68a-for-diy-3d-printer-cnc-extruder","description":"\u003ch3\u003eSTEPPERONLINE 5:1 Planetary Gearbox Nema 17 Geared Stepper Motor 1.68A for DIY 3D Printer\/CNC Extruder\u003c\/h3\u003e\n\u003cp id=\"b\"\u003e100% brand new from Stepperonline and CE and RoHS certified. Electrical\nSpecifications: Manufacturer Part Number:17HS15-1684S-PG5 Motor Type:\nBipolar Step angle: 0.35 deg. Gearless holding torque: 36Ncm Rated\nCurrent\/Phase: 1.68A Phase Resistance: 1.65ohms Voltage: 2.8V \nInductivity: 3.2mH±20% (1kHz) Transmission features: Transmission Type:\nPlanets Transmission Ratio: 5.18:1 Transmission Efficiency: 90% Standby\nResponse: \u0026lt;=1° Max. torque : 2 Nm (82 g). Maximum Torque Display: 4Nm\n(566g) Maximum shaft load: 50N Maximum wave load: 100N Physical\ncharacteristics: Frame size: 42 x 42 mm. Body length: 40 mm. Transmission\nLength: 27.3mm Shaft diameter: 8 mm. Bar length: 20 mm. D cut length: 15 mm. \nNumber of LEDs: 4 Head Width: 500mm Weight: 460g Connection: Black(A+),\nGreen(A-), Red (L +), Blue (B-) WARNING: Stepper motor must be connected to\nDC driver or chopper driver. When you plug the motor directly into a power\nsupply, the motor will be destroyed. Please order on four spools of wires if\nyou want to connect to a conductor or it will damage your driver.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eGood Torque Good Speed\u003c\/li\u003e\n \u003cli\u003e0.35 Step Angle Planetary Gearbox Ratio 5.18:1\u003c\/li\u003e\n \u003cli\u003eNEMA-17 bipolar 4-wire with motor length 40mm\u003c\/li\u003e\n \u003cli\u003eRated current 1.68A \u0026amp; resistance 1.65ohms\u003c\/li\u003e\n \u003cli\u003eRated Speed 39rpm \u0026amp; Rated Torque 1.34Nm\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2026-09-03T00:31:32+10:00","created_at":"2026-09-02T20:24:49+10:00","vendor":"STEPPERONLINE","type":"3D Printer Motors","tags":["industrial_UK_Aug2026"],"price":31000,"price_min":31000,"price_max":31000,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44375711187124,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"uk-B00WATUFIG","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"STEPPERONLINE 5:1 Planetary Gearbox Nema 17 Geared Stepper Motor 1.68A for DIY 3D Printer\/CNC Extruder","public_title":null,"options":["Default Title"],"price":31000,"weight":454,"compare_at_price":null,"inventory_management":"shopify","barcode":"701056542321","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/uk-B00WATUFIG.jpg?v=1788344691","\/\/auspowers.com\/cdn\/shop\/files\/41PVEKFF46L.jpg?v=1788344691","\/\/auspowers.com\/cdn\/shop\/files\/41q4PSAKS0L.jpg?v=1788344691","\/\/auspowers.com\/cdn\/shop\/files\/318J9KeDsSL.jpg?v=1788344691"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/uk-B00WATUFIG.jpg?v=1788344691","options":["Title"],"media":[{"alt":null,"id":33276692168884,"position":1,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/uk-B00WATUFIG.jpg?v=1788344691"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/uk-B00WATUFIG.jpg?v=1788344691","width":500},{"alt":null,"id":33276692201652,"position":2,"preview_image":{"aspect_ratio":2.688,"height":186,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/41PVEKFF46L.jpg?v=1788344691"},"aspect_ratio":2.688,"height":186,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/41PVEKFF46L.jpg?v=1788344691","width":500},{"alt":null,"id":33276692234420,"position":3,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/41q4PSAKS0L.jpg?v=1788344691"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/41q4PSAKS0L.jpg?v=1788344691","width":500},{"alt":null,"id":33276692267188,"position":4,"preview_image":{"aspect_ratio":2.924,"height":171,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/318J9KeDsSL.jpg?v=1788344691"},"aspect_ratio":2.924,"height":171,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/318J9KeDsSL.jpg?v=1788344691","width":500}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eSTEPPERONLINE 5:1 Planetary Gearbox Nema 17 Geared Stepper Motor 1.68A for DIY 3D Printer\/CNC Extruder\u003c\/h3\u003e\n\u003cp id=\"b\"\u003e100% brand new from Stepperonline and CE and RoHS certified. Electrical\nSpecifications: Manufacturer Part Number:17HS15-1684S-PG5 Motor Type:\nBipolar Step angle: 0.35 deg. Gearless holding torque: 36Ncm Rated\nCurrent\/Phase: 1.68A Phase Resistance: 1.65ohms Voltage: 2.8V \nInductivity: 3.2mH±20% (1kHz) Transmission features: Transmission Type:\nPlanets Transmission Ratio: 5.18:1 Transmission Efficiency: 90% Standby\nResponse: \u0026lt;=1° Max. torque : 2 Nm (82 g). Maximum Torque Display: 4Nm\n(566g) Maximum shaft load: 50N Maximum wave load: 100N Physical\ncharacteristics: Frame size: 42 x 42 mm. Body length: 40 mm. Transmission\nLength: 27.3mm Shaft diameter: 8 mm. Bar length: 20 mm. D cut length: 15 mm. \nNumber of LEDs: 4 Head Width: 500mm Weight: 460g Connection: Black(A+),\nGreen(A-), Red (L +), Blue (B-) WARNING: Stepper motor must be connected to\nDC driver or chopper driver. When you plug the motor directly into a power\nsupply, the motor will be destroyed. Please order on four spools of wires if\nyou want to connect to a conductor or it will damage your driver.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eGood Torque Good Speed\u003c\/li\u003e\n \u003cli\u003e0.35 Step Angle Planetary Gearbox Ratio 5.18:1\u003c\/li\u003e\n \u003cli\u003eNEMA-17 bipolar 4-wire with motor length 40mm\u003c\/li\u003e\n \u003cli\u003eRated current 1.68A \u0026amp; resistance 1.65ohms\u003c\/li\u003e\n \u003cli\u003eRated Speed 39rpm \u0026amp; Rated Torque 1.34Nm\u003c\/li\u003e\n \u003c\/ul\u003e"}
