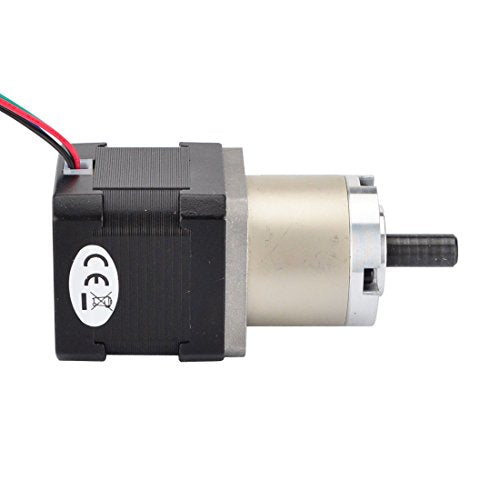

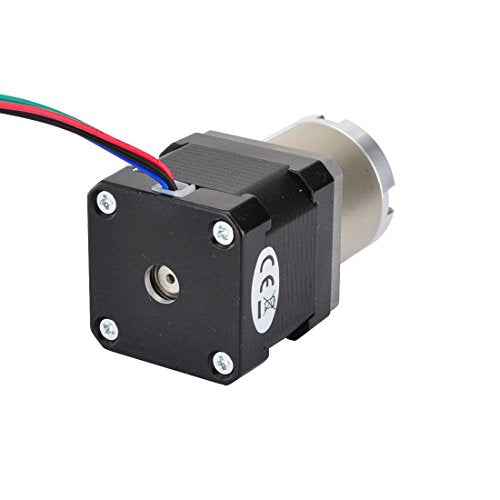

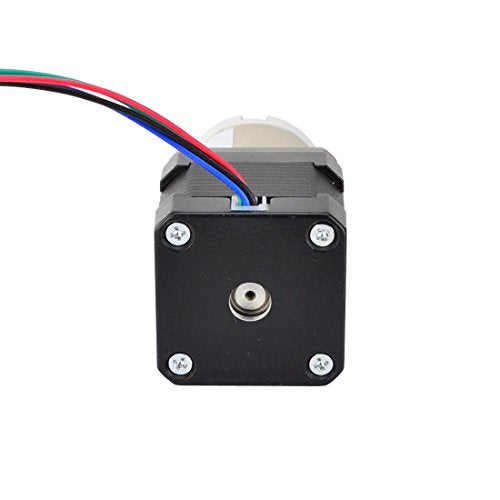

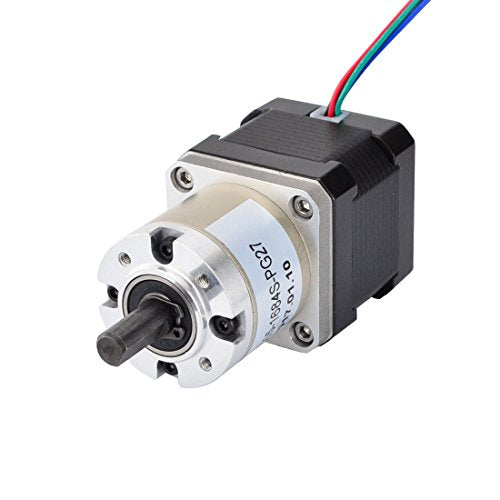

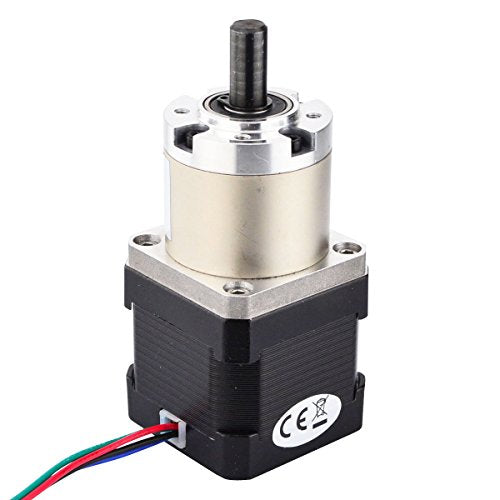

{"id":8115601998004,"title":"STEPPERONLINE 27:1 Planetary Gear Nema 17 Gear Motor 1.68A Stepper Motor for Craft CNC","handle":"stepperonline-27-1-planetary-gear-nema-17-gear-motor-1-68a-stepper-motor-for-craft-cnc","description":"\u003ch3\u003eSTEPPERONLINE 27:1 Planetary Gear Nema 17 Gear Motor 1.68A Stepper Motor for Craft CNC\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eElectrical specification: Manufacturer Part Number: 17HS15-1684S-PG27 \nMotor type: bipolar Step angle: 0.067 deg Holding torque without\ntransmission: 36 Ncm(50.98 oz.in) Rated current\/phase: 1.68A Phase\nresistance: 1.65 ohms Voltage: 2.8V Inductance: 3.2mH±20%(1KHz) Gear\nspecification: Transmission type: planets Gear Ratio: 26.85: 1 \nTransmission efficiency: 81%. Reverse reaction in idle: \u0026lt;= 1°. Maximum\npermissible torque: 3Nm (425oz-in) Momentary permitted torque: 5Nm (708oz-\nin) Maximum Axial Wave Load: 50N Maximum radial wave load: 100N Physical\nspecification: Frame size: 42 x 42 mm. Body length: 48 mm. Gear length:\n35 mm. Shaft diameter: 8 mm. Shaft length: 20 mm. D-cut length: 15 mm. \nNumber of leads: 4. Lead rotation: 500 mm. Weight: 510 g. Connection:\nBlack (A +), Green (A-), Red (B +), Blue (B-). Warning: As a stepper motor,\nit should be connected to a constant current or chopper driver. If you connect\nthe motor directly to a power supply, the motor will be destroyed. Please\npay attention to order four wire coils when you connect to the driver, or it\nwill damage your driver.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eThis Nema 17 stepper motor with 38 mm length and 1.68 A rated current, integrated a planetary gear of 5.18: 1 gear ratio\u003c\/li\u003e\n \u003cli\u003eIt is a good solution for applications that require low speed and\/or high torque when space is limited\u003c\/li\u003e\n \u003cli\u003e100% brand new from \"STEPPERONLINE\" and ROHS and CE certified.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2026-09-03T00:36:48+10:00","created_at":"2026-09-02T20:18:41+10:00","vendor":"STEPPERONLINE","type":"3D Printer Motors","tags":["industrial_UK_Aug2026"],"price":32900,"price_min":32900,"price_max":32900,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44375691624628,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"uk-B077YXYTDD","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"STEPPERONLINE 27:1 Planetary Gear Nema 17 Gear Motor 1.68A Stepper Motor for Craft CNC","public_title":null,"options":["Default Title"],"price":32900,"weight":539,"compare_at_price":null,"inventory_management":"shopify","barcode":"715776446661","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/uk-B077YXYTDD.jpg?v=1788344323","\/\/auspowers.com\/cdn\/shop\/files\/41ufTEFzvGL.jpg?v=1788344323","\/\/auspowers.com\/cdn\/shop\/files\/41OIG2pBYiL.jpg?v=1788344324","\/\/auspowers.com\/cdn\/shop\/files\/41UjNBFkv5L.jpg?v=1788344323","\/\/auspowers.com\/cdn\/shop\/files\/415wanulSlL.jpg?v=1788344323"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/uk-B077YXYTDD.jpg?v=1788344323","options":["Title"],"media":[{"alt":null,"id":33276577906868,"position":1,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/uk-B077YXYTDD.jpg?v=1788344323"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/uk-B077YXYTDD.jpg?v=1788344323","width":500},{"alt":null,"id":33276577939636,"position":2,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/41ufTEFzvGL.jpg?v=1788344323"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/41ufTEFzvGL.jpg?v=1788344323","width":500},{"alt":null,"id":33276577972404,"position":3,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/41OIG2pBYiL.jpg?v=1788344324"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/41OIG2pBYiL.jpg?v=1788344324","width":500},{"alt":null,"id":33276578005172,"position":4,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/41UjNBFkv5L.jpg?v=1788344323"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/41UjNBFkv5L.jpg?v=1788344323","width":500},{"alt":null,"id":33276578037940,"position":5,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/415wanulSlL.jpg?v=1788344323"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/415wanulSlL.jpg?v=1788344323","width":500}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eSTEPPERONLINE 27:1 Planetary Gear Nema 17 Gear Motor 1.68A Stepper Motor for Craft CNC\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eElectrical specification: Manufacturer Part Number: 17HS15-1684S-PG27 \nMotor type: bipolar Step angle: 0.067 deg Holding torque without\ntransmission: 36 Ncm(50.98 oz.in) Rated current\/phase: 1.68A Phase\nresistance: 1.65 ohms Voltage: 2.8V Inductance: 3.2mH±20%(1KHz) Gear\nspecification: Transmission type: planets Gear Ratio: 26.85: 1 \nTransmission efficiency: 81%. Reverse reaction in idle: \u0026lt;= 1°. Maximum\npermissible torque: 3Nm (425oz-in) Momentary permitted torque: 5Nm (708oz-\nin) Maximum Axial Wave Load: 50N Maximum radial wave load: 100N Physical\nspecification: Frame size: 42 x 42 mm. Body length: 48 mm. Gear length:\n35 mm. Shaft diameter: 8 mm. Shaft length: 20 mm. D-cut length: 15 mm. \nNumber of leads: 4. Lead rotation: 500 mm. Weight: 510 g. Connection:\nBlack (A +), Green (A-), Red (B +), Blue (B-). Warning: As a stepper motor,\nit should be connected to a constant current or chopper driver. If you connect\nthe motor directly to a power supply, the motor will be destroyed. Please\npay attention to order four wire coils when you connect to the driver, or it\nwill damage your driver.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eThis Nema 17 stepper motor with 38 mm length and 1.68 A rated current, integrated a planetary gear of 5.18: 1 gear ratio\u003c\/li\u003e\n \u003cli\u003eIt is a good solution for applications that require low speed and\/or high torque when space is limited\u003c\/li\u003e\n \u003cli\u003e100% brand new from \"STEPPERONLINE\" and ROHS and CE certified.\u003c\/li\u003e\n \u003c\/ul\u003e"}
