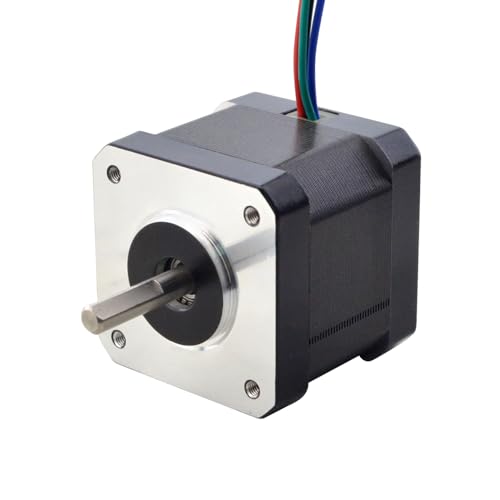

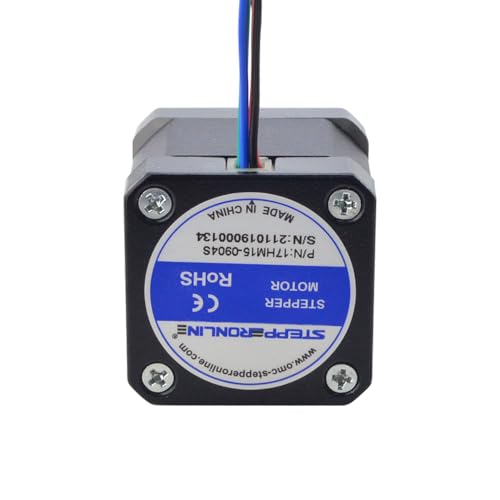

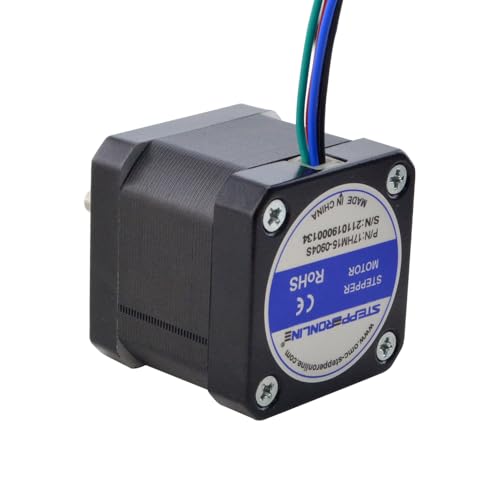

{"id":8115641778356,"title":"STEPPERONLINE 0.9deg Nema 17 Stepper Motor 36Ncm 0.9A 42x42x40mm 4-lead for DIY 3D Printer CNC","handle":"stepperonline-0-9deg-nema-17-stepper-motor-36ncm-0-9a-42x42x40mm-4-lead-for-diy-3d-printer-cnc","description":"\u003ch3\u003eSTEPPERONLINE 0.9deg Nema 17 Stepper Motor 36Ncm 0.9A 42x42x40mm 4-lead for DIY 3D Printer CNC\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eThis bipolar Nema 17 stepper motor with step angle 0.9deg and size 42x42x39mm.\nIt has 4 wires, each phase draws current 0.9A, with holding torque 36Ncm\n(51oz.in). Electrical Specification Manufacturer Part Number: 17HM15-0904S\nMotor Type: Bipolar Stepper Step Angle: 0.9 deg Holding Torque:\n36Ncm(51oz.in) Rated Current\/phase: 0.9A Voltage: 5.4V Phase Resistance:\n6.0ohms Inductance: 12.0mH ± 20%(1KHz) Physical Specification Frame Size: 42\nx 42mm Body Length: 40mm Shaft Diameter: Φ5mm Shaft Length: 22mm D-cut\nLength: 15mm Number of Leads: 4 Lead Length: 300mm Weight: 280g Connection\nBlack(A+), Green(A-), Red(B+), Blue(B-) Warning: Make sure the motor connect\nto a constant current or chopper drive controller before you test motor.\nConnecting the motor directly to a power supply will destroy the motor.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003e36Ncm(51oz.in) holding torque\u003c\/li\u003e\n \u003cli\u003eNEMA 17 bipolar 4-wire\u003c\/li\u003e\n \u003cli\u003e0.9 deg. step angle\u003c\/li\u003e\n \u003cli\u003eRated current 0.9A \u0026amp; resistance 6.0ohms\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2026-09-03T00:25:02+10:00","created_at":"2026-09-02T20:31:39+10:00","vendor":"STEPPERONLINE","type":"3D Printer Motors","tags":["industrial_UK_Aug2026"],"price":22200,"price_min":22200,"price_max":22200,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44375767515316,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"uk-B00W98OYE4","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"STEPPERONLINE 0.9deg Nema 17 Stepper Motor 36Ncm 0.9A 42x42x40mm 4-lead for DIY 3D Printer CNC","public_title":null,"options":["Default Title"],"price":22200,"weight":280,"compare_at_price":null,"inventory_management":"shopify","barcode":"701056561445","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/uk-B00W98OYE4.jpg?v=1788345101","\/\/auspowers.com\/cdn\/shop\/files\/31ShWoN01sL.jpg?v=1788345101","\/\/auspowers.com\/cdn\/shop\/files\/31G1rw9cbNL.jpg?v=1788345101","\/\/auspowers.com\/cdn\/shop\/files\/31RFKbfb8RL.jpg?v=1788345101","\/\/auspowers.com\/cdn\/shop\/files\/31Zx5nRDHXL.jpg?v=1788345101","\/\/auspowers.com\/cdn\/shop\/files\/31SQMNRi2GL.jpg?v=1788345101"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/uk-B00W98OYE4.jpg?v=1788345101","options":["Title"],"media":[{"alt":null,"id":33276824354996,"position":1,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/uk-B00W98OYE4.jpg?v=1788345101"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/uk-B00W98OYE4.jpg?v=1788345101","width":500},{"alt":null,"id":33276824387764,"position":2,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/31ShWoN01sL.jpg?v=1788345101"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/31ShWoN01sL.jpg?v=1788345101","width":500},{"alt":null,"id":33276824420532,"position":3,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/31G1rw9cbNL.jpg?v=1788345101"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/31G1rw9cbNL.jpg?v=1788345101","width":500},{"alt":null,"id":33276824453300,"position":4,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/31RFKbfb8RL.jpg?v=1788345101"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/31RFKbfb8RL.jpg?v=1788345101","width":500},{"alt":null,"id":33276824486068,"position":5,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/31Zx5nRDHXL.jpg?v=1788345101"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/31Zx5nRDHXL.jpg?v=1788345101","width":500},{"alt":null,"id":33276824518836,"position":6,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/31SQMNRi2GL.jpg?v=1788345101"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/31SQMNRi2GL.jpg?v=1788345101","width":500}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eSTEPPERONLINE 0.9deg Nema 17 Stepper Motor 36Ncm 0.9A 42x42x40mm 4-lead for DIY 3D Printer CNC\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eThis bipolar Nema 17 stepper motor with step angle 0.9deg and size 42x42x39mm.\nIt has 4 wires, each phase draws current 0.9A, with holding torque 36Ncm\n(51oz.in). Electrical Specification Manufacturer Part Number: 17HM15-0904S\nMotor Type: Bipolar Stepper Step Angle: 0.9 deg Holding Torque:\n36Ncm(51oz.in) Rated Current\/phase: 0.9A Voltage: 5.4V Phase Resistance:\n6.0ohms Inductance: 12.0mH ± 20%(1KHz) Physical Specification Frame Size: 42\nx 42mm Body Length: 40mm Shaft Diameter: Φ5mm Shaft Length: 22mm D-cut\nLength: 15mm Number of Leads: 4 Lead Length: 300mm Weight: 280g Connection\nBlack(A+), Green(A-), Red(B+), Blue(B-) Warning: Make sure the motor connect\nto a constant current or chopper drive controller before you test motor.\nConnecting the motor directly to a power supply will destroy the motor.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003e36Ncm(51oz.in) holding torque\u003c\/li\u003e\n \u003cli\u003eNEMA 17 bipolar 4-wire\u003c\/li\u003e\n \u003cli\u003e0.9 deg. step angle\u003c\/li\u003e\n \u003cli\u003eRated current 0.9A \u0026amp; resistance 6.0ohms\u003c\/li\u003e\n \u003c\/ul\u003e"}
