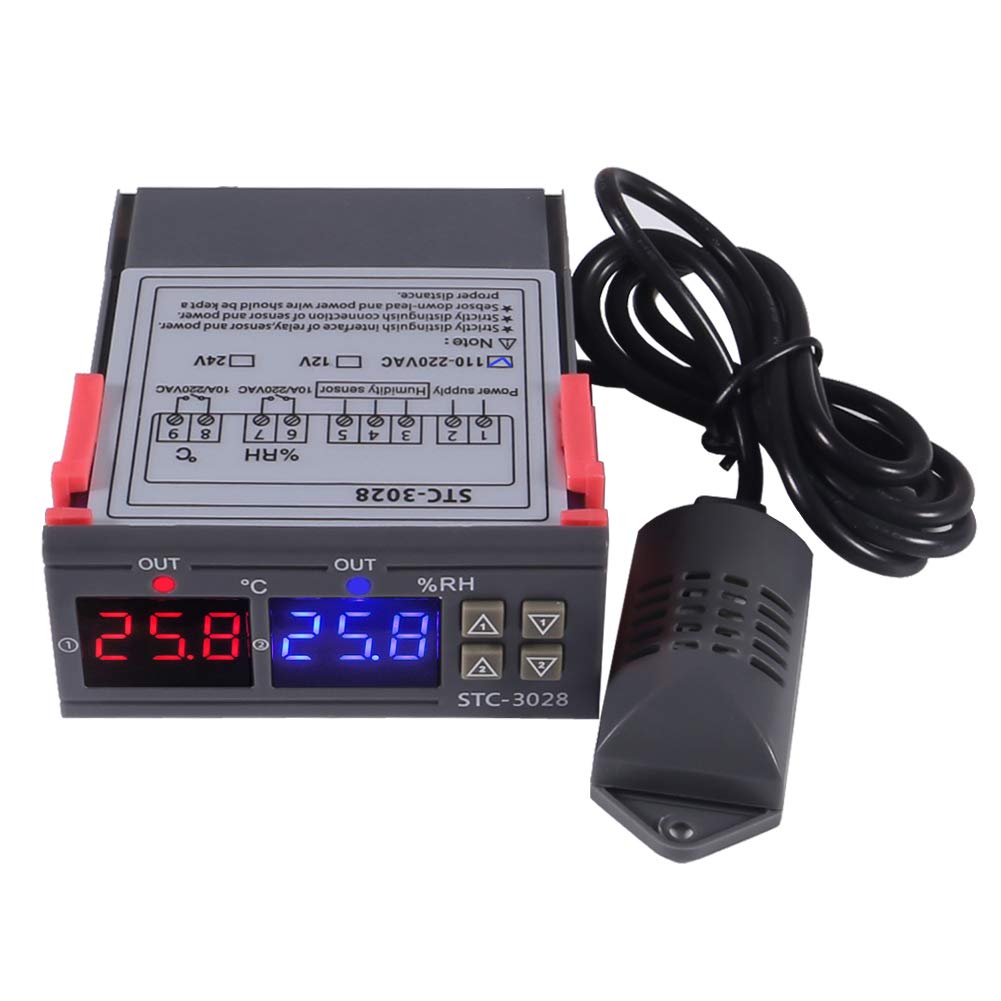

STC-3028 AC 110-220V 10A Digital Temperature Controller Dual Display Thermostat Thermoregulator Heating Cooling Switch Digital Hygrometer with SHT20 Probe (AC 110-220V)
STC-3028 AC 110-220V 10A Digital Temperature Controller Dual Display Thermostat Thermoregulator Heating Cooling Switch Digital Hygrometer with SHT20 Probe (AC 110-220V)

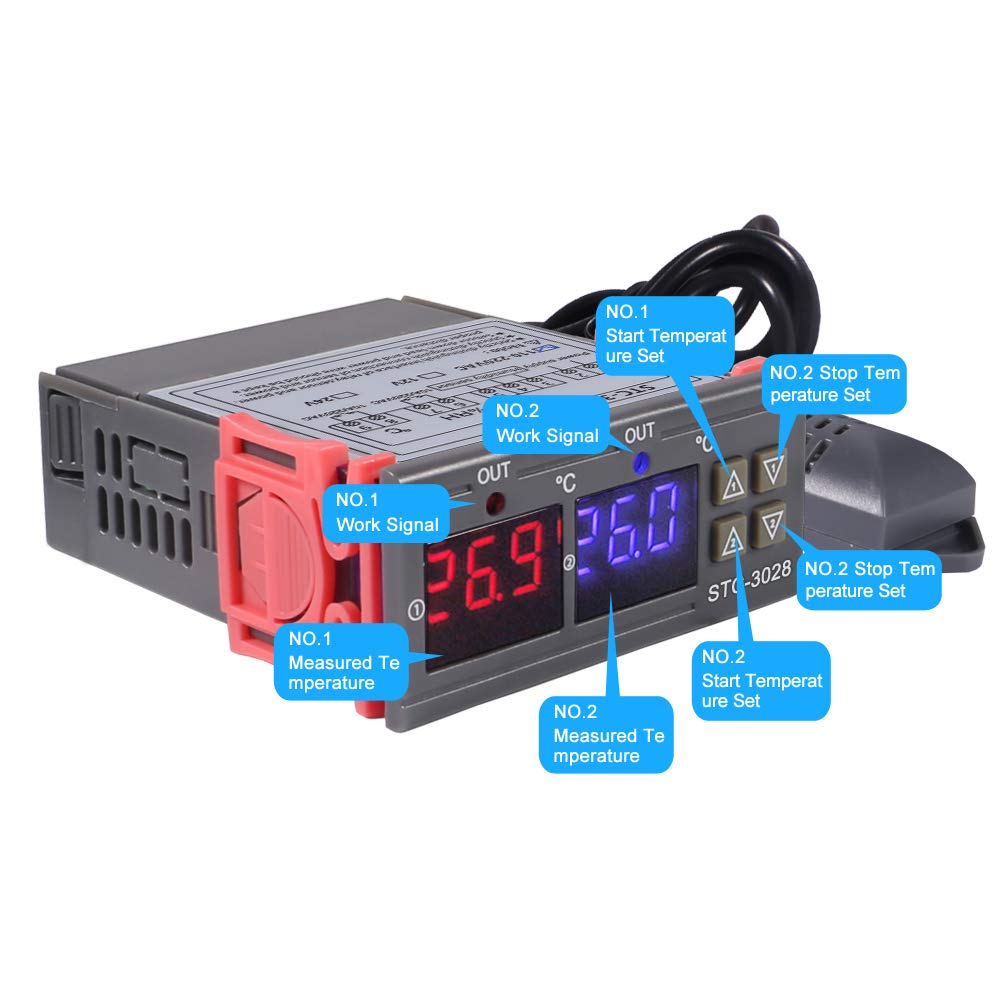

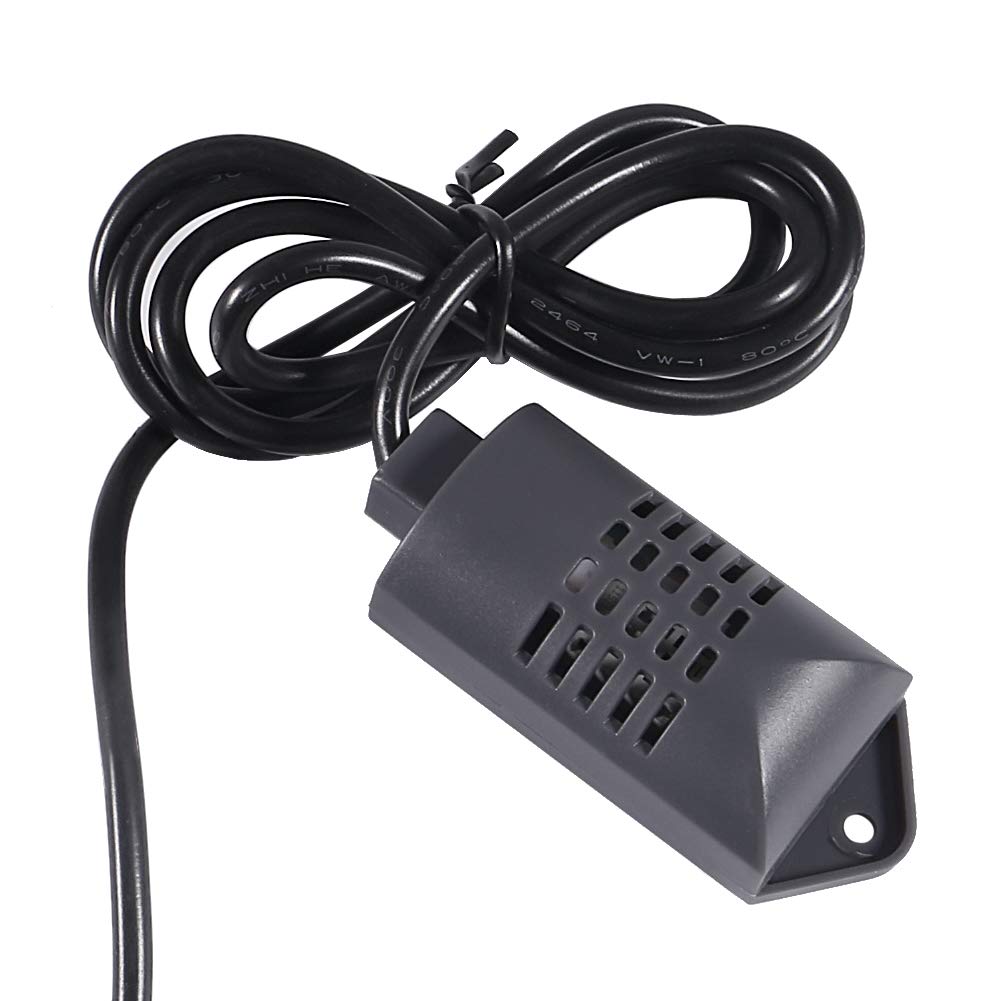

Switch the modes between cool and heat;Control temperature bysetting the temperature setting value and the difference value;Temperature calibration; Refrigerating control output delay protection; Alarm when temperature exceeds, temperature limit or when sensor error.'Specifications:Housing Material: Gray ABS flame retardant plastic shellIntegrated sensor, 1M SHT20 waterproof sensorRelay Output Contact Capacity: 10A/240VACMeasuring Humidity Range: 00%RH~+100%RHMeasuring Temperature Range: -20 ° C ~ +80 ° CHeating and Cooling Mode SettingSetting(Starting Temperature):Press and hold the▲button 3 seconds to Start Temperature flashing,Use▲▼button to set Start Temperature valueSetting(Stop Temperature):Press and hold the▼button 3 seconds to Stop Temperature flashing,Use▲▼button to set Stop Temperature valueSet startup temperature(humidity):Press the "up" button once to display the starting temperature(humidity). Long press the "up" button for about 3 seconds,The required temperature(humidity) can be set by the up and down keysSet stop temperature(humidity):Press the "down"button once to display the stop temperature(humidity). Long press the button for about 3 seconds and the stop temperature(humidity) number flashes. The required temperature(humidity) can be set by the up and down keysTemperature/humidity correction:Press "up" and "down" button at the same time.Feature:Be able to control temperature and humidity at the same time.Be able to connect with humidifier and dehumidifier equipment at the same time.Be able to connect with refrigeration/ heating and humid
Product Features
- Widely Application: various sensor control boxes, water heater, freezer, fan, etc
- Supply Voltage:AC110-220V
- Housing Material: Gray ABS flame retardant plastic shell
- Measuring Humidity Range: 00%RH~+100%RH
- Measuring Temperature Range: -20 C ~ +80 C
