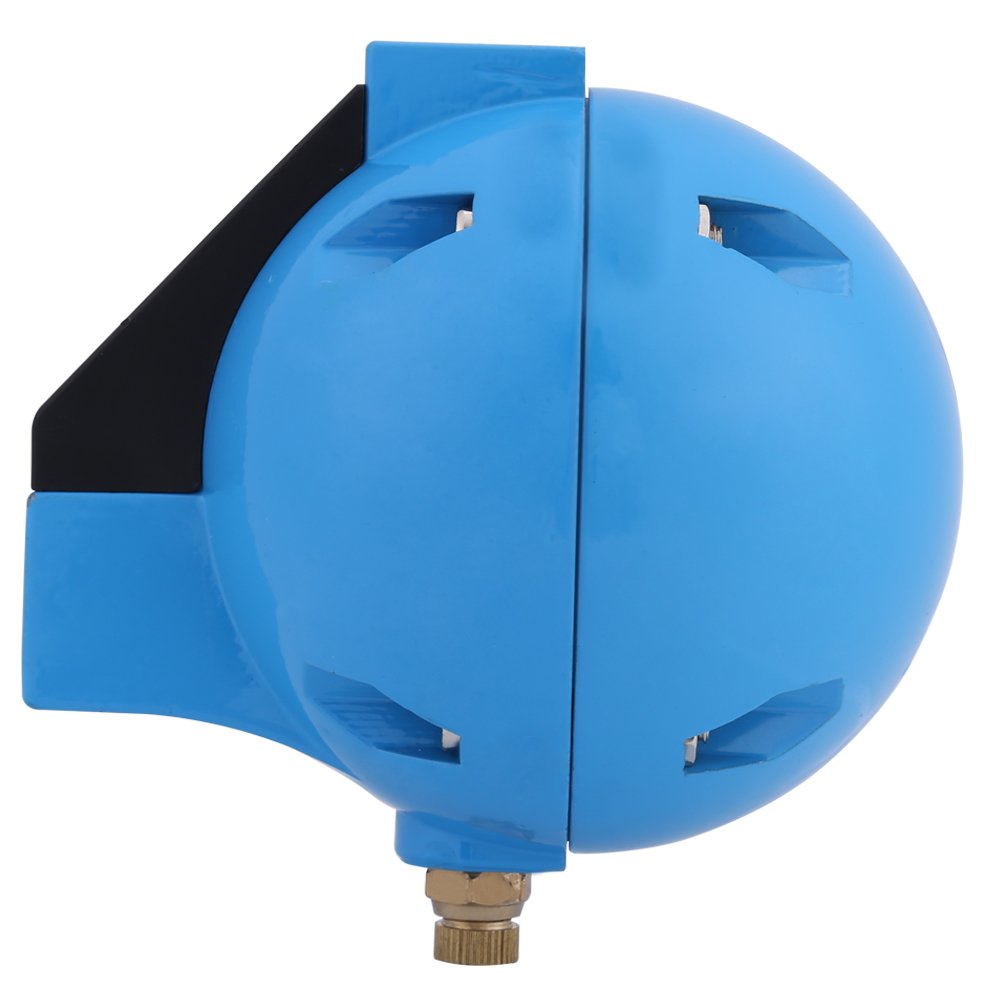

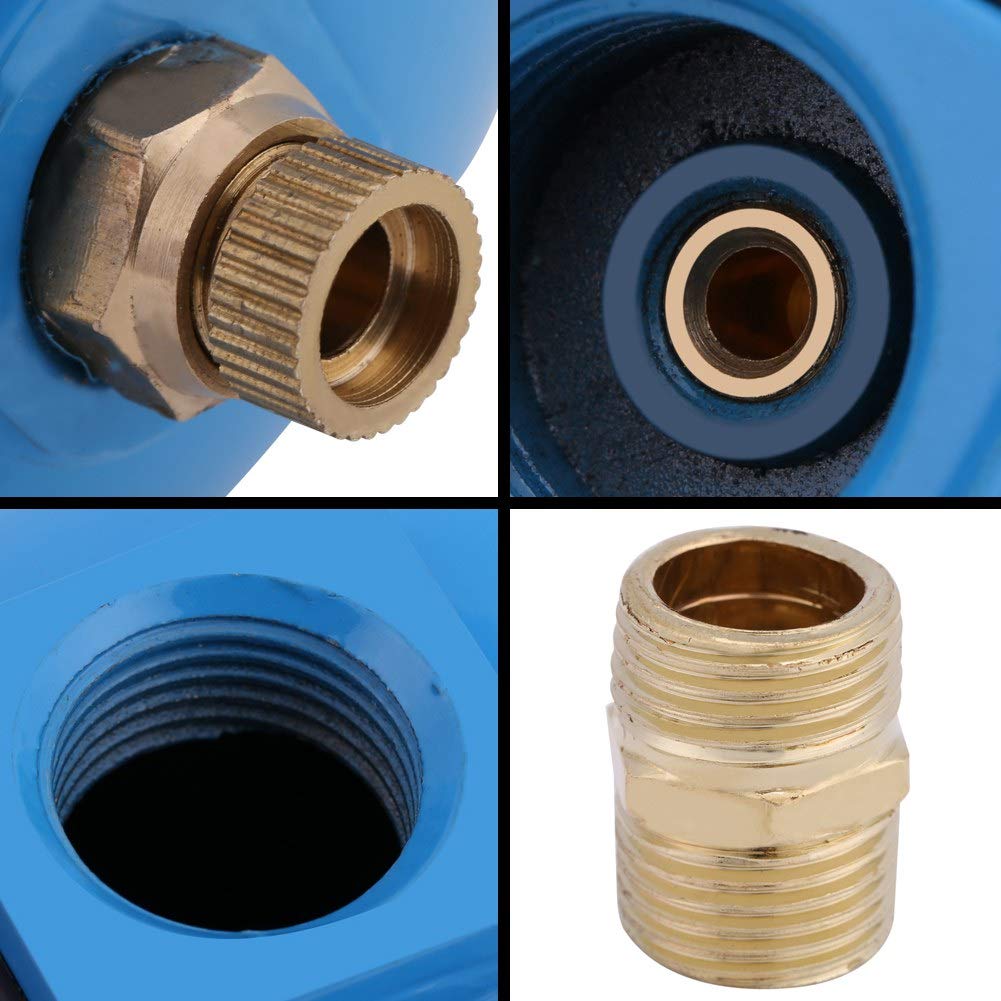

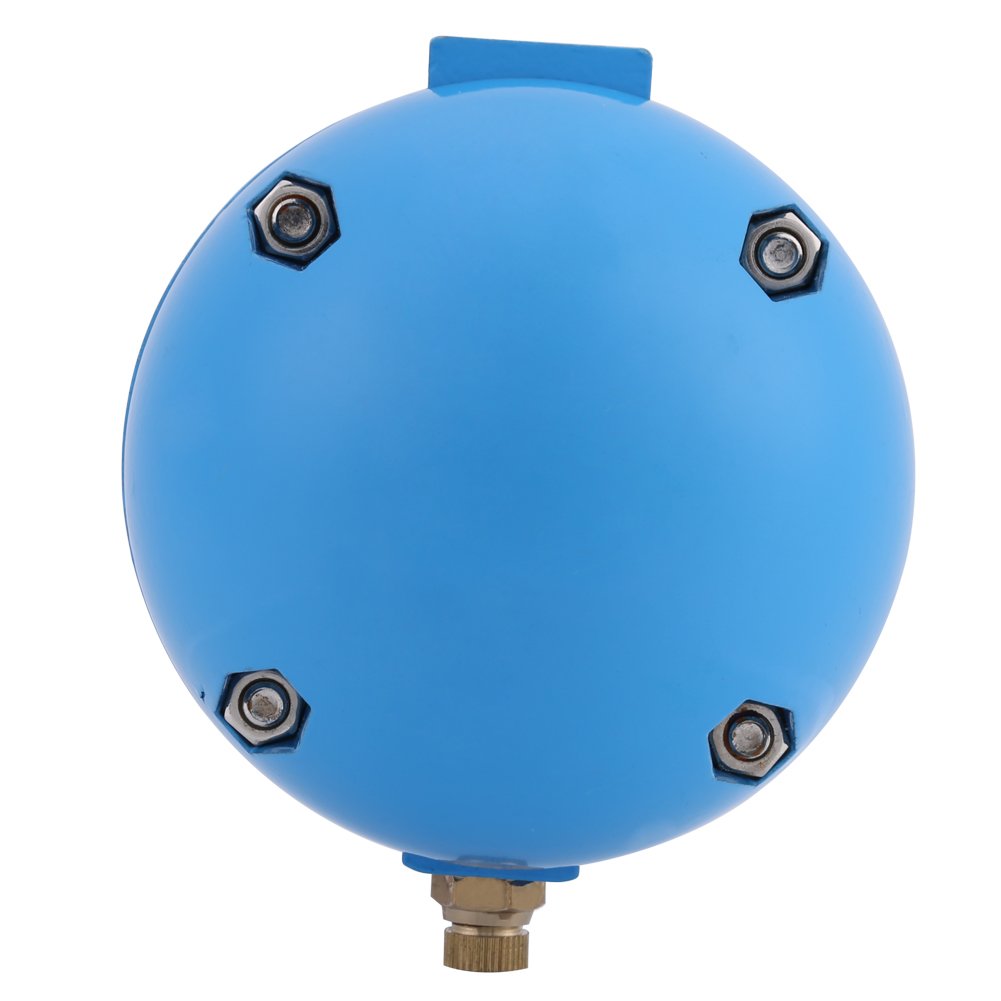

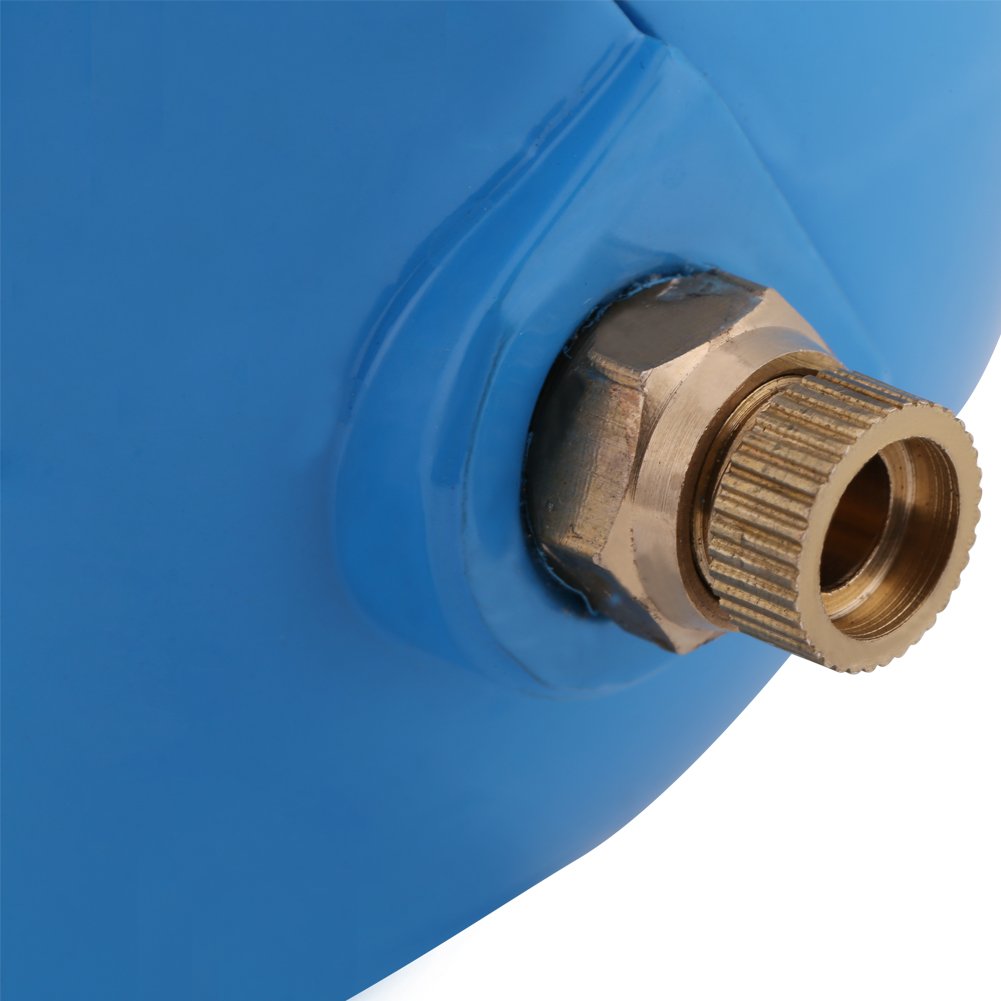

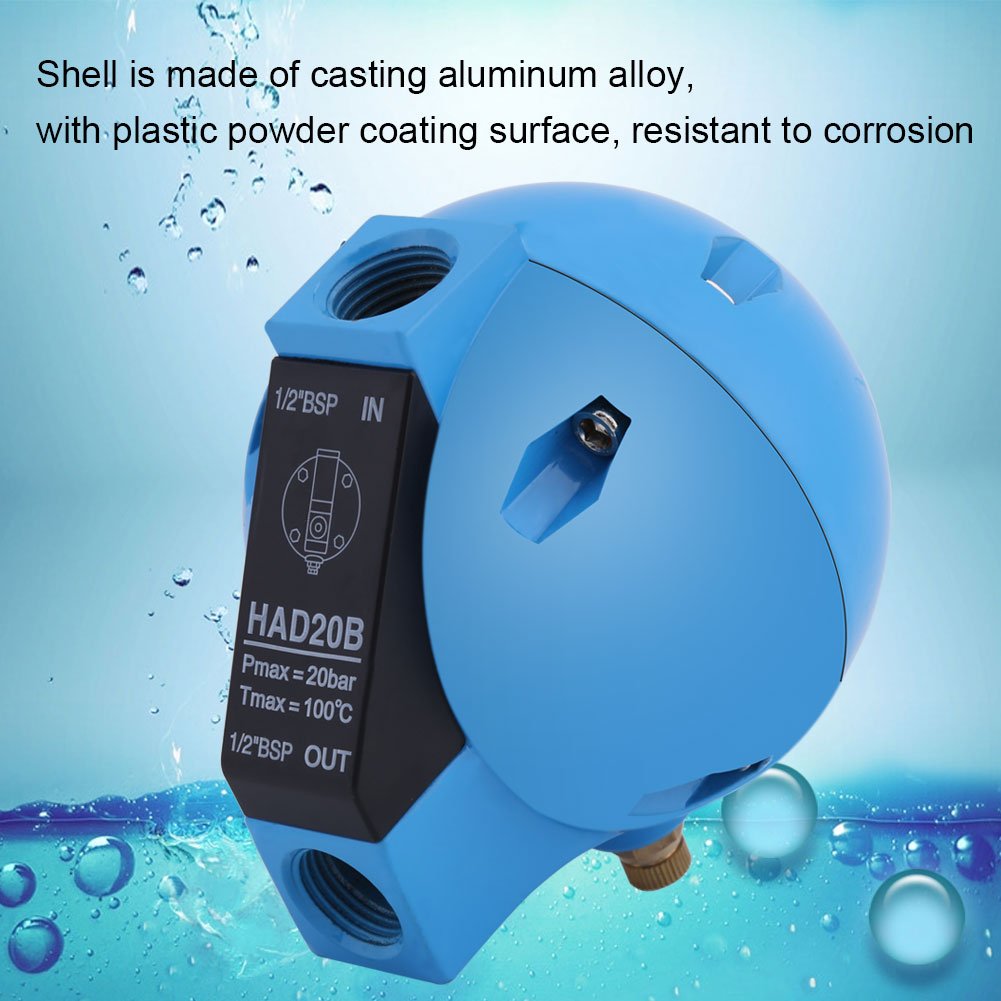

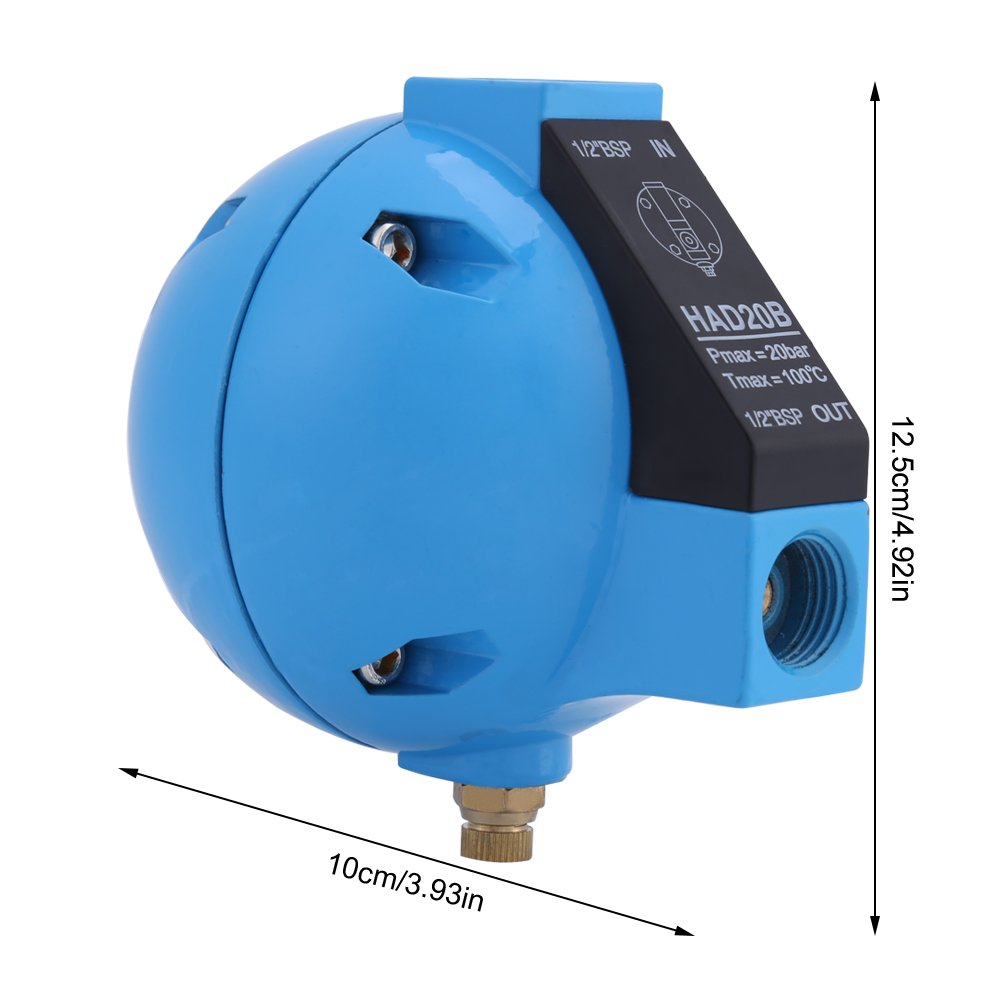

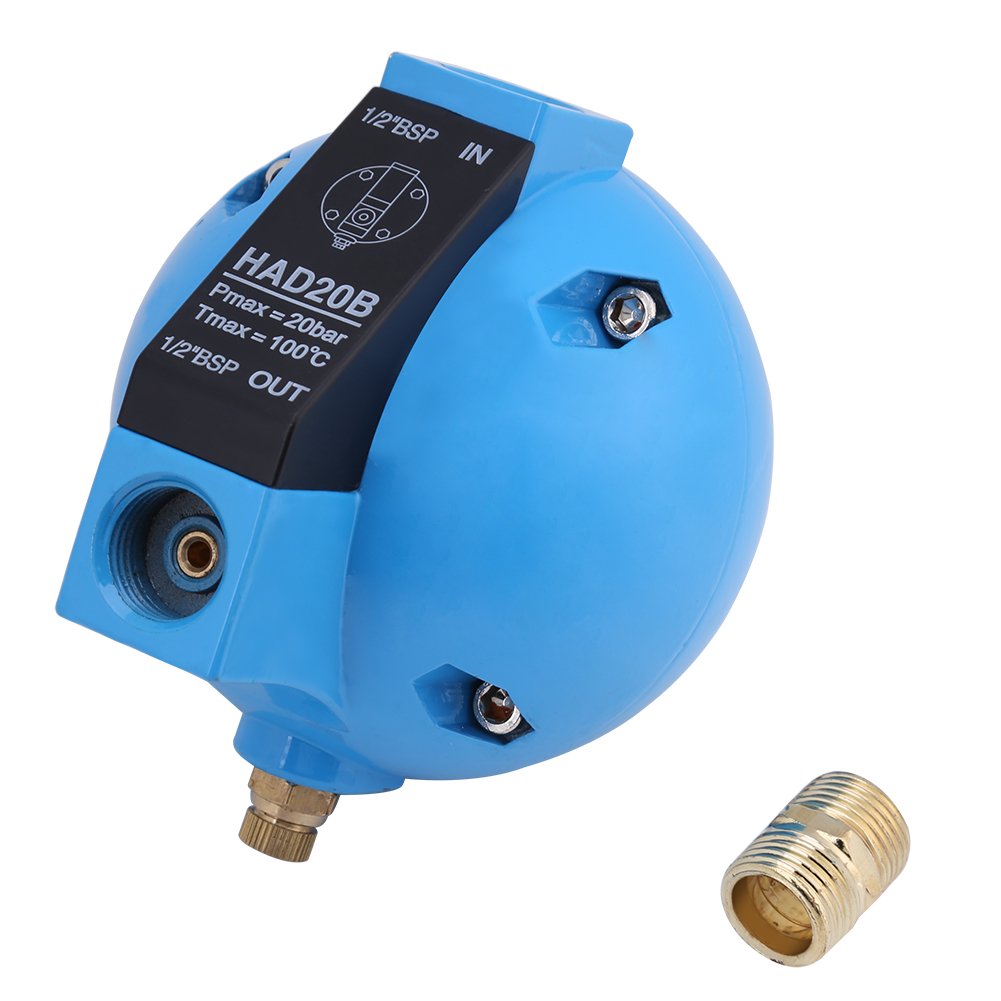

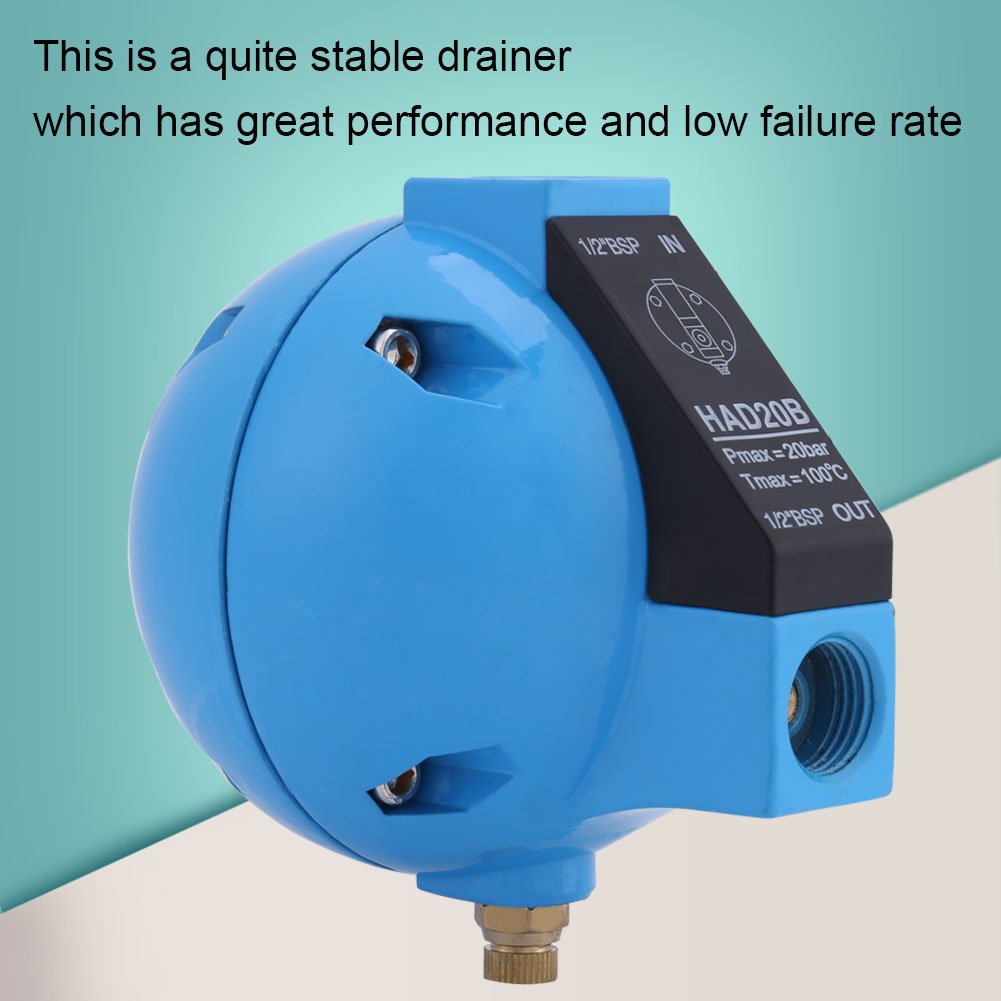

{"id":7838491541684,"title":"Spherical Drain,1pc HAD20B Automatic Condensate Mechanical Round Drain Valve with Resistant to (1\/2BSP,400L\/H,20Bar)","handle":"spherical-drain-1pc-had20b-automatic-condensate-mechanical-round-drain-valve-with-resistant-to-1-2bsp-400l-h-20bar","description":"\u003ch3\u003eSpherical Drain,1pc HAD20B Automatic Condensate Mechanical Round Drain Valve with Resistant to (1\/2BSP,400L\/H,20Bar)\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eDescription: This compressed air condensate automatic drainer is a mechanical\nautomatic drainer which has casting aluminum alloy shell and inside ball\ndrainage system.Drainer outlet is closed when drainage buoyancy is smaller\nthan floating ball weight plus compressed air pressure; and it will open when\nbuoyancy increases, in order to drain condensed liquid. Specifications: Model:\nHAD20B Port Size: Inlet=Outlet=1\/2BSP . Pressure: 20bar . Temperature: 100? .\nCapacity: 400L\/H Weight: 602g(approx.) Instruction: Before installing this\ndrainer, please use compressed air to remove impurities in the piping till it\nis completely clean. Install this automatic drainer beneath the drainage\ndevice of equipment, otherwise condensate will be filled and affect drainage.\nMaintenance Inspect the drainer once a week. Operation method: open manual\ndrainer valve to drain water till compressed air in equipment enter the\ndrainer, after a few seconds then closed valve.If drained water is more than\n0.5 liters, there is a blockage and drainer need to be cleaned completely.\nInternal parts should be taken out and cleaned each year.When cleaning, you\ncan use soap water or dish-washing liquid to clean, do not use solvents, so as\nnot to damage the rubber fittings. Package Includes: 1 x Drain Valve 1 x Pipe\nFitting\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eALUMINUM ALLOY MATERIALShell is made of casting aluminum alloy, with plastic powder coating surface, resistant to . Automatic drainer is extremely reliable in operation, no electricity needed, no noise, no loss of compressed air.\u003c\/li\u003e\n \u003cli\u003eMAIN FUNCTIONWhen the drainage buoyancy is less than the weight of the plus the compressed air pressure, the drain outlet is closed; when the buoyancy increases, it will open to discharge the condensate. This kind of compressed air condensate automatic drainer has a large drain and is not easy to be blocked.\u003c\/li\u003e\n \u003cli\u003eFLOATING BALL DRAIN VALVEModel: HAD20B; Port size: inlet = outlet = 1\/2BSP; maximum pressure: 20bar; maximum temperature: 100; maximum capacity: 400L\/H; weight: about 602g.\u003c\/li\u003e\n \u003cli\u003eUPGRADE AUTO DRAINThis type of compressed air condensate auto drain is obviously different from the traditional mechanical auto drain, which belongs to continuous droplet discharge. This is a fairly stable drain with excellent performance and a low failure rate.\u003c\/li\u003e\n \u003cli\u003ePRACTICAL TOOLThis compressed air condensate automatic drainer is significantly different from traditional mechanical automatic drainer, which is belong to continuous drops drain.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2024-09-19T14:48:14+10:00","created_at":"2024-09-03T16:59:39+10:00","vendor":"Focket","type":"Drains","tags":["industrial_Aug2024_update"],"price":17800,"price_min":17800,"price_max":17800,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":43554798895284,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B07S3QV4PY","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Spherical Drain,1pc HAD20B Automatic Condensate Mechanical Round Drain Valve with Resistant to (1\/2BSP,400L\/H,20Bar)","public_title":null,"options":["Default Title"],"price":17800,"weight":596,"compare_at_price":null,"inventory_management":"shopify","barcode":"701070018109","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/B07S3QV4PY.jpg?v=1775745789","\/\/auspowers.com\/cdn\/shop\/files\/51J_gYcymlL_d85b936c-5986-46aa-a939-f500658a5401.jpg?v=1725346782","\/\/auspowers.com\/cdn\/shop\/files\/51cYItclVYL_6d80b50b-e068-415e-9140-c6a718d18ebf.jpg?v=1725346782","\/\/auspowers.com\/cdn\/shop\/files\/51sARLtU3QL_0a9df703-135f-442f-9120-a632a2d1ec6e.jpg?v=1725346782","\/\/auspowers.com\/cdn\/shop\/files\/515fd9CGTjL.jpg?v=1725346782","\/\/auspowers.com\/cdn\/shop\/files\/61v0F3ScRVL.jpg?v=1725346782","\/\/auspowers.com\/cdn\/shop\/files\/610z2S3uTxL_789daeb9-71a9-4405-a2b6-e2704603b868.jpg?v=1725346782","\/\/auspowers.com\/cdn\/shop\/files\/61jctIaPEKL_92fadf56-0173-4736-a659-8e855aeeaa79.jpg?v=1725346782"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/B07S3QV4PY.jpg?v=1775745789","options":["Title"],"media":[{"alt":"[Australia - AusPower] - Spherical Drain,1pc HAD20B Automatic Condensate Mechanical Round Drain Valve with Resistant to (1\/2BSP,400L\/H,20Bar) ","id":30713906299060,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/B07S3QV4PY.jpg?v=1775745789"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/B07S3QV4PY.jpg?v=1775745789","width":1001},{"alt":"[Australia - AusPower] - Spherical Drain,1pc HAD20B Automatic Condensate Mechanical Round Drain Valve with Resistant to (1\/2BSP,400L\/H,20Bar) ","id":30713906331828,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51J_gYcymlL_d85b936c-5986-46aa-a939-f500658a5401.jpg?v=1725346782"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51J_gYcymlL_d85b936c-5986-46aa-a939-f500658a5401.jpg?v=1725346782","width":1001},{"alt":"[Australia - AusPower] - Spherical Drain,1pc HAD20B Automatic Condensate Mechanical Round Drain Valve with Resistant to (1\/2BSP,400L\/H,20Bar) ","id":30713906364596,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51cYItclVYL_6d80b50b-e068-415e-9140-c6a718d18ebf.jpg?v=1725346782"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51cYItclVYL_6d80b50b-e068-415e-9140-c6a718d18ebf.jpg?v=1725346782","width":1001},{"alt":"[Australia - AusPower] - Spherical Drain,1pc HAD20B Automatic Condensate Mechanical Round Drain Valve with Resistant to (1\/2BSP,400L\/H,20Bar) ","id":30713906397364,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51sARLtU3QL_0a9df703-135f-442f-9120-a632a2d1ec6e.jpg?v=1725346782"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51sARLtU3QL_0a9df703-135f-442f-9120-a632a2d1ec6e.jpg?v=1725346782","width":1001},{"alt":"[Australia - AusPower] - Spherical Drain,1pc HAD20B Automatic Condensate Mechanical Round Drain Valve with Resistant to (1\/2BSP,400L\/H,20Bar) ","id":30713906430132,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/515fd9CGTjL.jpg?v=1725346782"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/515fd9CGTjL.jpg?v=1725346782","width":1001},{"alt":"[Australia - AusPower] - Spherical Drain,1pc HAD20B Automatic Condensate Mechanical Round Drain Valve with Resistant to (1\/2BSP,400L\/H,20Bar) ","id":30713906495668,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61v0F3ScRVL.jpg?v=1725346782"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61v0F3ScRVL.jpg?v=1725346782","width":1001},{"alt":"[Australia - AusPower] - Spherical Drain,1pc HAD20B Automatic Condensate Mechanical Round Drain Valve with Resistant to (1\/2BSP,400L\/H,20Bar) ","id":30713906528436,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/610z2S3uTxL_789daeb9-71a9-4405-a2b6-e2704603b868.jpg?v=1725346782"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/610z2S3uTxL_789daeb9-71a9-4405-a2b6-e2704603b868.jpg?v=1725346782","width":1001},{"alt":"[Australia - AusPower] - Spherical Drain,1pc HAD20B Automatic Condensate Mechanical Round Drain Valve with Resistant to (1\/2BSP,400L\/H,20Bar) ","id":30713906561204,"position":8,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61jctIaPEKL_92fadf56-0173-4736-a659-8e855aeeaa79.jpg?v=1725346782"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61jctIaPEKL_92fadf56-0173-4736-a659-8e855aeeaa79.jpg?v=1725346782","width":1001}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eSpherical Drain,1pc HAD20B Automatic Condensate Mechanical Round Drain Valve with Resistant to (1\/2BSP,400L\/H,20Bar)\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eDescription: This compressed air condensate automatic drainer is a mechanical\nautomatic drainer which has casting aluminum alloy shell and inside ball\ndrainage system.Drainer outlet is closed when drainage buoyancy is smaller\nthan floating ball weight plus compressed air pressure; and it will open when\nbuoyancy increases, in order to drain condensed liquid. Specifications: Model:\nHAD20B Port Size: Inlet=Outlet=1\/2BSP . Pressure: 20bar . Temperature: 100? .\nCapacity: 400L\/H Weight: 602g(approx.) Instruction: Before installing this\ndrainer, please use compressed air to remove impurities in the piping till it\nis completely clean. Install this automatic drainer beneath the drainage\ndevice of equipment, otherwise condensate will be filled and affect drainage.\nMaintenance Inspect the drainer once a week. Operation method: open manual\ndrainer valve to drain water till compressed air in equipment enter the\ndrainer, after a few seconds then closed valve.If drained water is more than\n0.5 liters, there is a blockage and drainer need to be cleaned completely.\nInternal parts should be taken out and cleaned each year.When cleaning, you\ncan use soap water or dish-washing liquid to clean, do not use solvents, so as\nnot to damage the rubber fittings. Package Includes: 1 x Drain Valve 1 x Pipe\nFitting\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eALUMINUM ALLOY MATERIALShell is made of casting aluminum alloy, with plastic powder coating surface, resistant to . Automatic drainer is extremely reliable in operation, no electricity needed, no noise, no loss of compressed air.\u003c\/li\u003e\n \u003cli\u003eMAIN FUNCTIONWhen the drainage buoyancy is less than the weight of the plus the compressed air pressure, the drain outlet is closed; when the buoyancy increases, it will open to discharge the condensate. This kind of compressed air condensate automatic drainer has a large drain and is not easy to be blocked.\u003c\/li\u003e\n \u003cli\u003eFLOATING BALL DRAIN VALVEModel: HAD20B; Port size: inlet = outlet = 1\/2BSP; maximum pressure: 20bar; maximum temperature: 100; maximum capacity: 400L\/H; weight: about 602g.\u003c\/li\u003e\n \u003cli\u003eUPGRADE AUTO DRAINThis type of compressed air condensate auto drain is obviously different from the traditional mechanical auto drain, which belongs to continuous droplet discharge. This is a fairly stable drain with excellent performance and a low failure rate.\u003c\/li\u003e\n \u003cli\u003ePRACTICAL TOOLThis compressed air condensate automatic drainer is significantly different from traditional mechanical automatic drainer, which is belong to continuous drops drain.\u003c\/li\u003e\n \u003c\/ul\u003e"}
