SOViK 6" 6 inch Stroke Small Linear Actuator, 12V DC Fast Speed 1" per sec Built in Limit Switch, 22lbs Maximum Lift Includes Mounting Brackets Full Load:22lbs
SOViK 6" 6 inch Stroke Small Linear Actuator, 12V DC Fast Speed 1" per sec Built in Limit Switch, 22lbs Maximum Lift Includes Mounting Brackets

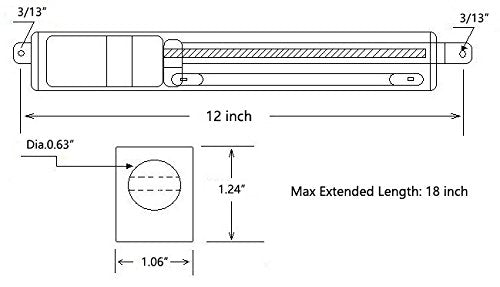

SOViK 6" Stroke 12V DC Linear Actuator, 22lbs Max Load with Mounting Brackets SOViK 6" Stroke 12V DC Linear Actuator, 44lbs Max Load with Mounting Brackets SOViK 6" Stroke 12V DC Linear Actuator, 55lbs Max Load with Mounting Brackets Max Load 22 pounds 44 pounds 55 pounds No-load Travel Speed 1" per sec 7/11" per sec 8/25" per sec Retracted Length 12 inch / 300mm 12 inch / 300mm 12 inch / 300mm Extended Length 18 inch / 450mm 18 inch / 450mm 18 inch / 450mm Limit Switch ✓ ✓ ✓ Duty Cycle 25% 25% 25% Mounting Brackets ✓ ✓ ✓ Protection Class IP54 Rated IP54 Rated IP54 Rated Item Weight 1.1 pound 1.1 pound 1.1 pound Dimension(Closed) 12"(L)x1.26"(W)x1"(H) 12"(L)x1.26"(W)x1"(H) 12"(L)x1.26"(W)x1"(H) SOViK 6" Stroke 12V DC Linear Actuator 22lbs, 44lbs, 55lbs Maximum Lift Includes Mounting Brackets Specifications Input Voltage: 12 DC Starting Current(No-load): 0.1A Max Current: 1.5A Mounting Length=Retracted Length(hole to hole): 12 inch/300mm Mounting Holes: 6mm diameter Main Material: Aluminum alloy Attention Please: If your actuator can't move after connect the power correctly, you should exchange the connection positions of the two wires and try again. Please don't rush to think that the actuator is defective, it's very likely that your first connection is make it retract instead of extend. Application and Features The item is suitable for various windows / shutters /gate which need to be opened and closedFor the DIY lovers, their functions will be up to your imagenation. Item weight just only 1.1 pounds, you can hold it to anywhere without any burden. You can use it anywhere when you need an automatic linear motion. Get rid of bulky, get rid of changeless, just go for it! How to connect and use Prepare to connect the two wires of the actuator to a 12 volt battery Red wire to the positive terminal and black wire to negative terminal will make the actuator extend. To make it retract, just reverse the terminal connections If the actuator does't work when you first connect, don't worry, just exchange the connection locations of two wires To simplify the last step, you can prepare a reverse polarity switch for the actuator. When you want the actuator to extend and retract, just press the switch Your actuator will hold its position when the power is off. It will automatically stop when reaches the end, due to the limit switch is built in. How to prolong the service life of actuator Please use the 12V DC power adapter The actual load does not exceed the rated load All the actuators have duty cycle, they are unable to work all the time without stop. The duty cycle of this actuator is 25%. it means that your actuator needs 3 minutes to rest for every 1 minute of work. If the actuator keeps working for long time, the motor is easily burnt out. Use the lubricating oil properly (Original type of lubrican is Mobli XHP222 grease) Please be careful, the actuator not completely waterproof What you will get 1pc SOViK 6" Stroke Linear Actuator 1 set Mounting Brackets Mounting Brackets Read more Application As opener for Air Vent Instead of door bolt for your gate Instead of manual window opener for your greenhouse As Opener for Shutter Read more
Product Features

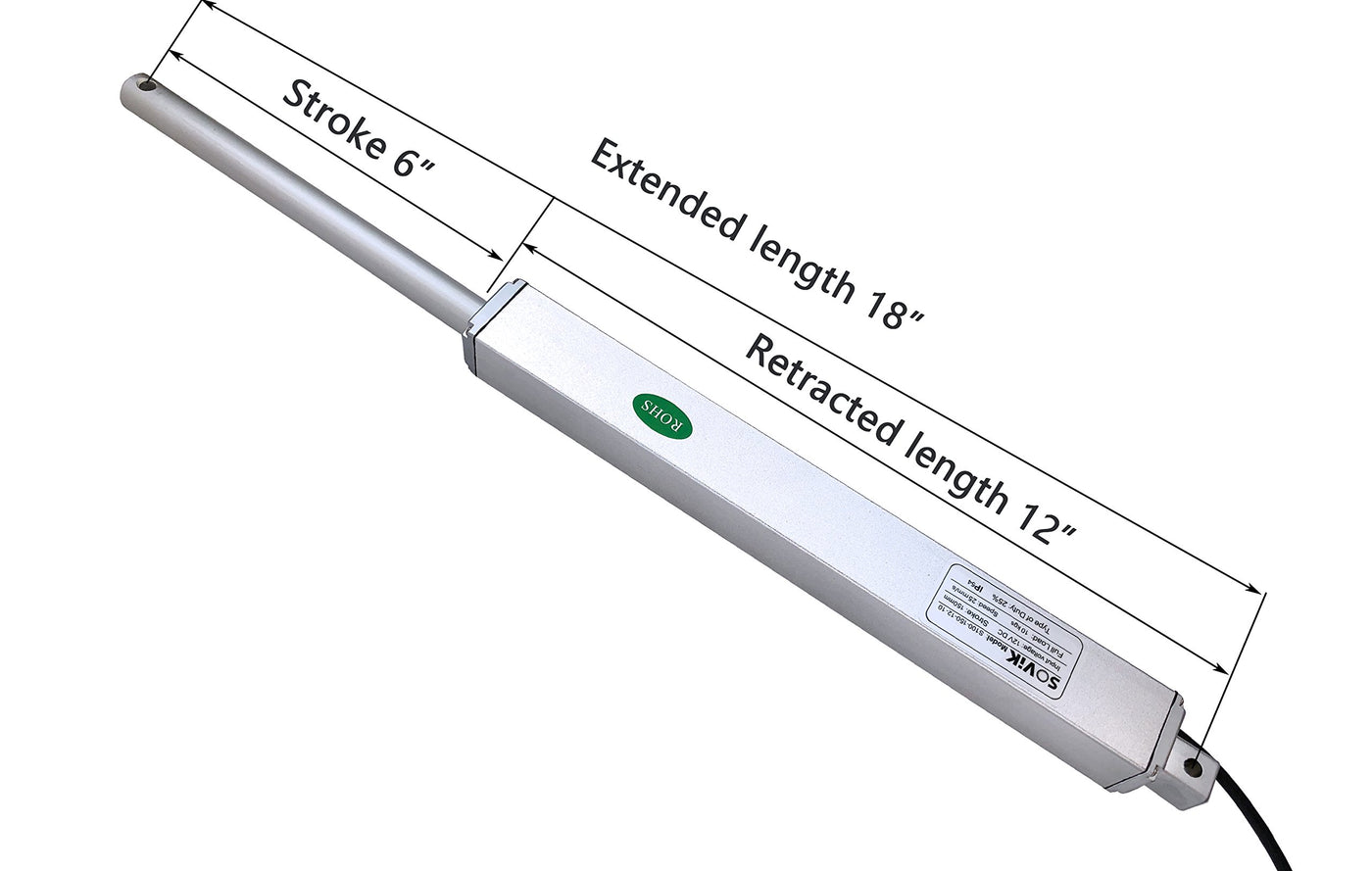

- 6" stroke Length, 12" retracted length(minimum mounting length), 18" extended length
- 22Lbs max load. No-load speed: 1" per sec. Built in limit switch
- Innovatively in-line design, 6mm diameter mounting holes, come with a pair of mounting brackets
- High quality aluminum alloy material housing, easy to install and use, lighter weight and smaller body
- Applicable to a variety of conditions, such as Throttle Control, Air Vent Opening, Remote Window Operation, Remote Mirror Positioning, Gate Opening, Shutter Control and so on
