sourcing map 2pcs 360 Degree Rotating Coding Switch EC16 5 Strip 20mm D Shank Black (black 6)

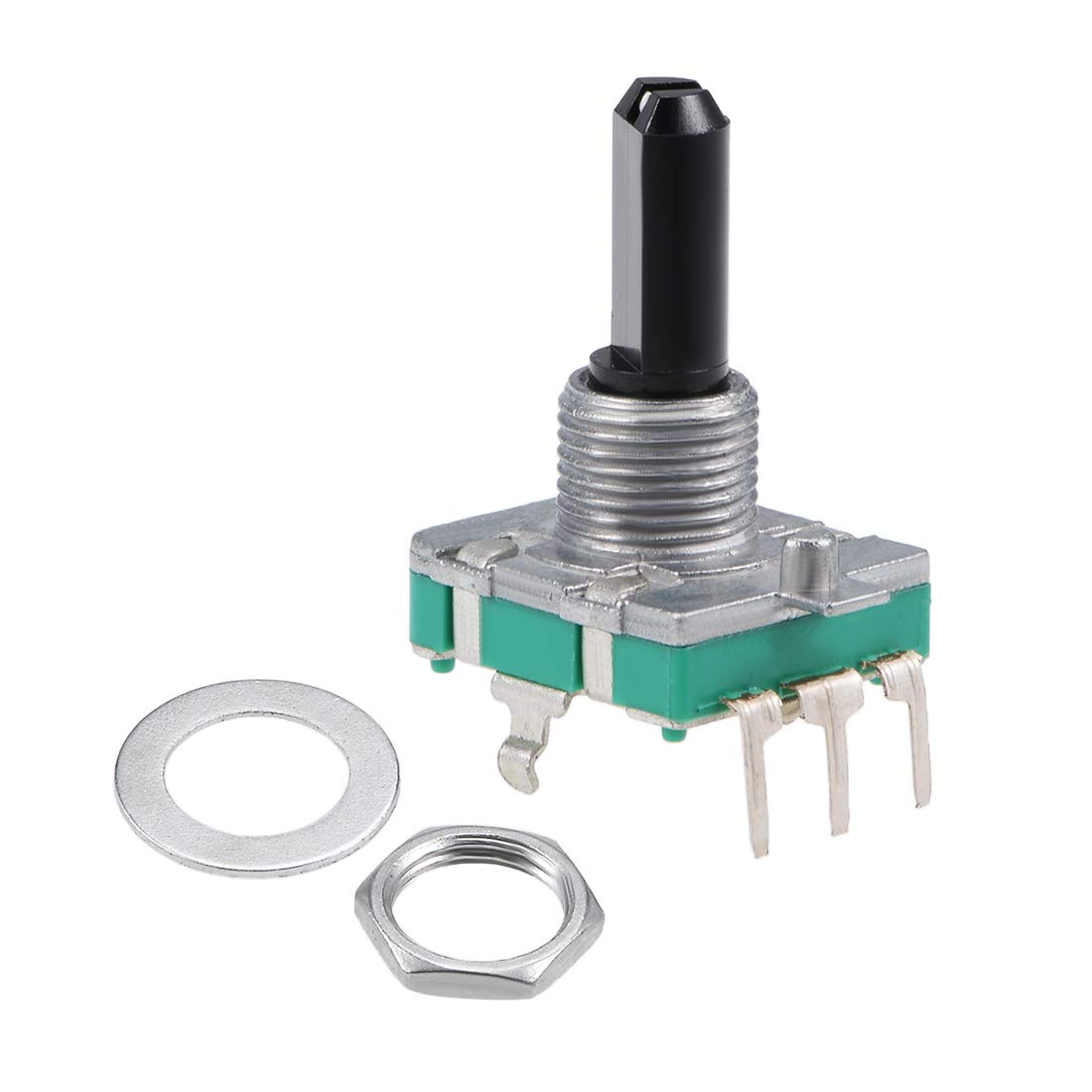

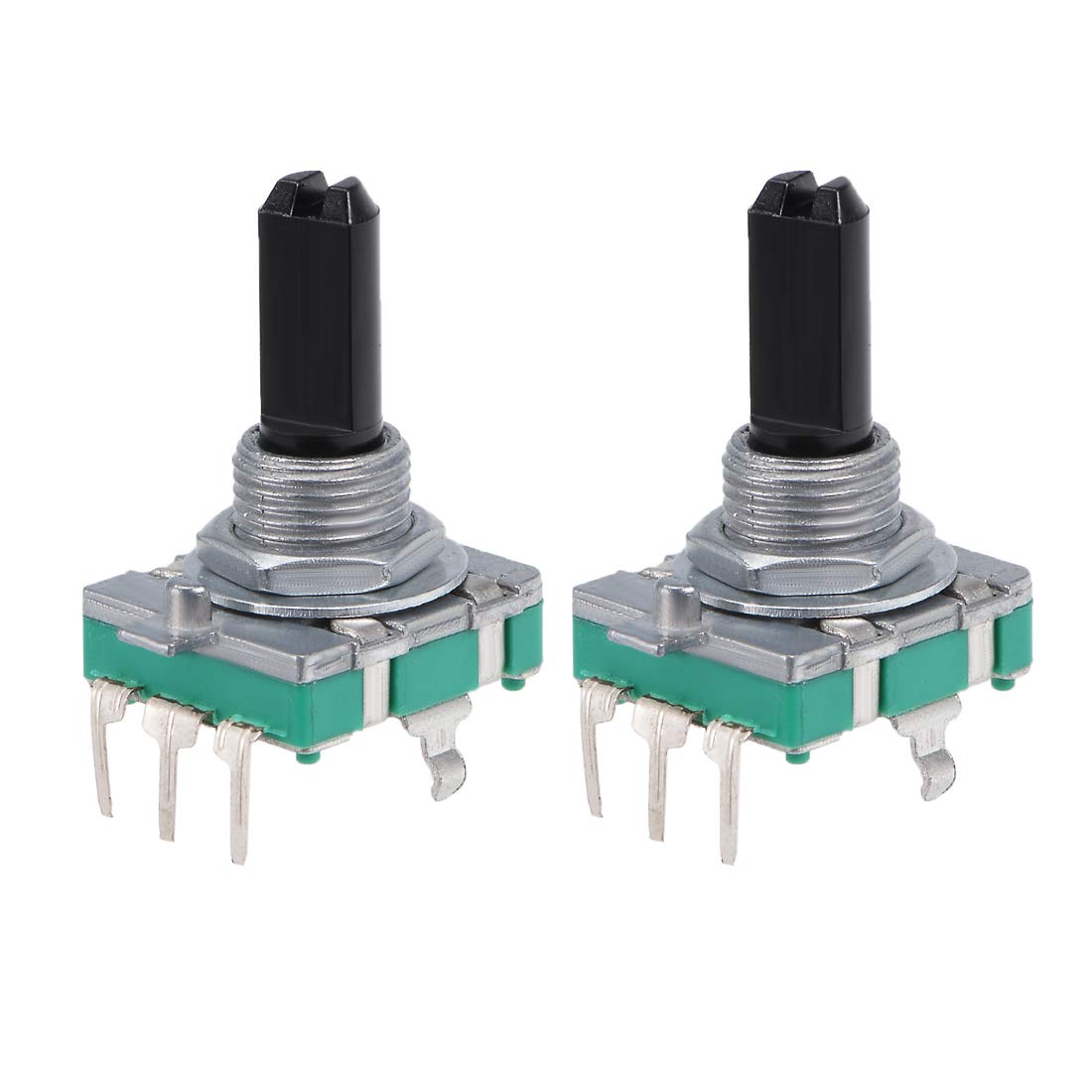

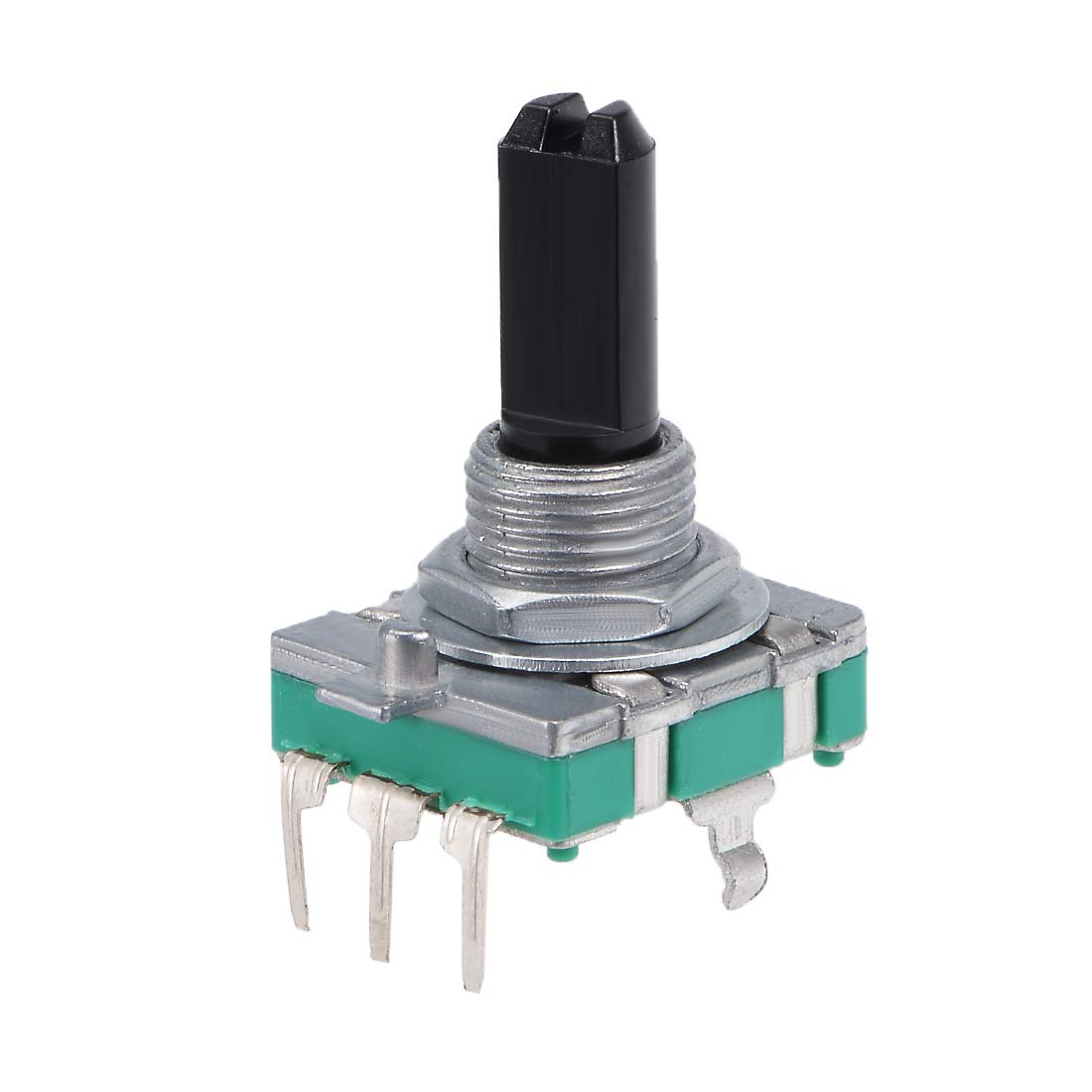

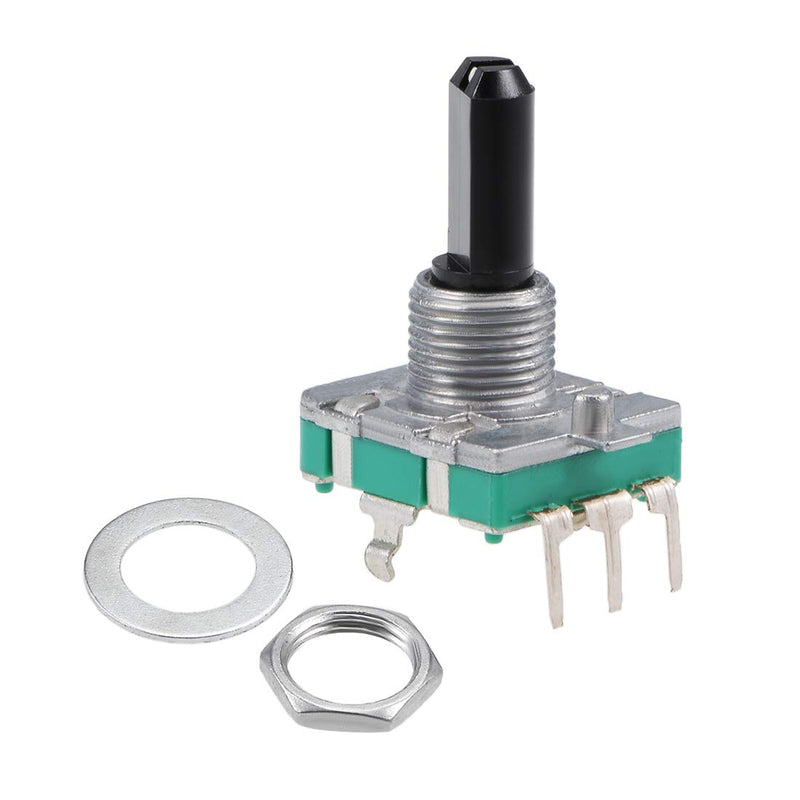

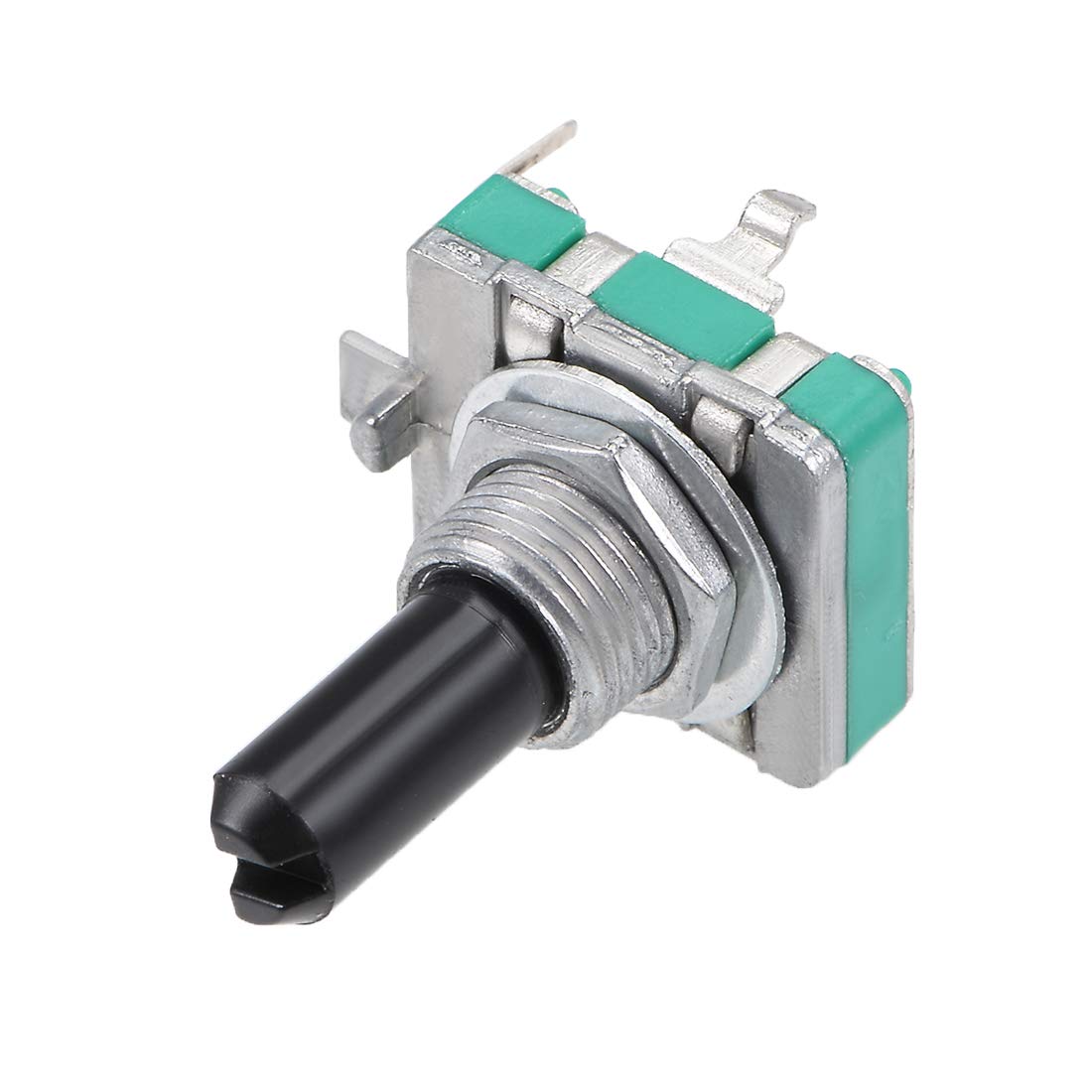

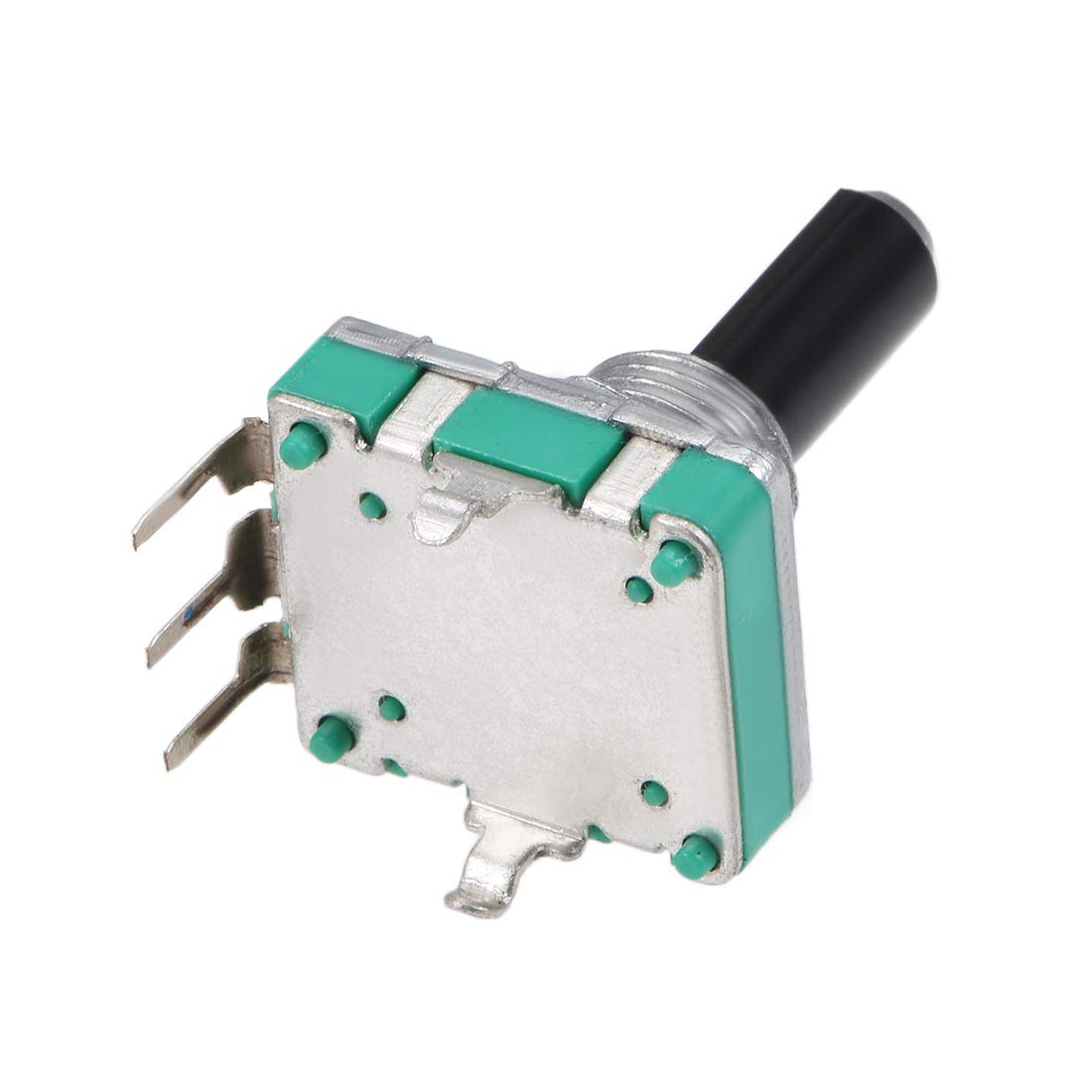

sourcing map 2pcs 360 Degree Rotating Coding Switch EC16 5 Strip 20mm D Shank

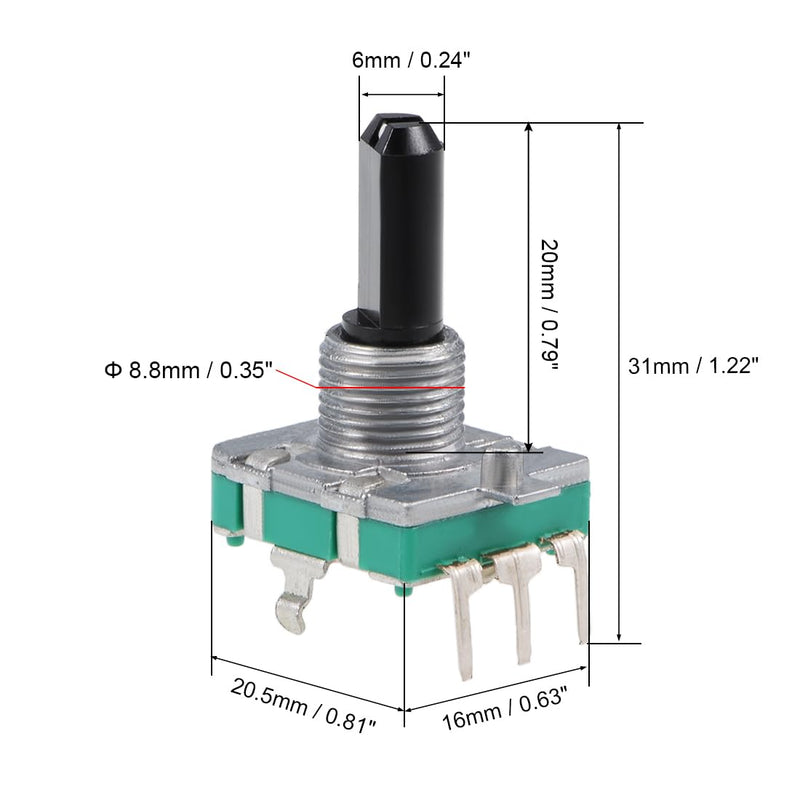

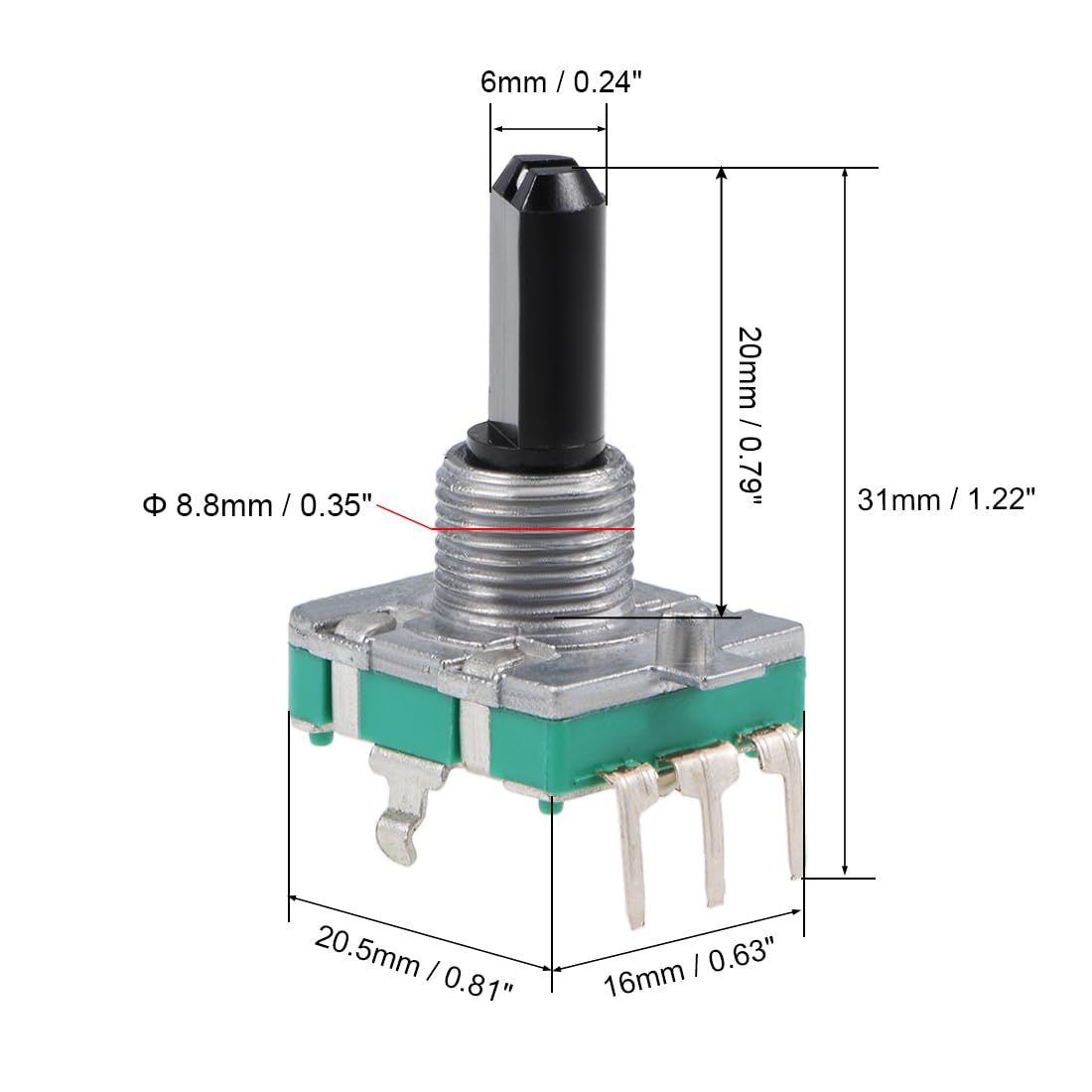

Description: A rotary encoder, also known as a rotary encoder, is an electromechanical device that converts the angular position or movement of a shaft or axis into digital output signals. Rotary encoders are used in a wide range of applications where mechanical systems or both need to be monitored or controlled, including industrial controls, robotics, photographic lenses, computer input devices such as optomechanical mice and trackballs, regulated voltage rometers. Technical data: Adjustment method: 360 degrees. Strip numbers: 5. Number of digits: 20 digits. Rated voltage: 5 V. Shaft type: D type Shaft diameter: 6 mm / 0.24 inches. Shaft height: 20 mm / 0.79 inches. Thread diameter: 8.8 mm / 0.35 inches. Total size: 20.5 mm x 16 mm x 31 mm / 0.81 inches x 0.63 inches x 1.22 inches (L x W x H). Note: Avoid storing the products in a place at high temperature, high humidity and corrosive gases. Do not touch the product with water, as this may cause unusual output signals.
Product Features
- Type: encoder code with switch; Adjustment method: 360 degrees; Number of digits: 20 digits; Bar numbers: 5; Rated voltage: 5 volts.
- Shaft diameter: 6 mm / 0.24 inches; shaft height: 15 mm / 0.59 inches; thread diameter: 8.8 mm / 0.35 inches; overall dimensions: 20.5 mm x 15.5 mm x 27 mm / 0.81 inches x 0.61 inches x 1.06 inches (L x W x H).
- In the forward rotation, the A line phase leads the B line phase; in the reverse case, the B line phase leads the A line phase. The phase relationship and number of turns of AB can be identified using a simple digital logic circuit (Exclusive OR gate and D flip-flop).
- By turning the rotary encoder can be counted in positive direction and reverse direction during rotation of the output pulse frequency, unlike rotary potentiometer counting, these speeds are not limited. With the buttons of the rotary encoder can be reset to the initial state, which starts to count from 0.
- Applications: Industrial controls, robotics, photographic lenses, computer input devices such as optomechanical mice and trackballs, controlled load rheometers.
