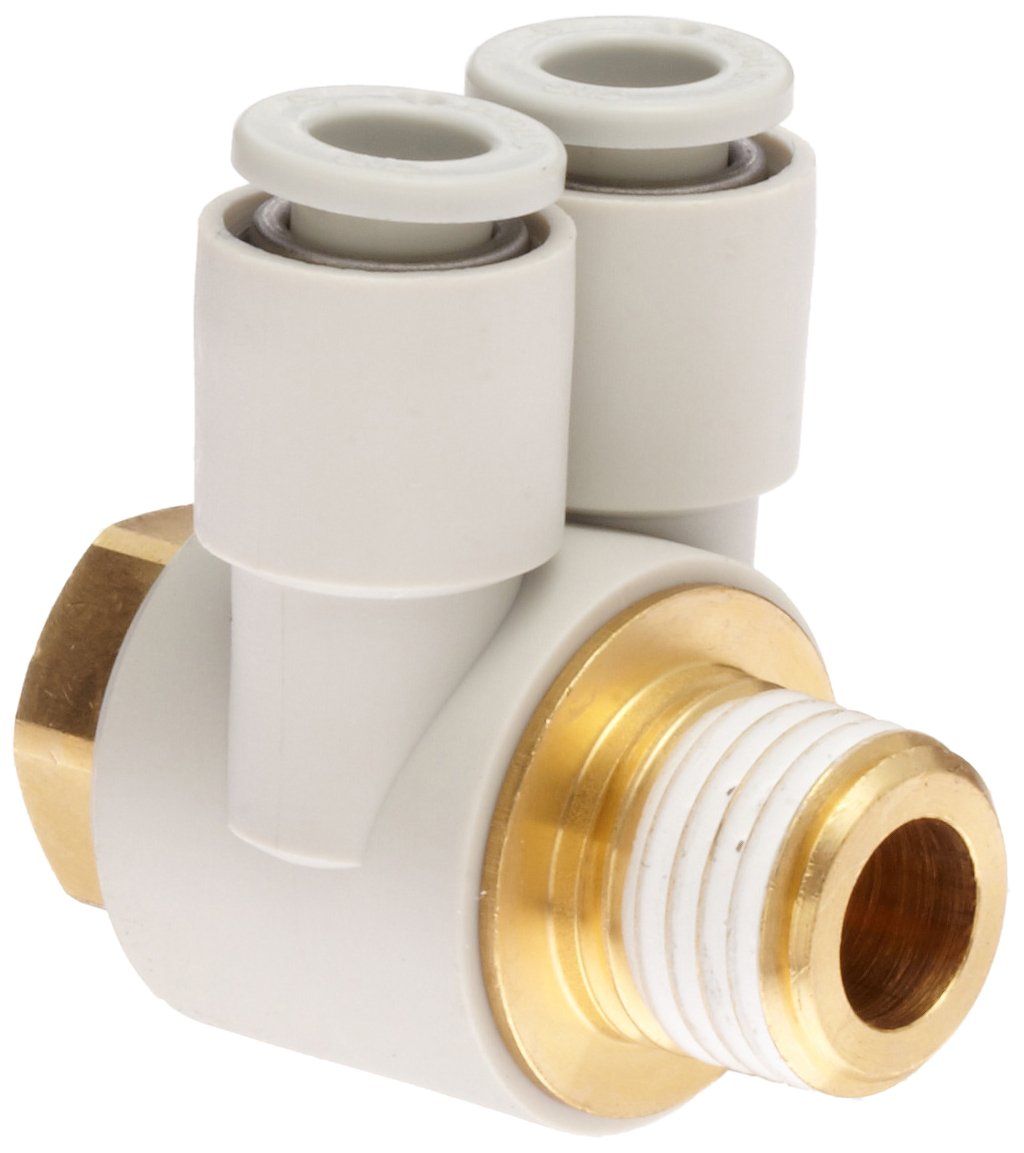

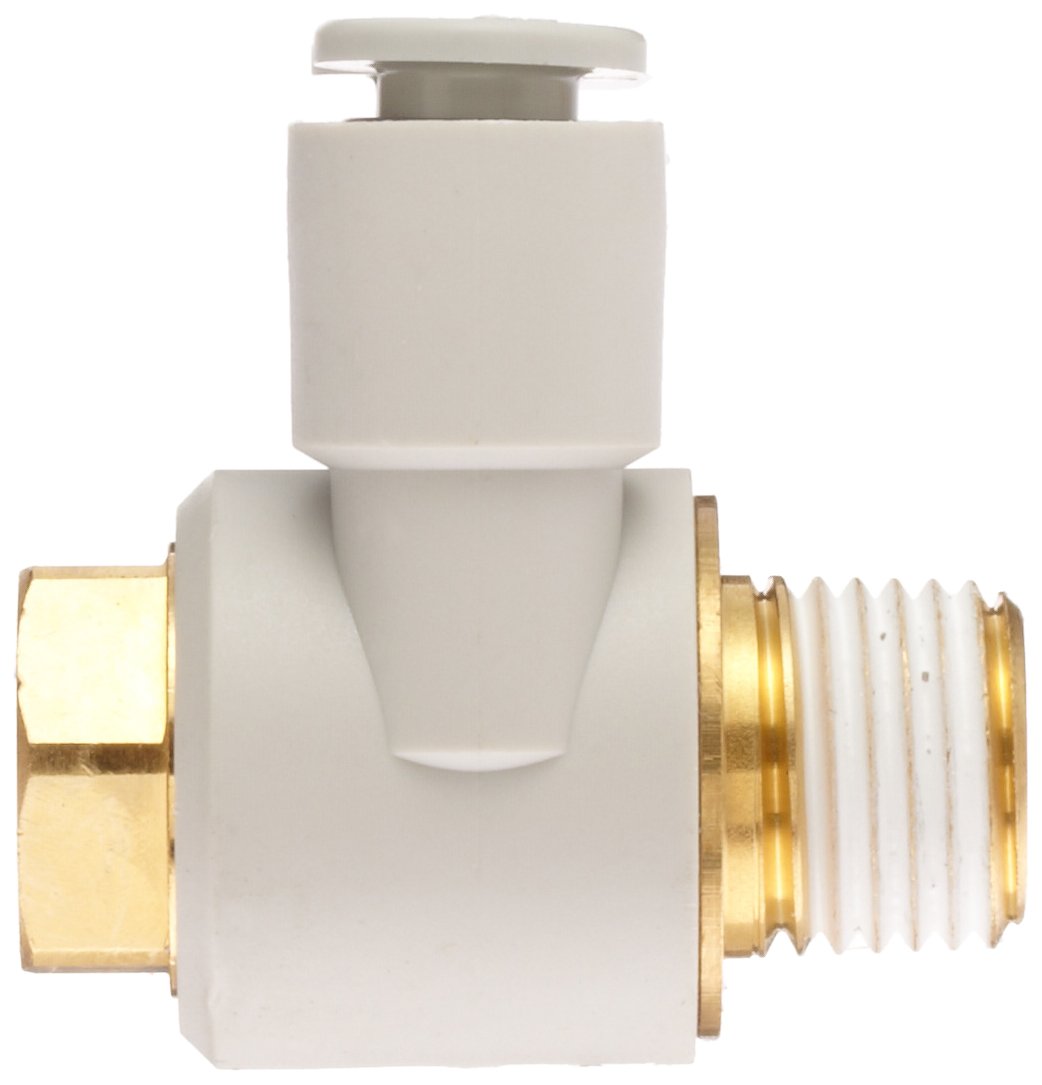

{"id":7144957083828,"title":"SMC KQ2Z06-01AS PBT \u0026 Brass Push-to-Connect Tube Fitting with Sealant, Branch Universal Elbow, 6 mm Tube OD x 1\/8\" BSPT Male","handle":"smc-kq2z06-01as-pbt-brass-push-to-connect-tube-fitting-with-sealant-branch-universal-elbow-6-mm-tube-od-x-1-8-bspt-male","description":"\u003ch3\u003eSMC KQ2Z06-01AS PBT \u0026amp; Brass Push-to-Connect Tube Fitting with Sealant, Branch Universal Elbow, 6 mm Tube OD x 1\/8\" BSPT Male\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eThis SMC KQ2Z branch universal elbow is a PBT and brass tube fitting for\nconnecting a female thread to one pair of tubes running in any direction at a\n90-degree angle. It has male British Standard Pipe Taper (BSPT) threads with\nfluororesin sealant on one end and push-to-connect metric tube connections on\nthe two branch ends. The branch pair can rotate freely in any direction. A\nhexagonal head allows tightening with a box wrench in confined spaces. The\nbody is made of polybutylene terephthalate (PBT) and Japanese Industrial\nStandard (JIS) C3604 brass for corrosion resistance, the threads are made of\nC3604 brass, and the tube seal is made of nitrile butadiene rubber (NBR) for\nresistance to oils and extreme temperatures. A chuck and collet provide secure\nretention of tubing, and the release button allows tubing to be removed with\nlittle force. The fitting can be used with nylon, soft nylon, polyurethane,\nfluorinated ethylene propylene (FEP), and perfluoroalkoxy (PFA) tubing. It has\nan operating pressure range of -14.5 to 145 pounds per square inch (psi) (-100\nkPa to 1 MPa), an ambient temperature range of 23 to 140 degrees F (-5 to 60\ndegrees C), and a fluid temperature range of 32 to 104 degrees F (0 to 40\ndegrees C). This PBT and brass tube fitting is Restriction of Hazardous\nSubstances (RoHS) compliant, and can be used in a broad range of fluid power\napplications, including temperature control, compressed air equipment, medical\ninstrumentation, and motor vehicle controls, among others.Specifications\nConnection thread Male BSPT (JIS B0203) Thread material JIS C3604 brass Thread\nsealing method Fluororesin sealant Compatible tubing materials Nylon, soft\nnylon, polyurethane, FEP, PFA Fluid Air or water Operating pressure range 14.5\nto 145 psi (-100 kPa to 1 MPa) Operating temperature range (ambient) 23 to 140\ndegrees F (-5 to 60 degrees C) Operating temperature range (fluid)) 32 to 104\ndegrees F (0 to 40 degrees C)Tube fittings are components used for connecting,\nbranching, terminating, and changing the direction of tubing in pneumatic and\nhydraulic systems. They are made of brass, stainless steel, polybutylene\nterephthalate (PBT), and other materials that resist corrosion and wear. Tube\nfittings have various types of connections, including threaded, welded,\nbarbed, and push-to-connect (also called one-touch). Push-to-connect\nconnections do not require tools or sealants. Tube fittings are used in\nvarious applications, including machine tools, airplane and truck controls,\nand automated production lines, among others.SMC Corporation manufactures\nactuators, valves, airline equipment, connector fittings, electrical products,\nvacuum products, dryers, temperature control chillers, and accessories. SMC\nCorporation of America is headquartered in Noblesville, IN, and meets\nInternational Organization for Standardization (ISO) standard 9001:2008.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eMale branch universal elbow to connect a female thread to one pair of tubes running in any direction at a 90-degree angle\u003c\/li\u003e\n \u003cli\u003eMale BSPT threads with sealant on one end and push-to-connect metric tube connections on the two branch ends\u003c\/li\u003e\n \u003cli\u003ePBT and brass body and brass threads for resistance to corrosion\u003c\/li\u003e\n \u003cli\u003eOperating pressure range of -14.5 to 145 psi (-100 kPa to 1 MPa)\u003c\/li\u003e\n \u003cli\u003eOperating temperature ranges of 23 to 140 degrees F (-5 to 60 degrees C) (ambient) and 32 to 104 degrees F (0 to 40 degrees C) (fluid)\u003c\/li\u003e\n \u003cli\u003eThis product is not intended for use in potable water systems\u003c\/li\u003e\n \u003c\/ul\u003e\n\n","published_at":"2022-05-28T17:11:52+10:00","created_at":"2022-05-28T17:11:54+10:00","vendor":"SMC","type":"Push-to-Connect Fittings","tags":["industrial"],"price":10000,"price_min":10000,"price_max":10000,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":41534428971188,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B0065RTHI8","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"SMC KQ2Z06-01AS PBT \u0026 Brass Push-to-Connect Tube Fitting with Sealant, Branch Universal Elbow, 6 mm Tube OD x 1\/8\" BSPT Male","public_title":null,"options":["Default Title"],"price":10000,"weight":23,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/products\/B0065RTHI8.jpg?v=1653806249","\/\/auspowers.com\/cdn\/shop\/products\/51wwtyBwk2L.jpg?v=1653721915"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/products\/B0065RTHI8.jpg?v=1653806249","options":["Title"],"media":[{"alt":"[Australia - AusPower] - SMC KQ2Z06-01AS PBT \u0026 Brass Push-to-Connect Tube Fitting with Sealant, Branch Universal Elbow, 6 mm Tube OD x 1\/8\" BSPT Male ","id":26006316318900,"position":1,"preview_image":{"aspect_ratio":0.888,"height":1153,"width":1024,"src":"\/\/auspowers.com\/cdn\/shop\/products\/B0065RTHI8.jpg?v=1653806249"},"aspect_ratio":0.888,"height":1153,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/B0065RTHI8.jpg?v=1653806249","width":1024},{"alt":"[Australia - AusPower] - SMC KQ2Z06-01AS PBT \u0026 Brass Push-to-Connect Tube Fitting with Sealant, Branch Universal Elbow, 6 mm Tube OD x 1\/8\" BSPT Male ","id":25999196553396,"position":2,"preview_image":{"aspect_ratio":0.96,"height":1085,"width":1042,"src":"\/\/auspowers.com\/cdn\/shop\/products\/51wwtyBwk2L.jpg?v=1653721915"},"aspect_ratio":0.96,"height":1085,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/51wwtyBwk2L.jpg?v=1653721915","width":1042}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eSMC KQ2Z06-01AS PBT \u0026amp; Brass Push-to-Connect Tube Fitting with Sealant, Branch Universal Elbow, 6 mm Tube OD x 1\/8\" BSPT Male\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eThis SMC KQ2Z branch universal elbow is a PBT and brass tube fitting for\nconnecting a female thread to one pair of tubes running in any direction at a\n90-degree angle. It has male British Standard Pipe Taper (BSPT) threads with\nfluororesin sealant on one end and push-to-connect metric tube connections on\nthe two branch ends. The branch pair can rotate freely in any direction. A\nhexagonal head allows tightening with a box wrench in confined spaces. The\nbody is made of polybutylene terephthalate (PBT) and Japanese Industrial\nStandard (JIS) C3604 brass for corrosion resistance, the threads are made of\nC3604 brass, and the tube seal is made of nitrile butadiene rubber (NBR) for\nresistance to oils and extreme temperatures. A chuck and collet provide secure\nretention of tubing, and the release button allows tubing to be removed with\nlittle force. The fitting can be used with nylon, soft nylon, polyurethane,\nfluorinated ethylene propylene (FEP), and perfluoroalkoxy (PFA) tubing. It has\nan operating pressure range of -14.5 to 145 pounds per square inch (psi) (-100\nkPa to 1 MPa), an ambient temperature range of 23 to 140 degrees F (-5 to 60\ndegrees C), and a fluid temperature range of 32 to 104 degrees F (0 to 40\ndegrees C). This PBT and brass tube fitting is Restriction of Hazardous\nSubstances (RoHS) compliant, and can be used in a broad range of fluid power\napplications, including temperature control, compressed air equipment, medical\ninstrumentation, and motor vehicle controls, among others.Specifications\nConnection thread Male BSPT (JIS B0203) Thread material JIS C3604 brass Thread\nsealing method Fluororesin sealant Compatible tubing materials Nylon, soft\nnylon, polyurethane, FEP, PFA Fluid Air or water Operating pressure range 14.5\nto 145 psi (-100 kPa to 1 MPa) Operating temperature range (ambient) 23 to 140\ndegrees F (-5 to 60 degrees C) Operating temperature range (fluid)) 32 to 104\ndegrees F (0 to 40 degrees C)Tube fittings are components used for connecting,\nbranching, terminating, and changing the direction of tubing in pneumatic and\nhydraulic systems. They are made of brass, stainless steel, polybutylene\nterephthalate (PBT), and other materials that resist corrosion and wear. Tube\nfittings have various types of connections, including threaded, welded,\nbarbed, and push-to-connect (also called one-touch). Push-to-connect\nconnections do not require tools or sealants. Tube fittings are used in\nvarious applications, including machine tools, airplane and truck controls,\nand automated production lines, among others.SMC Corporation manufactures\nactuators, valves, airline equipment, connector fittings, electrical products,\nvacuum products, dryers, temperature control chillers, and accessories. SMC\nCorporation of America is headquartered in Noblesville, IN, and meets\nInternational Organization for Standardization (ISO) standard 9001:2008.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eMale branch universal elbow to connect a female thread to one pair of tubes running in any direction at a 90-degree angle\u003c\/li\u003e\n \u003cli\u003eMale BSPT threads with sealant on one end and push-to-connect metric tube connections on the two branch ends\u003c\/li\u003e\n \u003cli\u003ePBT and brass body and brass threads for resistance to corrosion\u003c\/li\u003e\n \u003cli\u003eOperating pressure range of -14.5 to 145 psi (-100 kPa to 1 MPa)\u003c\/li\u003e\n \u003cli\u003eOperating temperature ranges of 23 to 140 degrees F (-5 to 60 degrees C) (ambient) and 32 to 104 degrees F (0 to 40 degrees C) (fluid)\u003c\/li\u003e\n \u003cli\u003eThis product is not intended for use in potable water systems\u003c\/li\u003e\n \u003c\/ul\u003e\n\n"}
