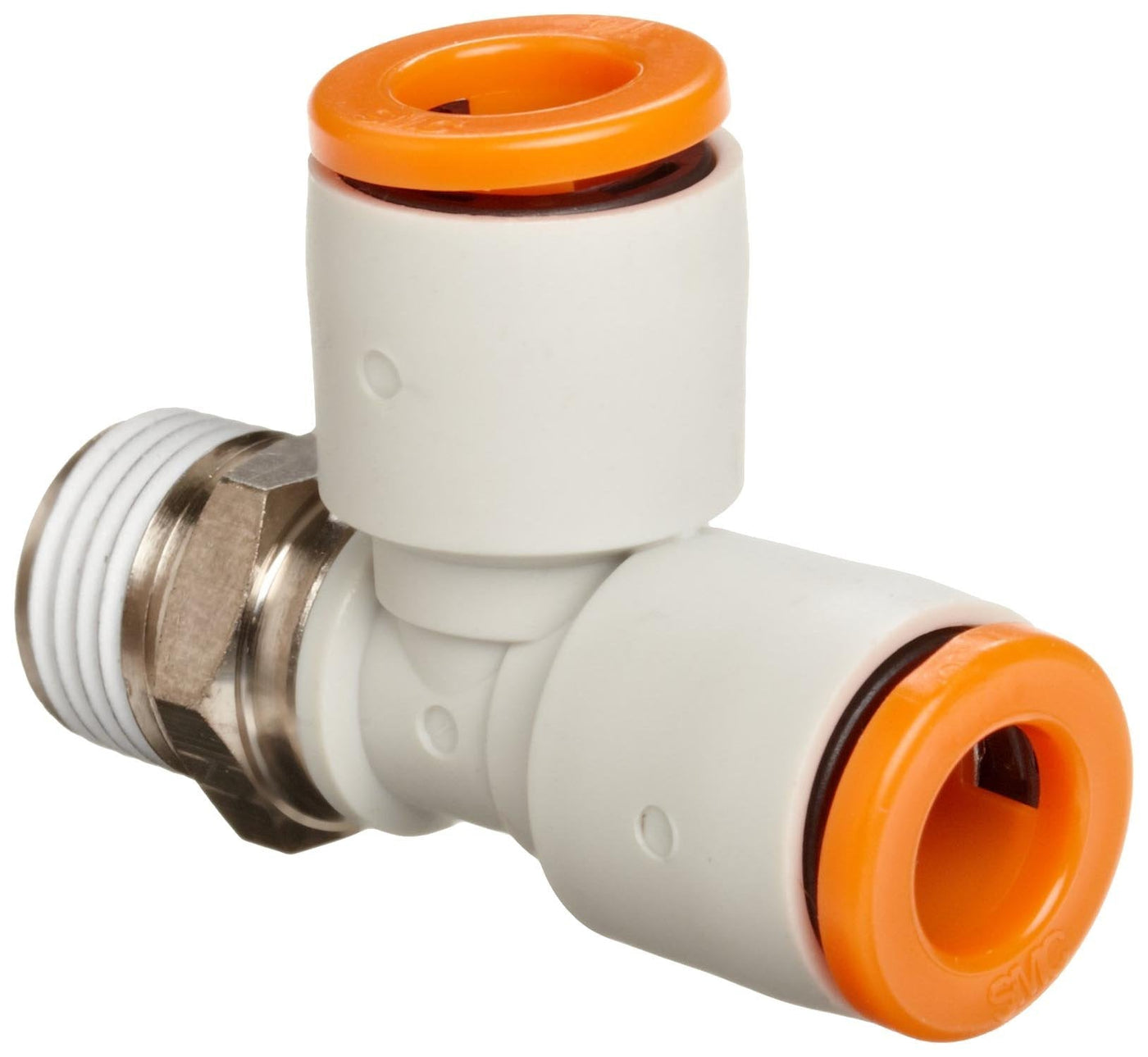

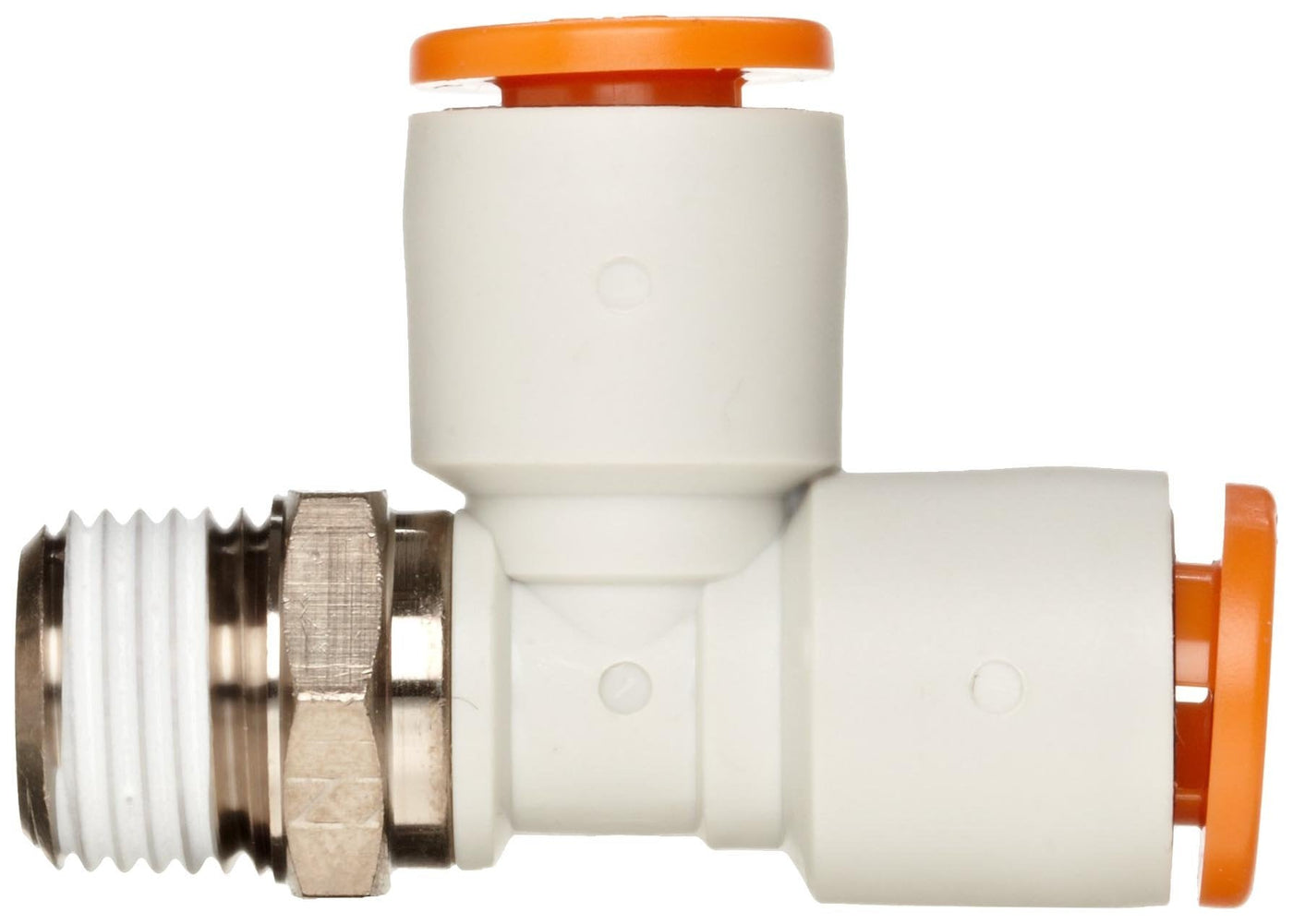

{"id":7145305276596,"title":"SMC KQ2Y03-34NS PBT \u0026 Nickel Plated Brass Push-to-Connect Tube Fitting with Sealant, Run Tee, 5\/32\" Tube OD x 5\/32\" Tube OD x 1\/8\" NPT Male","handle":"smc-kq2y03-34ns-pbt-nickel-plated-brass-push-to-connect-tube-fitting-with-sealant-run-tee-5-32-tube-od-x-5-32-tube-od-x-1-8-npt-male","description":"\u003ch3\u003eSMC KQ2Y03-34NS PBT \u0026amp; Nickel Plated Brass Push-to-Connect Tube Fitting with Sealant, Run Tee, 5\/32\" Tube OD x 5\/32\" Tube OD x 1\/8\" NPT Male\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eThis SMC KQ2Y run tee is a PBT and nickel plated brass tube fitting for\nconnecting a female thread to a straight tube and to a second tube at a\n90-degree angle. It has male National Pipe Thread Taper (NPT) threads with\nfluororesin sealant on the straight end and push-to-connect metric tube\nconnections on the straight and branch ends. The body is made of polybutylene\nterephthalate (PBT) and Japanese Industrial Standard (JIS) C3604 brass that is\nelectroless nickel plated for corrosion resistance, the threads are made of\nnickel plated C3604 brass, and the tube seals are made of nitrile butadiene\nrubber (NBR) for resistance to oils and extreme temperatures. An NBR O-ring\nallows the body to rotate in the threaded stud for positioning. A chuck and\ncollet provide secure retention of tubing, and the release button allows\ntubing to be removed with little force. The fitting can be used with nylon,\nsoft nylon, polyurethane, fluorinated ethylene propylene (FEP), and\nperfluoroalkoxy (PFA) tubing. It has an operating pressure range of -14.5 to\n145 pounds per square inch (psi) (-100 kPa to 1 MPa), an ambient temperature\nrange of 23 to 140 degrees F (-5 to 60 degrees C), and a fluid temperature\nrange of 32 to 104 degrees F (0 to 40 degrees C). This PBT and nickel plated\nbrass tube fitting is Restriction of Hazardous Substances (RoHS) compliant,\nand can be used in a broad range of fluid power applications, including\ntemperature control, compressed air equipment, medical instrumentation, and\nmotor vehicle controls, among others.Specifications Connection thread Male NPT\nThread material JIS C3604 brass, electroless nickel plated Thread sealing\nmethod Fluororesin sealant Compatible tubing materials Nylon, soft nylon,\npolyurethane, FEP, PFA Fluid Air or water Operating pressure range 14.5 to 145\npsi (-100 kPa to 1 MPa) Operating temperature range (ambient) 23 to 140\ndegrees F (-5 to 60 degrees C) Operating temperature range (fluid)) 32 to 104\ndegrees F (0 to 40 degrees C)Tube fittings are components used for connecting,\nbranching, terminating, and changing the direction of tubing in pneumatic and\nhydraulic systems. They are made of brass, stainless steel, polybutylene\nterephthalate (PBT), and other materials that resist corrosion and wear. Tube\nfittings have various types of connections, including threaded, welded,\nbarbed, and push-to-connect (also called one-touch). Push-to-connect\nconnections do not require tools or sealants. Tube fittings are used in\nvarious applications, including machine tools, airplane and truck controls,\nand automated production lines, among others.SMC Corporation manufactures\nactuators, valves, airline equipment, connector fittings, electrical products,\nvacuum products, dryers, temperature control chillers, and accessories. SMC\nCorporation of America is headquartered in Noblesville, IN, and meets\nInternational Organization for Standardization (ISO) standard 9001:2008.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eRun tee to connect a female thread to a straight tube and to a second tube at a 90-degree angle\u003c\/li\u003e\n \u003cli\u003eMale NPT threads with sealant on one end and push-to-connect inch tube connections on the straight and branch ends\u003c\/li\u003e\n \u003cli\u003ePBT and nickel plated brass body and nickel plated brass threads for resistance to corrosion\u003c\/li\u003e\n \u003cli\u003eOperating pressure range of -14.5 to 145 psi (-100 kPa to 1 MPa)\u003c\/li\u003e\n \u003cli\u003eOperating temperature ranges of 23 to 140 degrees F (-5 to 60 degrees C) (ambient) and 32 to 104 degrees F (0 to 40 degrees C) (fluid)\u003c\/li\u003e\n \u003cli\u003eThis product is not intended for use in potable water systems\u003c\/li\u003e\n \u003c\/ul\u003e\n\n","published_at":"2022-05-29T18:21:11+10:00","created_at":"2022-05-29T18:21:17+10:00","vendor":"SMC","type":"Push-to-Connect Fittings","tags":["industrial"],"price":10200,"price_min":10200,"price_max":10200,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":41535424430260,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B0054LXYD0","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"SMC KQ2Y03-34NS PBT \u0026 Nickel Plated Brass Push-to-Connect Tube Fitting with Sealant, Run Tee, 5\/32\" Tube OD x 5\/32\" Tube OD x 1\/8\" NPT Male","public_title":null,"options":["Default Title"],"price":10200,"weight":9,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/products\/B0054LXYD0.jpg?v=1653892812","\/\/auspowers.com\/cdn\/shop\/products\/61vKo_RFaEL.jpg?v=1653812477","\/\/auspowers.com\/cdn\/shop\/products\/71nFS3ONUjL.jpg?v=1653812477","\/\/auspowers.com\/cdn\/shop\/products\/7186dBws7pL.jpg?v=1653812477","\/\/auspowers.com\/cdn\/shop\/products\/717wsPwLKuL.jpg?v=1653812477"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/products\/B0054LXYD0.jpg?v=1653892812","options":["Title"],"media":[{"alt":"[Australia - AusPower] - SMC KQ2Y03-34NS PBT \u0026 Nickel Plated Brass Push-to-Connect Tube Fitting with Sealant, Run Tee, 5\/32\" Tube OD x 5\/32\" Tube OD x 1\/8\" NPT Male ","id":26014338089140,"position":1,"preview_image":{"aspect_ratio":1.086,"height":1498,"width":1627,"src":"\/\/auspowers.com\/cdn\/shop\/products\/B0054LXYD0.jpg?v=1653892812"},"aspect_ratio":1.086,"height":1498,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/B0054LXYD0.jpg?v=1653892812","width":1627},{"alt":"[Australia - AusPower] - SMC KQ2Y03-34NS PBT \u0026 Nickel Plated Brass Push-to-Connect Tube Fitting with Sealant, Run Tee, 5\/32\" Tube OD x 5\/32\" Tube OD x 1\/8\" NPT Male ","id":26006803775668,"position":2,"preview_image":{"aspect_ratio":1.399,"height":1279,"width":1789,"src":"\/\/auspowers.com\/cdn\/shop\/products\/61vKo_RFaEL.jpg?v=1653812477"},"aspect_ratio":1.399,"height":1279,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/61vKo_RFaEL.jpg?v=1653812477","width":1789},{"alt":"[Australia - AusPower] - SMC KQ2Y03-34NS PBT \u0026 Nickel Plated Brass Push-to-Connect Tube Fitting with Sealant, Run Tee, 5\/32\" Tube OD x 5\/32\" Tube OD x 1\/8\" NPT Male ","id":26006803808436,"position":3,"preview_image":{"aspect_ratio":1.312,"height":1951,"width":2560,"src":"\/\/auspowers.com\/cdn\/shop\/products\/71nFS3ONUjL.jpg?v=1653812477"},"aspect_ratio":1.312,"height":1951,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/71nFS3ONUjL.jpg?v=1653812477","width":2560},{"alt":"[Australia - AusPower] - SMC KQ2Y03-34NS PBT \u0026 Nickel Plated Brass Push-to-Connect Tube Fitting with Sealant, Run Tee, 5\/32\" Tube OD x 5\/32\" Tube OD x 1\/8\" NPT Male ","id":26006803841204,"position":4,"preview_image":{"aspect_ratio":1.312,"height":1951,"width":2560,"src":"\/\/auspowers.com\/cdn\/shop\/products\/7186dBws7pL.jpg?v=1653812477"},"aspect_ratio":1.312,"height":1951,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/7186dBws7pL.jpg?v=1653812477","width":2560},{"alt":"[Australia - AusPower] - SMC KQ2Y03-34NS PBT \u0026 Nickel Plated Brass Push-to-Connect Tube Fitting with Sealant, Run Tee, 5\/32\" Tube OD x 5\/32\" Tube OD x 1\/8\" NPT Male ","id":26006803873972,"position":5,"preview_image":{"aspect_ratio":1.312,"height":1951,"width":2560,"src":"\/\/auspowers.com\/cdn\/shop\/products\/717wsPwLKuL.jpg?v=1653812477"},"aspect_ratio":1.312,"height":1951,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/717wsPwLKuL.jpg?v=1653812477","width":2560}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eSMC KQ2Y03-34NS PBT \u0026amp; Nickel Plated Brass Push-to-Connect Tube Fitting with Sealant, Run Tee, 5\/32\" Tube OD x 5\/32\" Tube OD x 1\/8\" NPT Male\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eThis SMC KQ2Y run tee is a PBT and nickel plated brass tube fitting for\nconnecting a female thread to a straight tube and to a second tube at a\n90-degree angle. It has male National Pipe Thread Taper (NPT) threads with\nfluororesin sealant on the straight end and push-to-connect metric tube\nconnections on the straight and branch ends. The body is made of polybutylene\nterephthalate (PBT) and Japanese Industrial Standard (JIS) C3604 brass that is\nelectroless nickel plated for corrosion resistance, the threads are made of\nnickel plated C3604 brass, and the tube seals are made of nitrile butadiene\nrubber (NBR) for resistance to oils and extreme temperatures. An NBR O-ring\nallows the body to rotate in the threaded stud for positioning. A chuck and\ncollet provide secure retention of tubing, and the release button allows\ntubing to be removed with little force. The fitting can be used with nylon,\nsoft nylon, polyurethane, fluorinated ethylene propylene (FEP), and\nperfluoroalkoxy (PFA) tubing. It has an operating pressure range of -14.5 to\n145 pounds per square inch (psi) (-100 kPa to 1 MPa), an ambient temperature\nrange of 23 to 140 degrees F (-5 to 60 degrees C), and a fluid temperature\nrange of 32 to 104 degrees F (0 to 40 degrees C). This PBT and nickel plated\nbrass tube fitting is Restriction of Hazardous Substances (RoHS) compliant,\nand can be used in a broad range of fluid power applications, including\ntemperature control, compressed air equipment, medical instrumentation, and\nmotor vehicle controls, among others.Specifications Connection thread Male NPT\nThread material JIS C3604 brass, electroless nickel plated Thread sealing\nmethod Fluororesin sealant Compatible tubing materials Nylon, soft nylon,\npolyurethane, FEP, PFA Fluid Air or water Operating pressure range 14.5 to 145\npsi (-100 kPa to 1 MPa) Operating temperature range (ambient) 23 to 140\ndegrees F (-5 to 60 degrees C) Operating temperature range (fluid)) 32 to 104\ndegrees F (0 to 40 degrees C)Tube fittings are components used for connecting,\nbranching, terminating, and changing the direction of tubing in pneumatic and\nhydraulic systems. They are made of brass, stainless steel, polybutylene\nterephthalate (PBT), and other materials that resist corrosion and wear. Tube\nfittings have various types of connections, including threaded, welded,\nbarbed, and push-to-connect (also called one-touch). Push-to-connect\nconnections do not require tools or sealants. Tube fittings are used in\nvarious applications, including machine tools, airplane and truck controls,\nand automated production lines, among others.SMC Corporation manufactures\nactuators, valves, airline equipment, connector fittings, electrical products,\nvacuum products, dryers, temperature control chillers, and accessories. SMC\nCorporation of America is headquartered in Noblesville, IN, and meets\nInternational Organization for Standardization (ISO) standard 9001:2008.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eRun tee to connect a female thread to a straight tube and to a second tube at a 90-degree angle\u003c\/li\u003e\n \u003cli\u003eMale NPT threads with sealant on one end and push-to-connect inch tube connections on the straight and branch ends\u003c\/li\u003e\n \u003cli\u003ePBT and nickel plated brass body and nickel plated brass threads for resistance to corrosion\u003c\/li\u003e\n \u003cli\u003eOperating pressure range of -14.5 to 145 psi (-100 kPa to 1 MPa)\u003c\/li\u003e\n \u003cli\u003eOperating temperature ranges of 23 to 140 degrees F (-5 to 60 degrees C) (ambient) and 32 to 104 degrees F (0 to 40 degrees C) (fluid)\u003c\/li\u003e\n \u003cli\u003eThis product is not intended for use in potable water systems\u003c\/li\u003e\n \u003c\/ul\u003e\n\n"}
