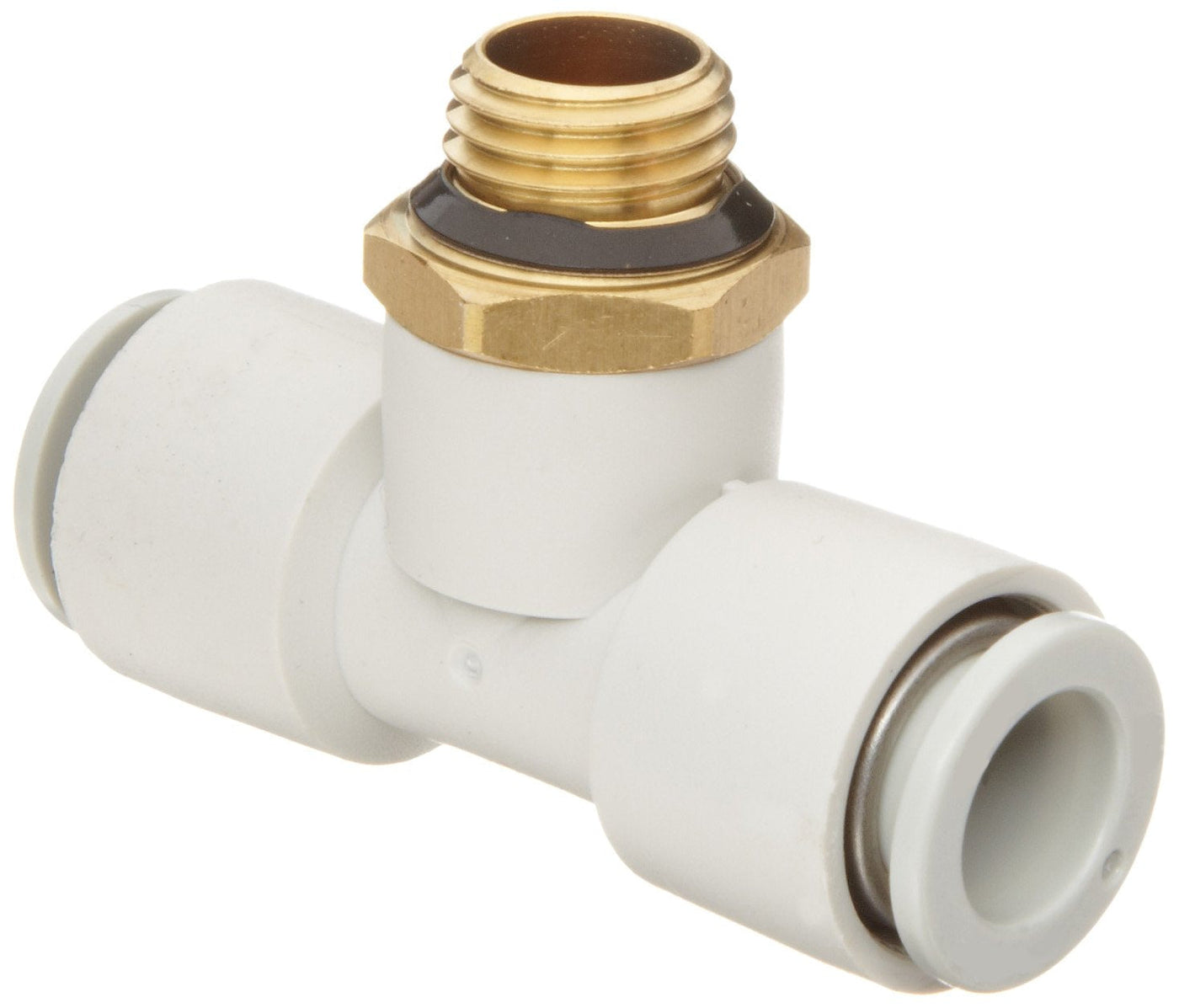

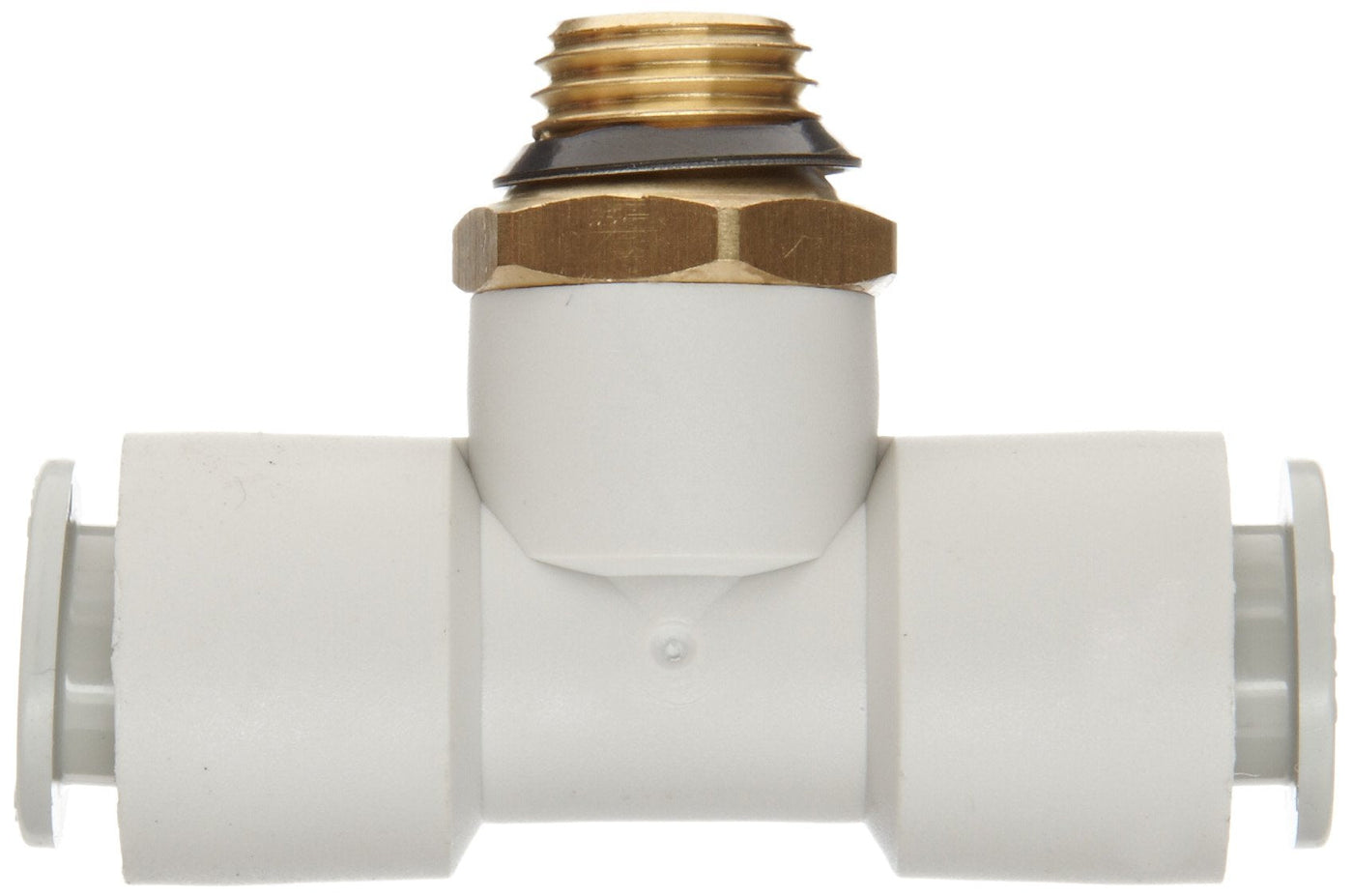

{"id":7144956100788,"title":"SMC KQ2T07-U03A PBT \u0026 Brass Push-to-Connect Tube Fitting, Branch Tee, 1\/4\" Tube OD x 3\/8\" UNI Thread Male","handle":"smc-kq2t07-u03a-pbt-brass-push-to-connect-tube-fitting-branch-tee-1-4-tube-od-x-3-8-uni-thread-male","description":"\u003ch3\u003eSMC KQ2T07-U03A PBT \u0026amp; Brass Push-to-Connect Tube Fitting, Branch Tee, 1\/4\" Tube OD x 3\/8\" UNI Thread Male\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eThis SMC KQ2T branch tee is a PBT and brass tube fitting for connecting two\ntubes at 90-degree angles to a female thread. It has male Uni threads with a\ngasket seal on the straight end and push-to-connect inch tube connections on\nthe two branch ends. The body is made of polybutylene terephthalate (PBT) and\nJapanese Industrial Standard (JIS) C3604 brass for corrosion resistance, the\nthreads are made of C3604 brass, and the tube seals are made of nitrile\nbutadiene rubber (NBR) for resistance to oils and extreme temperatures. The\nUni threads are compatible with female British Standard Pipe Taper (BSPT),\nBritish Standard Pipe Parallel (BSPP), National Pipe Thread Taper (NPT), and\nNational Pipe Thread Taper Fine (NPTF) threads, and the fitting is sealed\nagainst a standard chamfer with an NBR laminated stainless steel 304 gasket.\nAn NBR O-ring allows the body to rotate in the threaded stud for positioning.\nA chuck and collet provide secure retention of tubing, and the release button\nallows tubing to be removed with little force. The fitting can be used with\nnylon, soft nylon, polyurethane, fluorinated ethylene propylene (FEP), and\nperfluoroalkoxy (PFA) tubing. It has an operating pressure range of -14.5 to\n145 pounds per square inch (psi) (-100 kPa to 1 MPa), an ambient temperature\nrange of 23 to 140 degrees F (-5 to 60 degrees C), and a fluid temperature\nrange of 32 to 104 degrees F (0 to 40 degrees C). This PBT and brass tube\nfitting is Restriction of Hazardous Substances (RoHS) compliant, and can be\nused in a broad range of fluid power applications, including temperature\ncontrol, compressed air equipment, medical instrumentation, and motor vehicle\ncontrols, among others.Specifications Connection thread Male Uni threads\nThread material JIS C3604 brass Thread sealing method Gasket Compatible tubing\nmaterials Nylon, soft nylon, polyurethane, FEP, PFA Fluid Air or water\nOperating pressure range 14.5 to 145 psi (-100 kPa to 1 MPa) Operating\ntemperature range (ambient) 23 to 140 degrees F (-5 to 60 degrees C) Operating\ntemperature range (fluid)) 32 to 104 degrees F (0 to 40 degrees C)Tube\nfittings are components used for connecting, branching, terminating, and\nchanging the direction of tubing in pneumatic and hydraulic systems. They are\nmade of brass, stainless steel, polybutylene terephthalate (PBT), and other\nmaterials that resist corrosion and wear. Tube fittings have various types of\nconnections, including threaded, welded, barbed, and push-to-connect (also\ncalled one-touch). Push-to-connect connections do not require tools or\nsealants. Tube fittings are used in various applications, including machine\ntools, airplane and truck controls, and automated production lines, among\nothers.SMC Corporation manufactures actuators, valves, airline equipment,\nconnector fittings, electrical products, vacuum products, dryers, temperature\ncontrol chillers, and accessories. SMC Corporation of America is headquartered\nin Noblesville, IN, and meets International Organization for Standardization\n(ISO) standard 9001:2008.What’s in the Box?SMC KQ2T branch teeGasket\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eMale branch tee to connect two tubes at 90-degree angles to a female thread\u003c\/li\u003e\n \u003cli\u003eMale Uni threads with a gasket seal on one end and push-to-connect inch tube connections on the two branch ends\u003c\/li\u003e\n \u003cli\u003ePBT and brass body and brass threads for resistance to corrosion\u003c\/li\u003e\n \u003cli\u003eOperating pressure range of -14.5 to 145 psi (-100 kPa to 1 MPa)\u003c\/li\u003e\n \u003cli\u003eOperating temperature ranges of 23 to 140 degrees F (-5 to 60 degrees C) (ambient) and 32 to 104 degrees F (0 to 40 degrees C) (fluid)\u003c\/li\u003e\n \u003cli\u003eThis product is not intended for use in potable water systems\u003c\/li\u003e\n \u003c\/ul\u003e\n\n","published_at":"2022-05-28T17:09:59+10:00","created_at":"2022-05-28T17:10:03+10:00","vendor":"SMC","type":"Push-to-Connect Fittings","tags":["industrial"],"price":10100,"price_min":10100,"price_max":10100,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":41534427398324,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B0065RDMQ6","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"SMC KQ2T07-U03A PBT \u0026 Brass Push-to-Connect Tube Fitting, Branch Tee, 1\/4\" Tube OD x 3\/8\" UNI Thread Male","public_title":null,"options":["Default Title"],"price":10100,"weight":23,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/products\/B0065RDMQ6.jpg?v=1653806127","\/\/auspowers.com\/cdn\/shop\/products\/611Zoc2vVnL.jpg?v=1653721803","\/\/auspowers.com\/cdn\/shop\/products\/51BgwTNuHzL.jpg?v=1653721803","\/\/auspowers.com\/cdn\/shop\/products\/51JtxRlnj4L.jpg?v=1653721803"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/products\/B0065RDMQ6.jpg?v=1653806127","options":["Title"],"media":[{"alt":"[Australia - AusPower] - SMC KQ2T07-U03A PBT \u0026 Brass Push-to-Connect Tube Fitting, Branch Tee, 1\/4\" Tube OD x 3\/8\" UNI Thread Male ","id":26006309503156,"position":1,"preview_image":{"aspect_ratio":1.17,"height":1254,"width":1467,"src":"\/\/auspowers.com\/cdn\/shop\/products\/B0065RDMQ6.jpg?v=1653806127"},"aspect_ratio":1.17,"height":1254,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/B0065RDMQ6.jpg?v=1653806127","width":1467},{"alt":"[Australia - AusPower] - SMC KQ2T07-U03A PBT \u0026 Brass Push-to-Connect Tube Fitting, Branch Tee, 1\/4\" Tube OD x 3\/8\" UNI Thread Male ","id":25999189835956,"position":2,"preview_image":{"aspect_ratio":1.511,"height":1124,"width":1698,"src":"\/\/auspowers.com\/cdn\/shop\/products\/611Zoc2vVnL.jpg?v=1653721803"},"aspect_ratio":1.511,"height":1124,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/611Zoc2vVnL.jpg?v=1653721803","width":1698},{"alt":"[Australia - AusPower] - SMC KQ2T07-U03A PBT \u0026 Brass Push-to-Connect Tube Fitting, Branch Tee, 1\/4\" Tube OD x 3\/8\" UNI Thread Male ","id":25999189868724,"position":3,"preview_image":{"aspect_ratio":2.118,"height":667,"width":1413,"src":"\/\/auspowers.com\/cdn\/shop\/products\/51BgwTNuHzL.jpg?v=1653721803"},"aspect_ratio":2.118,"height":667,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/51BgwTNuHzL.jpg?v=1653721803","width":1413},{"alt":"[Australia - AusPower] - SMC KQ2T07-U03A PBT \u0026 Brass Push-to-Connect Tube Fitting, Branch Tee, 1\/4\" Tube OD x 3\/8\" UNI Thread Male ","id":25999189901492,"position":4,"preview_image":{"aspect_ratio":2.118,"height":667,"width":1413,"src":"\/\/auspowers.com\/cdn\/shop\/products\/51JtxRlnj4L.jpg?v=1653721803"},"aspect_ratio":2.118,"height":667,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/51JtxRlnj4L.jpg?v=1653721803","width":1413}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eSMC KQ2T07-U03A PBT \u0026amp; Brass Push-to-Connect Tube Fitting, Branch Tee, 1\/4\" Tube OD x 3\/8\" UNI Thread Male\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eThis SMC KQ2T branch tee is a PBT and brass tube fitting for connecting two\ntubes at 90-degree angles to a female thread. It has male Uni threads with a\ngasket seal on the straight end and push-to-connect inch tube connections on\nthe two branch ends. The body is made of polybutylene terephthalate (PBT) and\nJapanese Industrial Standard (JIS) C3604 brass for corrosion resistance, the\nthreads are made of C3604 brass, and the tube seals are made of nitrile\nbutadiene rubber (NBR) for resistance to oils and extreme temperatures. The\nUni threads are compatible with female British Standard Pipe Taper (BSPT),\nBritish Standard Pipe Parallel (BSPP), National Pipe Thread Taper (NPT), and\nNational Pipe Thread Taper Fine (NPTF) threads, and the fitting is sealed\nagainst a standard chamfer with an NBR laminated stainless steel 304 gasket.\nAn NBR O-ring allows the body to rotate in the threaded stud for positioning.\nA chuck and collet provide secure retention of tubing, and the release button\nallows tubing to be removed with little force. The fitting can be used with\nnylon, soft nylon, polyurethane, fluorinated ethylene propylene (FEP), and\nperfluoroalkoxy (PFA) tubing. It has an operating pressure range of -14.5 to\n145 pounds per square inch (psi) (-100 kPa to 1 MPa), an ambient temperature\nrange of 23 to 140 degrees F (-5 to 60 degrees C), and a fluid temperature\nrange of 32 to 104 degrees F (0 to 40 degrees C). This PBT and brass tube\nfitting is Restriction of Hazardous Substances (RoHS) compliant, and can be\nused in a broad range of fluid power applications, including temperature\ncontrol, compressed air equipment, medical instrumentation, and motor vehicle\ncontrols, among others.Specifications Connection thread Male Uni threads\nThread material JIS C3604 brass Thread sealing method Gasket Compatible tubing\nmaterials Nylon, soft nylon, polyurethane, FEP, PFA Fluid Air or water\nOperating pressure range 14.5 to 145 psi (-100 kPa to 1 MPa) Operating\ntemperature range (ambient) 23 to 140 degrees F (-5 to 60 degrees C) Operating\ntemperature range (fluid)) 32 to 104 degrees F (0 to 40 degrees C)Tube\nfittings are components used for connecting, branching, terminating, and\nchanging the direction of tubing in pneumatic and hydraulic systems. They are\nmade of brass, stainless steel, polybutylene terephthalate (PBT), and other\nmaterials that resist corrosion and wear. Tube fittings have various types of\nconnections, including threaded, welded, barbed, and push-to-connect (also\ncalled one-touch). Push-to-connect connections do not require tools or\nsealants. Tube fittings are used in various applications, including machine\ntools, airplane and truck controls, and automated production lines, among\nothers.SMC Corporation manufactures actuators, valves, airline equipment,\nconnector fittings, electrical products, vacuum products, dryers, temperature\ncontrol chillers, and accessories. SMC Corporation of America is headquartered\nin Noblesville, IN, and meets International Organization for Standardization\n(ISO) standard 9001:2008.What’s in the Box?SMC KQ2T branch teeGasket\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eMale branch tee to connect two tubes at 90-degree angles to a female thread\u003c\/li\u003e\n \u003cli\u003eMale Uni threads with a gasket seal on one end and push-to-connect inch tube connections on the two branch ends\u003c\/li\u003e\n \u003cli\u003ePBT and brass body and brass threads for resistance to corrosion\u003c\/li\u003e\n \u003cli\u003eOperating pressure range of -14.5 to 145 psi (-100 kPa to 1 MPa)\u003c\/li\u003e\n \u003cli\u003eOperating temperature ranges of 23 to 140 degrees F (-5 to 60 degrees C) (ambient) and 32 to 104 degrees F (0 to 40 degrees C) (fluid)\u003c\/li\u003e\n \u003cli\u003eThis product is not intended for use in potable water systems\u003c\/li\u003e\n \u003c\/ul\u003e\n\n"}
