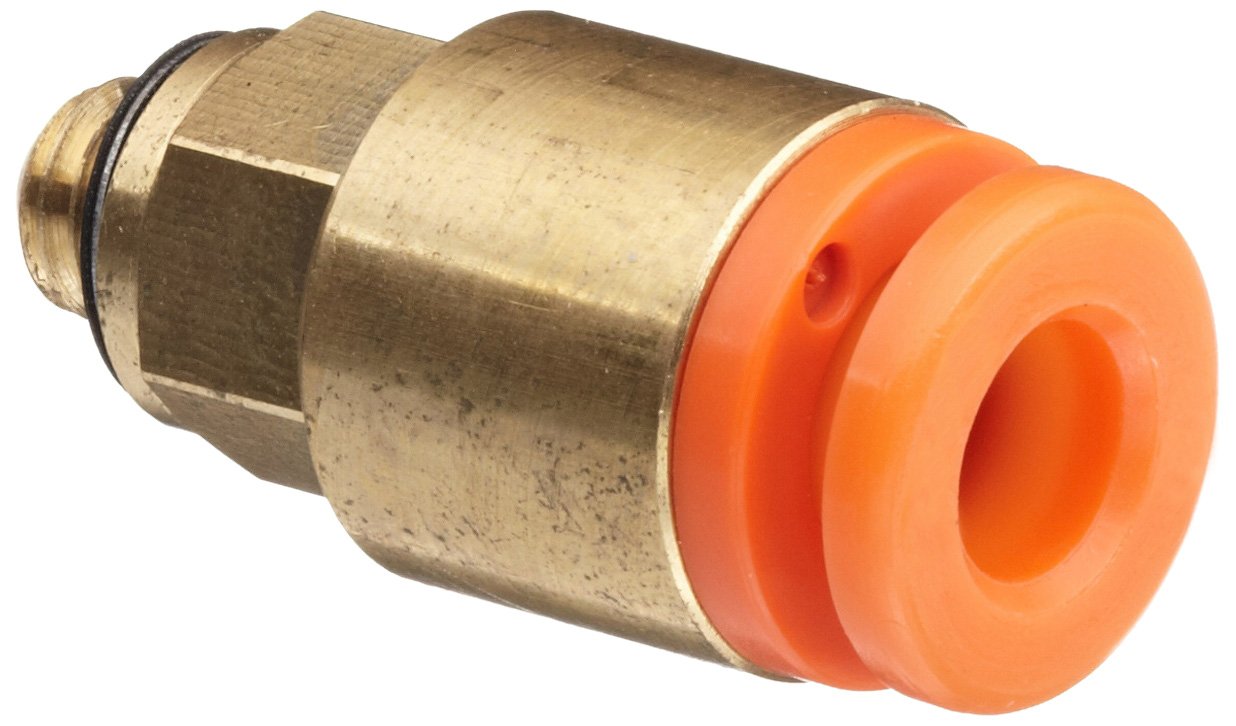

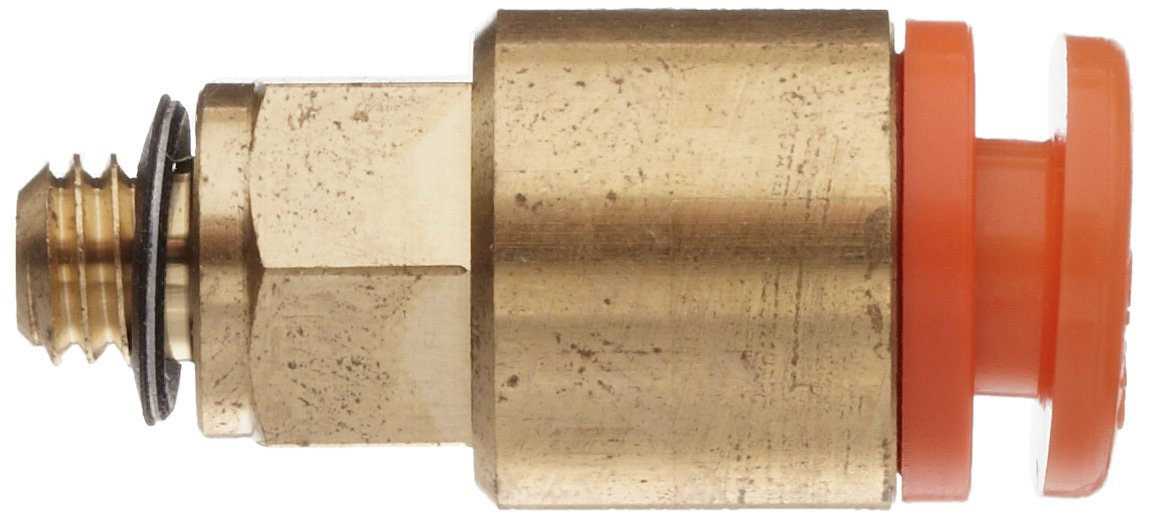

{"id":7144974188724,"title":"SMC KQ2H07-U03A Brass Push-to-Connect Tube Fitting, Adapter, 1\/4\" Tube OD x 3\/8\" UNI Thread Male","handle":"smc-kq2h07-u03a-brass-push-to-connect-tube-fitting-adapter-1-4-tube-od-x-3-8-uni-thread-male","description":"\u003ch3\u003eSMC KQ2H07-U03A Brass Push-to-Connect Tube Fitting, Adapter, 1\/4\" Tube OD x 3\/8\" UNI Thread Male\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eThis SMC KQ2H male adapter (also called connector) is a brass tube fitting for\nconnecting a tube to a female thread. It has a push-to-connect inch tube\nconnection on one end and male Uni threads with a gasket seal on the other\nend. The body and threads are made of Japanese Industrial Standard (JIS) C3604\nbrass for corrosion resistance, and the tube seal is made of nitrile butadiene\nrubber (NBR) for resistance to oils and extreme temperatures. The Uni threads\nare compatible with female British Standard Pipe Taper (BSPT), British\nStandard Pipe Parallel (BSPP), National Pipe Thread Taper (NPT), and National\nPipe Thread Taper Fine (NPTF) threads, and the fitting is sealed against a\nstandard chamfer with an NBR laminated stainless steel 304 gasket. A chuck and\ncollet provide secure retention of tubing, and the release button allows\ntubing to be removed with little force. The fitting can be used with nylon,\nsoft nylon, polyurethane, fluorinated ethylene propylene (FEP), and\nperfluoroalkoxy (PFA) tubing. It has an operating pressure range of -14.5 to\n145 pounds per square inch (psi) (-100 kPa to 1 MPa), an ambient temperature\nrange of 23 to 140 degrees F (-5 to 60 degrees C), and a fluid temperature\nrange of 32 to 104 degrees F (0 to 40 degrees C). This brass tube fitting is\nRestriction of Hazardous Substances (RoHS) compliant, and can be used in a\nbroad range of fluid power applications, including temperature control,\ncompressed air equipment, medical instrumentation, and motor vehicle controls,\namong others.Specifications Connection thread Male Uni thread Thread material\nJIS C3604 brass Thread sealing method Gasket Compatible tubing materials\nNylon, soft nylon, polyurethane, FEP, PFA Fluid Air or water Operating\npressure range 14.5 to 145 psi (-100 kPa to 1 MPa) Operating temperature range\n(ambient) 23 to 140 degrees F (-5 to 60 degrees C) Operating temperature range\n(fluid)) 32 to 104 degrees F (0 to 40 degrees C)Tube fittings are components\nused for connecting, branching, terminating, and changing the direction of\ntubing in pneumatic and hydraulic systems. They are made of brass, stainless\nsteel, polybutylene terephthalate (PBT), and other materials that resist\ncorrosion and wear. Tube fittings have various types of connections, including\nthreaded, welded, barbed, and push-to-connect (also called one-touch). Push-\nto-connect connections do not require tools or sealants. Tube fittings are\nused in various applications, including machine tools, airplane and truck\ncontrols, and automated production lines, among others.SMC Corporation\nmanufactures actuators, valves, airline equipment, connector fittings,\nelectrical products, vacuum products, dryers, temperature control chillers,\nand accessories. SMC Corporation of America is headquartered in Noblesville,\nIN, and meets International Organization for Standardization (ISO) standard\n9001:2008.What’s in the Box?SMC KQ2H male adapterGasket\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eMale adapter to connect a tube to a female thread\u003c\/li\u003e\n \u003cli\u003ePush-to-connect inch tube connection on one end and male Uni threads with a gasket seal on the other end\u003c\/li\u003e\n \u003cli\u003eBrass body and threads for resistance to corrosion\u003c\/li\u003e\n \u003cli\u003eOperating pressure range of -14.5 to 145 psi (-100 kPa to 1 MPa)\u003c\/li\u003e\n \u003cli\u003eOperating temperature ranges of 23 to 140 degrees F (-5 to 60 degrees C) (ambient) and 32 to 104 degrees F (0 to 40 degrees C) (fluid)\u003c\/li\u003e\n \u003cli\u003eThis product is not intended for use in potable water systems\u003c\/li\u003e\n \u003c\/ul\u003e\n\n","published_at":"2022-05-28T17:45:43+10:00","created_at":"2022-05-28T17:45:46+10:00","vendor":"SMC","type":"Push-to-Connect Fittings","tags":["industrial"],"price":10000,"price_min":10000,"price_max":10000,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":41534463082676,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B0065RDBM6","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"SMC KQ2H07-U03A Brass Push-to-Connect Tube Fitting, Adapter, 1\/4\" Tube OD x 3\/8\" UNI Thread Male","public_title":null,"options":["Default Title"],"price":10000,"weight":18,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/products\/B0065RDBM6.jpg?v=1653808200","\/\/auspowers.com\/cdn\/shop\/products\/61uFeU8oKKL.jpg?v=1653723946","\/\/auspowers.com\/cdn\/shop\/products\/51yJy1zZmkL.jpg?v=1653723946","\/\/auspowers.com\/cdn\/shop\/products\/51fuczC_t5L.jpg?v=1653723946"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/products\/B0065RDBM6.jpg?v=1653808200","options":["Title"],"media":[{"alt":"[Australia - AusPower] - SMC KQ2H07-U03A Brass Push-to-Connect Tube Fitting, Adapter, 1\/4\" Tube OD x 3\/8\" UNI Thread Male ","id":26006517416116,"position":1,"preview_image":{"aspect_ratio":1.702,"height":726,"width":1236,"src":"\/\/auspowers.com\/cdn\/shop\/products\/B0065RDBM6.jpg?v=1653808200"},"aspect_ratio":1.702,"height":726,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/B0065RDBM6.jpg?v=1653808200","width":1236},{"alt":"[Australia - AusPower] - SMC KQ2H07-U03A Brass Push-to-Connect Tube Fitting, Adapter, 1\/4\" Tube OD x 3\/8\" UNI Thread Male ","id":25999351972020,"position":2,"preview_image":{"aspect_ratio":2.214,"height":519,"width":1149,"src":"\/\/auspowers.com\/cdn\/shop\/products\/61uFeU8oKKL.jpg?v=1653723946"},"aspect_ratio":2.214,"height":519,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/61uFeU8oKKL.jpg?v=1653723946","width":1149},{"alt":"[Australia - AusPower] - SMC KQ2H07-U03A Brass Push-to-Connect Tube Fitting, Adapter, 1\/4\" Tube OD x 3\/8\" UNI Thread Male ","id":25999352004788,"position":3,"preview_image":{"aspect_ratio":1.828,"height":598,"width":1093,"src":"\/\/auspowers.com\/cdn\/shop\/products\/51yJy1zZmkL.jpg?v=1653723946"},"aspect_ratio":1.828,"height":598,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/51yJy1zZmkL.jpg?v=1653723946","width":1093},{"alt":"[Australia - AusPower] - SMC KQ2H07-U03A Brass Push-to-Connect Tube Fitting, Adapter, 1\/4\" Tube OD x 3\/8\" UNI Thread Male ","id":25999352037556,"position":4,"preview_image":{"aspect_ratio":1.828,"height":598,"width":1093,"src":"\/\/auspowers.com\/cdn\/shop\/products\/51fuczC_t5L.jpg?v=1653723946"},"aspect_ratio":1.828,"height":598,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/51fuczC_t5L.jpg?v=1653723946","width":1093}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eSMC KQ2H07-U03A Brass Push-to-Connect Tube Fitting, Adapter, 1\/4\" Tube OD x 3\/8\" UNI Thread Male\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eThis SMC KQ2H male adapter (also called connector) is a brass tube fitting for\nconnecting a tube to a female thread. It has a push-to-connect inch tube\nconnection on one end and male Uni threads with a gasket seal on the other\nend. The body and threads are made of Japanese Industrial Standard (JIS) C3604\nbrass for corrosion resistance, and the tube seal is made of nitrile butadiene\nrubber (NBR) for resistance to oils and extreme temperatures. The Uni threads\nare compatible with female British Standard Pipe Taper (BSPT), British\nStandard Pipe Parallel (BSPP), National Pipe Thread Taper (NPT), and National\nPipe Thread Taper Fine (NPTF) threads, and the fitting is sealed against a\nstandard chamfer with an NBR laminated stainless steel 304 gasket. A chuck and\ncollet provide secure retention of tubing, and the release button allows\ntubing to be removed with little force. The fitting can be used with nylon,\nsoft nylon, polyurethane, fluorinated ethylene propylene (FEP), and\nperfluoroalkoxy (PFA) tubing. It has an operating pressure range of -14.5 to\n145 pounds per square inch (psi) (-100 kPa to 1 MPa), an ambient temperature\nrange of 23 to 140 degrees F (-5 to 60 degrees C), and a fluid temperature\nrange of 32 to 104 degrees F (0 to 40 degrees C). This brass tube fitting is\nRestriction of Hazardous Substances (RoHS) compliant, and can be used in a\nbroad range of fluid power applications, including temperature control,\ncompressed air equipment, medical instrumentation, and motor vehicle controls,\namong others.Specifications Connection thread Male Uni thread Thread material\nJIS C3604 brass Thread sealing method Gasket Compatible tubing materials\nNylon, soft nylon, polyurethane, FEP, PFA Fluid Air or water Operating\npressure range 14.5 to 145 psi (-100 kPa to 1 MPa) Operating temperature range\n(ambient) 23 to 140 degrees F (-5 to 60 degrees C) Operating temperature range\n(fluid)) 32 to 104 degrees F (0 to 40 degrees C)Tube fittings are components\nused for connecting, branching, terminating, and changing the direction of\ntubing in pneumatic and hydraulic systems. They are made of brass, stainless\nsteel, polybutylene terephthalate (PBT), and other materials that resist\ncorrosion and wear. Tube fittings have various types of connections, including\nthreaded, welded, barbed, and push-to-connect (also called one-touch). Push-\nto-connect connections do not require tools or sealants. Tube fittings are\nused in various applications, including machine tools, airplane and truck\ncontrols, and automated production lines, among others.SMC Corporation\nmanufactures actuators, valves, airline equipment, connector fittings,\nelectrical products, vacuum products, dryers, temperature control chillers,\nand accessories. SMC Corporation of America is headquartered in Noblesville,\nIN, and meets International Organization for Standardization (ISO) standard\n9001:2008.What’s in the Box?SMC KQ2H male adapterGasket\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eMale adapter to connect a tube to a female thread\u003c\/li\u003e\n \u003cli\u003ePush-to-connect inch tube connection on one end and male Uni threads with a gasket seal on the other end\u003c\/li\u003e\n \u003cli\u003eBrass body and threads for resistance to corrosion\u003c\/li\u003e\n \u003cli\u003eOperating pressure range of -14.5 to 145 psi (-100 kPa to 1 MPa)\u003c\/li\u003e\n \u003cli\u003eOperating temperature ranges of 23 to 140 degrees F (-5 to 60 degrees C) (ambient) and 32 to 104 degrees F (0 to 40 degrees C) (fluid)\u003c\/li\u003e\n \u003cli\u003eThis product is not intended for use in potable water systems\u003c\/li\u003e\n \u003c\/ul\u003e\n\n"}
