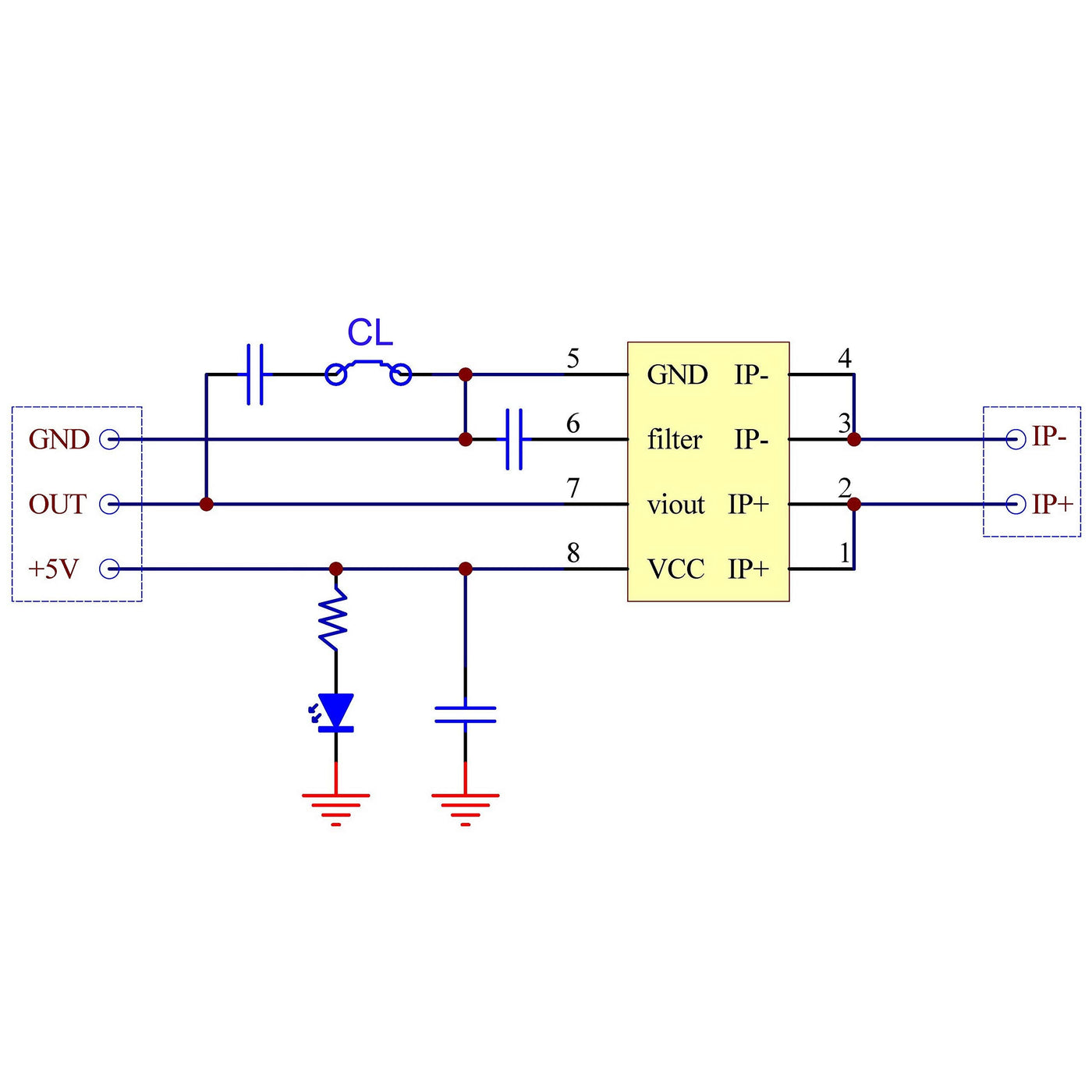

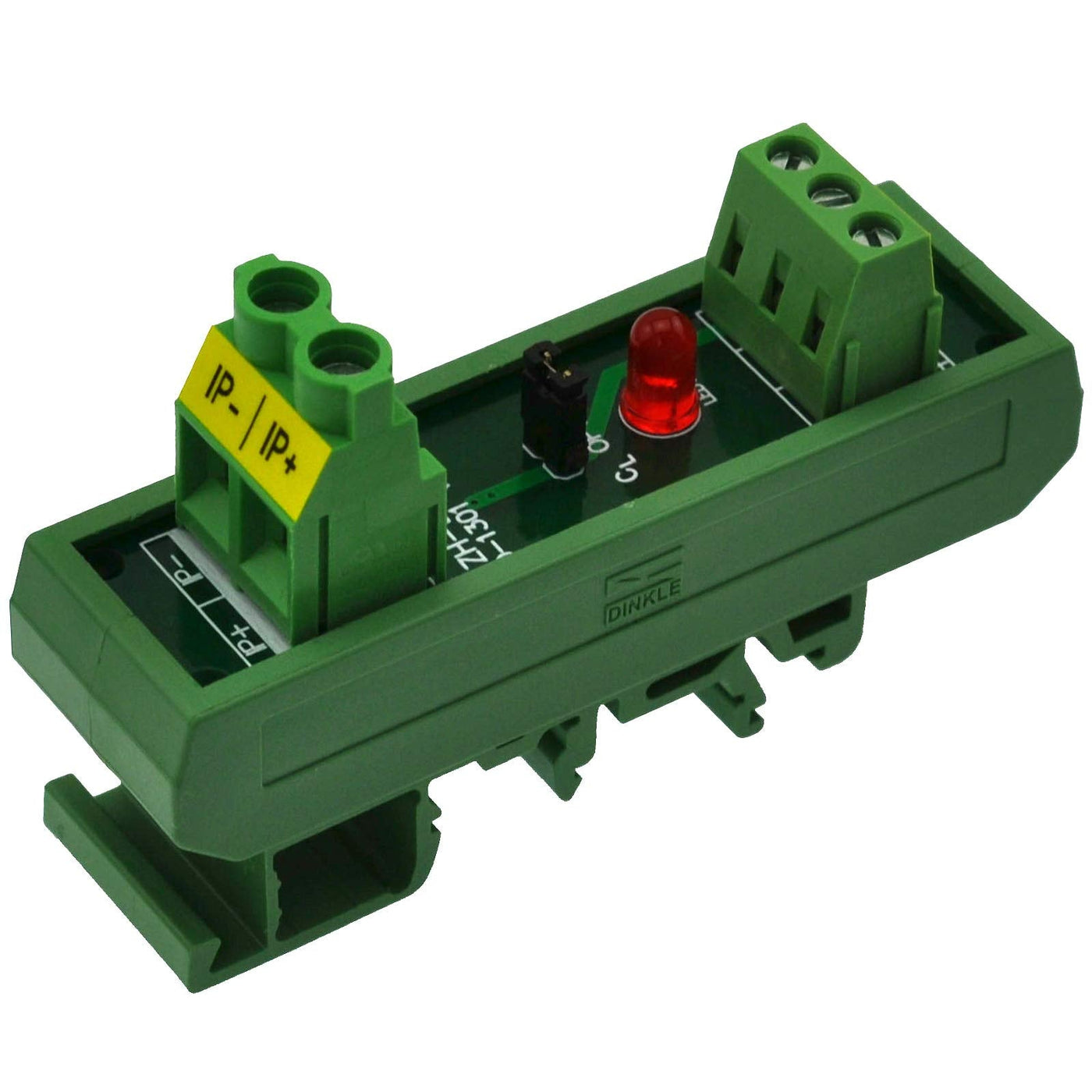

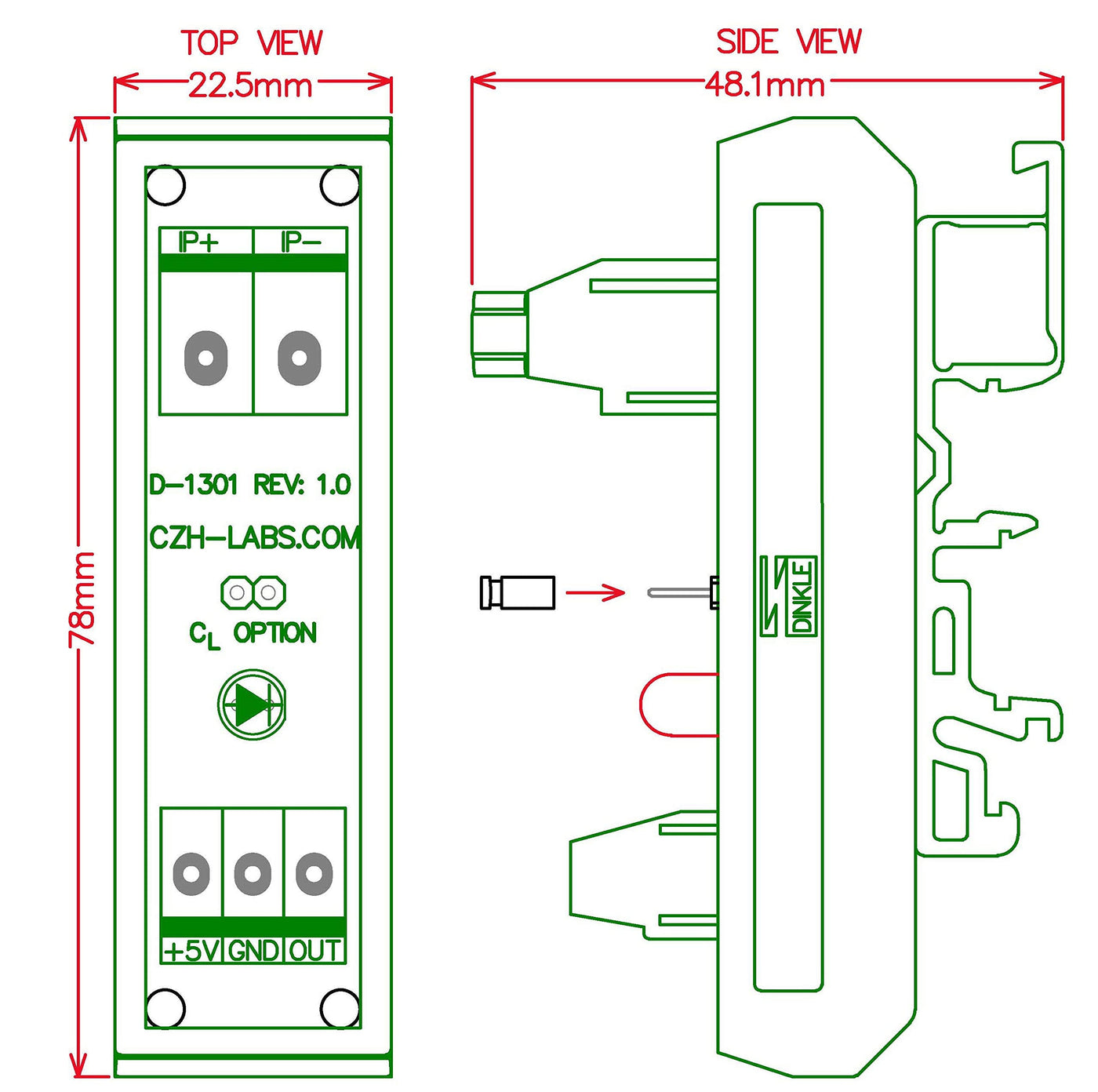

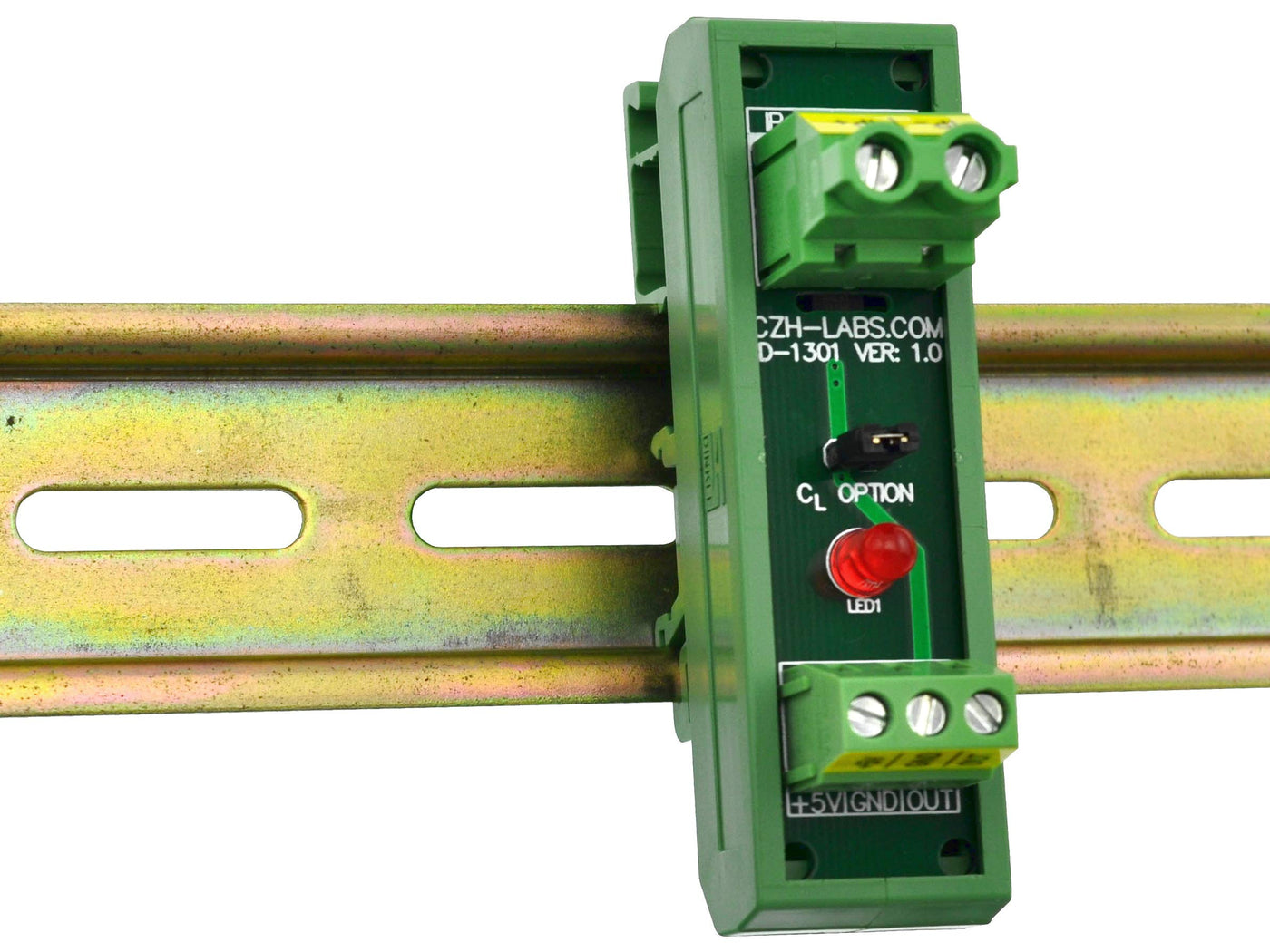

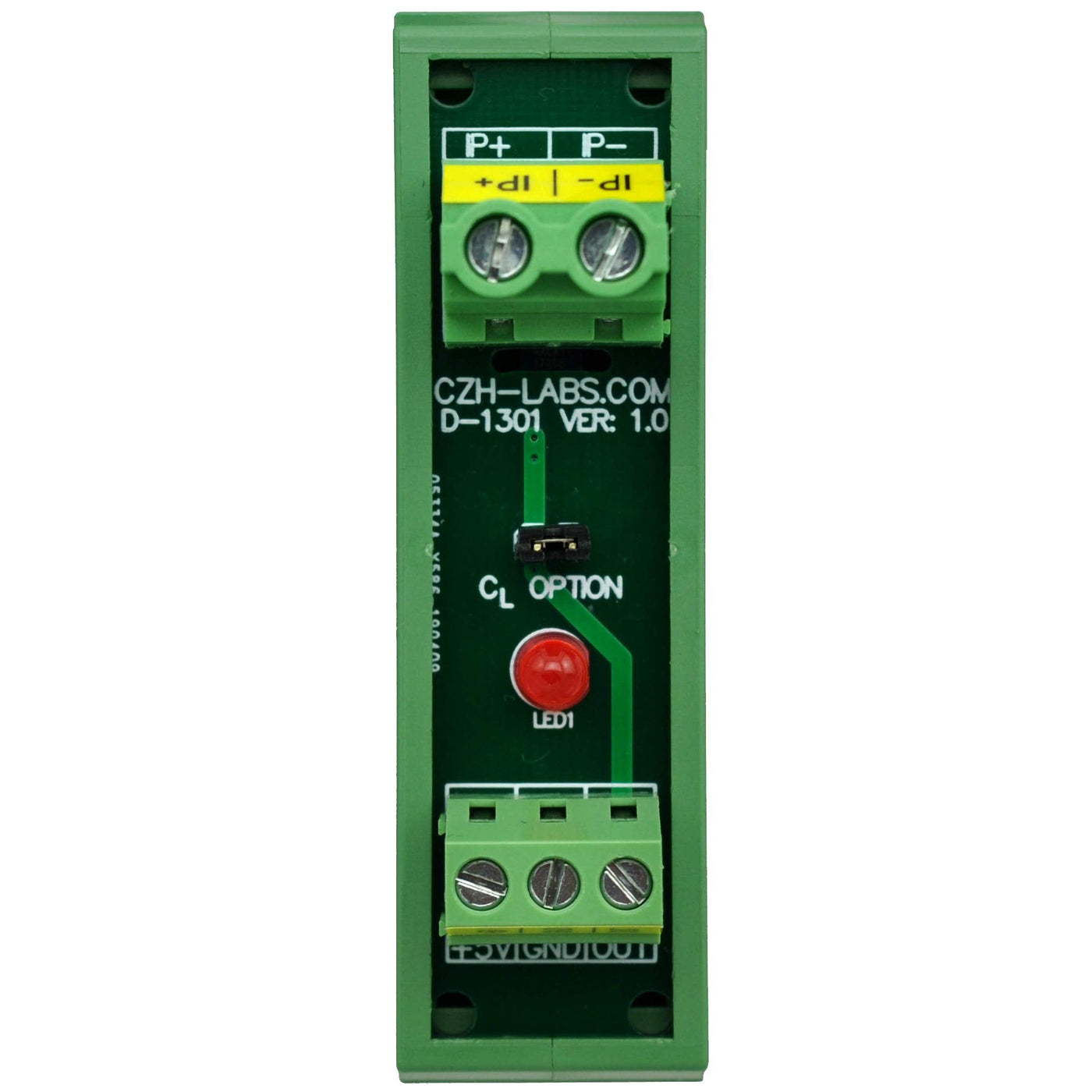

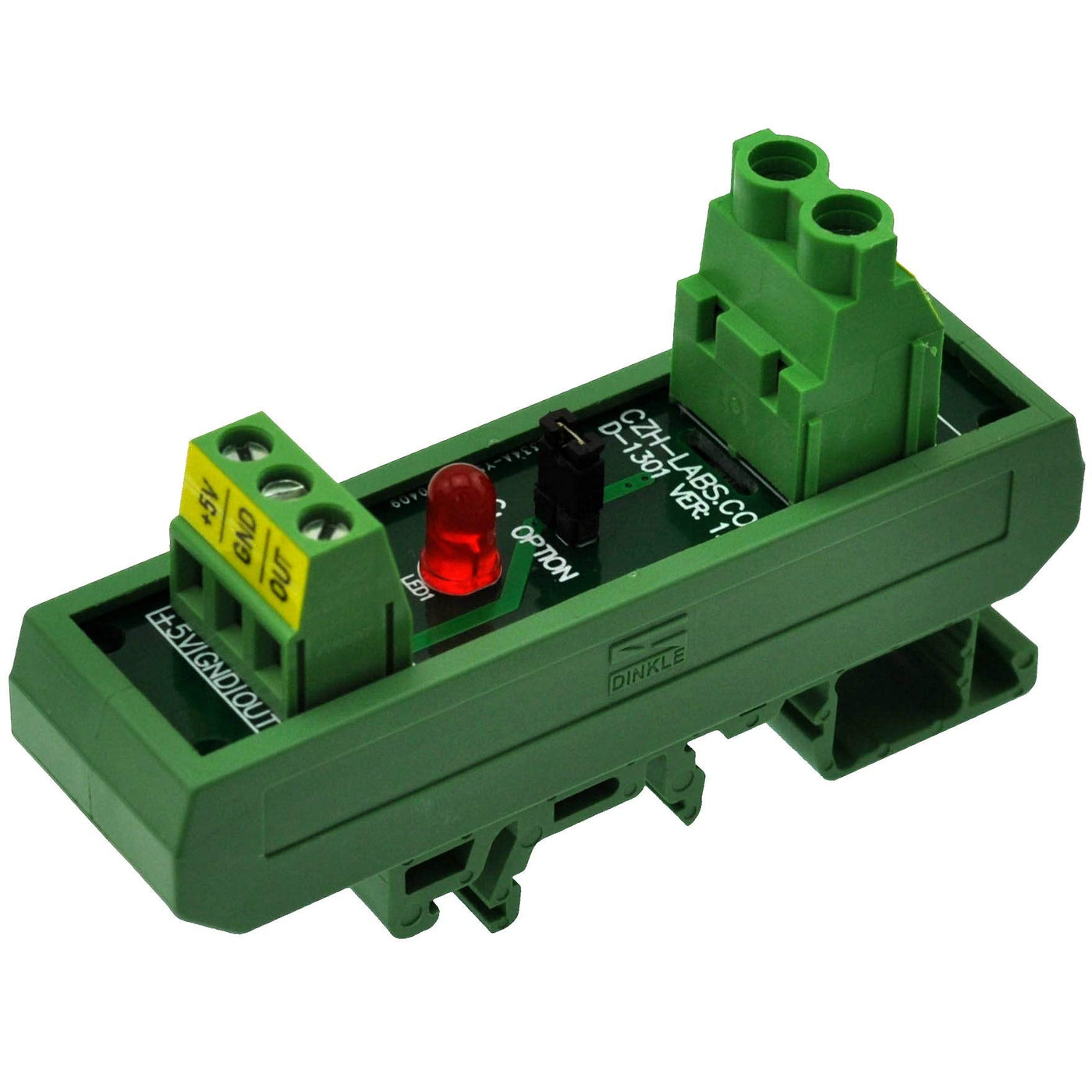

{"id":8034332082356,"title":"Slim DIN Rail Mount AC\/DC Current Sensor Module, Based on ACS712. (+\/-20Amp) +\/-20Amp","handle":"slim-din-rail-mount-ac-dc-current-sensor-module-based-on-acs712-20amp-20amp","description":"\u003ch3\u003eSlim DIN Rail Mount AC\/DC Current Sensor Module, Based on ACS712. (+\/-20Amp)\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003eDatasheet: 1,\r\nThe item disign based on ACS712 IC. The item provides economical and precise\r\nsolutions for AC or DC current sensing in industrial, commercial, and\r\ncommunications systems. Typical applications include motor control, load\r\ndetection and management, switched-mode power supplies, and overcurrent fault\r\nprotection. 2, Operating Voltage: Regulated 5VDC. Operating Current:\r\n20mA(max). Load Maximum Current: +\/-5Amp, +\/-20Amp and +\/-30Amp selectable.\r\nLoad Frequency Bandwidth: DC ~ 80 kHz. Minimum Isolation Voltage: 2.1 kV(RMS).\r\nOutput voltage proportional to AC or DC currents. LED indicator for power\r\nsupply +5V. Pin jumper option for signal output capacitor. 3, Load terminal\r\nblock: Pitch 7.62mm\/0.3\", Strip length 8mm, Screws - M3, steel, Cr3+ Zn\r\nplated, Pin header and Cage – Brass, Wire range 26AWG ~ 10AWG \/ 4mm square,\r\nRated voltage 300V, rated current 30Amp. Power supply and signal terminal\r\nblock: pitch 5.0mm\/0.197\", strip length 7mm, screws - M2.5, steel, Cr3+ Zn\r\nplated, pin header and cage – brass, Wire range 28AWG ~ 12AWG \/ 2.5mm square.\r\nRated voltage 300V, rated current 10Amp. 4, High quality Taiwan DINKLE\r\nFireproof nylon material Slim DIN rail mount carrier, can support width 35 \/\r\n32 \/ 15mm rails.Electrical Parameters: Load Maximum Current: +\/-5Amp, +\/-20Amp\r\nand +\/-30Amp selectable. Load Frequency Bandwidth: DC ~ 80 kHz. Minimum\r\nIsolation Voltage: 2.1 kV(RMS). Operating Voltage: Regulated 5VDC. Operating\r\nCurrent: 20mA(max).\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003eThe item disign based on ACS712 IC. The item provides economical and precise solutions for AC or DC current sensing in industrial, commercial, and communications systems. Typical applications include motor control, load detection and management, switched-mode power supplies, and overcurrent fault protection.\u003c\/li\u003e\r\n \u003cli\u003eOperating Voltage: Regulated 5VDC. Operating Current: 20mA(max). Load Maximum Current: +\/-5Amp, +\/-20Amp and +\/-30Amp selectable. Load Frequency Bandwidth: DC ~ 80 kHz. Minimum Isolation Voltage: 2.1 kV(RMS). Output voltage proportional to AC or DC currents. LED indicator for power supply +5V. Pin jumper option for signal output capacitor.\u003c\/li\u003e\r\n \u003cli\u003eLoad terminal block: Pitch 7.62mm\/0.3\", Strip length 8mm, Screws - M3, steel, Cr3+ Zn plated, Pin header and Cage Brass, Wire range 26AWG ~ 10AWG \/ 4mm square, Rated voltage 300V, rated current 30Amp. Power supply and signal terminal block: pitch 5.0mm\/0.197\", strip length 7mm, screws - M2.5, steel, Cr3+ Zn plated, pin header and cage brass, Wire range 28AWG ~ 12AWG \/ 2.5mm square. Rated voltage 300V, rated current 10Amp.\u003c\/li\u003e\r\n \u003cli\u003eHigh quality Taiwan DINKLE Fireproof nylon material Slim DIN rail mount carrier, can support width 35 \/ 32 \/ 15mm rails.\u003c\/li\u003e\r\n \u003c\/ul\u003e","published_at":"2026-02-27T16:33:43+11:00","created_at":"2026-02-27T16:33:39+11:00","vendor":"OONO","type":"Current Sensors","tags":["industrial_selected_Nov2025"],"price":11700,"price_min":11700,"price_max":11700,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44154052968628,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B082NSTPYW","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Slim DIN Rail Mount AC\/DC Current Sensor Module, Based on ACS712. (+\/-20Amp) +\/-20Amp","public_title":null,"options":["Default Title"],"price":11700,"weight":41,"compare_at_price":null,"inventory_management":"shopify","barcode":"MD-D1301T Series","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/B082NSTPYW.jpg?v=1775784426","\/\/auspowers.com\/cdn\/shop\/files\/61tktG6e_oL.jpg?v=1772170421","\/\/auspowers.com\/cdn\/shop\/files\/71SPHA6yA2L.jpg?v=1772170422","\/\/auspowers.com\/cdn\/shop\/files\/61sW6qv5_ZL.jpg?v=1772170421","\/\/auspowers.com\/cdn\/shop\/files\/71IeOsGYqFL.jpg?v=1772170421","\/\/auspowers.com\/cdn\/shop\/files\/81XGJ_6_1IL.jpg?v=1772170422","\/\/auspowers.com\/cdn\/shop\/files\/816R7e7nmxL.jpg?v=1772170422"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/B082NSTPYW.jpg?v=1775784426","options":["Title"],"media":[{"alt":"[Australia - AusPower] - Slim DIN Rail Mount AC\/DC Current Sensor Module, Based on ACS712. (+\/-20Amp) +\/-20Amp ","id":32719849291956,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1760,"width":1760,"src":"\/\/auspowers.com\/cdn\/shop\/files\/B082NSTPYW.jpg?v=1775784426"},"aspect_ratio":1.0,"height":1760,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/B082NSTPYW.jpg?v=1775784426","width":1760},{"alt":"[Australia - AusPower] - Slim DIN Rail Mount AC\/DC Current Sensor Module, Based on ACS712. (+\/-20Amp) +\/-20Amp ","id":32719849324724,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1598,"width":1598,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61tktG6e_oL.jpg?v=1772170421"},"aspect_ratio":1.0,"height":1598,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61tktG6e_oL.jpg?v=1772170421","width":1598},{"alt":"[Australia - AusPower] - Slim DIN Rail Mount AC\/DC Current Sensor Module, Based on ACS712. (+\/-20Amp) +\/-20Amp ","id":32719849357492,"position":3,"preview_image":{"aspect_ratio":1.0,"height":2031,"width":2031,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71SPHA6yA2L.jpg?v=1772170422"},"aspect_ratio":1.0,"height":2031,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71SPHA6yA2L.jpg?v=1772170422","width":2031},{"alt":"[Australia - AusPower] - Slim DIN Rail Mount AC\/DC Current Sensor Module, Based on ACS712. (+\/-20Amp) +\/-20Amp ","id":32719849390260,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1730,"width":1730,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61sW6qv5_ZL.jpg?v=1772170421"},"aspect_ratio":1.0,"height":1730,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61sW6qv5_ZL.jpg?v=1772170421","width":1730},{"alt":"[Australia - AusPower] - Slim DIN Rail Mount AC\/DC Current Sensor Module, Based on ACS712. (+\/-20Amp) +\/-20Amp ","id":32719849423028,"position":5,"preview_image":{"aspect_ratio":1.0,"height":2560,"width":2560,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71IeOsGYqFL.jpg?v=1772170421"},"aspect_ratio":1.0,"height":2560,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71IeOsGYqFL.jpg?v=1772170421","width":2560},{"alt":"[Australia - AusPower] - Slim DIN Rail Mount AC\/DC Current Sensor Module, Based on ACS712. (+\/-20Amp) +\/-20Amp ","id":32719849455796,"position":6,"preview_image":{"aspect_ratio":1.006,"height":2545,"width":2560,"src":"\/\/auspowers.com\/cdn\/shop\/files\/81XGJ_6_1IL.jpg?v=1772170422"},"aspect_ratio":1.006,"height":2545,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/81XGJ_6_1IL.jpg?v=1772170422","width":2560},{"alt":"[Australia - AusPower] - Slim DIN Rail Mount AC\/DC Current Sensor Module, Based on ACS712. (+\/-20Amp) +\/-20Amp ","id":32719849488564,"position":7,"preview_image":{"aspect_ratio":1.333,"height":1792,"width":2389,"src":"\/\/auspowers.com\/cdn\/shop\/files\/816R7e7nmxL.jpg?v=1772170422"},"aspect_ratio":1.333,"height":1792,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/816R7e7nmxL.jpg?v=1772170422","width":2389}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eSlim DIN Rail Mount AC\/DC Current Sensor Module, Based on ACS712. (+\/-20Amp)\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003eDatasheet: 1,\r\nThe item disign based on ACS712 IC. The item provides economical and precise\r\nsolutions for AC or DC current sensing in industrial, commercial, and\r\ncommunications systems. Typical applications include motor control, load\r\ndetection and management, switched-mode power supplies, and overcurrent fault\r\nprotection. 2, Operating Voltage: Regulated 5VDC. Operating Current:\r\n20mA(max). Load Maximum Current: +\/-5Amp, +\/-20Amp and +\/-30Amp selectable.\r\nLoad Frequency Bandwidth: DC ~ 80 kHz. Minimum Isolation Voltage: 2.1 kV(RMS).\r\nOutput voltage proportional to AC or DC currents. LED indicator for power\r\nsupply +5V. Pin jumper option for signal output capacitor. 3, Load terminal\r\nblock: Pitch 7.62mm\/0.3\", Strip length 8mm, Screws - M3, steel, Cr3+ Zn\r\nplated, Pin header and Cage – Brass, Wire range 26AWG ~ 10AWG \/ 4mm square,\r\nRated voltage 300V, rated current 30Amp. Power supply and signal terminal\r\nblock: pitch 5.0mm\/0.197\", strip length 7mm, screws - M2.5, steel, Cr3+ Zn\r\nplated, pin header and cage – brass, Wire range 28AWG ~ 12AWG \/ 2.5mm square.\r\nRated voltage 300V, rated current 10Amp. 4, High quality Taiwan DINKLE\r\nFireproof nylon material Slim DIN rail mount carrier, can support width 35 \/\r\n32 \/ 15mm rails.Electrical Parameters: Load Maximum Current: +\/-5Amp, +\/-20Amp\r\nand +\/-30Amp selectable. Load Frequency Bandwidth: DC ~ 80 kHz. Minimum\r\nIsolation Voltage: 2.1 kV(RMS). Operating Voltage: Regulated 5VDC. Operating\r\nCurrent: 20mA(max).\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003eThe item disign based on ACS712 IC. The item provides economical and precise solutions for AC or DC current sensing in industrial, commercial, and communications systems. Typical applications include motor control, load detection and management, switched-mode power supplies, and overcurrent fault protection.\u003c\/li\u003e\r\n \u003cli\u003eOperating Voltage: Regulated 5VDC. Operating Current: 20mA(max). Load Maximum Current: +\/-5Amp, +\/-20Amp and +\/-30Amp selectable. Load Frequency Bandwidth: DC ~ 80 kHz. Minimum Isolation Voltage: 2.1 kV(RMS). Output voltage proportional to AC or DC currents. LED indicator for power supply +5V. Pin jumper option for signal output capacitor.\u003c\/li\u003e\r\n \u003cli\u003eLoad terminal block: Pitch 7.62mm\/0.3\", Strip length 8mm, Screws - M3, steel, Cr3+ Zn plated, Pin header and Cage Brass, Wire range 26AWG ~ 10AWG \/ 4mm square, Rated voltage 300V, rated current 30Amp. Power supply and signal terminal block: pitch 5.0mm\/0.197\", strip length 7mm, screws - M2.5, steel, Cr3+ Zn plated, pin header and cage brass, Wire range 28AWG ~ 12AWG \/ 2.5mm square. Rated voltage 300V, rated current 10Amp.\u003c\/li\u003e\r\n \u003cli\u003eHigh quality Taiwan DINKLE Fireproof nylon material Slim DIN rail mount carrier, can support width 35 \/ 32 \/ 15mm rails.\u003c\/li\u003e\r\n \u003c\/ul\u003e"}
