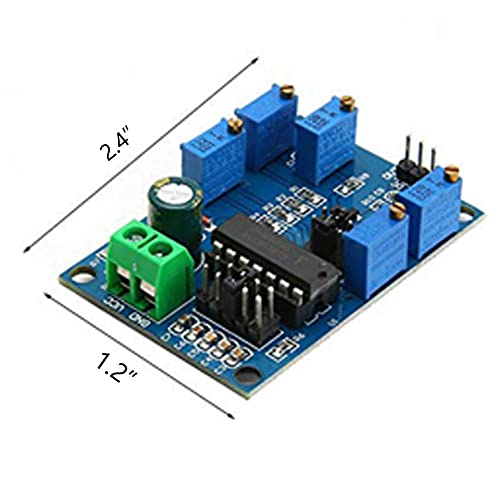

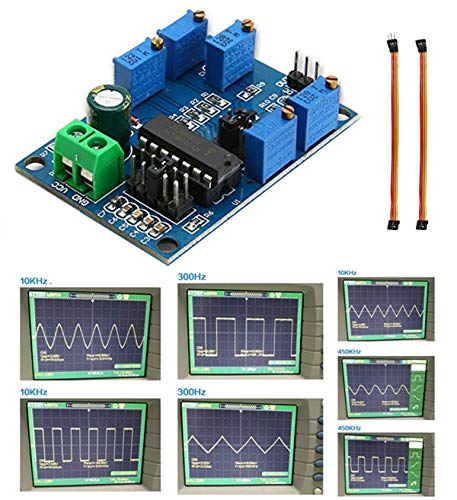

{"id":8115413909684,"title":"Signal Generator Module ICL8038 Medium Low Frequency Signal Source 10Hz-450KHz Triangle Rectangle Wave Triple Signal Generator Module with Dupont Cable","handle":"signal-generator-module-icl8038-medium-low-frequency-signal-source-10hz-450khz-triangle-rectangle-wave-triple-signal-generator-module-with-dupont-cable","description":"\u003ch3\u003eSignal Generator Module ICL8038 Medium Low Frequency Signal Source 10Hz-450KHz Triangle Rectangle Wave Triple Signal Generator Module with Dupont Cable\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eDescription: Operating voltage: DC 12-15V. Output waveform: square wave,\ntriangular wave, sine wave. Distortion: less than 1% sine wave distortion.\nDuty ratio: less than 50ppm \/ ℃. Triangular wave: with 0.1% high linearity.\nWorking temperature: 0~70℃. Product size: 53.8 x 37.7 x 15mm \/2.4 x 1.2 x 0.59\ninches (L x W x H). Net weight: 18g\/0.04lb. Package includes: 1 x ICL8038\nsignal generator module. 1 x 11.8 inch male-female Dupont cables 3 pin. 1 x\n11.8 inch female-female Dupont cables 3 pin.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eThe ICL8038 is a precision oscillator with multiple signal outputs. The frequency and duty cycle of the output waveform can also be controlled by current or resistance. By having an FM signal input, the chip can be used for low frequency signal frequency control\u003c\/li\u003e\n \u003cli\u003eHas a frequency change when a low frequency drift occurs, the maximum does not exceed 50ppm \/ \/ \/ ; with sine wave, triangular wave, square wave and other functions of signal output; sine wave output with less than 1% of distortion\u003c\/li\u003e\n \u003cli\u003eTriangle wave power with 0.1% high linearity; wide working cycle, 2% -98% arbitrarily adjustable; easy to use, requires only a few external conditions.\u003c\/li\u003e\n \u003cli\u003eThis module is designed for the frequently used frequency range and is adjustable in 5 levels. It can produce a low distortion of the sine, triangle and rectangular pulse signal from 10Hz to 450kHz.\u003c\/li\u003e\n \u003cli\u003eSine wave can be used for test signal, drive signal, carrier frequency signal; square wave signals can be used to switch signals, trigger signals, etc. Triangle wave is mainly used for sampling signals.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2026-09-02T10:35:10+10:00","created_at":"2026-09-02T03:19:56+10:00","vendor":"Youmile","type":"Function Generators","tags":["industrial_DE_Aug2026"],"price":10400,"price_min":10400,"price_max":10400,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44375190339764,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B07YDFX7R8","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Signal Generator Module ICL8038 Medium Low Frequency Signal Source 10Hz-450KHz Triangle Rectangle Wave Triple Signal Generator Module with Dupont Cable","public_title":null,"options":["Default Title"],"price":10400,"weight":20,"compare_at_price":null,"inventory_management":"shopify","barcode":"782855189627","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/de-B07YDFX7R8.jpg?v=1788283198","\/\/auspowers.com\/cdn\/shop\/files\/414WxOqZoRL.jpg?v=1788283198","\/\/auspowers.com\/cdn\/shop\/files\/41Oda2TwgnL.jpg?v=1788283198","\/\/auspowers.com\/cdn\/shop\/files\/41CjFDUyfUL.jpg?v=1788283198","\/\/auspowers.com\/cdn\/shop\/files\/41IIuPAGsaL.jpg?v=1788283198","\/\/auspowers.com\/cdn\/shop\/files\/41dQi44eTLL.jpg?v=1788283198","\/\/auspowers.com\/cdn\/shop\/files\/51069oqDkfL.jpg?v=1788283198"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/de-B07YDFX7R8.jpg?v=1788283198","options":["Title"],"media":[{"alt":null,"id":33274090094772,"position":1,"preview_image":{"aspect_ratio":0.914,"height":500,"width":457,"src":"\/\/auspowers.com\/cdn\/shop\/files\/de-B07YDFX7R8.jpg?v=1788283198"},"aspect_ratio":0.914,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/de-B07YDFX7R8.jpg?v=1788283198","width":457},{"alt":null,"id":33274090127540,"position":2,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/414WxOqZoRL.jpg?v=1788283198"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/414WxOqZoRL.jpg?v=1788283198","width":500},{"alt":null,"id":33274090160308,"position":3,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/41Oda2TwgnL.jpg?v=1788283198"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/41Oda2TwgnL.jpg?v=1788283198","width":500},{"alt":null,"id":33274090193076,"position":4,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/41CjFDUyfUL.jpg?v=1788283198"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/41CjFDUyfUL.jpg?v=1788283198","width":500},{"alt":null,"id":33274090225844,"position":5,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/41IIuPAGsaL.jpg?v=1788283198"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/41IIuPAGsaL.jpg?v=1788283198","width":500},{"alt":null,"id":33274090258612,"position":6,"preview_image":{"aspect_ratio":1.845,"height":271,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/41dQi44eTLL.jpg?v=1788283198"},"aspect_ratio":1.845,"height":271,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/41dQi44eTLL.jpg?v=1788283198","width":500},{"alt":null,"id":33274090291380,"position":7,"preview_image":{"aspect_ratio":0.942,"height":500,"width":471,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51069oqDkfL.jpg?v=1788283198"},"aspect_ratio":0.942,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51069oqDkfL.jpg?v=1788283198","width":471}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eSignal Generator Module ICL8038 Medium Low Frequency Signal Source 10Hz-450KHz Triangle Rectangle Wave Triple Signal Generator Module with Dupont Cable\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eDescription: Operating voltage: DC 12-15V. Output waveform: square wave,\ntriangular wave, sine wave. Distortion: less than 1% sine wave distortion.\nDuty ratio: less than 50ppm \/ ℃. Triangular wave: with 0.1% high linearity.\nWorking temperature: 0~70℃. Product size: 53.8 x 37.7 x 15mm \/2.4 x 1.2 x 0.59\ninches (L x W x H). Net weight: 18g\/0.04lb. Package includes: 1 x ICL8038\nsignal generator module. 1 x 11.8 inch male-female Dupont cables 3 pin. 1 x\n11.8 inch female-female Dupont cables 3 pin.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eThe ICL8038 is a precision oscillator with multiple signal outputs. The frequency and duty cycle of the output waveform can also be controlled by current or resistance. By having an FM signal input, the chip can be used for low frequency signal frequency control\u003c\/li\u003e\n \u003cli\u003eHas a frequency change when a low frequency drift occurs, the maximum does not exceed 50ppm \/ \/ \/ ; with sine wave, triangular wave, square wave and other functions of signal output; sine wave output with less than 1% of distortion\u003c\/li\u003e\n \u003cli\u003eTriangle wave power with 0.1% high linearity; wide working cycle, 2% -98% arbitrarily adjustable; easy to use, requires only a few external conditions.\u003c\/li\u003e\n \u003cli\u003eThis module is designed for the frequently used frequency range and is adjustable in 5 levels. It can produce a low distortion of the sine, triangle and rectangular pulse signal from 10Hz to 450kHz.\u003c\/li\u003e\n \u003cli\u003eSine wave can be used for test signal, drive signal, carrier frequency signal; square wave signals can be used to switch signals, trigger signals, etc. Triangle wave is mainly used for sampling signals.\u003c\/li\u003e\n \u003c\/ul\u003e"}
