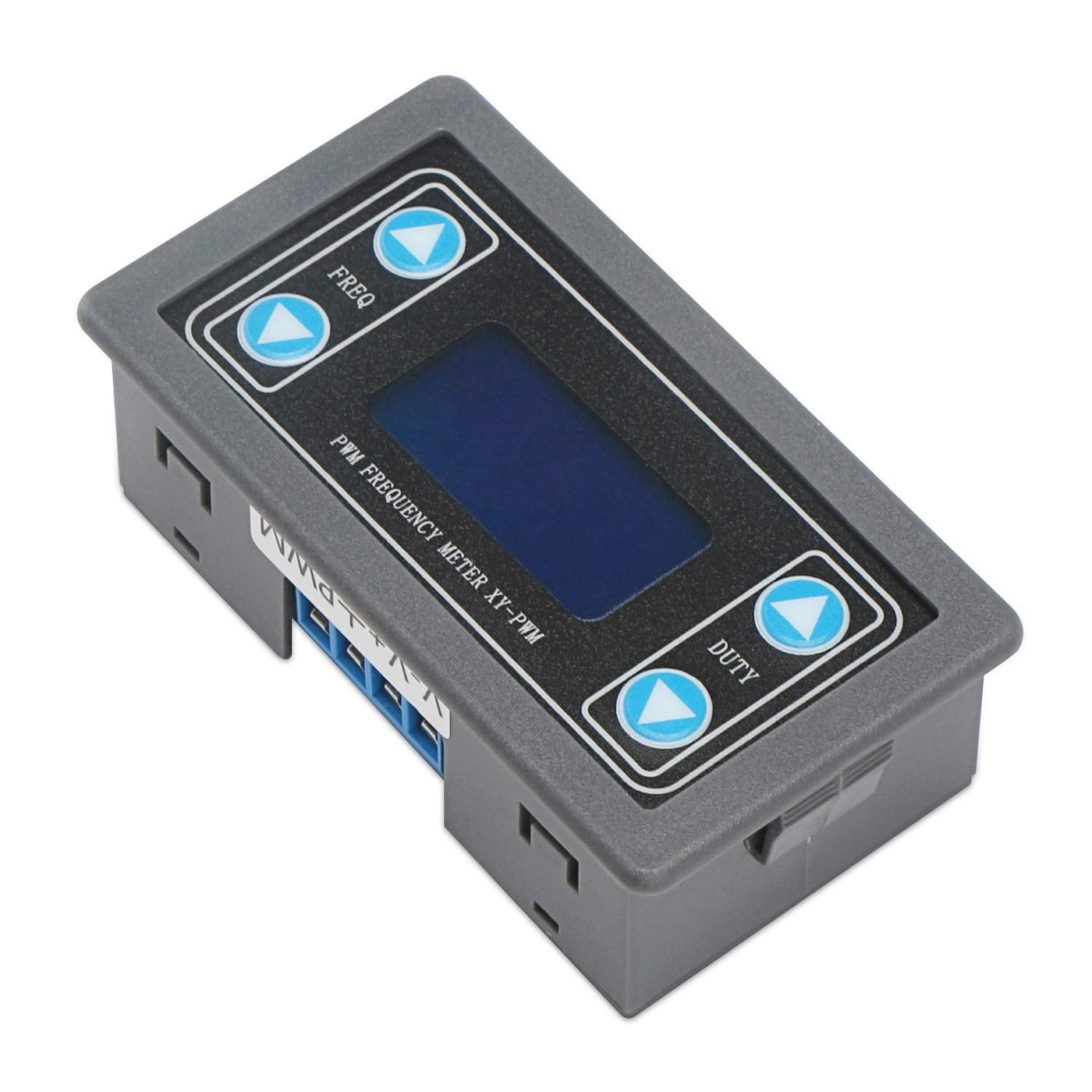

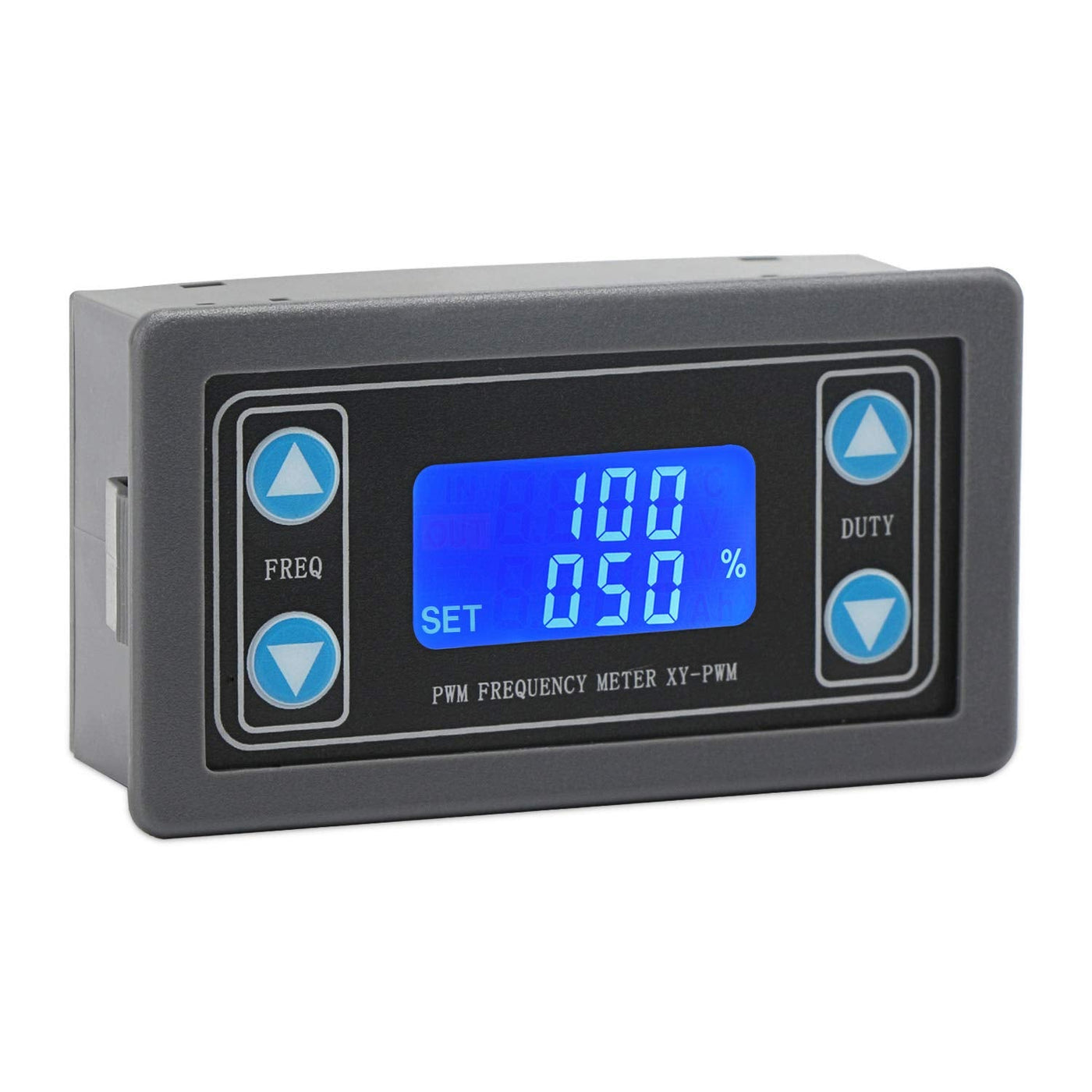

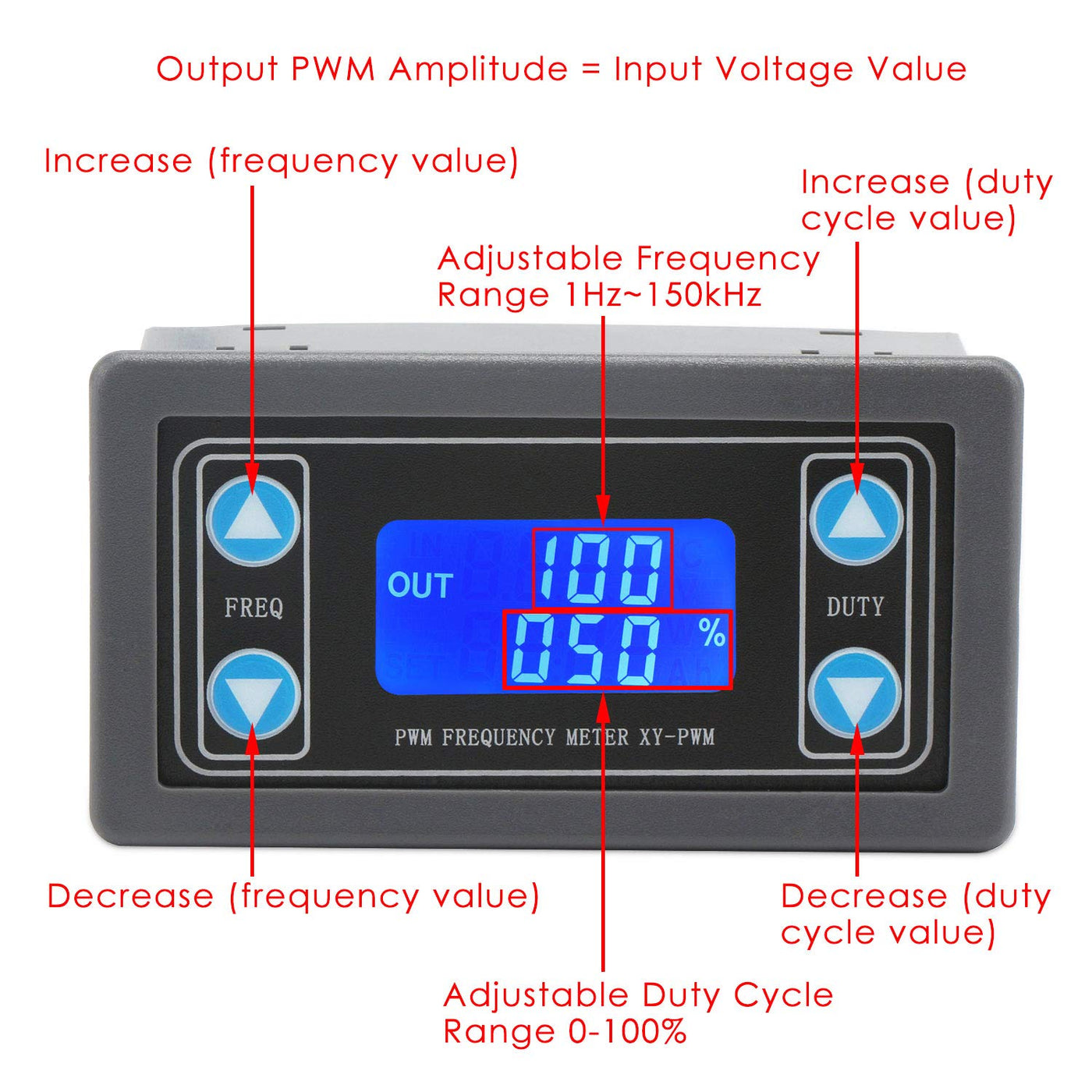

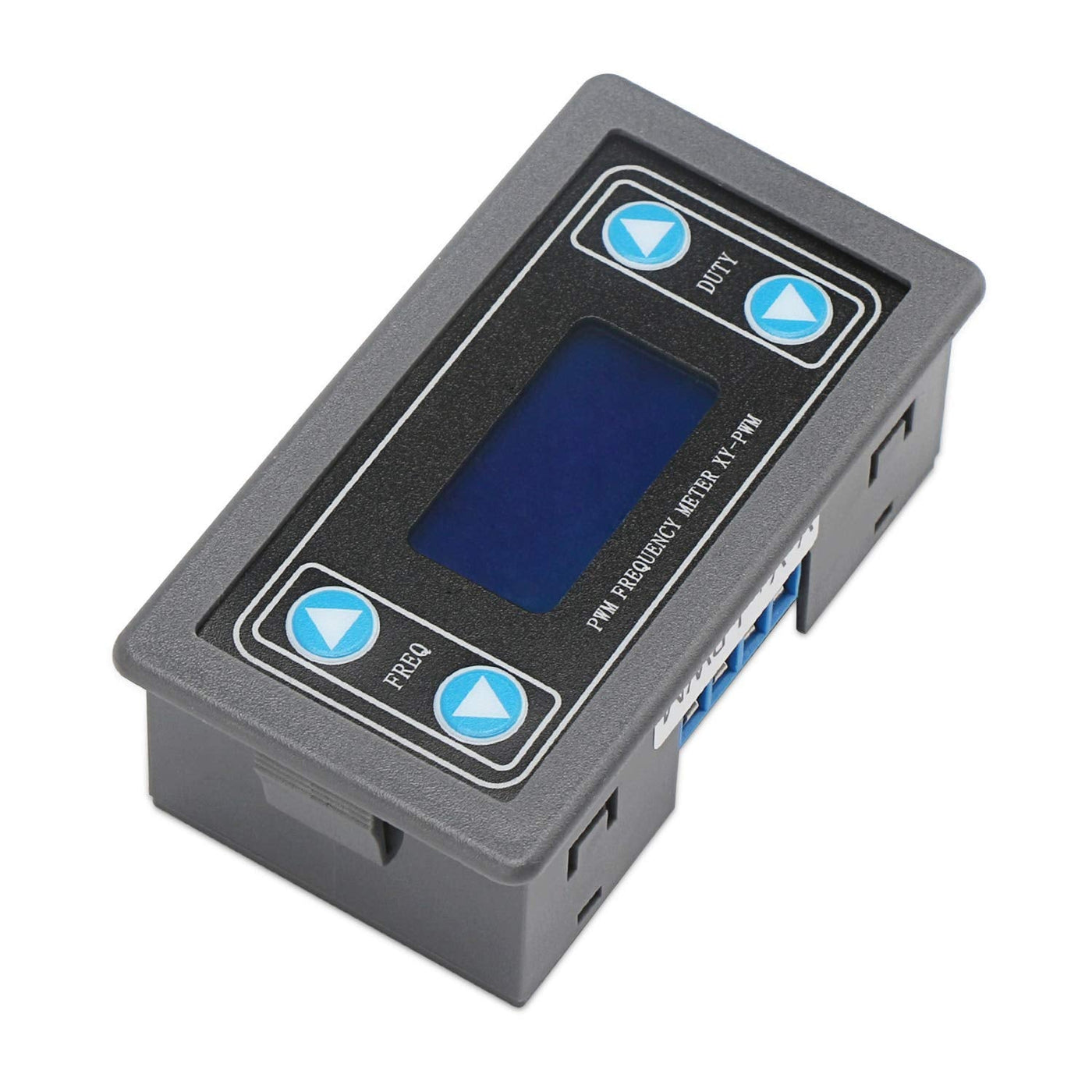

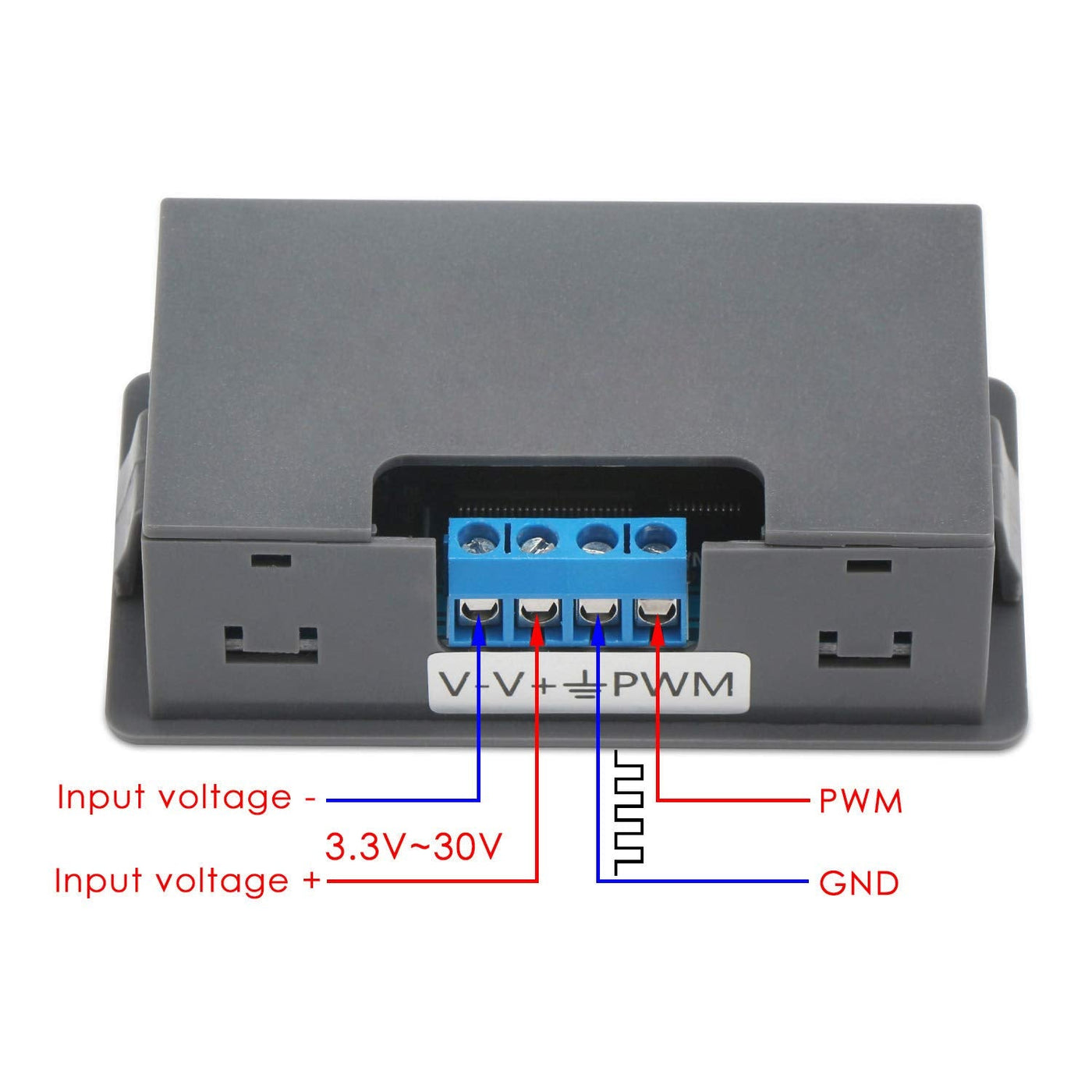

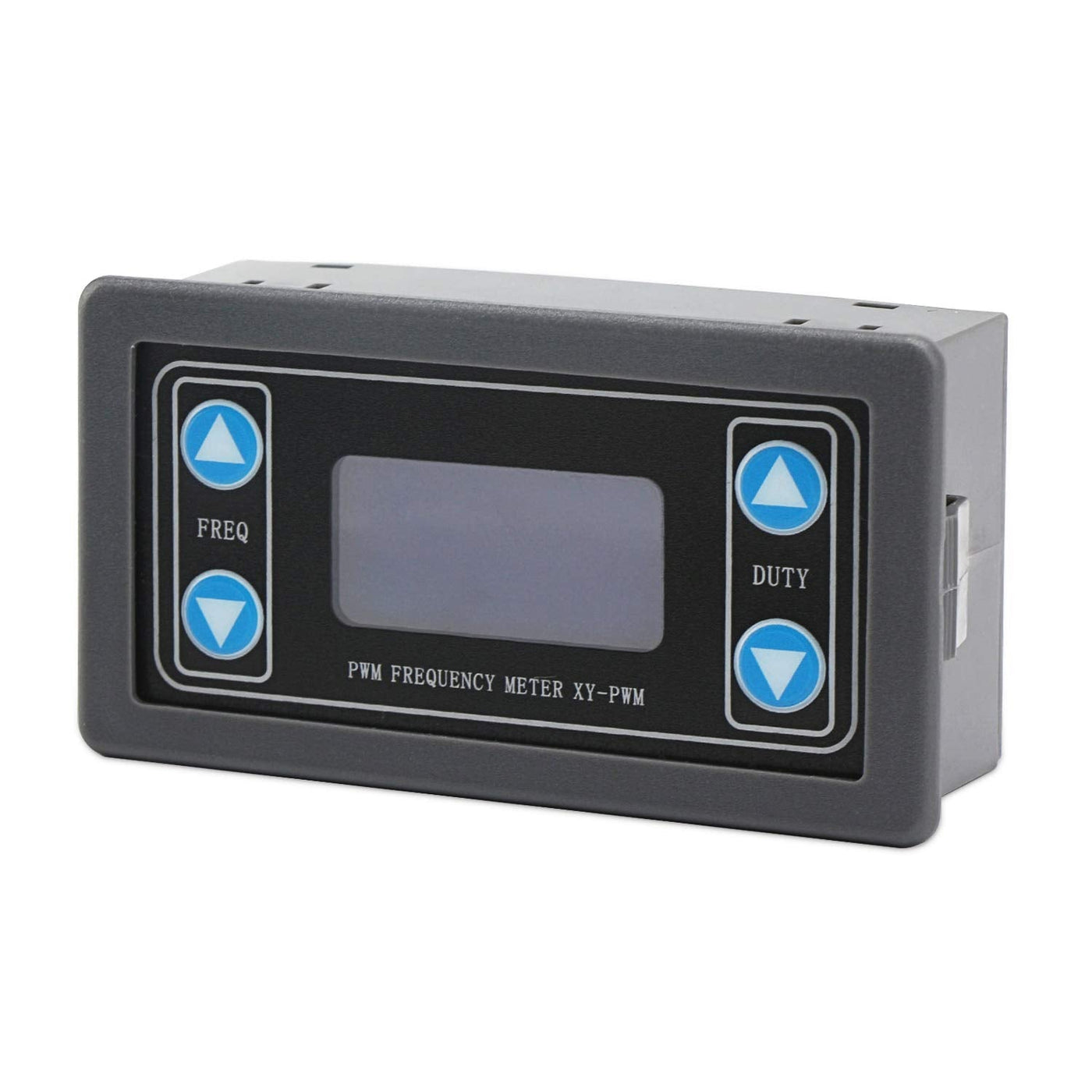

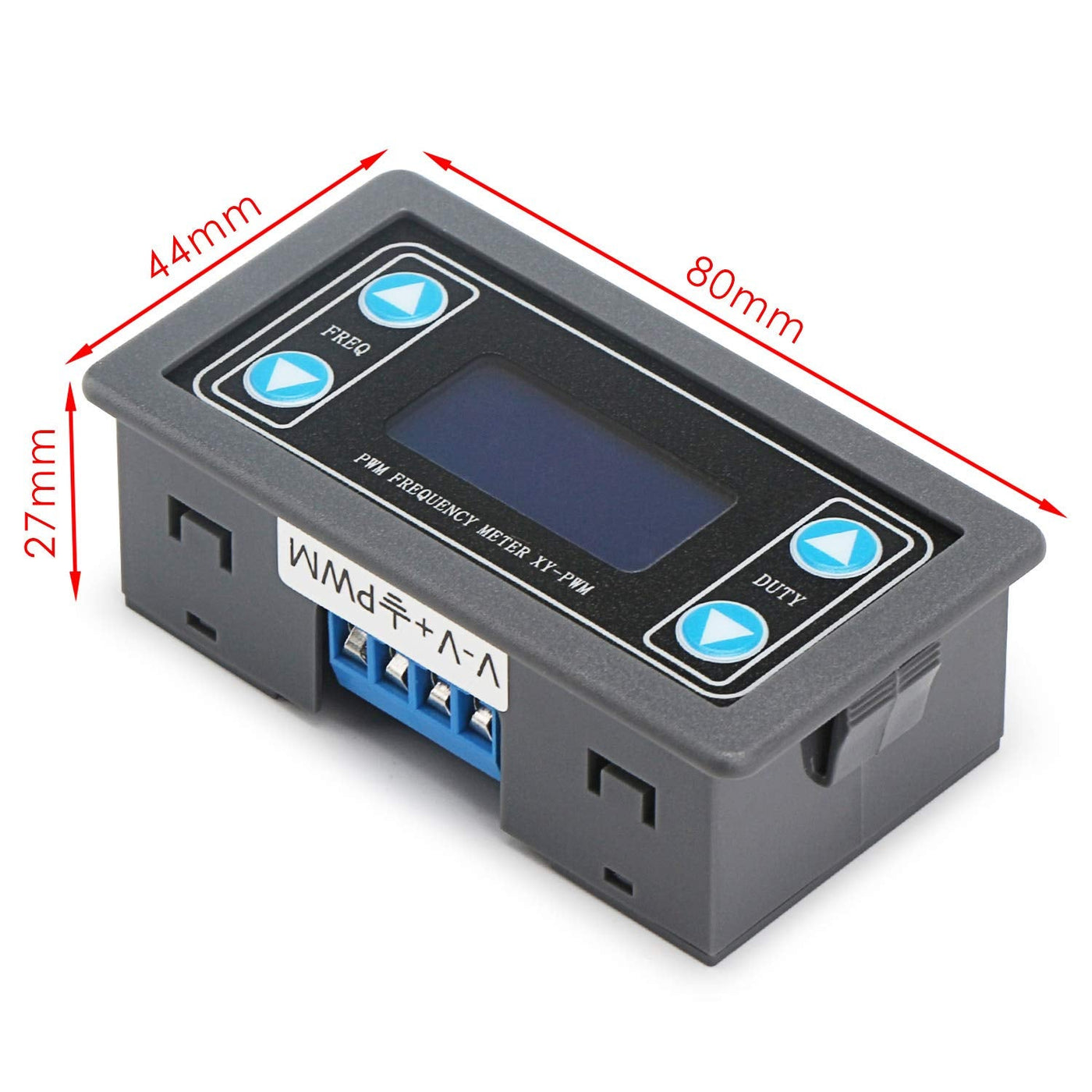

{"id":7359392317620,"title":"Signal Generator, DROK DC 3.3-30V Function Generator 5-30mA LCD Display PWM Pulse Frequency Duty Cycle Rectangular Wave Square Wave Signal Generator","handle":"signal-generator-drok-dc-3-3-30v-function-generator-5-30ma-lcd-display-pwm-pulse-frequency-duty-cycle-rectangular-wave-square-wave-signal-generator","description":"\u003ch3\u003eSignal Generator, DROK DC 3.3-30V Function Generator 5-30mA LCD Display PWM Pulse Frequency Duty Cycle Rectangular Wave Square Wave Signal Generator\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eParameter: 1. Working voltage: DC 3.3v~30v 2. Frequency range: 1Hz~150kHz\n(divided into 4 ranges); 3. Frequency precision: 2% of each range; 4. Signal\nload capacity: output current is about 5-30mA; 5. Output Amplitude: PWM\namplitude equal to the input voltage value 6. Environment Temperature Range:\n-20~+70? 7. Duty cycle range: 0-100%. Application: 1. As square wave signal\ngenerator for experimental development; 2. As square wave signal generator for\nmotor driver; 3. As adjustable pulse generator for MCU; 4. As pulse generator,\ncontrol related circuits (PWM dimming, speed regulating). Setting Parameters:\nThere are 4 independent buttons on the module for setting the frequency value\nand the duty cycle value. Supports short press (increase or decrease one unit\nby one unit) and long press (fast increase or decrease). All setting\nparameters will be saved when powered off to achieve data guaranteed.\nFrequency Display Instruction: The frequency is divided into 4 ranges and\nswitched automatically. 1. XXX (without decimal point): minimum unit is 1Hz,\nvalue range is 1Hz~999Hz. 2. X.XX (the decimal point is in the hundred digit):\nminimum unit is 0.01kHz, value range is 1.00kHz~9.99kHz. 3. XX.X (the decimal\npoint is in the ten digit): minimum unit is 0.1kHz; value range is\n10.0kHz~99.9kHz. 4. X.X.X (full decimal point): the minimum unit is 1kHz; the\nvalue range is 1kHz~150kHz e.g. Frequency displays 100 represents 100Hz;\ndisplays 1.01 represents 1.01kHz; displays 54.1 represents 54.1kHz; displays\n1.2.4 represents 124kHz Package Included: 1x Signal Generator\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003ePARAMETER ---- operating voltage range DC 3.3v~30v; frequency range 1Hz-150kHz; output current 5-30mA; duty cycle range 0-100%.\u003c\/li\u003e\n \u003cli\u003eAPPLICATION ---- as square wave signal generator for experimental development; as square wave signal generator for motor driver; as adjustable pulse generator for MCU; as pulse generator, control related circuits (PWM dimming, speed regulating).\u003c\/li\u003e\n \u003cli\u003eSERIAL COMMUNICATION ---- support serial communication, TTL level.\u003c\/li\u003e\n \u003cli\u003eDATA AUTO STORAGE ---- all parameters will be saved automatically after setting and therefore won't lose when power off.\u003c\/li\u003e\n \u003cli\u003eOTHER FEATURES ---- with LCD display to display frequency and duty cycle value; with case; PWM output, can set frequency and duty cycle separately by buttons; frequency value is divided into 4 range and switched automatically, with high precision.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2023-03-04T03:46:54+11:00","created_at":"2023-03-04T03:47:04+11:00","vendor":"DROK","type":"","tags":["industrial_Dec2022"],"price":13000,"price_min":13000,"price_max":13000,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":42198124363956,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B07KVYQ78K","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Signal Generator, DROK DC 3.3-30V Function Generator 5-30mA LCD Display PWM Pulse Frequency Duty Cycle Rectangular Wave Square Wave Signal Generator","public_title":null,"options":["Default Title"],"price":13000,"weight":45,"compare_at_price":null,"inventory_management":null,"barcode":"200382AFA","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/products\/B07KVYQ78K.jpg?v=1677914232","\/\/auspowers.com\/cdn\/shop\/products\/71EhDITiMxL.jpg?v=1677862025","\/\/auspowers.com\/cdn\/shop\/products\/61Fsa9RlhGL.jpg?v=1677862025","\/\/auspowers.com\/cdn\/shop\/products\/71ezbEDP5iL.jpg?v=1677862025","\/\/auspowers.com\/cdn\/shop\/products\/71Ze41zsK7L.jpg?v=1677862025","\/\/auspowers.com\/cdn\/shop\/products\/71R_0T2RsNL.jpg?v=1677862025","\/\/auspowers.com\/cdn\/shop\/products\/61JQBC58uDL.jpg?v=1677862025"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/products\/B07KVYQ78K.jpg?v=1677914232","options":["Title"],"media":[{"alt":"[Australia - AusPower] - Signal Generator, DROK DC 3.3-30V Function Generator 5-30mA LCD Display PWM Pulse Frequency Duty Cycle Rectangular Wave Square Wave Signal Generator ","id":28326322831540,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/auspowers.com\/cdn\/shop\/products\/B07KVYQ78K.jpg?v=1677914232"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/B07KVYQ78K.jpg?v=1677914232","width":1500},{"alt":"[Australia - AusPower] - Signal Generator, DROK DC 3.3-30V Function Generator 5-30mA LCD Display PWM Pulse Frequency Duty Cycle Rectangular Wave Square Wave Signal Generator ","id":28323078930612,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/auspowers.com\/cdn\/shop\/products\/71EhDITiMxL.jpg?v=1677862025"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/71EhDITiMxL.jpg?v=1677862025","width":1500},{"alt":"[Australia - AusPower] - Signal Generator, DROK DC 3.3-30V Function Generator 5-30mA LCD Display PWM Pulse Frequency Duty Cycle Rectangular Wave Square Wave Signal Generator ","id":28323078963380,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/auspowers.com\/cdn\/shop\/products\/61Fsa9RlhGL.jpg?v=1677862025"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/61Fsa9RlhGL.jpg?v=1677862025","width":1500},{"alt":"[Australia - AusPower] - Signal Generator, DROK DC 3.3-30V Function Generator 5-30mA LCD Display PWM Pulse Frequency Duty Cycle Rectangular Wave Square Wave Signal Generator ","id":28323078996148,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/auspowers.com\/cdn\/shop\/products\/71ezbEDP5iL.jpg?v=1677862025"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/71ezbEDP5iL.jpg?v=1677862025","width":1500},{"alt":"[Australia - AusPower] - Signal Generator, DROK DC 3.3-30V Function Generator 5-30mA LCD Display PWM Pulse Frequency Duty Cycle Rectangular Wave Square Wave Signal Generator ","id":28323079028916,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/auspowers.com\/cdn\/shop\/products\/71Ze41zsK7L.jpg?v=1677862025"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/71Ze41zsK7L.jpg?v=1677862025","width":1500},{"alt":"[Australia - AusPower] - Signal Generator, DROK DC 3.3-30V Function Generator 5-30mA LCD Display PWM Pulse Frequency Duty Cycle Rectangular Wave Square Wave Signal Generator ","id":28323079061684,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/auspowers.com\/cdn\/shop\/products\/71R_0T2RsNL.jpg?v=1677862025"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/71R_0T2RsNL.jpg?v=1677862025","width":1500},{"alt":"[Australia - AusPower] - Signal Generator, DROK DC 3.3-30V Function Generator 5-30mA LCD Display PWM Pulse Frequency Duty Cycle Rectangular Wave Square Wave Signal Generator ","id":28323079094452,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/auspowers.com\/cdn\/shop\/products\/61JQBC58uDL.jpg?v=1677862025"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/61JQBC58uDL.jpg?v=1677862025","width":1500}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eSignal Generator, DROK DC 3.3-30V Function Generator 5-30mA LCD Display PWM Pulse Frequency Duty Cycle Rectangular Wave Square Wave Signal Generator\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eParameter: 1. Working voltage: DC 3.3v~30v 2. Frequency range: 1Hz~150kHz\n(divided into 4 ranges); 3. Frequency precision: 2% of each range; 4. Signal\nload capacity: output current is about 5-30mA; 5. Output Amplitude: PWM\namplitude equal to the input voltage value 6. Environment Temperature Range:\n-20~+70? 7. Duty cycle range: 0-100%. Application: 1. As square wave signal\ngenerator for experimental development; 2. As square wave signal generator for\nmotor driver; 3. As adjustable pulse generator for MCU; 4. As pulse generator,\ncontrol related circuits (PWM dimming, speed regulating). Setting Parameters:\nThere are 4 independent buttons on the module for setting the frequency value\nand the duty cycle value. Supports short press (increase or decrease one unit\nby one unit) and long press (fast increase or decrease). All setting\nparameters will be saved when powered off to achieve data guaranteed.\nFrequency Display Instruction: The frequency is divided into 4 ranges and\nswitched automatically. 1. XXX (without decimal point): minimum unit is 1Hz,\nvalue range is 1Hz~999Hz. 2. X.XX (the decimal point is in the hundred digit):\nminimum unit is 0.01kHz, value range is 1.00kHz~9.99kHz. 3. XX.X (the decimal\npoint is in the ten digit): minimum unit is 0.1kHz; value range is\n10.0kHz~99.9kHz. 4. X.X.X (full decimal point): the minimum unit is 1kHz; the\nvalue range is 1kHz~150kHz e.g. Frequency displays 100 represents 100Hz;\ndisplays 1.01 represents 1.01kHz; displays 54.1 represents 54.1kHz; displays\n1.2.4 represents 124kHz Package Included: 1x Signal Generator\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003ePARAMETER ---- operating voltage range DC 3.3v~30v; frequency range 1Hz-150kHz; output current 5-30mA; duty cycle range 0-100%.\u003c\/li\u003e\n \u003cli\u003eAPPLICATION ---- as square wave signal generator for experimental development; as square wave signal generator for motor driver; as adjustable pulse generator for MCU; as pulse generator, control related circuits (PWM dimming, speed regulating).\u003c\/li\u003e\n \u003cli\u003eSERIAL COMMUNICATION ---- support serial communication, TTL level.\u003c\/li\u003e\n \u003cli\u003eDATA AUTO STORAGE ---- all parameters will be saved automatically after setting and therefore won't lose when power off.\u003c\/li\u003e\n \u003cli\u003eOTHER FEATURES ---- with LCD display to display frequency and duty cycle value; with case; PWM output, can set frequency and duty cycle separately by buttons; frequency value is divided into 4 range and switched automatically, with high precision.\u003c\/li\u003e\n \u003c\/ul\u003e"}
