Seco-Larm Enforcer Slimline Push-to-Exit Plate, Illuminated (SD-7103GC-PEQ) Pack of 1
Seco-Larm Enforcer Slimline Push-to-Exit Plate, Illuminated (SD-7103GC-PEQ)

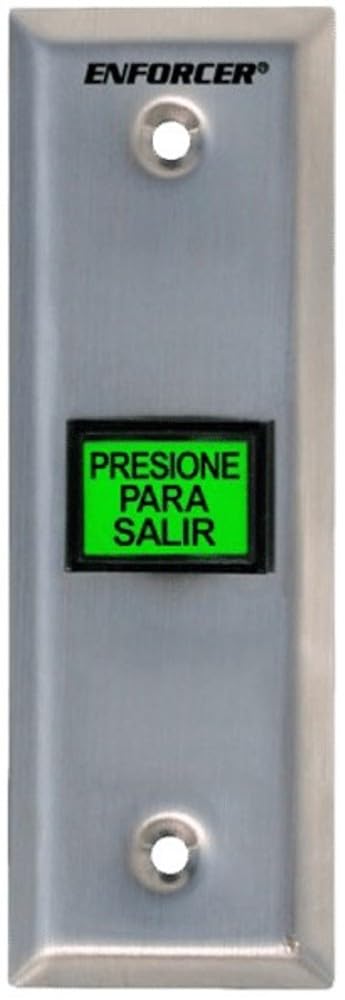

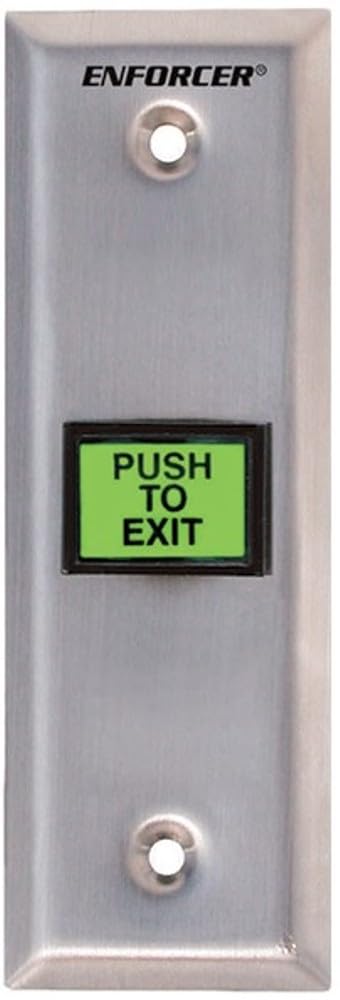

The Seco-Larm Enforcer Slimline Push-to-Exit Plate is illuminated with a "PUSH TO EXIT" caption that can be easily changed to "PRESIONE PARA SALIR" in the field. The slimline plate features a narrow design for easy installation on tight wall panels.Both English and Spanish messages includedLong-life green LED momentary buttonRubber-sealed switch to prevent liquid penetrationPlastic terminal protector for dividing individual terminalsContents"PUSH TO EXIT" and "PRESIONE PARA SALIR" message plates(6) Wire leads with easy-to-attach spade lugs for fast installationStainless-steel slimline plate680 ohm resistorTechnical DetailsManufacturer Part : SD-7103GC-PEQUPC: Wire Leads: 12-inch, AWG 18, color-codedMechanical Lifetime: 2,000,000 operationsUnit Dimensions: 4-1/2 x 2-3/4 x 1-3/4 inches (114 x 70 x 45mm)Button: N.O./N.C. contacts rated, DPST, 5 Amps at 125~250 VACButton Dimensions: 15/16 x 11/16 inchesLED: 12/24 VAC/VDC, approx. 35,000-hour lifeResistor: 680 ohms, 0.5WPlug-In Terminals: 6Warranty: 1 YearCE and UL approved
Product Features
- Both English and Spanish messages: "PUSH TO EXIT," "PRESIONE PARA SALIR"
- Long-life green LED momentary button
- Rubber-sealed switch to prevent liquid penetration
- Plastic terminal protector for dividing individual terminals
- Installation hardware included
