Screw Pitch Gauge, 0.5–7.0mm Pitch, 18 Leaves Metric - 18 Leaves
Screw Pitch Gauge, 0.5–7.0mm Pitch, 18 Leaves
PEC Screw Pitch Gauge is an essential precision instrument for machinists, mechanics, and engineers who require rapid, accurate identification of screw threads. Proudly made in the USA, this professional-grade tool features 28 high-quality tempered steel blades, each clearly stamped with its thread size for error-free use in busy shop environments. Premium Hardened & Tempered Steel: Each of the blades is crafted from high-quality tool steel, quenched and tempered to provide maximum toughness and wear resistance for long-term dimensional stability in busy workshops. Secure Dual Locking Mechanism: Designed with a sturdy protective steel case and a locking device at each end, allowing you to secure the entire set for storage or lock a single blade firmly in place during measurement. Highly Visible Stamped Markings: Every individual leaf is clearly stamped with its corresponding thread size, ensuring quick, error-free identification even in low-light environments. Designed with versatility in mind, the narrow profile of the leaves allows for the precise measurement of both internal and external threads, even reaching into small-diameter tapped holes where wider gauges fail. Whether you are identifying standard American National or Unified 60° threads, the comprehensive range of 0.5-7mm, ensures you have the right gauge for virtually any English/Metric thread application. The blades are housed in a rugged steel case with integrated locking wheels at each end, allowing you to secure all blades for storage or lock a single leaf into position for steady, repeatable measurements. Key Specifications Measurement Range: 0.5-7mm; Total Blades: 28 precision-ground leaves organized into 2 groups. Thread Angle: 60° (American National / US Standard). Construction: High-quality tempered steel with a sturdy protective
Product Features

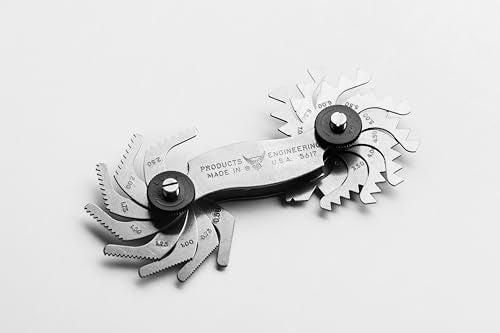

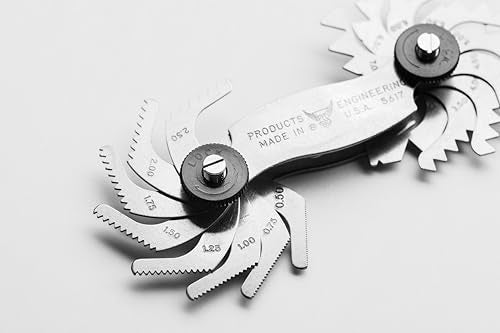

- Clear Markings: Every individual blade is stamped with the corresponding thread size for quick, error-free identification.
- Versatile Design: The narrow blade design permits use for checking both internal and external screw threads.
- Durability: Blades are made from high-quality steel, hardened and tempered to ensure long-term dimensional stability and resistance to wear in demanding shop environments.

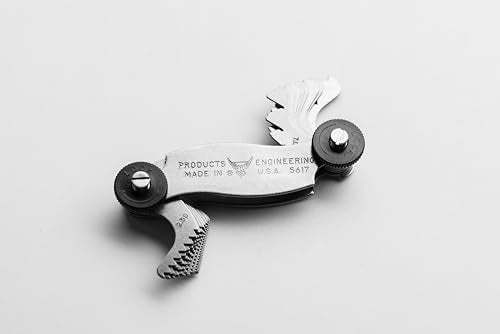

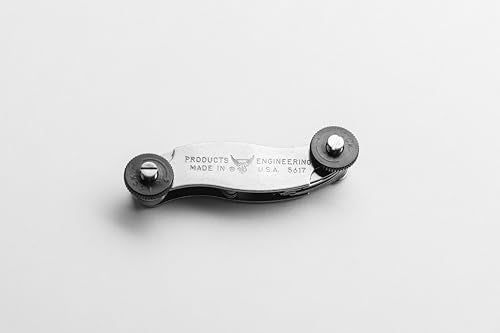

- Locking Mechanism: Each end of the case features a locking device to secure the entire set for storage or to hold a single blade firmly in position during use.
- Made in USA: Manufactured by PEC Tools in the USA, ensuring the highest standards of precision and quality for professional machinists and mechanics.
