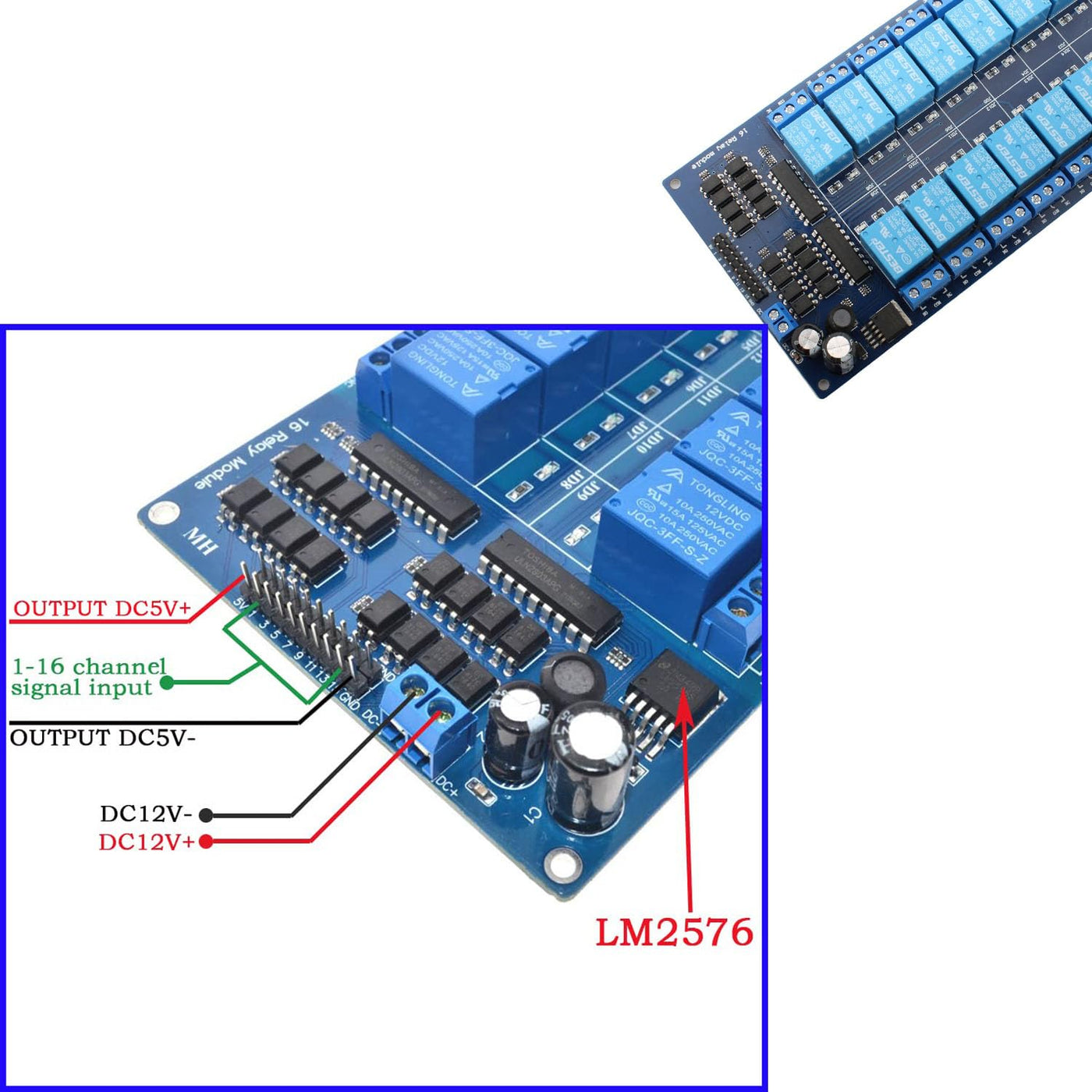

{"id":8115437076660,"title":"RUNCCI-YUN 1 x 16 Channel Relay Module 12 V, 16 Channel Relay Module with Optocoupler High or Low Level Trigger Extension Board Relay Switch for Raspberry Pi Arduino Board 12 V 16 channel, 1 piece, blue","handle":"runcci-yun-1-x-16-channel-relay-module-12-v-16-channel-relay-module-with-optocoupler-high-or-low-level-trigger-extension-board-relay-switch-for-raspberry-pi-arduino-board-12-v-16-channel-1-piece-blue","description":"\u003ch3\u003eRUNCCI-YUN 1 x 16 Channel Relay Module 12 V, 16 Channel Relay Module with Optocoupler High or Low Level Trigger Extension Board Relay Switch for Raspberry Pi Arduino Board\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eTechnical data: Channels: 16 channels. Operating voltage: DC 12 V. Normal open\ncompatible load: 10A 250V AC \/ 15A 125V AC \/ 10A 30V DC Quiescent current: 5\nmA. Maximum current: 80mA Trigger current: 2-5mA Trigger Voltage (LOW): 0-1.5V\nTrigger Voltage (HIGH): 2.5-5V Insulation resistance: 100 MΩ (500 V DC)\nResponse time (under rated voltage): less than 10ms Relapse time (under rated\nvoltage): less than 5 ms. User-friendly design. All interfaces can be\nconnected directly via connection cables. Input interface: DC+: connection to\npositive pole. DC-: connection to negative pole. IN: trigger pin of the relay\nmodule. Relay output: Opener (NO): Relay closer pin The NO pin is at switched\noff relay not connected to the COM pin. The NO pin is connected to the COM pin\nwhen the relay is on. Common Pin: Common pin of relay Opener (NC): relay\ncloser pin. The NC pin is connected to the COM pin when the relay is switched\noff. The NC pin is not connected to the COM pin when the relay is on. Package\nincludes: 1 x 16 channel 12 V relay module with optocoupler module.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eThis is a 16 channel 12V 10A insulated relay module. Each relay can be switched on and off individually via an opto-insulated digital input. The standard interface allows direct connection to microcontrollers and control by a variety of microcontrollers such as Arduino, AVR, PIC, ARM, DSP etc. - very convenient.\u003c\/li\u003e\n \u003cli\u003eEquipped with a high current relay, maximum load: AC 250V, 10A, 15A, 125V AC, DC 30V, 10A; Optocoupler tripping current: 5mA.\u003c\/li\u003e\n \u003cli\u003eReliable: fault-tolerant design, even if the control line is interrupted, the relay remains voltage stable. Thanks to optical coupling, the triggering is more reliable and stable.\u003c\/li\u003e\n \u003cli\u003eEASY TO INSTALL: Equipped with bolted terminal plate and fixed bolt holes on both sides (diameter:3.1mm) for easy installation.\u003c\/li\u003e\n \u003cli\u003eWith LED indicators for relay output status. The operating status indicator lights contribute to safe use.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2026-09-02T10:26:35+10:00","created_at":"2026-09-02T03:28:25+10:00","vendor":"RUNCCI-YUN","type":"Electromechanical Relays","tags":["industrial_DE_Aug2026"],"price":15600,"price_min":15600,"price_max":15600,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44375214162100,"title":"12 V 16 channel, 1 piece, blue","option1":"12 V 16 channel, 1 piece, blue","option2":null,"option3":null,"sku":"de-B0FVLRG8FS","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"RUNCCI-YUN 1 x 16 Channel Relay Module 12 V, 16 Channel Relay Module with Optocoupler High or Low Level Trigger Extension Board Relay Switch for Raspberry Pi Arduino Board 12 V 16 channel, 1 piece, blue - 12 V 16 channel, 1 piece, blue","public_title":"12 V 16 channel, 1 piece, blue","options":["12 V 16 channel, 1 piece, blue"],"price":15600,"weight":220,"compare_at_price":null,"inventory_management":"shopify","barcode":"R1537","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/de-B0FVLRG8FS.jpg?v=1788283708","\/\/auspowers.com\/cdn\/shop\/files\/71dhKni21CL.jpg?v=1788283708","\/\/auspowers.com\/cdn\/shop\/files\/71G1gYuPbWL.jpg?v=1788283708","\/\/auspowers.com\/cdn\/shop\/files\/71rti_PGpYL.jpg?v=1788283708","\/\/auspowers.com\/cdn\/shop\/files\/61PHceHyqWL.jpg?v=1788283708","\/\/auspowers.com\/cdn\/shop\/files\/51BX7qnZubL.jpg?v=1788283708","\/\/auspowers.com\/cdn\/shop\/files\/614Y2Q5lOYL.jpg?v=1788283708"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/de-B0FVLRG8FS.jpg?v=1788283708","options":["Style Name"],"media":[{"alt":null,"id":33274235388084,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/de-B0FVLRG8FS.jpg?v=1788283708"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/de-B0FVLRG8FS.jpg?v=1788283708","width":1500},{"alt":null,"id":33274235420852,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71dhKni21CL.jpg?v=1788283708"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71dhKni21CL.jpg?v=1788283708","width":1500},{"alt":null,"id":33274235453620,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71G1gYuPbWL.jpg?v=1788283708"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71G1gYuPbWL.jpg?v=1788283708","width":1500},{"alt":null,"id":33274235486388,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71rti_PGpYL.jpg?v=1788283708"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71rti_PGpYL.jpg?v=1788283708","width":1500},{"alt":null,"id":33274235519156,"position":5,"preview_image":{"aspect_ratio":0.812,"height":1498,"width":1216,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61PHceHyqWL.jpg?v=1788283708"},"aspect_ratio":0.812,"height":1498,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61PHceHyqWL.jpg?v=1788283708","width":1216},{"alt":null,"id":33274235551924,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51BX7qnZubL.jpg?v=1788283708"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51BX7qnZubL.jpg?v=1788283708","width":1001},{"alt":null,"id":33274235584692,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/614Y2Q5lOYL.jpg?v=1788283708"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/614Y2Q5lOYL.jpg?v=1788283708","width":1001}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eRUNCCI-YUN 1 x 16 Channel Relay Module 12 V, 16 Channel Relay Module with Optocoupler High or Low Level Trigger Extension Board Relay Switch for Raspberry Pi Arduino Board\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eTechnical data: Channels: 16 channels. Operating voltage: DC 12 V. Normal open\ncompatible load: 10A 250V AC \/ 15A 125V AC \/ 10A 30V DC Quiescent current: 5\nmA. Maximum current: 80mA Trigger current: 2-5mA Trigger Voltage (LOW): 0-1.5V\nTrigger Voltage (HIGH): 2.5-5V Insulation resistance: 100 MΩ (500 V DC)\nResponse time (under rated voltage): less than 10ms Relapse time (under rated\nvoltage): less than 5 ms. User-friendly design. All interfaces can be\nconnected directly via connection cables. Input interface: DC+: connection to\npositive pole. DC-: connection to negative pole. IN: trigger pin of the relay\nmodule. Relay output: Opener (NO): Relay closer pin The NO pin is at switched\noff relay not connected to the COM pin. The NO pin is connected to the COM pin\nwhen the relay is on. Common Pin: Common pin of relay Opener (NC): relay\ncloser pin. The NC pin is connected to the COM pin when the relay is switched\noff. The NC pin is not connected to the COM pin when the relay is on. Package\nincludes: 1 x 16 channel 12 V relay module with optocoupler module.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eThis is a 16 channel 12V 10A insulated relay module. Each relay can be switched on and off individually via an opto-insulated digital input. The standard interface allows direct connection to microcontrollers and control by a variety of microcontrollers such as Arduino, AVR, PIC, ARM, DSP etc. - very convenient.\u003c\/li\u003e\n \u003cli\u003eEquipped with a high current relay, maximum load: AC 250V, 10A, 15A, 125V AC, DC 30V, 10A; Optocoupler tripping current: 5mA.\u003c\/li\u003e\n \u003cli\u003eReliable: fault-tolerant design, even if the control line is interrupted, the relay remains voltage stable. Thanks to optical coupling, the triggering is more reliable and stable.\u003c\/li\u003e\n \u003cli\u003eEASY TO INSTALL: Equipped with bolted terminal plate and fixed bolt holes on both sides (diameter:3.1mm) for easy installation.\u003c\/li\u003e\n \u003cli\u003eWith LED indicators for relay output status. The operating status indicator lights contribute to safe use.\u003c\/li\u003e\n \u003c\/ul\u003e"}
