Ruko Terrax Hand Held Tap Set DIN 352 Ground M8
Ruko Terrax Hand Held Tap Set DIN 352 Ground M8
High performance high-speed steel taps. For metric through thread or blind hole thread according to DIN ISO 13. This robust tool is suitable for all common industrial materials, such as: Unalloyed and low-alloyed steels up to 800 N/mm² strength, malleable cast iron and non-ferrous metals. Drill threaded core hole with a diameter of 5.0 mm. The set consists of: Taper tap: approx. 5 - 6 speed cut. Middle cutter: approx. 4 - 5 speed cut. Taper: approx. 2 - 3 speed cut. Thread: M 8 metric DIN ISO 13. Thread pitch: 1.00 mm. Flanks: background. Tolerance: ISO 2/6H. Surface: blank. Right-hand cutting.
Product Features
- Made entirely of high-alloy tool steel HSS.
- For metric thread M 8 x 1.25 mm according to DIN ISO 13

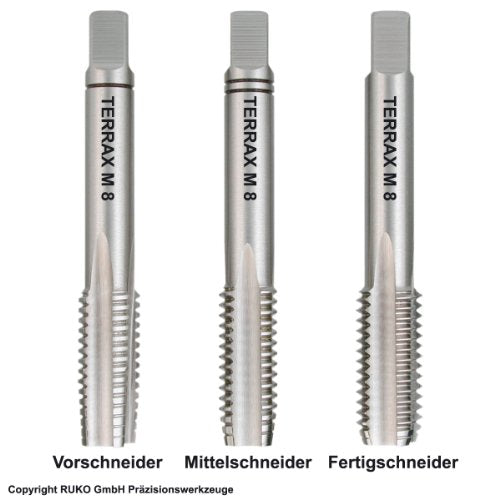

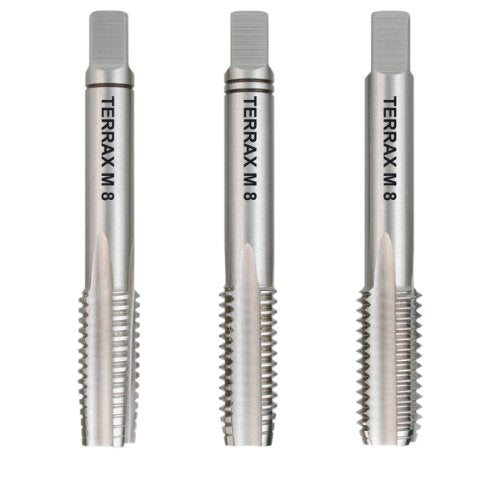

- Set consists of taper, middle cutter, finishing tap
- The thread is cut in three steps.
- Drill threaded core hole with a diameter of 6.8 mm.
