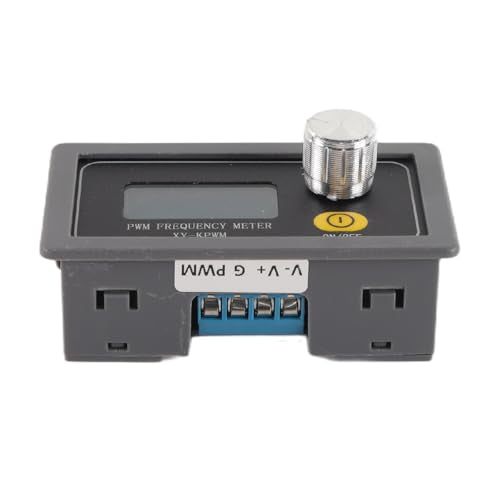

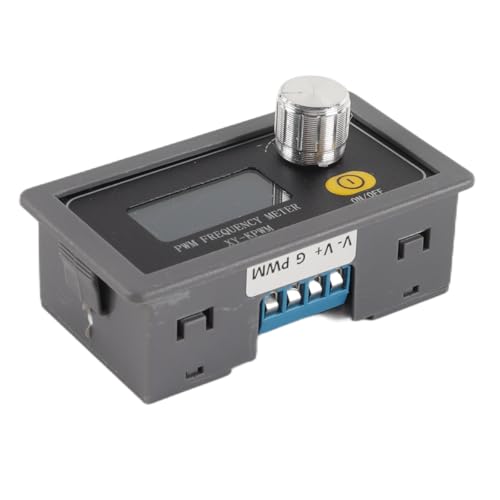

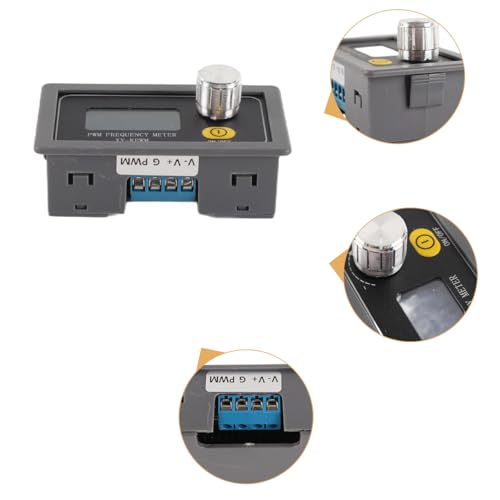

{"id":8115330941108,"title":"Riven PWM Pulse Rate Duty Ratio Adjustable Module with Switch, Rectangular Wave Signal Generator (XY-KPWM)","handle":"riven-pwm-pulse-rate-duty-ratio-adjustable-module-with-switch-rectangular-wave-signal-generator-xy-kpwm","description":"\u003ch3\u003eRiven PWM Pulse Rate Duty Ratio Adjustable Module with Switch, Rectangular Wave Signal Generator (XY-KPWM)\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eFeatures This product adjusts the frequency and duty cycle by turning the\npotentiometer, which can be quickly adjusted according to the speed. The duty\ncycle is set by default. Short press to adjust frequency, long press for 2\nseconds to lock, long press for 5 seconds to switch mode (normal mode \/ fine\nmode). Equipped with an ON\/OFF button, short press to turn on or off the PWM\noutput, long press to set the power on state (\"- OFF\": PWM is turned off by\ndefault when turned on; ON: PWM is switched on by default when the device is\nturned on. Specifications Operating voltage: 3.3 ~ 30 V. Ambient temperature:\n-20 ~ + 70 °C. Frequency range: normal mode 1Hz ~ 150KHz, fine mode 1HZ ~\n15KHZ Frequency accuracy: the accuracy in each range is about 2%. Signal load\ncapacity: the output current can be about 5~30mA Output amplitude: PWM\namplitude corresponds to the supply voltage Package includes: 1 x PWM pulse\nrate duty cycle adjustable module\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eThis product adjusts the frequency and duty cycle by turning the potentiometer, which can be quickly adjusted according to the speed. The duty cycle is set by default. Short press to adjust frequency, long press for 2 seconds to lock, long press for 5 seconds to switch mode (normal mode \/ fine mode).\u003c\/li\u003e\n \u003cli\u003eEquipped with an ON\/OFF button, short press to turn on or off the PWM output, long press to set the power on state (\"- OFF\": PWM is turned off by default when turned on; ON: PWM is switched on by default when the device is turned on\u003c\/li\u003e\n \u003cli\u003ePress and hold the coded potentiometer for 5 seconds to lock it, and the lock symbol will be displayed on the interface. After locking, the frequency and duty cycle cannot be adjusted to prevent accidental actuation. Press and hold for 5 seconds to unlock\u003c\/li\u003e\n \u003cli\u003eEncoder potentiometer, standard duty cycle setting, short press to adjust frequency, long press for 2 seconds to adjust duty cycle upper limit, long press for 5 seconds to lock, long press for 10 seconds to switch mode (normal mode\/fine mode)\u003c\/li\u003e\n \u003cli\u003eUsed as a rectangular signal generator to generate rectangular signals for experimental development and generates rectangular signals to control motor drivers. The product has adjustable pulses for using MCUs and controls associated circuits (such as PWM dimming and speed control applications)\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2026-09-02T10:56:25+10:00","created_at":"2026-09-02T00:05:58+10:00","vendor":"Riven","type":"Frequency Counters \u0026 Pulse Generators","tags":["industrial_DE_Aug2026"],"price":11300,"price_min":11300,"price_max":11300,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44375056974004,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B0GN7Y2FD7","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Riven PWM Pulse Rate Duty Ratio Adjustable Module with Switch, Rectangular Wave Signal Generator (XY-KPWM)","public_title":null,"options":["Default Title"],"price":11300,"weight":10,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/de-B0GN7Y2FD7.jpg?v=1788271560","\/\/auspowers.com\/cdn\/shop\/files\/41qWoOo9dzL.jpg?v=1788271560","\/\/auspowers.com\/cdn\/shop\/files\/31Hc0LR_KwL.jpg?v=1788271561","\/\/auspowers.com\/cdn\/shop\/files\/41n9npiv2hL.jpg?v=1788271560","\/\/auspowers.com\/cdn\/shop\/files\/416VsLN4P8L.jpg?v=1788271560","\/\/auspowers.com\/cdn\/shop\/files\/515vuKDSsoL.jpg?v=1788271560","\/\/auspowers.com\/cdn\/shop\/files\/31MYXpA6i2L.jpg?v=1788271560"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/de-B0GN7Y2FD7.jpg?v=1788271560","options":["Title"],"media":[{"alt":null,"id":33273522323636,"position":1,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/de-B0GN7Y2FD7.jpg?v=1788271560"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/de-B0GN7Y2FD7.jpg?v=1788271560","width":500},{"alt":null,"id":33273522356404,"position":2,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/41qWoOo9dzL.jpg?v=1788271560"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/41qWoOo9dzL.jpg?v=1788271560","width":500},{"alt":null,"id":33273522389172,"position":3,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/31Hc0LR_KwL.jpg?v=1788271561"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/31Hc0LR_KwL.jpg?v=1788271561","width":500},{"alt":null,"id":33273522421940,"position":4,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/41n9npiv2hL.jpg?v=1788271560"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/41n9npiv2hL.jpg?v=1788271560","width":500},{"alt":null,"id":33273522454708,"position":5,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/416VsLN4P8L.jpg?v=1788271560"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/416VsLN4P8L.jpg?v=1788271560","width":500},{"alt":null,"id":33273522487476,"position":6,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/515vuKDSsoL.jpg?v=1788271560"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/515vuKDSsoL.jpg?v=1788271560","width":500},{"alt":null,"id":33273522520244,"position":7,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/31MYXpA6i2L.jpg?v=1788271560"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/31MYXpA6i2L.jpg?v=1788271560","width":500}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eRiven PWM Pulse Rate Duty Ratio Adjustable Module with Switch, Rectangular Wave Signal Generator (XY-KPWM)\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eFeatures This product adjusts the frequency and duty cycle by turning the\npotentiometer, which can be quickly adjusted according to the speed. The duty\ncycle is set by default. Short press to adjust frequency, long press for 2\nseconds to lock, long press for 5 seconds to switch mode (normal mode \/ fine\nmode). Equipped with an ON\/OFF button, short press to turn on or off the PWM\noutput, long press to set the power on state (\"- OFF\": PWM is turned off by\ndefault when turned on; ON: PWM is switched on by default when the device is\nturned on. Specifications Operating voltage: 3.3 ~ 30 V. Ambient temperature:\n-20 ~ + 70 °C. Frequency range: normal mode 1Hz ~ 150KHz, fine mode 1HZ ~\n15KHZ Frequency accuracy: the accuracy in each range is about 2%. Signal load\ncapacity: the output current can be about 5~30mA Output amplitude: PWM\namplitude corresponds to the supply voltage Package includes: 1 x PWM pulse\nrate duty cycle adjustable module\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eThis product adjusts the frequency and duty cycle by turning the potentiometer, which can be quickly adjusted according to the speed. The duty cycle is set by default. Short press to adjust frequency, long press for 2 seconds to lock, long press for 5 seconds to switch mode (normal mode \/ fine mode).\u003c\/li\u003e\n \u003cli\u003eEquipped with an ON\/OFF button, short press to turn on or off the PWM output, long press to set the power on state (\"- OFF\": PWM is turned off by default when turned on; ON: PWM is switched on by default when the device is turned on\u003c\/li\u003e\n \u003cli\u003ePress and hold the coded potentiometer for 5 seconds to lock it, and the lock symbol will be displayed on the interface. After locking, the frequency and duty cycle cannot be adjusted to prevent accidental actuation. Press and hold for 5 seconds to unlock\u003c\/li\u003e\n \u003cli\u003eEncoder potentiometer, standard duty cycle setting, short press to adjust frequency, long press for 2 seconds to adjust duty cycle upper limit, long press for 5 seconds to lock, long press for 10 seconds to switch mode (normal mode\/fine mode)\u003c\/li\u003e\n \u003cli\u003eUsed as a rectangular signal generator to generate rectangular signals for experimental development and generates rectangular signals to control motor drivers. The product has adjustable pulses for using MCUs and controls associated circuits (such as PWM dimming and speed control applications)\u003c\/li\u003e\n \u003c\/ul\u003e"}
