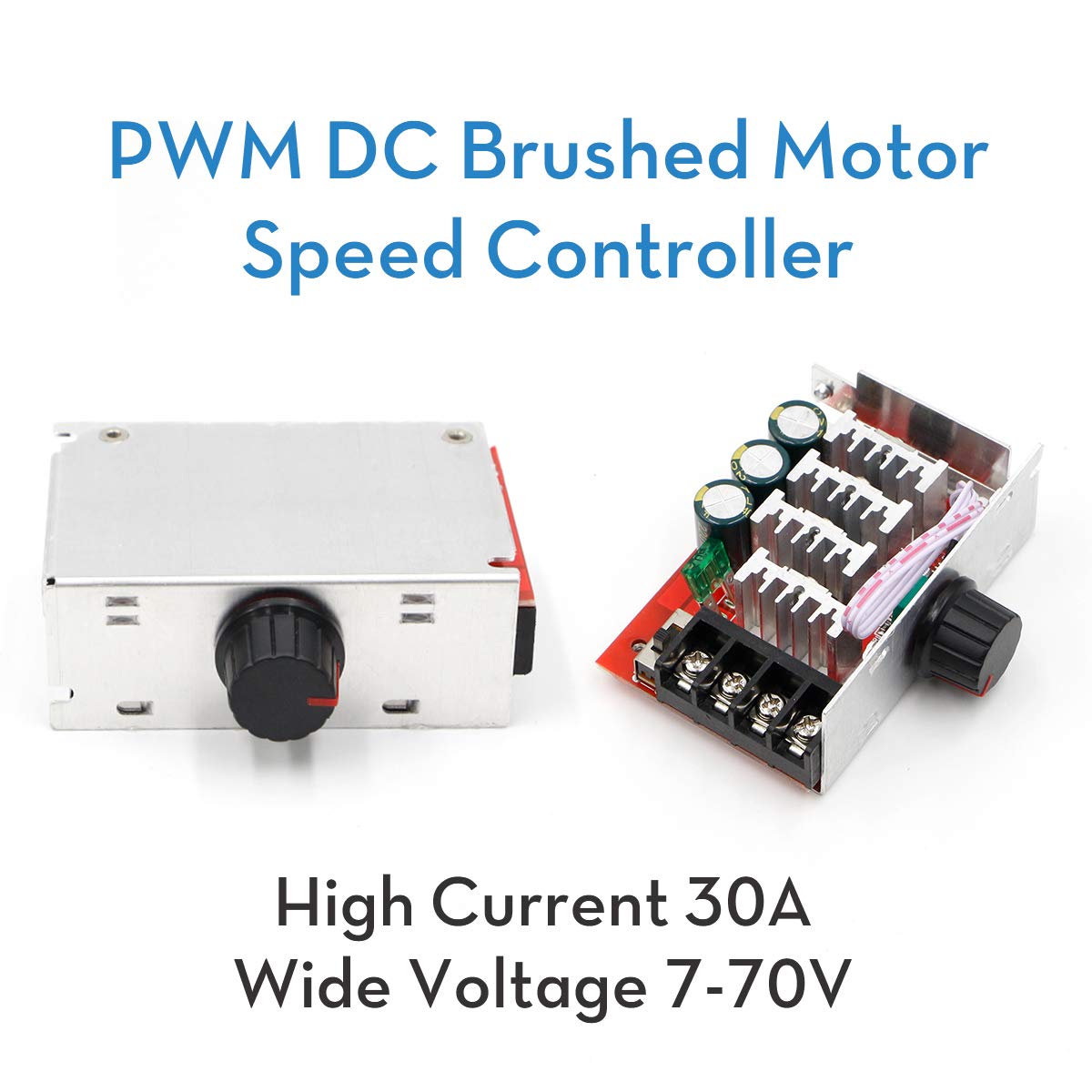

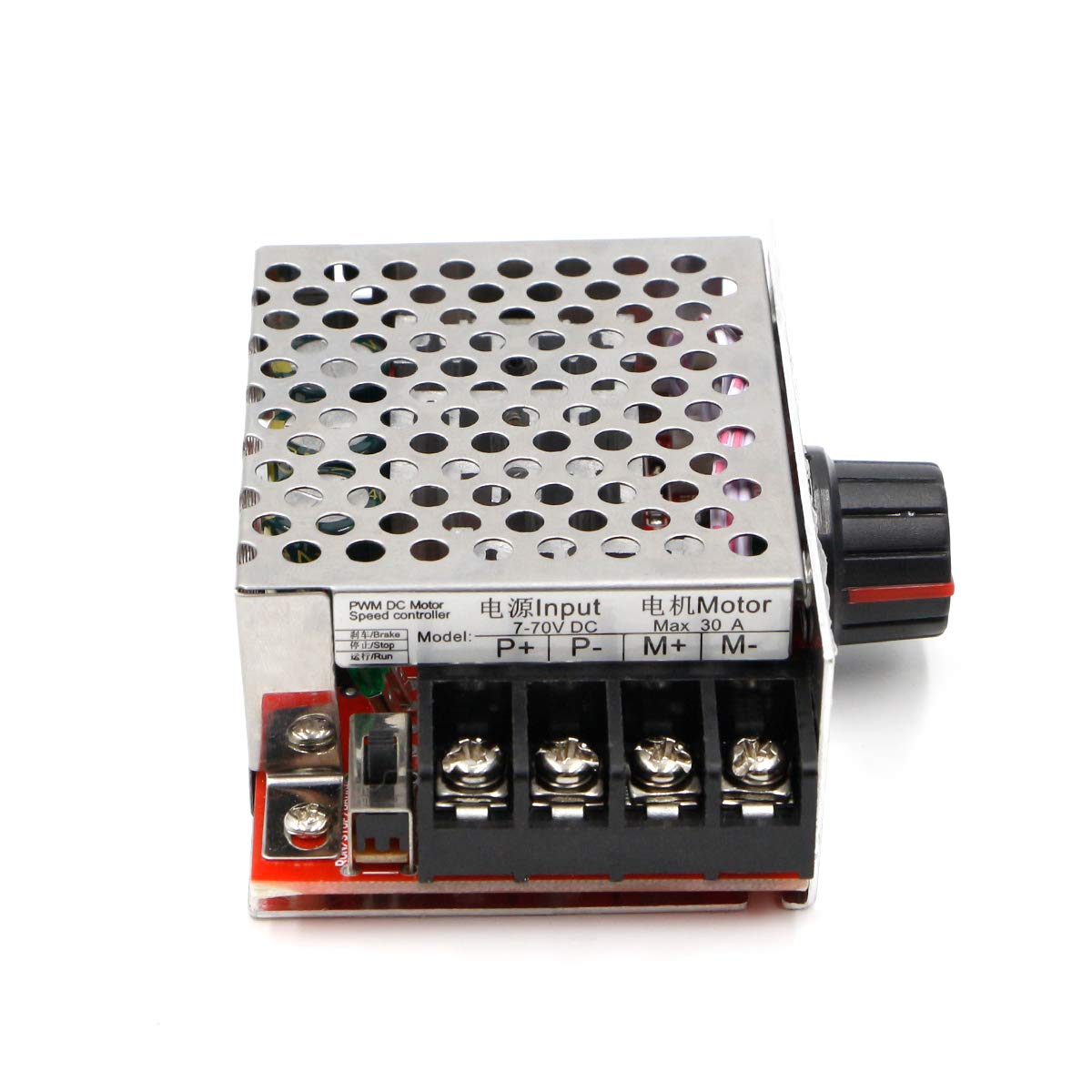

{"id":7169139572916,"title":"RioRand PWM DC Motor Speed Controller Switch Control 7-70V 30A Fuse","handle":"riorand-pwm-dc-motor-speed-controller-switch-control-7-70v-30a-fuse","description":"\u003ch3\u003eRioRand PWM DC Motor Speed Controller Switch Control 7-70V 30A Fuse\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eBrand:RioRand Product Name :DC PWM Brush Motor Speed Controller Product\noperation parameters: Applicable voltage range: DC 8-72V (72V is the highest\nworking voltage, please leave a margin) Drive current: Max 30A (working\nvoltage and high current should be reduced, please use with power) Control\npower: within 12V 300W within 24V 400W within 48V 450W within 60V 500W\nAdjustable range of duty ratio: about 1%-100% PWM frequency: 12KHZ\nInstructions and precautions: 1. Please understand the product parameters for\nthe first time, please contact us as soon as possible 2. This product is a DC\nbrushed motor speed controller. It needs to be equipped with a DC power supply\nto supply power to the governor. It cannot be connected to AC power and cannot\ndrive a brushless motor 3. Before wiring, please read the wiring label\nclearly. The input is DC, and the positive and negative poles should not be\nconfused. The output connection to the motor (motor) does not need to be\ndivided into positive and negative, if the running direction is wrong, please\nreplace the two wires of the motor Adopt high-quality high-voltage MOS tube,\nthree 100V high-frequency low-resistance capacitors, automotive fuses,\naccurate parameters, not easy to get hot, easy to replace. With aluminum case\nto protect internal circuit. It is a DC Motor Speed Controller,Not a Voltage\nController\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eWide voltage input 7-70V, maximum output current 30A .Adjustable potentiometer soft cable(about 15CM) can be separated, with running stop brake function\u003c\/li\u003e\n \u003cli\u003eCan be use on long hours of work: Circuit optimization design, stable Adjust the motor smooth no noise no vibration, with power indication, wide duty cycle adjustment range\u003c\/li\u003e\n \u003cli\u003eUsing imported high-voltage MOS tube, three pressure 100V high-frequency low-resistance capacitors, automotive fuses\u003c\/li\u003e\n \u003cli\u003eAdjust the motor smooth no noise no vibration, with power indication, wide duty cycle adjustment range\u003c\/li\u003e\n \u003cli\u003ePWM Frequency and Share Space: 12KHZ ,The knob has a switch function, which can control the motor speed from 0% to 100%.\u003c\/li\u003e\n \u003c\/ul\u003e\n\n","published_at":"2022-06-25T19:25:59+10:00","created_at":"2022-06-25T19:26:05+10:00","vendor":"RioRand","type":"Motor Speed Controllers","tags":["industrial"],"price":14500,"price_min":14500,"price_max":14500,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":41607827194036,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B00JEXJXAC","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"RioRand PWM DC Motor Speed Controller Switch Control 7-70V 30A Fuse","public_title":null,"options":["Default Title"],"price":14500,"weight":136,"compare_at_price":null,"inventory_management":null,"barcode":"619636133367","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/products\/B00JEXJXAC.jpg?v=1656226636","\/\/auspowers.com\/cdn\/shop\/products\/51qAlDyxMVL.jpg?v=1656149165","\/\/auspowers.com\/cdn\/shop\/products\/712cs0Y0-JL.jpg?v=1656149165","\/\/auspowers.com\/cdn\/shop\/products\/61KGJyeOvFL.jpg?v=1656149165","\/\/auspowers.com\/cdn\/shop\/products\/61OY1jdDZML.jpg?v=1656149165","\/\/auspowers.com\/cdn\/shop\/products\/610puU2knQL.jpg?v=1656149165","\/\/auspowers.com\/cdn\/shop\/products\/610DiJ4KXQL.jpg?v=1656149165"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/products\/B00JEXJXAC.jpg?v=1656226636","options":["Title"],"media":[{"alt":"[Australia - AusPower] - RioRand PWM DC Motor Speed Controller Switch Control 7-70V 30A Fuse ","id":26293028651188,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/products\/B00JEXJXAC.jpg?v=1656226636"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/B00JEXJXAC.jpg?v=1656226636","width":1200},{"alt":"[Australia - AusPower] - RioRand PWM DC Motor Speed Controller Switch Control 7-70V 30A Fuse ","id":26282342908084,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/products\/51qAlDyxMVL.jpg?v=1656149165"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/51qAlDyxMVL.jpg?v=1656149165","width":1200},{"alt":"[Australia - AusPower] - RioRand PWM DC Motor Speed Controller Switch Control 7-70V 30A Fuse ","id":26282342940852,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/products\/712cs0Y0-JL.jpg?v=1656149165"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/712cs0Y0-JL.jpg?v=1656149165","width":1200},{"alt":"[Australia - AusPower] - RioRand PWM DC Motor Speed Controller Switch Control 7-70V 30A Fuse ","id":26282342973620,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/products\/61KGJyeOvFL.jpg?v=1656149165"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/61KGJyeOvFL.jpg?v=1656149165","width":1200},{"alt":"[Australia - AusPower] - RioRand PWM DC Motor Speed Controller Switch Control 7-70V 30A Fuse ","id":26282343006388,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/products\/61OY1jdDZML.jpg?v=1656149165"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/61OY1jdDZML.jpg?v=1656149165","width":1200},{"alt":"[Australia - AusPower] - RioRand PWM DC Motor Speed Controller Switch Control 7-70V 30A Fuse ","id":26282343039156,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/products\/610puU2knQL.jpg?v=1656149165"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/610puU2knQL.jpg?v=1656149165","width":1200},{"alt":"[Australia - AusPower] - RioRand PWM DC Motor Speed Controller Switch Control 7-70V 30A Fuse ","id":26282343104692,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/products\/610DiJ4KXQL.jpg?v=1656149165"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/610DiJ4KXQL.jpg?v=1656149165","width":1200}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eRioRand PWM DC Motor Speed Controller Switch Control 7-70V 30A Fuse\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eBrand:RioRand Product Name :DC PWM Brush Motor Speed Controller Product\noperation parameters: Applicable voltage range: DC 8-72V (72V is the highest\nworking voltage, please leave a margin) Drive current: Max 30A (working\nvoltage and high current should be reduced, please use with power) Control\npower: within 12V 300W within 24V 400W within 48V 450W within 60V 500W\nAdjustable range of duty ratio: about 1%-100% PWM frequency: 12KHZ\nInstructions and precautions: 1. Please understand the product parameters for\nthe first time, please contact us as soon as possible 2. This product is a DC\nbrushed motor speed controller. It needs to be equipped with a DC power supply\nto supply power to the governor. It cannot be connected to AC power and cannot\ndrive a brushless motor 3. Before wiring, please read the wiring label\nclearly. The input is DC, and the positive and negative poles should not be\nconfused. The output connection to the motor (motor) does not need to be\ndivided into positive and negative, if the running direction is wrong, please\nreplace the two wires of the motor Adopt high-quality high-voltage MOS tube,\nthree 100V high-frequency low-resistance capacitors, automotive fuses,\naccurate parameters, not easy to get hot, easy to replace. With aluminum case\nto protect internal circuit. It is a DC Motor Speed Controller,Not a Voltage\nController\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eWide voltage input 7-70V, maximum output current 30A .Adjustable potentiometer soft cable(about 15CM) can be separated, with running stop brake function\u003c\/li\u003e\n \u003cli\u003eCan be use on long hours of work: Circuit optimization design, stable Adjust the motor smooth no noise no vibration, with power indication, wide duty cycle adjustment range\u003c\/li\u003e\n \u003cli\u003eUsing imported high-voltage MOS tube, three pressure 100V high-frequency low-resistance capacitors, automotive fuses\u003c\/li\u003e\n \u003cli\u003eAdjust the motor smooth no noise no vibration, with power indication, wide duty cycle adjustment range\u003c\/li\u003e\n \u003cli\u003ePWM Frequency and Share Space: 12KHZ ,The knob has a switch function, which can control the motor speed from 0% to 100%.\u003c\/li\u003e\n \u003c\/ul\u003e\n\n"}
