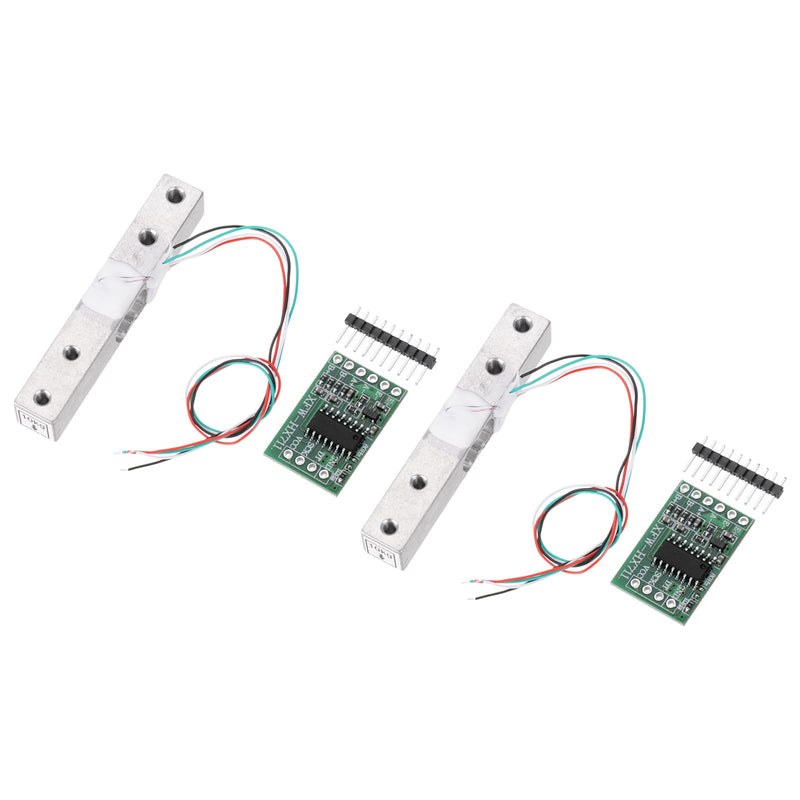

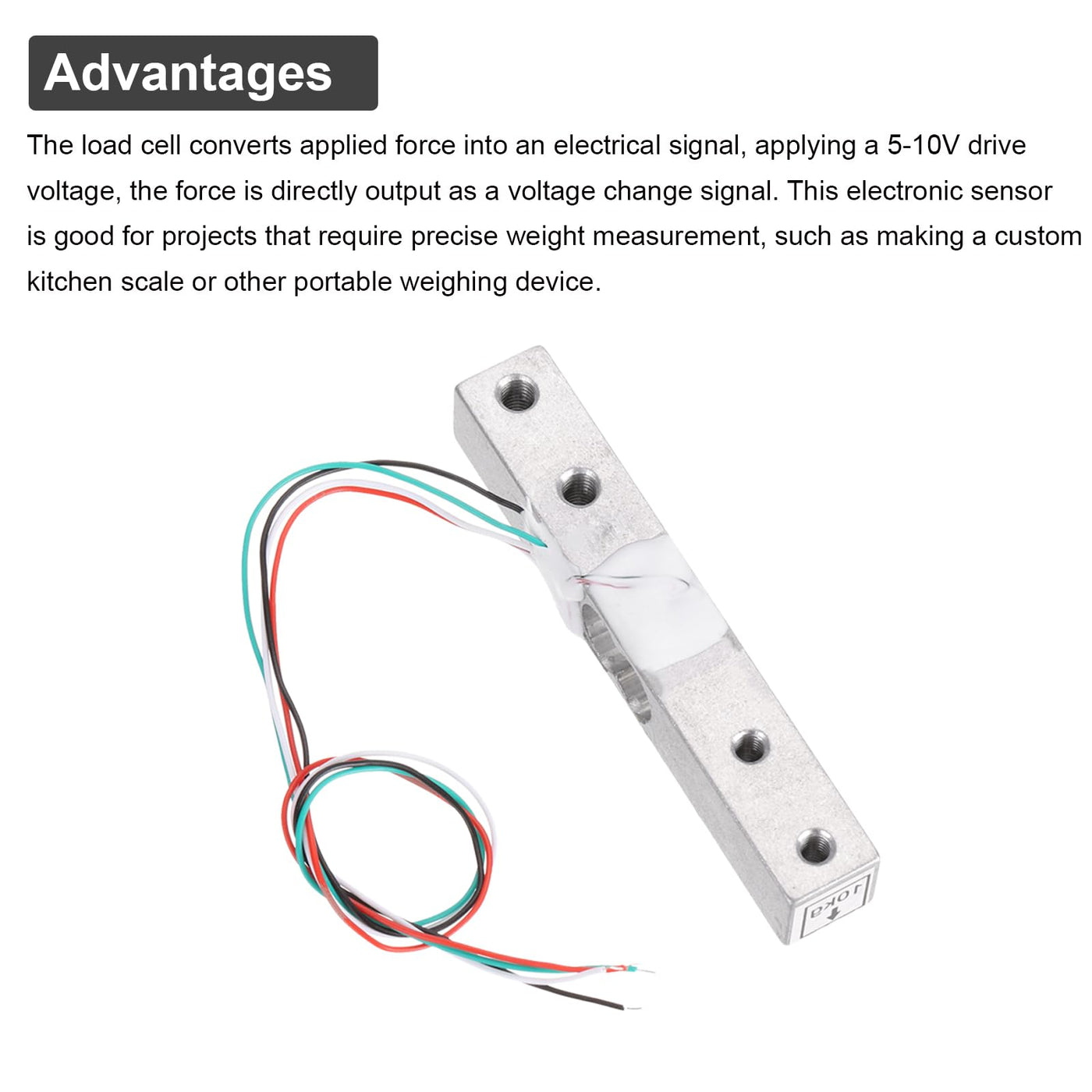

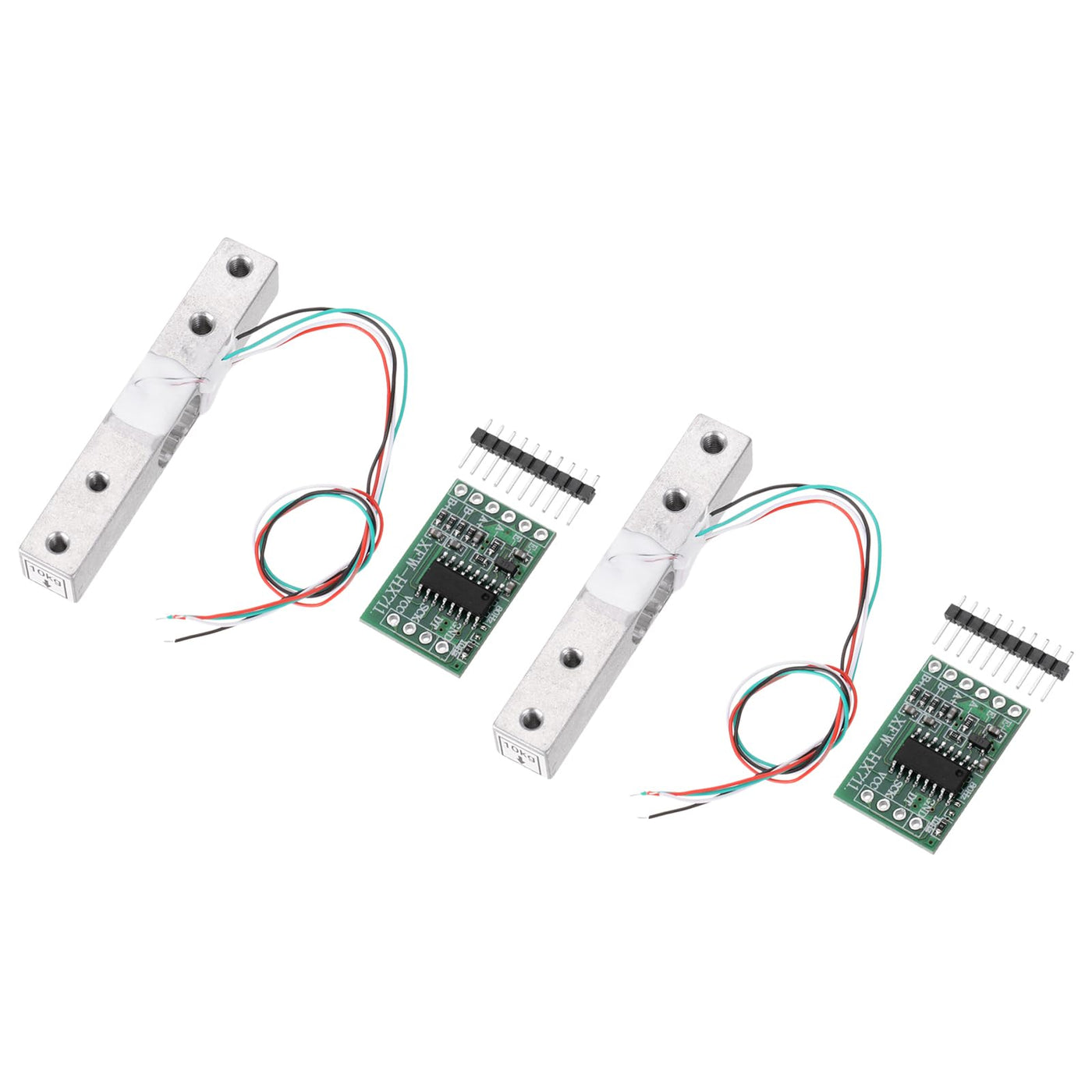

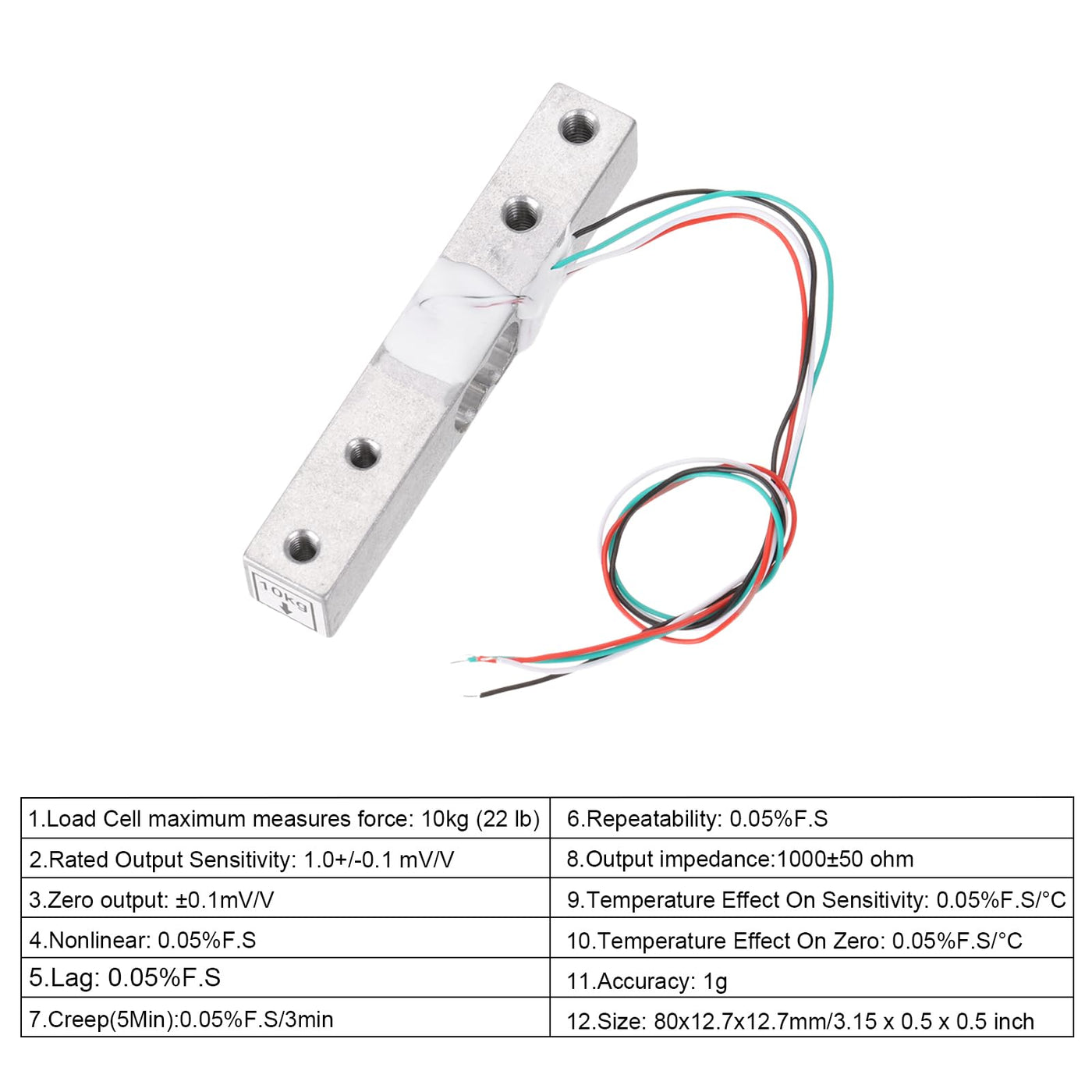

{"id":7991567319220,"title":"QUARKZMAN Pack of 2 Digital Load Cell 10 kg + HX711 Module Weighing Sensor 24 Bit Precision A\/D Dual Channel for DIY Portable Electronic Kitchen Scale Kit","handle":"quarkzman-pack-of-2-digital-load-cell-10-kg-hx711-module-weighing-sensor-24-bit-precision-a-d-dual-channel-for-diy-portable-electronic-kitchen-scale-kit","description":"\u003ch3\u003eQUARKZMAN Pack of 2 Digital Load Cell 10 kg + HX711 Module Weighing Sensor 24 Bit Precision A\/D Dual Channel for DIY Portable Electronic Kitchen Scale Kit\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eWhat is it? The weighing sensor uses the HX711 24-bit high-precision A\/D\nconversion chip, which is specially designed for electronic scales and has two\nanalogue input channels. The digital load cell weighing sensor is made of\naluminium alloy with parallel bar structure. What will I get? HX711 weighing\nsensor operating voltage: 2.6-5.5V. HX711 weighing sensor size: 16 x 24 mm.\nMaximum measuring force of the load cell: 10 kg. Rated output sensitivity:\n1.0+\/-0.1mV\/V Zero output: ±0.1mV\/V. Non-linearity: 0.05%F.S Delay: 0.05%F.S\nRepeatability: 0.05% F.S. Creep (5min): 0.05%F.S\/3min. Output impedance:\n1000±50 ohms. Temperature impact on sensitivity: 0.05% F.S\/°C. Temperature\nimpact to zero: 0.05% F.S\/°C. Accuracy: 0.1 g. Size: 80 x 12.7 x 12.7 mm.\nConnection: Red to E+ \/ Black to E \/ Green to A+ \/ White to A Package\nIncludes:2pcs x HX711 Weighing Sensor + 2pcs x Load Cell Weighing Sensor Are\nthere any advantages of the product? The 24-bit A\/D converter is used to\nprovide accurate weight measurement results. The load cell converts the\napplied force into an electrical signal, when using a 5-10V drive voltage, the\nforce is output directly as a voltage change signal. How to use it? The\nelectronic sensor contains 4 ports for easy use. The weighing sensor must be\nconnected to the HX711 module, Red to E+, Black to E, Green to A+ and White to\nA What should I pay attention to? One end of the sensor is fixed by the screw\nhole, the other end remains free to hang. Gravity is applied in the direction\nindicated by the label. Be especially careful not to press the white rubber\npart directly so as not to damage the sensor.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eThe weighing sensor uses the HX711 24-bit high-precision A\/D conversion chip, which is specially designed for high-precision electronic scales and has two analogue input channels. The digital load cell is made of aluminium alloy with parallel bar structure. Suitable for electronic kitchen scales, force measurement of small appliances and intelligent electronic weighing equipment.\u003c\/li\u003e\n \u003cli\u003eHX711 digital load cell operating voltage: 2.6-5.5 V; maximum measuring force of load cell: 10 kg; rated output sensitivity: 1.0+\/-0.1 mV\/V; accuracy: 0.1g; output impedance: 100050 ohms.\u003c\/li\u003e\n \u003cli\u003eThe 24-bit A\/D converter is used to provide accurate weight measurement results. The load cell converts the applied force into an electrical signal, when using a 5-10V drive voltage, the force is output directly as a voltage change signal.\u003c\/li\u003e\n \u003cli\u003eThe electronic sensor contains 4 ports for easy use. The weighing sensor must be connected to the HX711 module, Red to E+, Black to E, Green to A+ and White to A\u003c\/li\u003e\n \u003cli\u003eOne end of the sensor is fixed by the screw hole, the other end remains free to hang. Gravity is applied in the direction indicated by the label. Be especially careful not to press the white rubber part directly so as not to damage the sensor.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-09-23T00:10:30+10:00","created_at":"2025-09-23T00:10:26+10:00","vendor":"QUARKZMAN","type":"Balance Accessories","tags":["industryDE_Sep2025"],"price":12800,"price_min":12800,"price_max":12800,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44047725166772,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B0DB1CDXDB","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"QUARKZMAN Pack of 2 Digital Load Cell 10 kg + HX711 Module Weighing Sensor 24 Bit Precision A\/D Dual Channel for DIY Portable Electronic Kitchen Scale Kit","public_title":null,"options":["Default Title"],"price":12800,"weight":80,"compare_at_price":null,"inventory_management":"shopify","barcode":"000141aa240623qman","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/de-B0DB1CDXDB.jpg?v=1775767245","\/\/auspowers.com\/cdn\/shop\/files\/61TzESE28IL.jpg?v=1758550229","\/\/auspowers.com\/cdn\/shop\/files\/61t1uZz_txL.jpg?v=1758550229","\/\/auspowers.com\/cdn\/shop\/files\/61ujo1iOgzL.jpg?v=1758550229","\/\/auspowers.com\/cdn\/shop\/files\/61MeefB3m-L.jpg?v=1758550229","\/\/auspowers.com\/cdn\/shop\/files\/81zTVGlgIXL.jpg?v=1758550229","\/\/auspowers.com\/cdn\/shop\/files\/71yZWblRg1L.jpg?v=1758550229"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/de-B0DB1CDXDB.jpg?v=1775767245","options":["Title"],"media":[{"alt":"[Australia - AusPower] - QUARKZMAN Pack of 2 Digital Load Cell 10 kg + HX711 Module Weighing Sensor 24 Bit Precision A\/D Dual Channel for DIY Portable Electronic Kitchen Scale Kit ","id":32184520147124,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/de-B0DB1CDXDB.jpg?v=1775767245"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/de-B0DB1CDXDB.jpg?v=1775767245","width":1600},{"alt":"[Australia - AusPower] - QUARKZMAN Pack of 2 Digital Load Cell 10 kg + HX711 Module Weighing Sensor 24 Bit Precision A\/D Dual Channel for DIY Portable Electronic Kitchen Scale Kit ","id":32184520179892,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61TzESE28IL.jpg?v=1758550229"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61TzESE28IL.jpg?v=1758550229","width":1600},{"alt":"[Australia - AusPower] - QUARKZMAN Pack of 2 Digital Load Cell 10 kg + HX711 Module Weighing Sensor 24 Bit Precision A\/D Dual Channel for DIY Portable Electronic Kitchen Scale Kit ","id":32184520212660,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61t1uZz_txL.jpg?v=1758550229"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61t1uZz_txL.jpg?v=1758550229","width":1600},{"alt":"[Australia - AusPower] - QUARKZMAN Pack of 2 Digital Load Cell 10 kg + HX711 Module Weighing Sensor 24 Bit Precision A\/D Dual Channel for DIY Portable Electronic Kitchen Scale Kit ","id":32184520245428,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61ujo1iOgzL.jpg?v=1758550229"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61ujo1iOgzL.jpg?v=1758550229","width":1600},{"alt":"[Australia - AusPower] - QUARKZMAN Pack of 2 Digital Load Cell 10 kg + HX711 Module Weighing Sensor 24 Bit Precision A\/D Dual Channel for DIY Portable Electronic Kitchen Scale Kit ","id":32184520278196,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61MeefB3m-L.jpg?v=1758550229"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61MeefB3m-L.jpg?v=1758550229","width":1600},{"alt":"[Australia - AusPower] - QUARKZMAN Pack of 2 Digital Load Cell 10 kg + HX711 Module Weighing Sensor 24 Bit Precision A\/D Dual Channel for DIY Portable Electronic Kitchen Scale Kit ","id":32184520310964,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/81zTVGlgIXL.jpg?v=1758550229"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/81zTVGlgIXL.jpg?v=1758550229","width":1600},{"alt":"[Australia - AusPower] - QUARKZMAN Pack of 2 Digital Load Cell 10 kg + HX711 Module Weighing Sensor 24 Bit Precision A\/D Dual Channel for DIY Portable Electronic Kitchen Scale Kit ","id":32184520343732,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71yZWblRg1L.jpg?v=1758550229"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71yZWblRg1L.jpg?v=1758550229","width":1600}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eQUARKZMAN Pack of 2 Digital Load Cell 10 kg + HX711 Module Weighing Sensor 24 Bit Precision A\/D Dual Channel for DIY Portable Electronic Kitchen Scale Kit\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eWhat is it? The weighing sensor uses the HX711 24-bit high-precision A\/D\nconversion chip, which is specially designed for electronic scales and has two\nanalogue input channels. The digital load cell weighing sensor is made of\naluminium alloy with parallel bar structure. What will I get? HX711 weighing\nsensor operating voltage: 2.6-5.5V. HX711 weighing sensor size: 16 x 24 mm.\nMaximum measuring force of the load cell: 10 kg. Rated output sensitivity:\n1.0+\/-0.1mV\/V Zero output: ±0.1mV\/V. Non-linearity: 0.05%F.S Delay: 0.05%F.S\nRepeatability: 0.05% F.S. Creep (5min): 0.05%F.S\/3min. Output impedance:\n1000±50 ohms. Temperature impact on sensitivity: 0.05% F.S\/°C. Temperature\nimpact to zero: 0.05% F.S\/°C. Accuracy: 0.1 g. Size: 80 x 12.7 x 12.7 mm.\nConnection: Red to E+ \/ Black to E \/ Green to A+ \/ White to A Package\nIncludes:2pcs x HX711 Weighing Sensor + 2pcs x Load Cell Weighing Sensor Are\nthere any advantages of the product? The 24-bit A\/D converter is used to\nprovide accurate weight measurement results. The load cell converts the\napplied force into an electrical signal, when using a 5-10V drive voltage, the\nforce is output directly as a voltage change signal. How to use it? The\nelectronic sensor contains 4 ports for easy use. The weighing sensor must be\nconnected to the HX711 module, Red to E+, Black to E, Green to A+ and White to\nA What should I pay attention to? One end of the sensor is fixed by the screw\nhole, the other end remains free to hang. Gravity is applied in the direction\nindicated by the label. Be especially careful not to press the white rubber\npart directly so as not to damage the sensor.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eThe weighing sensor uses the HX711 24-bit high-precision A\/D conversion chip, which is specially designed for high-precision electronic scales and has two analogue input channels. The digital load cell is made of aluminium alloy with parallel bar structure. Suitable for electronic kitchen scales, force measurement of small appliances and intelligent electronic weighing equipment.\u003c\/li\u003e\n \u003cli\u003eHX711 digital load cell operating voltage: 2.6-5.5 V; maximum measuring force of load cell: 10 kg; rated output sensitivity: 1.0+\/-0.1 mV\/V; accuracy: 0.1g; output impedance: 100050 ohms.\u003c\/li\u003e\n \u003cli\u003eThe 24-bit A\/D converter is used to provide accurate weight measurement results. The load cell converts the applied force into an electrical signal, when using a 5-10V drive voltage, the force is output directly as a voltage change signal.\u003c\/li\u003e\n \u003cli\u003eThe electronic sensor contains 4 ports for easy use. The weighing sensor must be connected to the HX711 module, Red to E+, Black to E, Green to A+ and White to A\u003c\/li\u003e\n \u003cli\u003eOne end of the sensor is fixed by the screw hole, the other end remains free to hang. Gravity is applied in the direction indicated by the label. Be especially careful not to press the white rubber part directly so as not to damage the sensor.\u003c\/li\u003e\n \u003c\/ul\u003e"}
