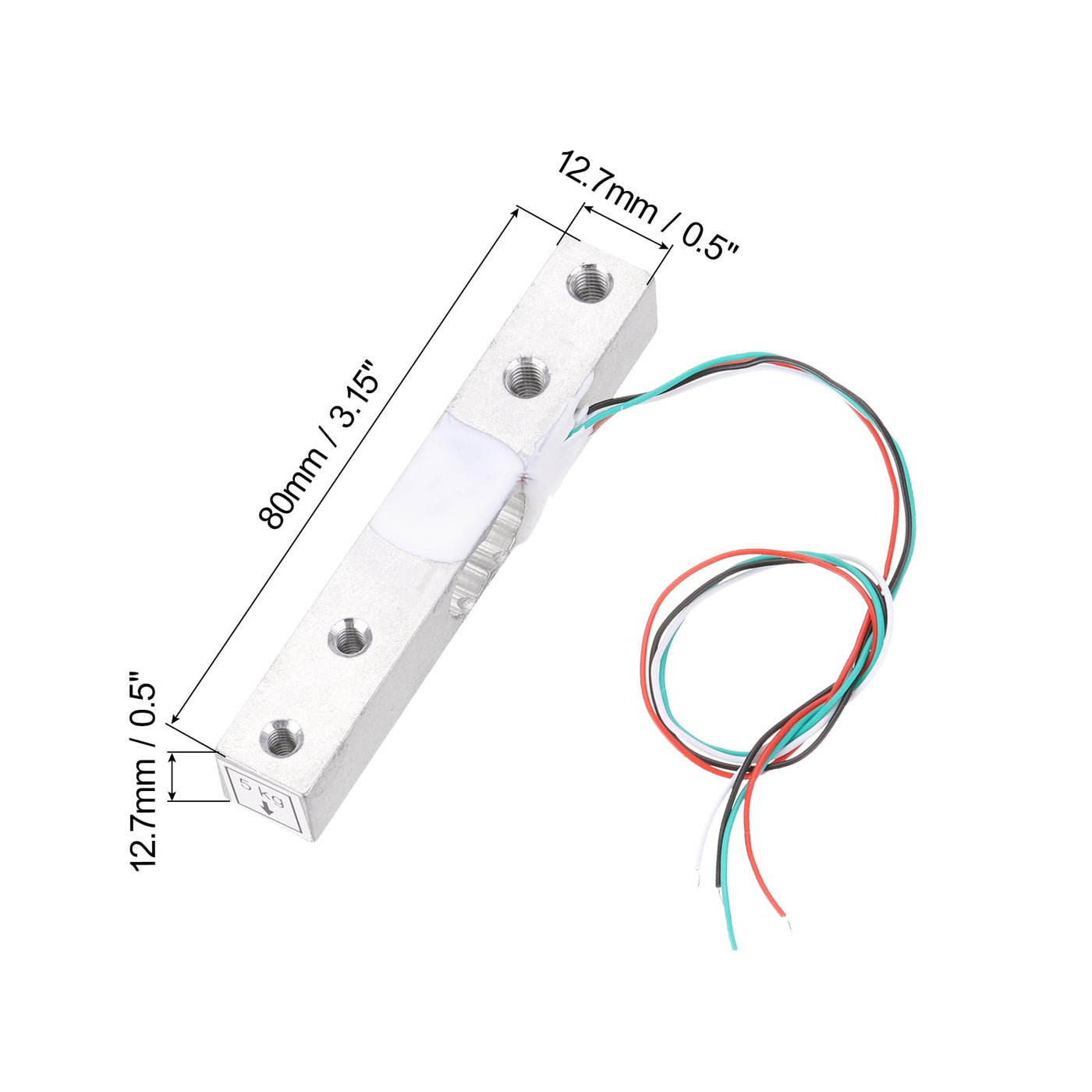

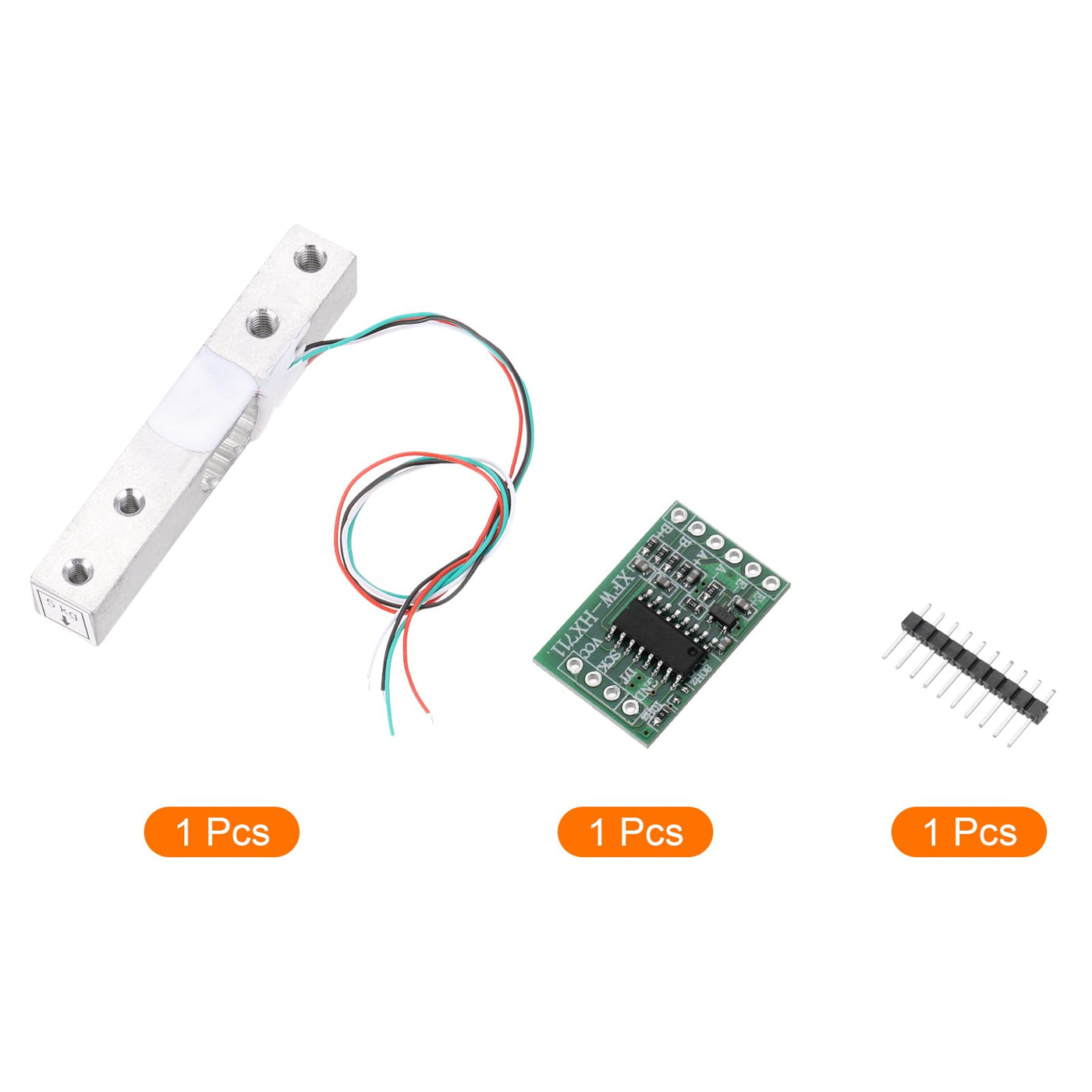

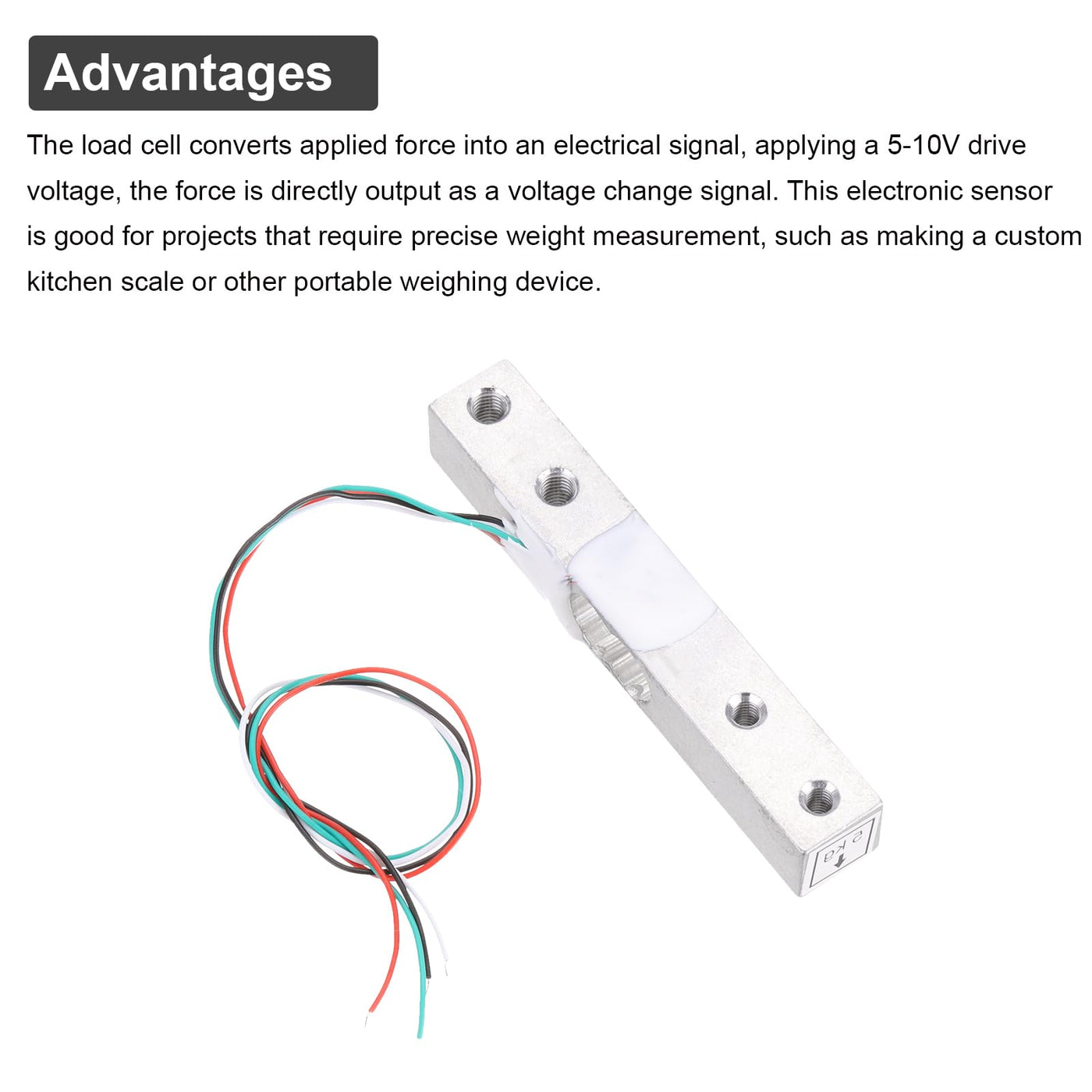

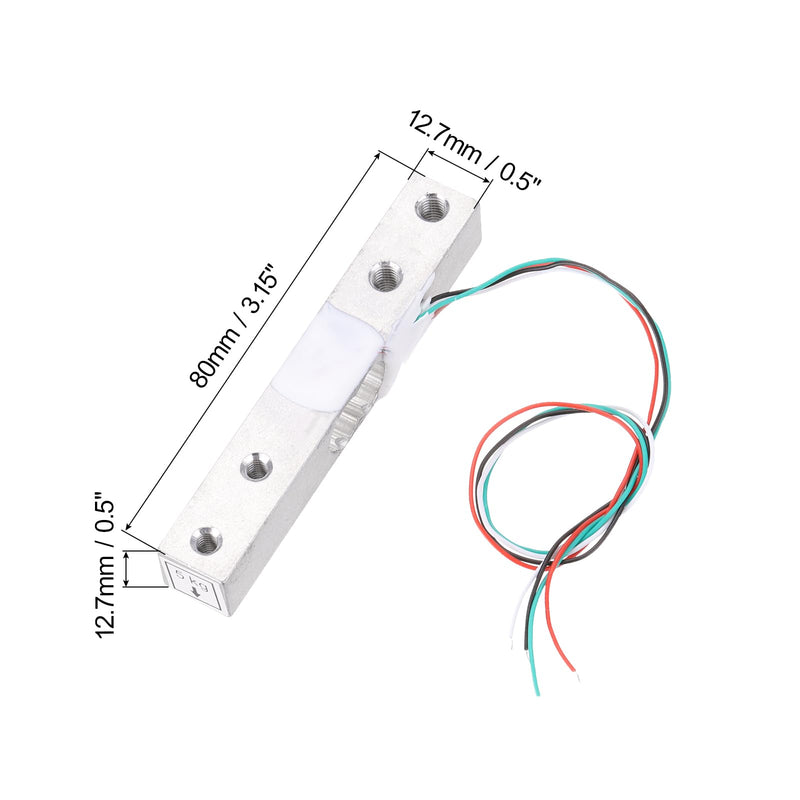

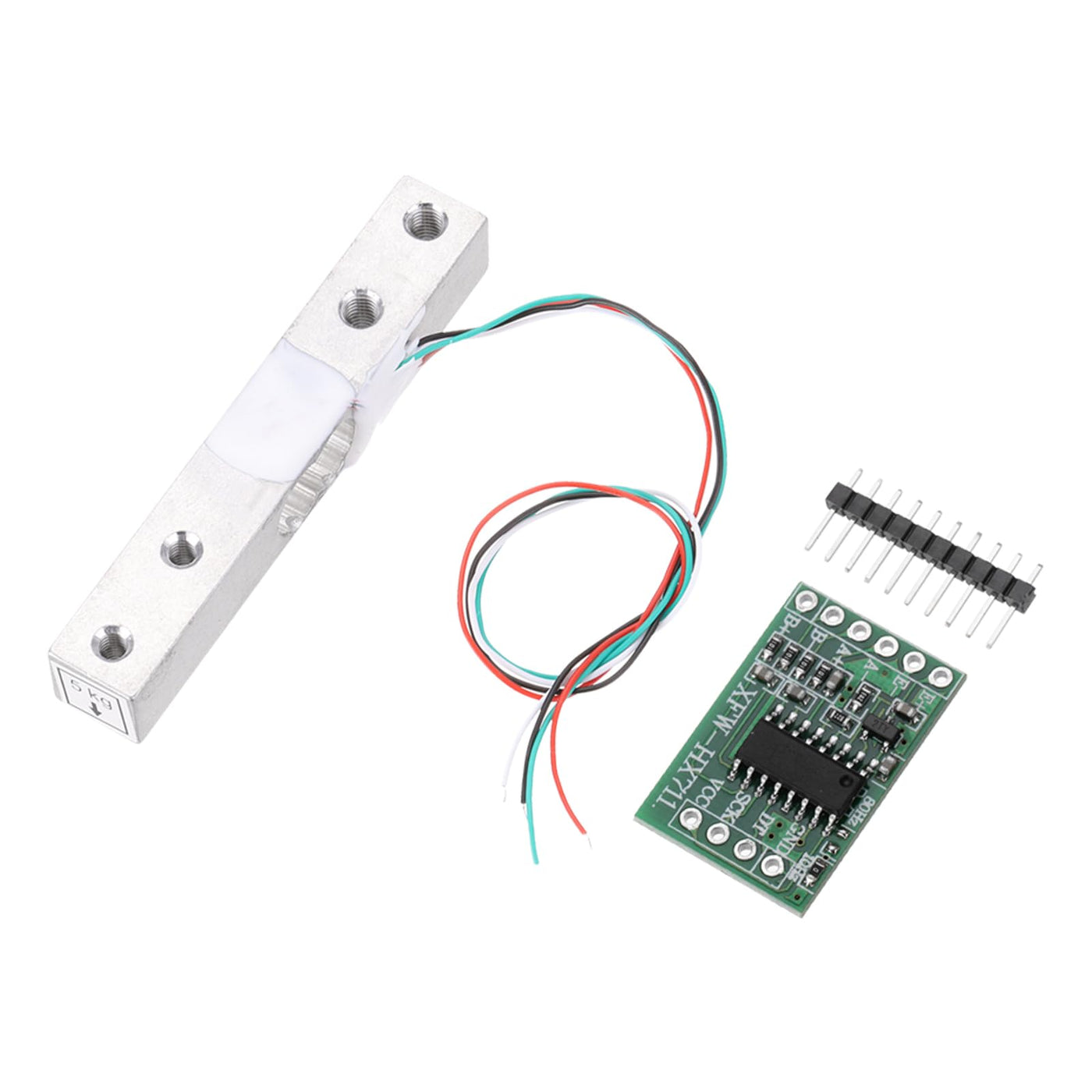

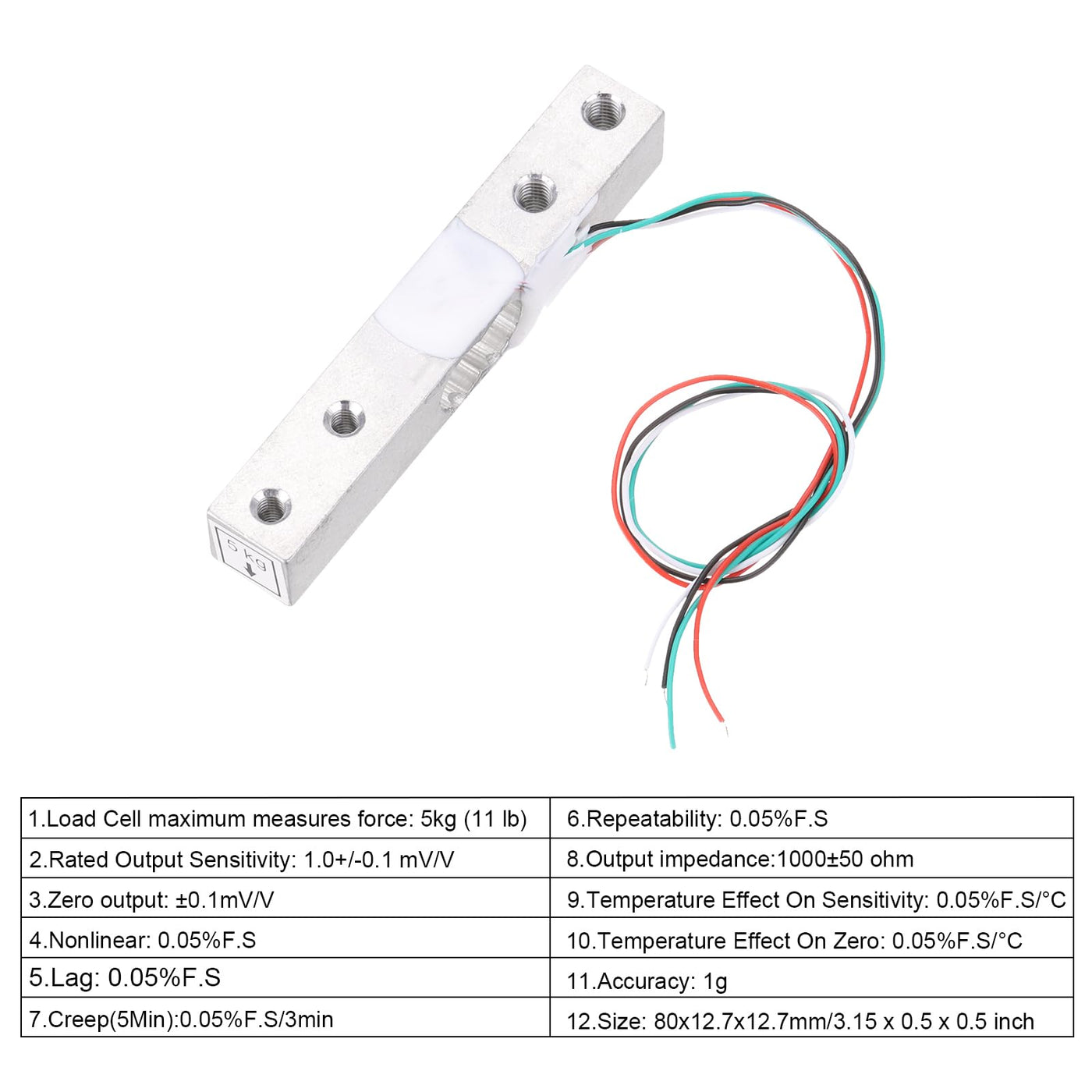

{"id":7991806623924,"title":"QUARKZMAN Digital Load Cell 5 kg + HX711 Module Weighing Sensor 24 Bit Precision A\/D Dual Channel for DIY Portable Electronic Kitchen Scale Kit","handle":"quarkzman-digital-load-cell-5-kg-hx711-module-weighing-sensor-24-bit-precision-a-d-dual-channel-for-diy-portable-electronic-kitchen-scale-kit","description":"\u003ch3\u003eQUARKZMAN Digital Load Cell 5 kg + HX711 Module Weighing Sensor 24 Bit Precision A\/D Dual Channel for DIY Portable Electronic Kitchen Scale Kit\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eWhat is it? The weighing sensor uses the 24-bit high-precision A\/D chip HX711,\nwhich has been specially developed for high-precision electronic scales and\nhas two analogue input channels. The digital load cell weight sensor is made\nof aluminium alloy with parallel bar structure. What will I get? HX711\nweighing sensor operating voltage: 2.6-5.5V. HX711 weighing sensor size: 16 x\n24 mm. Load cell maximum measuring force: 5 kg. Rated output sensitivity:\n1.0+\/-0.1mV\/V Zero output: ±0.1mV\/V. Non-linearity: 0.05%F.S Delay: 0.05%F.S\nRepeatability: 0.05% F.S. Creep (5 min): 0.05% F.S\/3 min. Output impedance:\n1000±50 ohms. Temperature impact on sensitivity: 0.05% F.S\/°C. Temperature\nimpact to zero: 0.05% F.S\/°C. Accuracy: 0.1 g. Size: 80 x 12.7 x 12.7 mm.\nConnection: Red to E+ \/ Black to E \/ Green to A+ \/ White to A Package\nincludes: 1 x HX711 weighing sensor + 1 x load cell weight sensor. Are there\nany advantages of the product? The 24-bit A\/D is used to provide accurate\nweight measurement results. The load cell converts the applied force into an\nelectrical signal, when using a 5-10V drive voltage, the force is output\ndirectly as a voltage change signal. How to use it? The electronic sensor\ncontains 4 ports for easy use. The weighing sensor must be connected to the\nHX711 module, red to E+, black to E, green to A+ and white to A What should I\npay attention to? One end of the sensor is fixed by the screw hole, the other\nend remains free. Apply gravity in the direction indicated by the label.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eThe weighing sensor uses the 24-bit high-precision A\/D chip HX711, which has been specially developed for high-precision electronic scales and has two analogue input channels. The digital load cell is made of aluminium alloy with parallel bar structure. Suitable for electronic kitchen scales, small appliances for force measurement and intelligent electronic weighing equipment.\u003c\/li\u003e\n \u003cli\u003eHX711 digital load cell operating voltage: 2.6-5.5 V; load cell maximum measuring force: 5 kg; rated output sensitivity: 1.0+\/-0.1 mV\/V; accuracy: 0.1g; output impedance: 100050 ohms.\u003c\/li\u003e\n \u003cli\u003eThe 24-bit A\/D is used to provide accurate weight measurement results. The load cell converts the applied force into an electrical signal, when using a 5-10V drive voltage, the force is output directly as a voltage change signal.\u003c\/li\u003e\n \u003cli\u003eThe electronic sensor contains 4 ports for easy use. The weighing sensor must be connected to the HX711 module, red to E+, black to E, green to A+ and white to A\u003c\/li\u003e\n \u003cli\u003eOne end of the sensor is fixed by the screw hole, the other end remains free. Apply gravity in the direction indicated by the label. Be especially careful not to press the white rubber part directly so as not to damage the sensor.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-09-24T01:44:11+10:00","created_at":"2025-09-24T01:44:08+10:00","vendor":"QUARKZMAN","type":"Balance Accessories","tags":["industryDE_Sep2025"],"price":11500,"price_min":11500,"price_max":11500,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44048629530804,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B0DB1DTYNK","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"QUARKZMAN Digital Load Cell 5 kg + HX711 Module Weighing Sensor 24 Bit Precision A\/D Dual Channel for DIY Portable Electronic Kitchen Scale Kit","public_title":null,"options":["Default Title"],"price":11500,"weight":29,"compare_at_price":null,"inventory_management":"shopify","barcode":"000137aa240623qman","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/de-B0DB1DTYNK.jpg?v=1775769477","\/\/auspowers.com\/cdn\/shop\/files\/61P1AeurcaL_e8cdf781-5243-4dc5-9b51-41773fa4aeb7.jpg?v=1758642250","\/\/auspowers.com\/cdn\/shop\/files\/61El-ja7k9L.jpg?v=1758642250","\/\/auspowers.com\/cdn\/shop\/files\/618jaA07b_L_401c1c68-3ec6-457b-90fa-632384aaf7a0.jpg?v=1758642250","\/\/auspowers.com\/cdn\/shop\/files\/61iwYfoc24L_95f4f99a-a8a0-44e8-8cc6-5613bc7431b0.jpg?v=1758642250","\/\/auspowers.com\/cdn\/shop\/files\/81zTVGlgIXL_d9e4ebd4-ceea-4ca8-9a10-de2ae665de01.jpg?v=1758642250","\/\/auspowers.com\/cdn\/shop\/files\/71yZWblRg1L_0b81ba01-e32f-47e9-9a3d-af6ad5d23a14.jpg?v=1758642250"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/de-B0DB1DTYNK.jpg?v=1775769477","options":["Title"],"media":[{"alt":"[Australia - AusPower] - QUARKZMAN Digital Load Cell 5 kg + HX711 Module Weighing Sensor 24 Bit Precision A\/D Dual Channel for DIY Portable Electronic Kitchen Scale Kit ","id":32189372006580,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/de-B0DB1DTYNK.jpg?v=1775769477"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/de-B0DB1DTYNK.jpg?v=1775769477","width":1600},{"alt":"[Australia - AusPower] - QUARKZMAN Digital Load Cell 5 kg + HX711 Module Weighing Sensor 24 Bit Precision A\/D Dual Channel for DIY Portable Electronic Kitchen Scale Kit ","id":32189372039348,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61P1AeurcaL_e8cdf781-5243-4dc5-9b51-41773fa4aeb7.jpg?v=1758642250"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61P1AeurcaL_e8cdf781-5243-4dc5-9b51-41773fa4aeb7.jpg?v=1758642250","width":1600},{"alt":"[Australia - AusPower] - QUARKZMAN Digital Load Cell 5 kg + HX711 Module Weighing Sensor 24 Bit Precision A\/D Dual Channel for DIY Portable Electronic Kitchen Scale Kit ","id":32189372072116,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61El-ja7k9L.jpg?v=1758642250"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61El-ja7k9L.jpg?v=1758642250","width":1600},{"alt":"[Australia - AusPower] - QUARKZMAN Digital Load Cell 5 kg + HX711 Module Weighing Sensor 24 Bit Precision A\/D Dual Channel for DIY Portable Electronic Kitchen Scale Kit ","id":32189372104884,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/618jaA07b_L_401c1c68-3ec6-457b-90fa-632384aaf7a0.jpg?v=1758642250"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/618jaA07b_L_401c1c68-3ec6-457b-90fa-632384aaf7a0.jpg?v=1758642250","width":1600},{"alt":"[Australia - AusPower] - QUARKZMAN Digital Load Cell 5 kg + HX711 Module Weighing Sensor 24 Bit Precision A\/D Dual Channel for DIY Portable Electronic Kitchen Scale Kit ","id":32189372137652,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61iwYfoc24L_95f4f99a-a8a0-44e8-8cc6-5613bc7431b0.jpg?v=1758642250"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61iwYfoc24L_95f4f99a-a8a0-44e8-8cc6-5613bc7431b0.jpg?v=1758642250","width":1600},{"alt":"[Australia - AusPower] - QUARKZMAN Digital Load Cell 5 kg + HX711 Module Weighing Sensor 24 Bit Precision A\/D Dual Channel for DIY Portable Electronic Kitchen Scale Kit ","id":32189372170420,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/81zTVGlgIXL_d9e4ebd4-ceea-4ca8-9a10-de2ae665de01.jpg?v=1758642250"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/81zTVGlgIXL_d9e4ebd4-ceea-4ca8-9a10-de2ae665de01.jpg?v=1758642250","width":1600},{"alt":"[Australia - AusPower] - QUARKZMAN Digital Load Cell 5 kg + HX711 Module Weighing Sensor 24 Bit Precision A\/D Dual Channel for DIY Portable Electronic Kitchen Scale Kit ","id":32189372203188,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71yZWblRg1L_0b81ba01-e32f-47e9-9a3d-af6ad5d23a14.jpg?v=1758642250"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71yZWblRg1L_0b81ba01-e32f-47e9-9a3d-af6ad5d23a14.jpg?v=1758642250","width":1600}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eQUARKZMAN Digital Load Cell 5 kg + HX711 Module Weighing Sensor 24 Bit Precision A\/D Dual Channel for DIY Portable Electronic Kitchen Scale Kit\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eWhat is it? The weighing sensor uses the 24-bit high-precision A\/D chip HX711,\nwhich has been specially developed for high-precision electronic scales and\nhas two analogue input channels. The digital load cell weight sensor is made\nof aluminium alloy with parallel bar structure. What will I get? HX711\nweighing sensor operating voltage: 2.6-5.5V. HX711 weighing sensor size: 16 x\n24 mm. Load cell maximum measuring force: 5 kg. Rated output sensitivity:\n1.0+\/-0.1mV\/V Zero output: ±0.1mV\/V. Non-linearity: 0.05%F.S Delay: 0.05%F.S\nRepeatability: 0.05% F.S. Creep (5 min): 0.05% F.S\/3 min. Output impedance:\n1000±50 ohms. Temperature impact on sensitivity: 0.05% F.S\/°C. Temperature\nimpact to zero: 0.05% F.S\/°C. Accuracy: 0.1 g. Size: 80 x 12.7 x 12.7 mm.\nConnection: Red to E+ \/ Black to E \/ Green to A+ \/ White to A Package\nincludes: 1 x HX711 weighing sensor + 1 x load cell weight sensor. Are there\nany advantages of the product? The 24-bit A\/D is used to provide accurate\nweight measurement results. The load cell converts the applied force into an\nelectrical signal, when using a 5-10V drive voltage, the force is output\ndirectly as a voltage change signal. How to use it? The electronic sensor\ncontains 4 ports for easy use. The weighing sensor must be connected to the\nHX711 module, red to E+, black to E, green to A+ and white to A What should I\npay attention to? One end of the sensor is fixed by the screw hole, the other\nend remains free. Apply gravity in the direction indicated by the label.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eThe weighing sensor uses the 24-bit high-precision A\/D chip HX711, which has been specially developed for high-precision electronic scales and has two analogue input channels. The digital load cell is made of aluminium alloy with parallel bar structure. Suitable for electronic kitchen scales, small appliances for force measurement and intelligent electronic weighing equipment.\u003c\/li\u003e\n \u003cli\u003eHX711 digital load cell operating voltage: 2.6-5.5 V; load cell maximum measuring force: 5 kg; rated output sensitivity: 1.0+\/-0.1 mV\/V; accuracy: 0.1g; output impedance: 100050 ohms.\u003c\/li\u003e\n \u003cli\u003eThe 24-bit A\/D is used to provide accurate weight measurement results. The load cell converts the applied force into an electrical signal, when using a 5-10V drive voltage, the force is output directly as a voltage change signal.\u003c\/li\u003e\n \u003cli\u003eThe electronic sensor contains 4 ports for easy use. The weighing sensor must be connected to the HX711 module, red to E+, black to E, green to A+ and white to A\u003c\/li\u003e\n \u003cli\u003eOne end of the sensor is fixed by the screw hole, the other end remains free. Apply gravity in the direction indicated by the label. Be especially careful not to press the white rubber part directly so as not to damage the sensor.\u003c\/li\u003e\n \u003c\/ul\u003e"}
