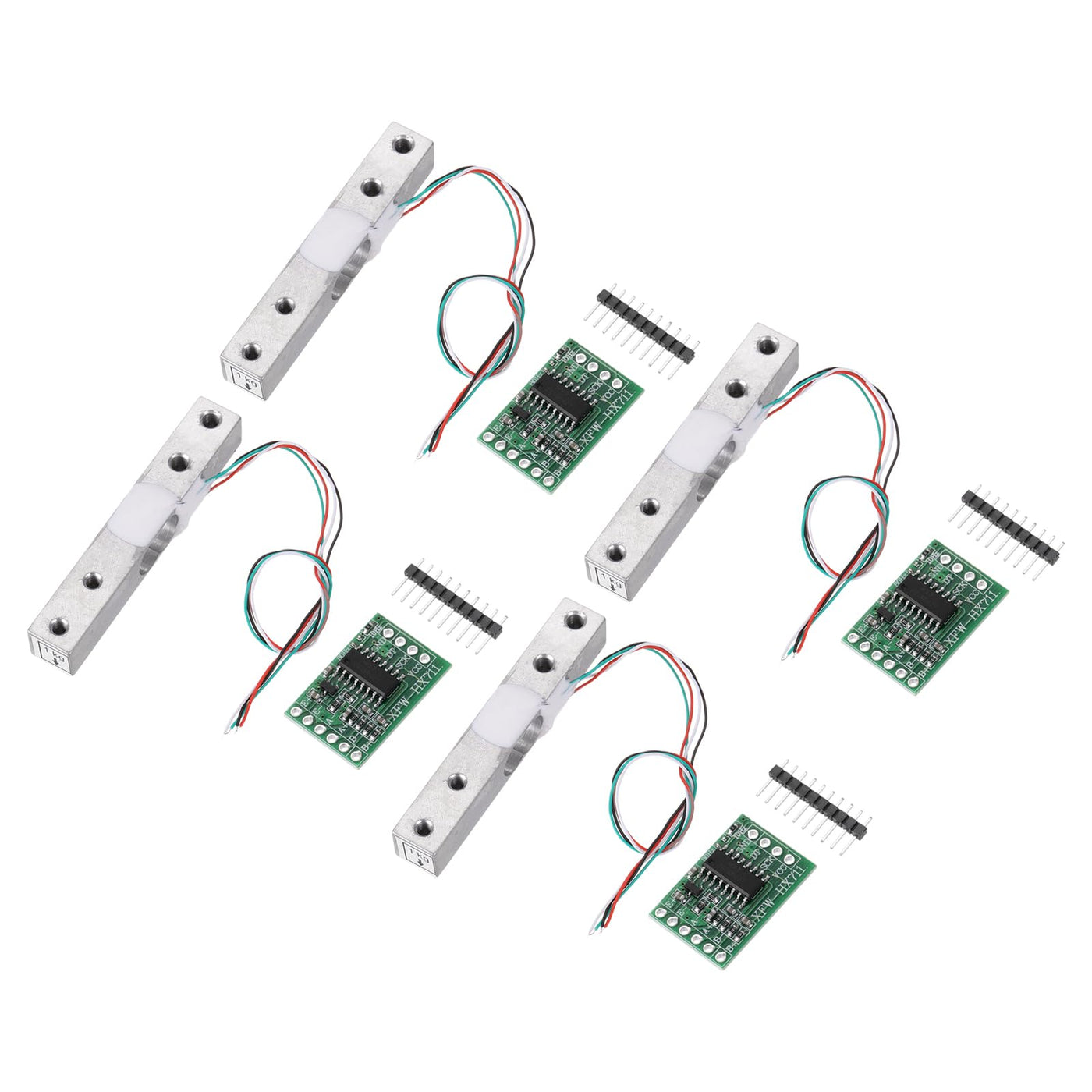

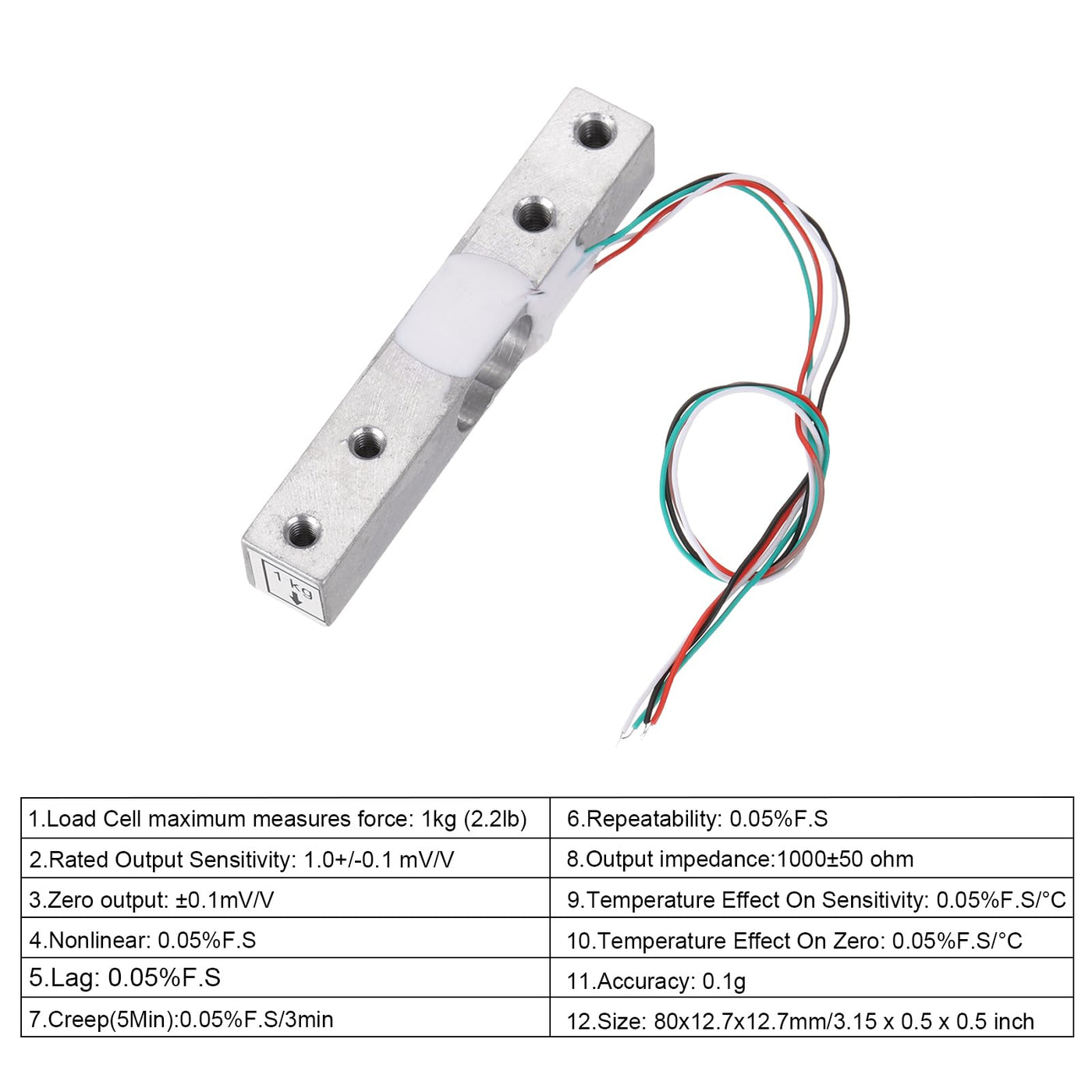

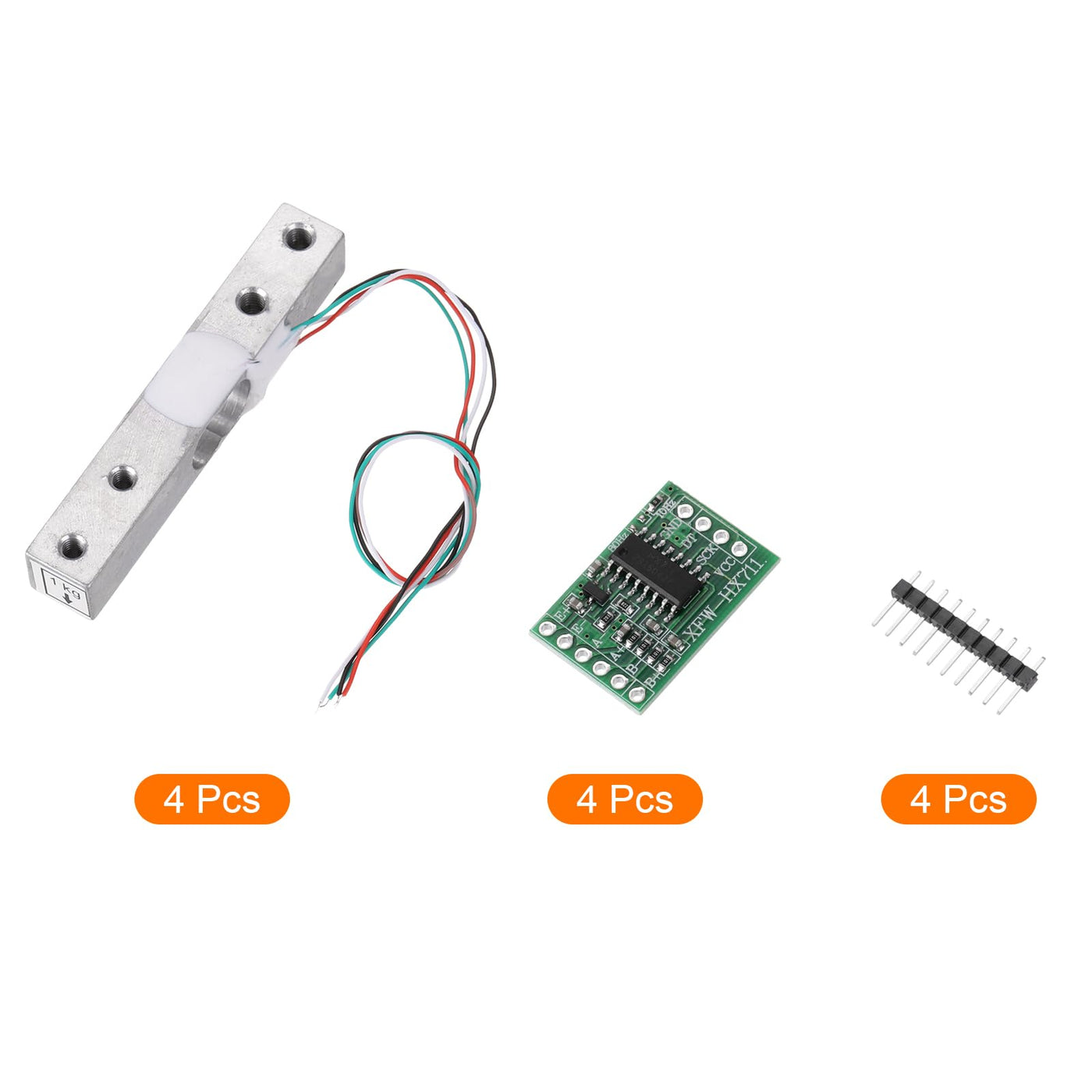

{"id":7992120082612,"title":"QUARKZMAN Digital Load Cell 1 kg + HX711 Module Weighing Sensor 24 Bit Precision A\/D Dual Channel for DIY Portable Electronic Kitchen Scale Kit Pack of 4","handle":"quarkzman-digital-load-cell-1-kg-hx711-module-weighing-sensor-24-bit-precision-a-d-dual-channel-for-diy-portable-electronic-kitchen-scale-kit-pack-of-4","description":"\u003ch3\u003eQUARKZMAN Digital Load Cell 1 kg + HX711 Module Weighing Sensor 24 Bit Precision A\/D Dual Channel for DIY Portable Electronic Kitchen Scale Kit Pack of 4\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eWhat is it? The weighing sensor uses the HX711 24-bit high-precision A\/D\nconversion chip, which is specially designed for high-precision electronic\nscales and has two analogue input channels. The digital load cell weighing\nsensor is made of aluminium alloy with parallel bar structure. What will I\nget? HX711 weighing sensor operating voltage: 2.6-5.5V. HX711 weighing sensor\nsize: 16 x 24 mm. Load cell maximum measuring force: 1 kg. Rated output\nsensitivity: 1.0+\/-0.1mV\/V Zero output: ±0.1mV\/V. Non-linearity: 0.05%F.S\nDelay: 0.05%F.S Repeatability: 0.05% F.S. Creep (5min): 0.05%F.S\/3min. Output\nimpedance: 1000±50 ohms. Temperature impact on sensitivity: 0.05% F.S\/°C.\nTemperature impact to zero: 0.05% F.S\/°C. Accuracy: 0.1 g. Size: 80 x 12.7 x\n12.7 mm. Connection: Red to E+ \/ Black to E \/ Green to A+ \/ White to A Package\nIncludes:4pcs x HX711 Weighing Sensor + 4pcs x Load Cell Weighing Sensor Are\nthere any advantages of the product? The 24-bit A\/D converter is used to\nprovide accurate weight measurement results. The load cell converts the\napplied force into an electrical signal. When a 5-10V drive voltage is\napplied, the force is output directly as a voltage change signal. How to use\nit? The electronic sensor contains 4 ports for easy use. The weighing sensor\nmust be connected to the HX711 module, Red to E+, Black to E, Green to A+ and\nWhite to A What should I pay attention to? One end of the sensor is fixed by\nthe screw hole, the other end remains free to hang. Gravity is applied in the\ndirection indicated by the label. Be especially careful not to press the white\nrubber part directly so as not to damage the sensor.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eThe weighing sensor uses the HX711 24-bit high-precision A\/D conversion chip, which is specially designed for high-precision electronic scales and has two analogue input channels. The digital load cell is made of aluminium alloy with parallel bar structure. Suitable for electronic kitchen scales, force measurement of small appliances and intelligent electronic weighing equipment.\u003c\/li\u003e\n \u003cli\u003eHX711 digital load cell operating voltage: 2.6-5.5 V; load cell maximum measuring force: 1 kg; rated output sensitivity: 1.0+\/-0.1 mV\/V; accuracy: 0.1g; output impedance: 100050 ohms.\u003c\/li\u003e\n \u003cli\u003eThe 24-bit A\/D converter is used to provide accurate weight measurement results. The load cell converts the applied force into an electrical signal. When a 5-10V drive voltage is applied, the force is output directly as a voltage change signal.\u003c\/li\u003e\n \u003cli\u003eThe electronic sensor contains 4 ports for easy use. The weighing sensor must be connected to the HX711 module, Red to E+, Black to E, Green to A+ and White to A\u003c\/li\u003e\n \u003cli\u003eOne end of the sensor is fixed by the screw hole, the other end remains free to hang. Gravity is applied in the direction indicated by the label. Be especially careful not to press the white rubber part directly so as not to damage the sensor.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-09-25T11:33:25+10:00","created_at":"2025-09-25T11:33:21+10:00","vendor":"QUARKZMAN","type":"Balance Accessories","tags":["industryDE_Sep2025"],"price":19100,"price_min":19100,"price_max":19100,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44052160184500,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B0DB1C5NX7","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"QUARKZMAN Digital Load Cell 1 kg + HX711 Module Weighing Sensor 24 Bit Precision A\/D Dual Channel for DIY Portable Electronic Kitchen Scale Kit Pack of 4","public_title":null,"options":["Default Title"],"price":19100,"weight":150,"compare_at_price":null,"inventory_management":"shopify","barcode":"000136aa240623qman","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/de-B0DB1C5NX7.jpg?v=1775770760","\/\/auspowers.com\/cdn\/shop\/files\/61OiJ5XEPLL.jpg?v=1758764302","\/\/auspowers.com\/cdn\/shop\/files\/61o8vdxVH0L.jpg?v=1758764302","\/\/auspowers.com\/cdn\/shop\/files\/61yk4jHa-JL.jpg?v=1758764197","\/\/auspowers.com\/cdn\/shop\/files\/61YjGEaOevL.jpg?v=1758764273","\/\/auspowers.com\/cdn\/shop\/files\/81zTVGlgIXL_8776dcdc-fafe-4297-b863-7b8bf9f00544.jpg?v=1758764198","\/\/auspowers.com\/cdn\/shop\/files\/71yZWblRg1L_b8dac79a-5ee5-4be9-a8f3-de446b4b4885.jpg?v=1758764211"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/de-B0DB1C5NX7.jpg?v=1775770760","options":["Title"],"media":[{"alt":"[Australia - AusPower] - QUARKZMAN Digital Load Cell 1 kg + HX711 Module Weighing Sensor 24 Bit Precision A\/D Dual Channel for DIY Portable Electronic Kitchen Scale Kit Pack of 4 ","id":32196909826228,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/de-B0DB1C5NX7.jpg?v=1775770760"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/de-B0DB1C5NX7.jpg?v=1775770760","width":1600},{"alt":"[Australia - AusPower] - QUARKZMAN Digital Load Cell 1 kg + HX711 Module Weighing Sensor 24 Bit Precision A\/D Dual Channel for DIY Portable Electronic Kitchen Scale Kit Pack of 4 ","id":32196909858996,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61OiJ5XEPLL.jpg?v=1758764302"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61OiJ5XEPLL.jpg?v=1758764302","width":1600},{"alt":"[Australia - AusPower] - QUARKZMAN Digital Load Cell 1 kg + HX711 Module Weighing Sensor 24 Bit Precision A\/D Dual Channel for DIY Portable Electronic Kitchen Scale Kit Pack of 4 ","id":32196909891764,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61o8vdxVH0L.jpg?v=1758764302"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61o8vdxVH0L.jpg?v=1758764302","width":1600},{"alt":"[Australia - AusPower] - QUARKZMAN Digital Load Cell 1 kg + HX711 Module Weighing Sensor 24 Bit Precision A\/D Dual Channel for DIY Portable Electronic Kitchen Scale Kit Pack of 4 ","id":32196909924532,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61yk4jHa-JL.jpg?v=1758764197"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61yk4jHa-JL.jpg?v=1758764197","width":1600},{"alt":"[Australia - AusPower] - QUARKZMAN Digital Load Cell 1 kg + HX711 Module Weighing Sensor 24 Bit Precision A\/D Dual Channel for DIY Portable Electronic Kitchen Scale Kit Pack of 4 ","id":32196909957300,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61YjGEaOevL.jpg?v=1758764273"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61YjGEaOevL.jpg?v=1758764273","width":1600},{"alt":"[Australia - AusPower] - QUARKZMAN Digital Load Cell 1 kg + HX711 Module Weighing Sensor 24 Bit Precision A\/D Dual Channel for DIY Portable Electronic Kitchen Scale Kit Pack of 4 ","id":32196909990068,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/81zTVGlgIXL_8776dcdc-fafe-4297-b863-7b8bf9f00544.jpg?v=1758764198"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/81zTVGlgIXL_8776dcdc-fafe-4297-b863-7b8bf9f00544.jpg?v=1758764198","width":1600},{"alt":"[Australia - AusPower] - QUARKZMAN Digital Load Cell 1 kg + HX711 Module Weighing Sensor 24 Bit Precision A\/D Dual Channel for DIY Portable Electronic Kitchen Scale Kit Pack of 4 ","id":32196910022836,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71yZWblRg1L_b8dac79a-5ee5-4be9-a8f3-de446b4b4885.jpg?v=1758764211"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71yZWblRg1L_b8dac79a-5ee5-4be9-a8f3-de446b4b4885.jpg?v=1758764211","width":1600}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eQUARKZMAN Digital Load Cell 1 kg + HX711 Module Weighing Sensor 24 Bit Precision A\/D Dual Channel for DIY Portable Electronic Kitchen Scale Kit Pack of 4\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eWhat is it? The weighing sensor uses the HX711 24-bit high-precision A\/D\nconversion chip, which is specially designed for high-precision electronic\nscales and has two analogue input channels. The digital load cell weighing\nsensor is made of aluminium alloy with parallel bar structure. What will I\nget? HX711 weighing sensor operating voltage: 2.6-5.5V. HX711 weighing sensor\nsize: 16 x 24 mm. Load cell maximum measuring force: 1 kg. Rated output\nsensitivity: 1.0+\/-0.1mV\/V Zero output: ±0.1mV\/V. Non-linearity: 0.05%F.S\nDelay: 0.05%F.S Repeatability: 0.05% F.S. Creep (5min): 0.05%F.S\/3min. Output\nimpedance: 1000±50 ohms. Temperature impact on sensitivity: 0.05% F.S\/°C.\nTemperature impact to zero: 0.05% F.S\/°C. Accuracy: 0.1 g. Size: 80 x 12.7 x\n12.7 mm. Connection: Red to E+ \/ Black to E \/ Green to A+ \/ White to A Package\nIncludes:4pcs x HX711 Weighing Sensor + 4pcs x Load Cell Weighing Sensor Are\nthere any advantages of the product? The 24-bit A\/D converter is used to\nprovide accurate weight measurement results. The load cell converts the\napplied force into an electrical signal. When a 5-10V drive voltage is\napplied, the force is output directly as a voltage change signal. How to use\nit? The electronic sensor contains 4 ports for easy use. The weighing sensor\nmust be connected to the HX711 module, Red to E+, Black to E, Green to A+ and\nWhite to A What should I pay attention to? One end of the sensor is fixed by\nthe screw hole, the other end remains free to hang. Gravity is applied in the\ndirection indicated by the label. Be especially careful not to press the white\nrubber part directly so as not to damage the sensor.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eThe weighing sensor uses the HX711 24-bit high-precision A\/D conversion chip, which is specially designed for high-precision electronic scales and has two analogue input channels. The digital load cell is made of aluminium alloy with parallel bar structure. Suitable for electronic kitchen scales, force measurement of small appliances and intelligent electronic weighing equipment.\u003c\/li\u003e\n \u003cli\u003eHX711 digital load cell operating voltage: 2.6-5.5 V; load cell maximum measuring force: 1 kg; rated output sensitivity: 1.0+\/-0.1 mV\/V; accuracy: 0.1g; output impedance: 100050 ohms.\u003c\/li\u003e\n \u003cli\u003eThe 24-bit A\/D converter is used to provide accurate weight measurement results. The load cell converts the applied force into an electrical signal. When a 5-10V drive voltage is applied, the force is output directly as a voltage change signal.\u003c\/li\u003e\n \u003cli\u003eThe electronic sensor contains 4 ports for easy use. The weighing sensor must be connected to the HX711 module, Red to E+, Black to E, Green to A+ and White to A\u003c\/li\u003e\n \u003cli\u003eOne end of the sensor is fixed by the screw hole, the other end remains free to hang. Gravity is applied in the direction indicated by the label. Be especially careful not to press the white rubber part directly so as not to damage the sensor.\u003c\/li\u003e\n \u003c\/ul\u003e"}
