QUARKZMAN 2-Piece Round Die UNF 1/4-20/UNF 3/8-16 American Cut-resistant Thread Cutting Dies Alloy Tool Steel Thread Repair Tool | American Cut-resistant Alloy Tool Steel, UNF 3/8-16 Thread Repair Tool
QUARKZMAN 2-Piece Round Die UNF 1/4-20/UNF 3/8-16 American Cut-resistant Thread Cutting Dies Alloy Tool Steel Thread Repair Tool | American Cutting Resistant Alloy Tool Steel UNF 3/8-16 Thread Repair Tool

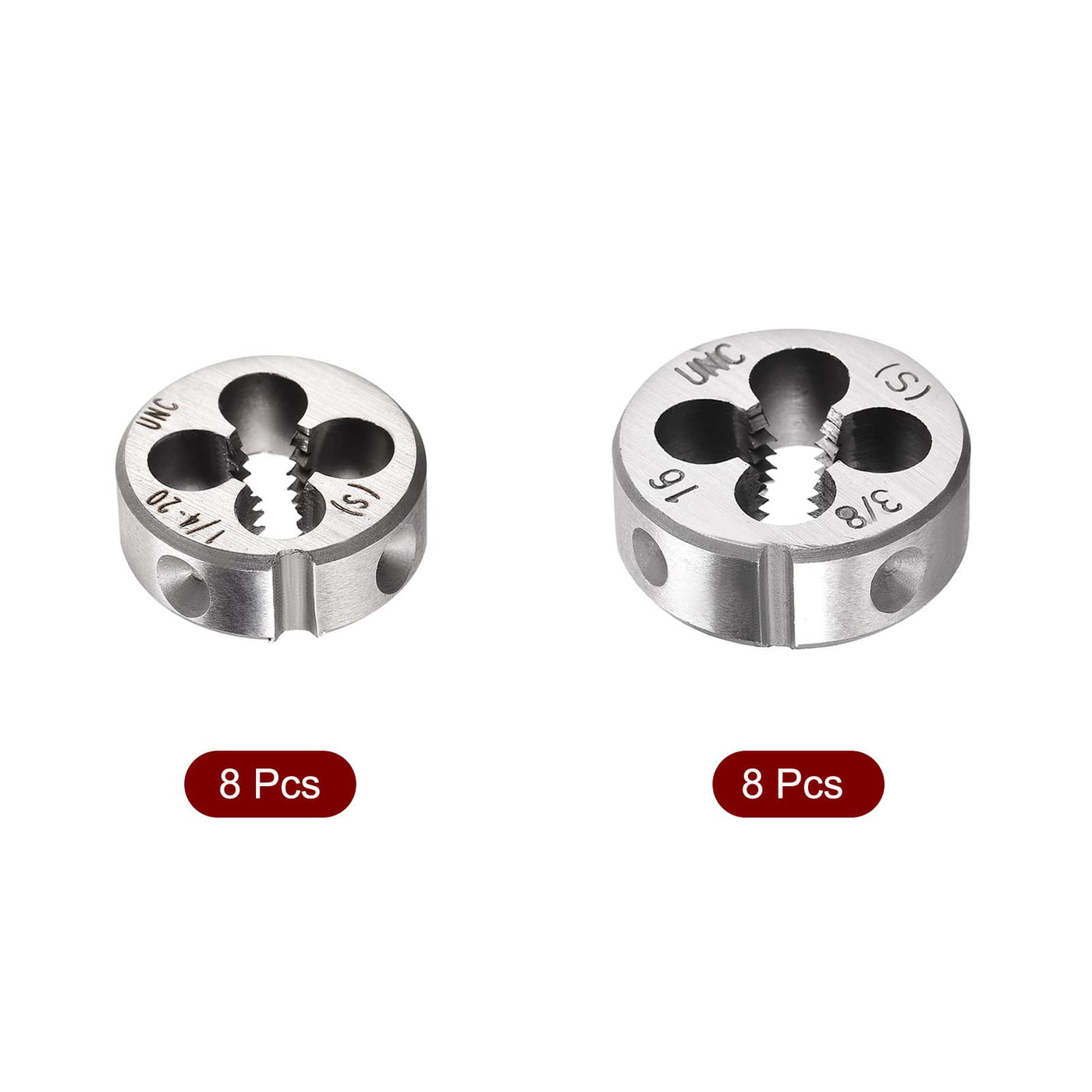

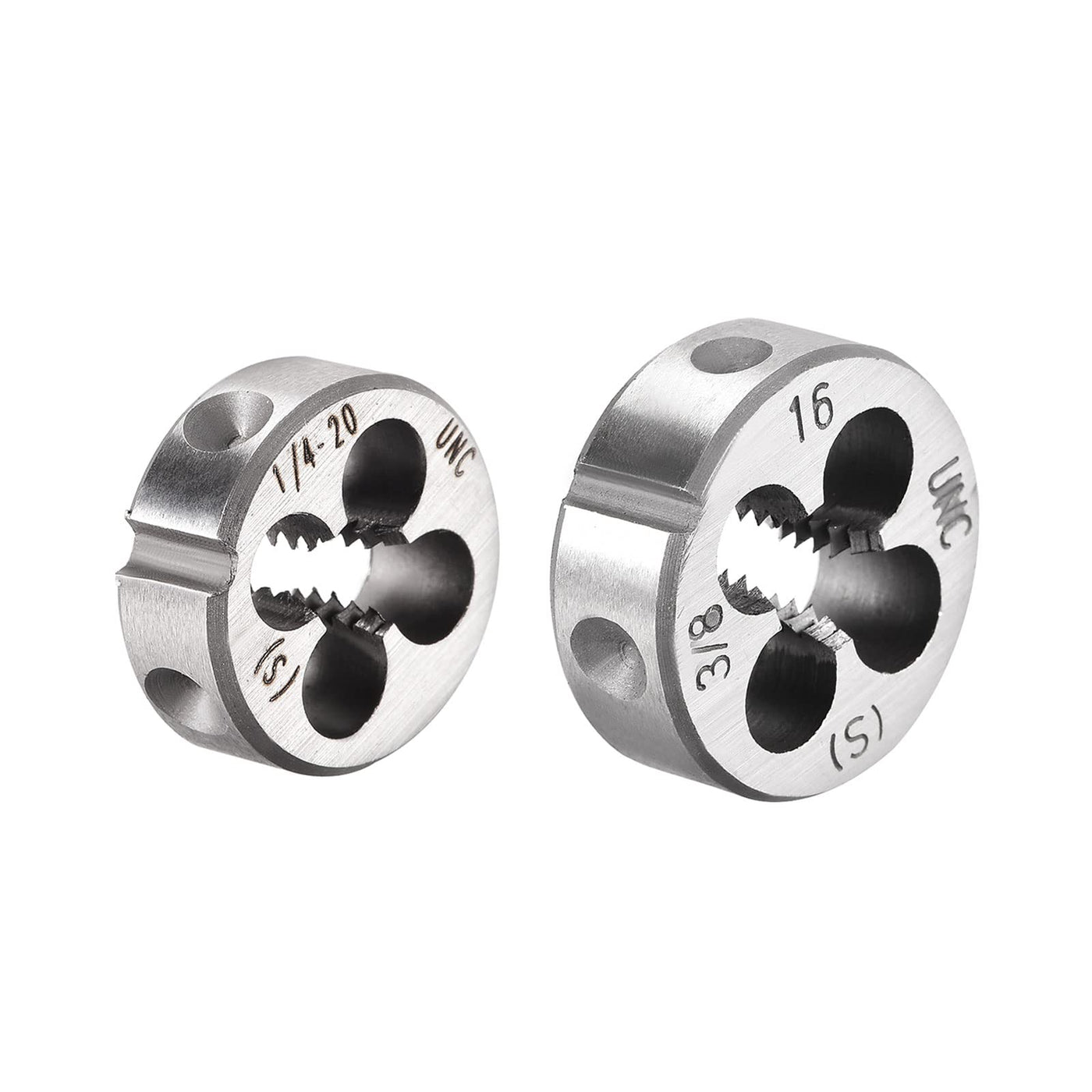

Specifications: Thread Size: 3 / 8-16 UNC, 1 / 4-20 UNC Outer diameter: 30 mm / 1.2 inches, 20 mm / 0.8 inches. Thickness: 11 mm / 0.43 inches, 7 mm / 0.28 inches. Accuracy class: 6g. Material: tool steel. Features: 1. Solid round tools are suitable for general thread cutting. Ideal for maintenance and repair work. 2. Round dies are perfect for re-threading existing threads into hard materials such as metal or making new threads into softer material such as plastic. 3. Ideal for maintenance and repair work in the workshop or in the field service. The size is etched onto the surface for easy identification. Package: 1 piece x 3/8-16 UNC round stamp. 1 piece x 1/4-20 UNC UNC round stamp
Product Features

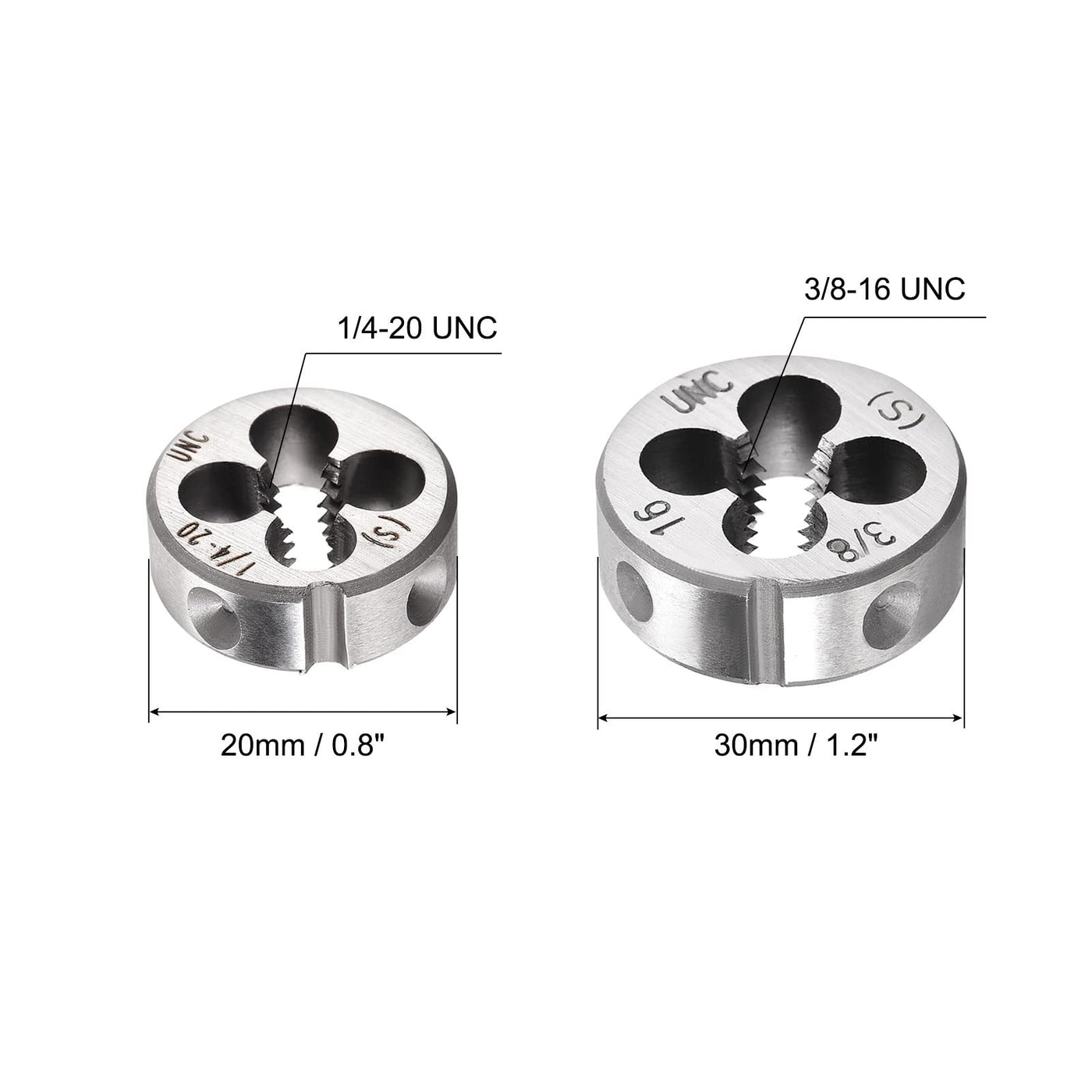

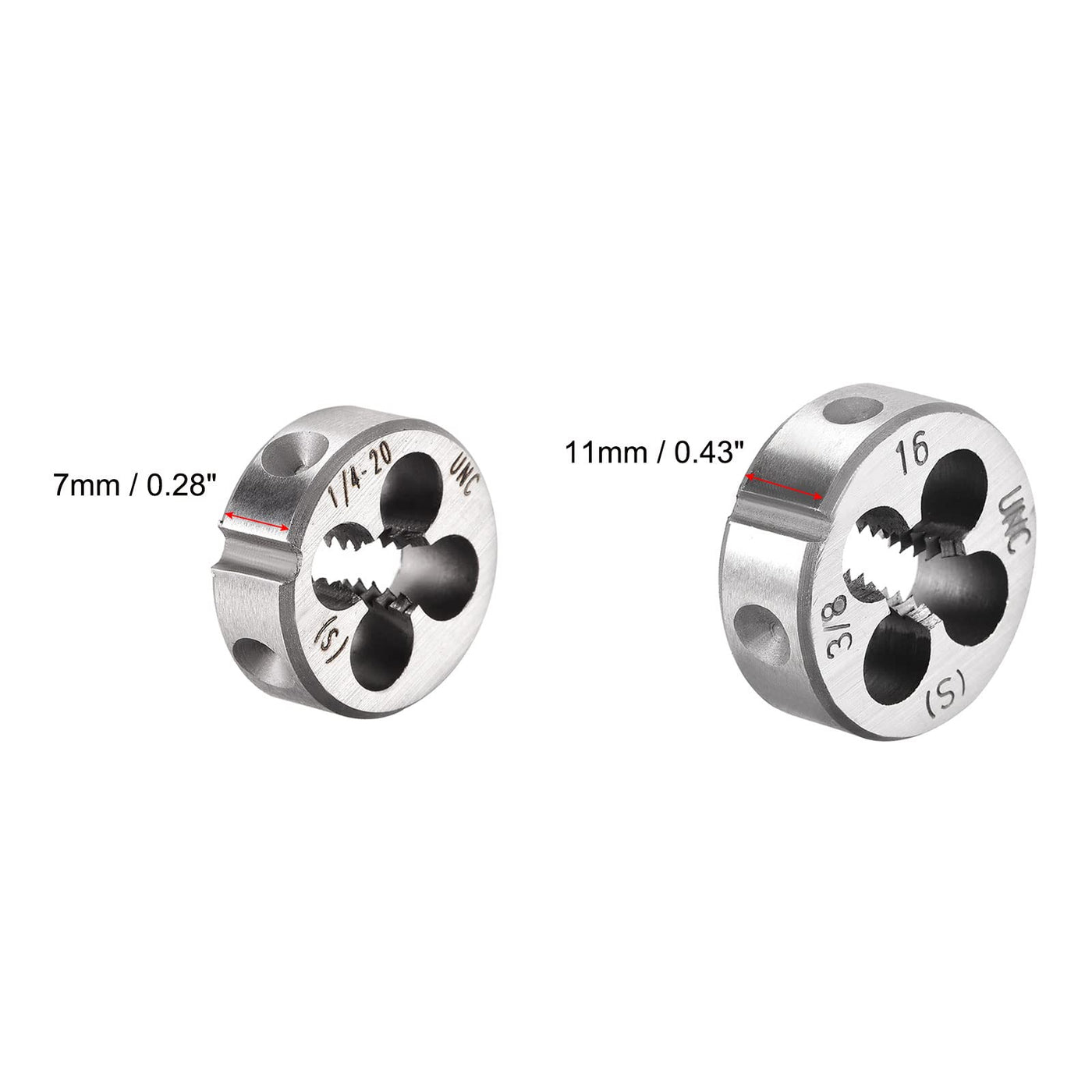

- Round die: thread size: 3/8-16 UNC, 1/4-20 UNC; outer diameter (OD): 30 mm / 1.2 inches, 20 mm / 0.8 inches; thickness: 11 mm / 0.43 inches, 7 mm / 0.28 inches; accuracy class: 6g. Made of alloy tool steel, hardness, high torque, good toughness and wear resistance.

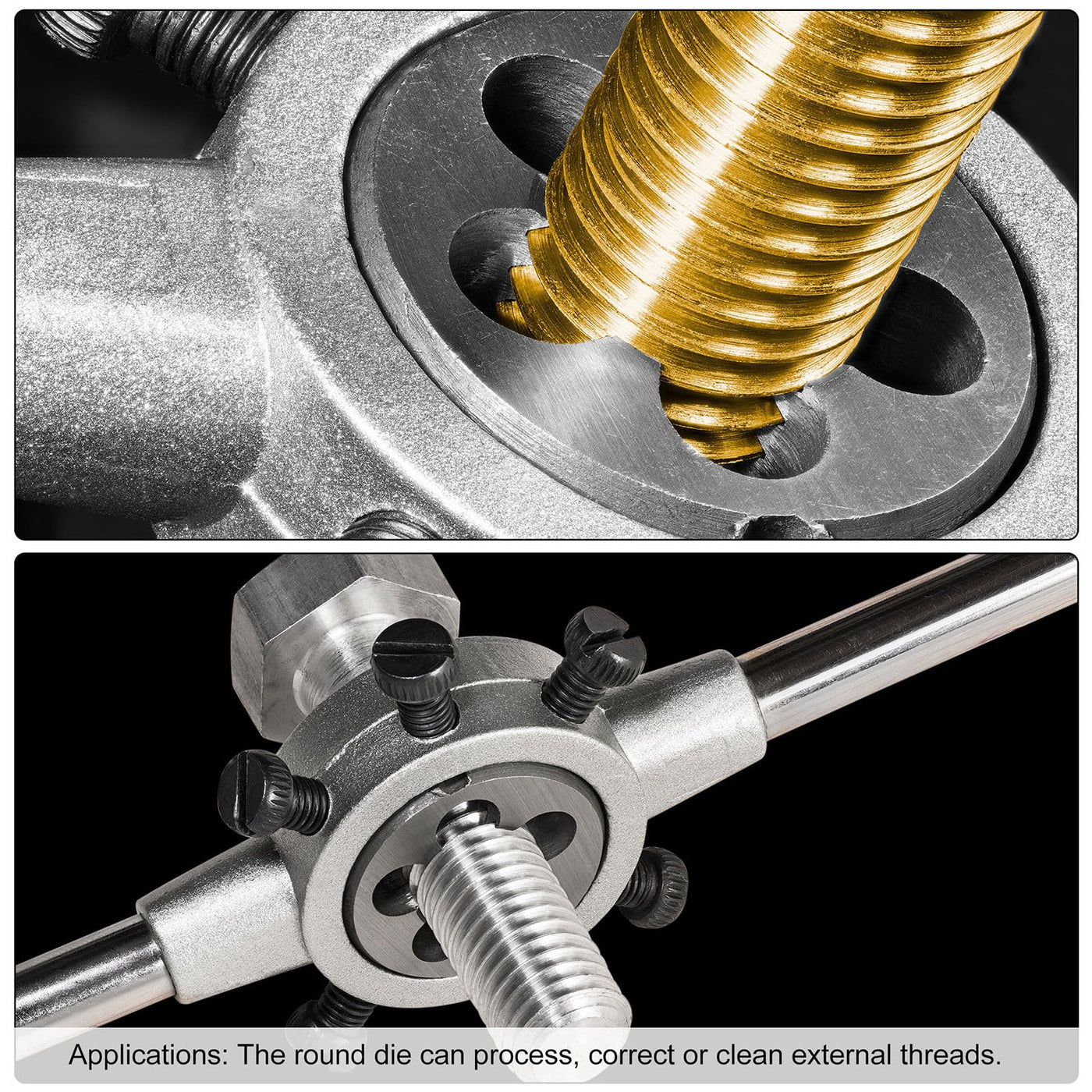

- Applications: can edit, correct or clean the external threads. Suitable for general purpose threads in stainless steel, aluminum alloy, cast iron, copper, iron, aluminum, plastic, etc. Ideal for maintenance and repair work on pipes, plates and machinery.
- Features: Tapered locking hole, strong locking and not loose. Perfect for re-threading existing threads into hard materials such as metal and making new threads into soft material such as plastic. The surface is lubricated with grease to avoid rust, the thread is clear and easy to repair.
- Easy to Use The positioning groove of the die should be aligned with the fixing screw in the middle of the die wrench, and the screw should be inserted into the slot of the die and tightened. The end of the rod should be 1 x 45 degrees bevelled and the chamfer is too large to cut.

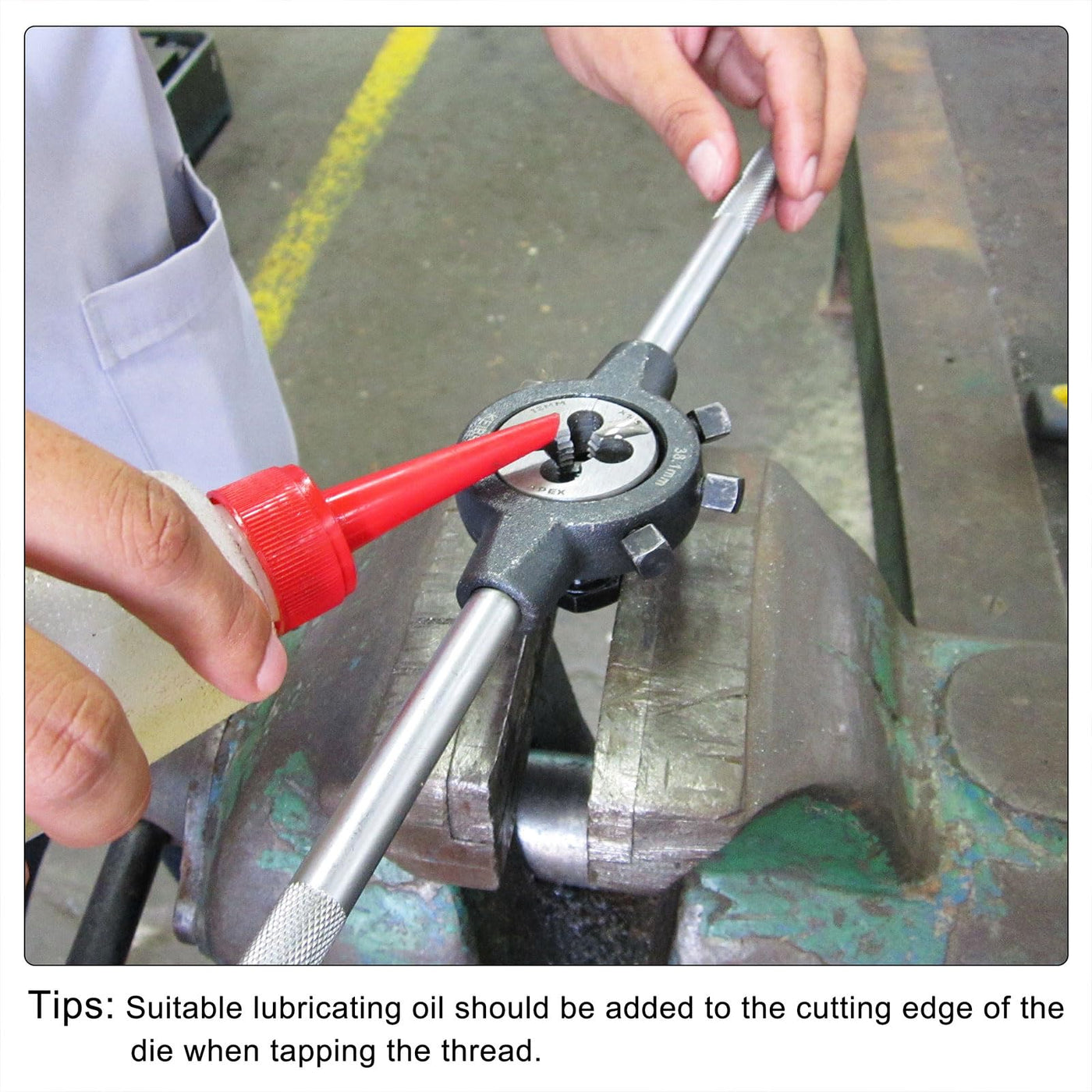

- Tips: It must be reversed every 1/4~1/2 turns to facilitate chip discharge from the chip hole. When tapping, suitable lubricating oil should be added to the cutting edge of the die. The rod diameter should be smaller (about 0.05 mm - 0.15 mm) than the nominal diameter of the required thread. Too large diameter can easily lead to difficult cutting and damage to the teeth.
