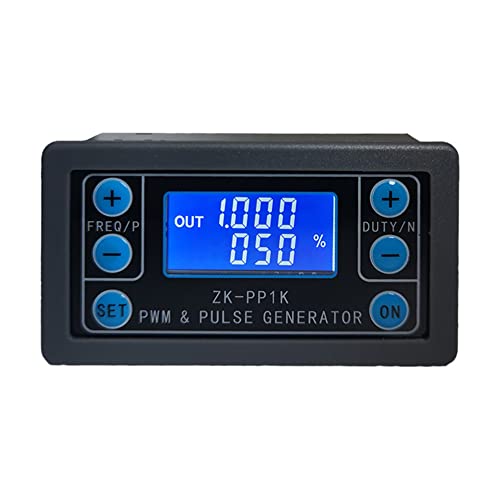

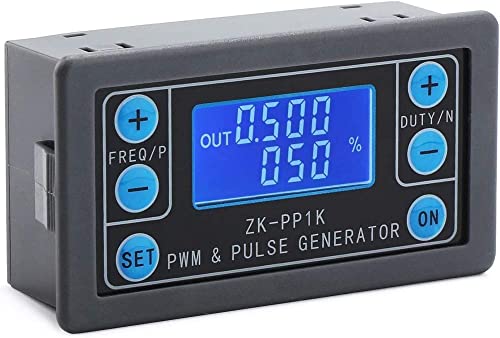

{"id":8115066568884,"title":"PWM Signal Generator, 1HZ~150KHz, Dual Mode Generator, Adjustable Pulse Rate Shutdown Ratio, Rectangular Square Shaft Module with Housing","handle":"pwm-signal-generator-1hz-150khz-dual-mode-generator-adjustable-pulse-rate-shutdown-ratio-rectangular-square-shaft-module-with-housing","description":"\u003ch3\u003ePWM Signal Generator, 1HZ~150KHz, Dual Mode Generator, Adjustable Pulse Rate Shutdown Ratio, Rectangular Square Shaft Module with Housing\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eParameters: Operating voltage: 3.3V ~ 30V, with anti-reverse protection.\nFrequency range: 1Hz ~ 150KHz, accuracy approx. 1%. Duty cycle: 0-100%, 1%\ngradient. Number of pulses: 1-9999, or infinity (display '----' stands for\ninfinity). Delay output time: 0.000s - 9999s, the minimum can be set to 1ms.\nPositive and negative pulse width length: 0.000 - 9999s, the minimum setting\ncan be 1ms. Signal charging capacity: less than 30mA Output signal amplitude:\nthe amplitude is equal to the supply voltage. Product Size: 79mm x 43mm x 30mm\nFeatures: PWM mode - Frequency (continuous), button cycle. Note that the\nnumber of pulses in this mode cannot be set, and the pulse is always sent.\nPulse mode - positive pulse width time, negative pulse width, start time delay\nand number of pulses are adjustable. Package includes: 1 x PWM Signal\nGenerator\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eParameters: Operating voltage: 3.3V~30V, Frequency range: 1Hz~150KHz, Signal charging capacity: less than 30mA.\u003c\/li\u003e\n \u003cli\u003eDual Mode The signal generator has two modes, PWM and pulse.\u003c\/li\u003e\n \u003cli\u003eProtection - With anti-return protection, 5.08mm terminal\u003c\/li\u003e\n \u003cli\u003eEasy to Use The signal generator with button can control start or stop, it can also be connected to the external switch to control the output signal ON\/OFF.\u003c\/li\u003e\n \u003cli\u003eApplication The generator module can be used to generate rectangular wave signals to control DC motors or stepper motor drivers; for servo motors, stepper motors, electric jaws, instead of PLC pulses, etc.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2026-09-02T12:29:37+10:00","created_at":"2026-09-01T21:52:00+10:00","vendor":"Fasizi","type":"Function Generators","tags":["industrial_DE_Aug2026"],"price":11300,"price_min":11300,"price_max":11300,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44374772613300,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B09Z29NDQK","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"PWM Signal Generator, 1HZ~150KHz, Dual Mode Generator, Adjustable Pulse Rate Shutdown Ratio, Rectangular Square Shaft Module with Housing","public_title":null,"options":["Default Title"],"price":11300,"weight":40,"compare_at_price":null,"inventory_management":"shopify","barcode":"798339965076","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/B09Z29NDQK.jpg?v=1788263522","\/\/auspowers.com\/cdn\/shop\/files\/41qUFPYgCtL.jpg?v=1788263522","\/\/auspowers.com\/cdn\/shop\/files\/51ADmeTkbHL.jpg?v=1788263522","\/\/auspowers.com\/cdn\/shop\/files\/41cyhs5OJcL.jpg?v=1788263522","\/\/auspowers.com\/cdn\/shop\/files\/51L-z5QZZaL.jpg?v=1788263522","\/\/auspowers.com\/cdn\/shop\/files\/41JrIqzkbVL.jpg?v=1788263522","\/\/auspowers.com\/cdn\/shop\/files\/51SEo_zYFwL.jpg?v=1788263522"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/B09Z29NDQK.jpg?v=1788263522","options":["Title"],"media":[{"alt":null,"id":33271909449908,"position":1,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/B09Z29NDQK.jpg?v=1788263522"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/B09Z29NDQK.jpg?v=1788263522","width":500},{"alt":null,"id":33271909482676,"position":2,"preview_image":{"aspect_ratio":1.479,"height":338,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/41qUFPYgCtL.jpg?v=1788263522"},"aspect_ratio":1.479,"height":338,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/41qUFPYgCtL.jpg?v=1788263522","width":500},{"alt":null,"id":33271909515444,"position":3,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51ADmeTkbHL.jpg?v=1788263522"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51ADmeTkbHL.jpg?v=1788263522","width":500},{"alt":null,"id":33271909548212,"position":4,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/41cyhs5OJcL.jpg?v=1788263522"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/41cyhs5OJcL.jpg?v=1788263522","width":500},{"alt":null,"id":33271909580980,"position":5,"preview_image":{"aspect_ratio":1.087,"height":460,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51L-z5QZZaL.jpg?v=1788263522"},"aspect_ratio":1.087,"height":460,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51L-z5QZZaL.jpg?v=1788263522","width":500},{"alt":null,"id":33271909613748,"position":6,"preview_image":{"aspect_ratio":1.211,"height":413,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/41JrIqzkbVL.jpg?v=1788263522"},"aspect_ratio":1.211,"height":413,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/41JrIqzkbVL.jpg?v=1788263522","width":500},{"alt":null,"id":33271909646516,"position":7,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51SEo_zYFwL.jpg?v=1788263522"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51SEo_zYFwL.jpg?v=1788263522","width":500}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003ePWM Signal Generator, 1HZ~150KHz, Dual Mode Generator, Adjustable Pulse Rate Shutdown Ratio, Rectangular Square Shaft Module with Housing\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eParameters: Operating voltage: 3.3V ~ 30V, with anti-reverse protection.\nFrequency range: 1Hz ~ 150KHz, accuracy approx. 1%. Duty cycle: 0-100%, 1%\ngradient. Number of pulses: 1-9999, or infinity (display '----' stands for\ninfinity). Delay output time: 0.000s - 9999s, the minimum can be set to 1ms.\nPositive and negative pulse width length: 0.000 - 9999s, the minimum setting\ncan be 1ms. Signal charging capacity: less than 30mA Output signal amplitude:\nthe amplitude is equal to the supply voltage. Product Size: 79mm x 43mm x 30mm\nFeatures: PWM mode - Frequency (continuous), button cycle. Note that the\nnumber of pulses in this mode cannot be set, and the pulse is always sent.\nPulse mode - positive pulse width time, negative pulse width, start time delay\nand number of pulses are adjustable. Package includes: 1 x PWM Signal\nGenerator\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eParameters: Operating voltage: 3.3V~30V, Frequency range: 1Hz~150KHz, Signal charging capacity: less than 30mA.\u003c\/li\u003e\n \u003cli\u003eDual Mode The signal generator has two modes, PWM and pulse.\u003c\/li\u003e\n \u003cli\u003eProtection - With anti-return protection, 5.08mm terminal\u003c\/li\u003e\n \u003cli\u003eEasy to Use The signal generator with button can control start or stop, it can also be connected to the external switch to control the output signal ON\/OFF.\u003c\/li\u003e\n \u003cli\u003eApplication The generator module can be used to generate rectangular wave signals to control DC motors or stepper motor drivers; for servo motors, stepper motors, electric jaws, instead of PLC pulses, etc.\u003c\/li\u003e\n \u003c\/ul\u003e"}
