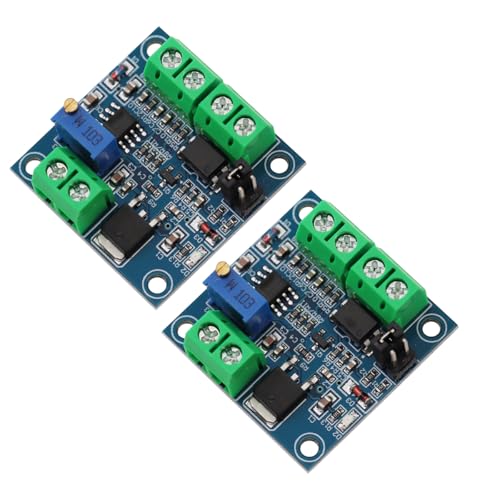

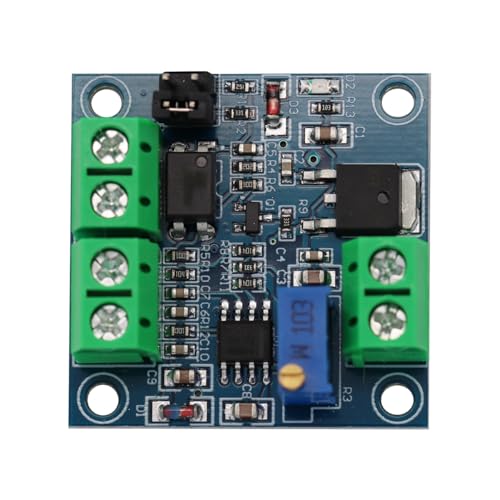

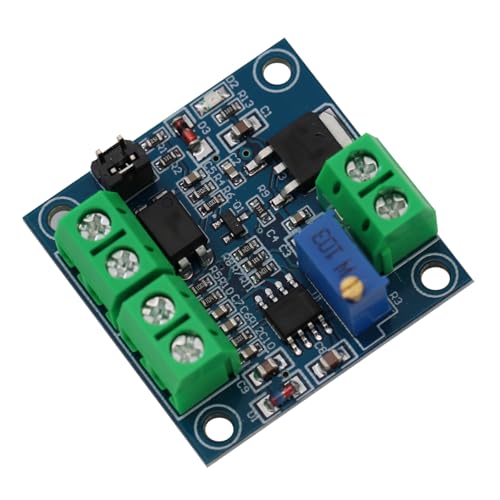

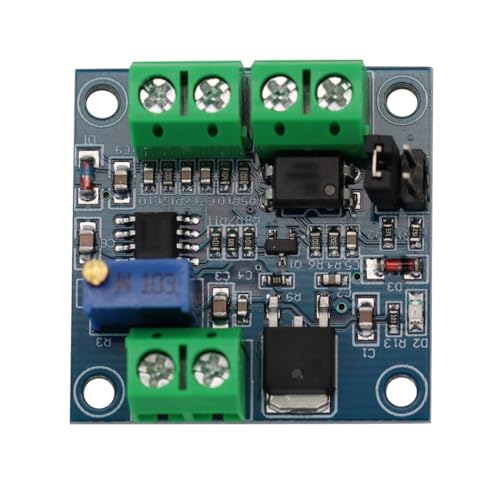

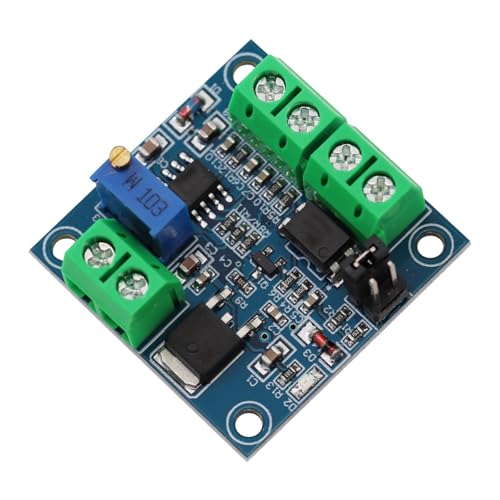

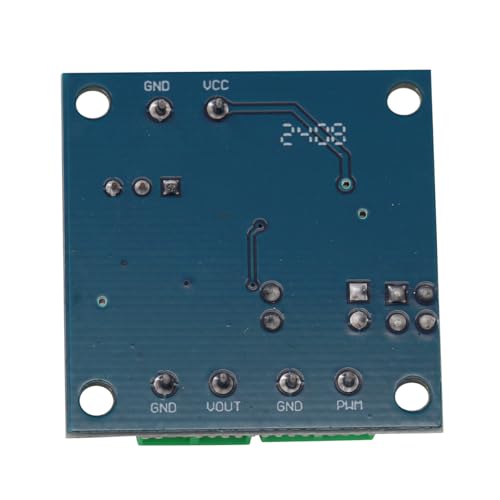

{"id":8115236667572,"title":"PWM Rotary Voltage Module 0%-100% PWM Turn to 0V-10V Voltage PWM to Voltage Converter Module, PWM Voltage Module (Pack of 2) 2PCS PWM to Voltage","handle":"pwm-rotary-voltage-module-0-100-pwm-turn-to-0v-10v-voltage-pwm-to-voltage-converter-module-pwm-voltage-module-pack-of-2-2pcs-pwm-to-voltage","description":"\u003ch3\u003ePWM Rotary Voltage Module 0%-100% PWM Turn to 0V-10V Voltage PWM to Voltage Converter Module, PWM Voltage Module (Pack of 2)\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eParameters: Module operating voltage: DC 12 V - 30 V (power requirements: \u0026gt;100\nMA) PWM signal reception frequency range: 1KHz - 3KHz. PWM Conversion Range:\n0%-100% PWM Conversion 0-10V Permissible error: 5%. PWM signal input level\nrange: Feng value from 4.5V to 10V level, jump needle at 5V. Class level\nsignal mainly for conventional industrial control CARDS (e.g. MACH3 cards), 5V\nCPU interface. Fengfeng value between 12V and 24V level, jump needle at 24V.\nClass level signal mainly for conventional PLC interface. Wiring instructions:\nVCC: Working power 12V-30V GND: working performance.v PWM: input PWM signal\npositive pole. GND: the input signal is negative end. VOUT: 0 to 10V output\nvoltage. GND: Output Voltage Instructions: After power on, there is no input\nsignal, the output is 0V. Electricity for the first time it is best to perform\na calibration debugging: find a 50% duty cycle of access to the PWM signal\nGND, according to the relative amplitude jump needle. The output voltage can\nbe adjusted by adjusting the duty cycle. The precision could be controlled by\nadjusting the potentiometer. Application: 1. PWM rotary voltage module can\nconvert PWM digital signal into 0-10V analogue signals. Can be used in the PLC\nor other industrial panel switch signal interface. 2. By adjusting the PWM\nduty cycle to adjust the output voltage. 3. Module size is small, easy to use\nin different places. Box contents: 2 x PWM rotary voltage module 0% -100% PWM\nturn to 0V-10V voltage module\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eModule Operating Voltage: DC 12V - 30V (Current Requirement: \u0026gt;100mA)\u003c\/li\u003e\n \u003cli\u003eThis PWM to voltage module can convert the digital PWM signal into an analog signal 0~10V.\u003c\/li\u003e\n \u003cli\u003eEasy to use, can be passed to fine tuning potentiometer.\u003c\/li\u003e\n \u003cli\u003eBy short circuit, select the PWM signal input level range.\u003c\/li\u003e\n \u003cli\u003eThe signal input port uses optical coupling isolation to ensure anti-interference ability.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2026-09-02T11:32:04+10:00","created_at":"2026-09-01T23:30:23+10:00","vendor":"Heevhas","type":"Voltage Transducers","tags":["industrial_DE_Aug2026"],"price":9400,"price_min":9400,"price_max":9400,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44374956409012,"title":"2PCS PWM to Voltage","option1":"2PCS PWM to Voltage","option2":null,"option3":null,"sku":"de-B0DRHPV6FT","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"PWM Rotary Voltage Module 0%-100% PWM Turn to 0V-10V Voltage PWM to Voltage Converter Module, PWM Voltage Module (Pack of 2) 2PCS PWM to Voltage - 2PCS PWM to Voltage","public_title":"2PCS PWM to Voltage","options":["2PCS PWM to Voltage"],"price":9400,"weight":23,"compare_at_price":null,"inventory_management":"shopify","barcode":"X178-1","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/de-B0DRHPV6FT.jpg?v=1788269426","\/\/auspowers.com\/cdn\/shop\/files\/41xo5F5UMBL.jpg?v=1788269426","\/\/auspowers.com\/cdn\/shop\/files\/41b4-jqA_GL.jpg?v=1788269426","\/\/auspowers.com\/cdn\/shop\/files\/41jtokQ002L.jpg?v=1788269426","\/\/auspowers.com\/cdn\/shop\/files\/415s5eU4CwL.jpg?v=1788269426","\/\/auspowers.com\/cdn\/shop\/files\/3119OeEP2_L.jpg?v=1788269426"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/de-B0DRHPV6FT.jpg?v=1788269426","options":["Colour Name"],"media":[{"alt":null,"id":33272927944884,"position":1,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/de-B0DRHPV6FT.jpg?v=1788269426"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/de-B0DRHPV6FT.jpg?v=1788269426","width":500},{"alt":null,"id":33272927977652,"position":2,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/41xo5F5UMBL.jpg?v=1788269426"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/41xo5F5UMBL.jpg?v=1788269426","width":500},{"alt":null,"id":33272928010420,"position":3,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/41b4-jqA_GL.jpg?v=1788269426"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/41b4-jqA_GL.jpg?v=1788269426","width":500},{"alt":null,"id":33272928043188,"position":4,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/41jtokQ002L.jpg?v=1788269426"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/41jtokQ002L.jpg?v=1788269426","width":500},{"alt":null,"id":33272928075956,"position":5,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/415s5eU4CwL.jpg?v=1788269426"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/415s5eU4CwL.jpg?v=1788269426","width":500},{"alt":null,"id":33272928108724,"position":6,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/3119OeEP2_L.jpg?v=1788269426"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/3119OeEP2_L.jpg?v=1788269426","width":500}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003ePWM Rotary Voltage Module 0%-100% PWM Turn to 0V-10V Voltage PWM to Voltage Converter Module, PWM Voltage Module (Pack of 2)\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eParameters: Module operating voltage: DC 12 V - 30 V (power requirements: \u0026gt;100\nMA) PWM signal reception frequency range: 1KHz - 3KHz. PWM Conversion Range:\n0%-100% PWM Conversion 0-10V Permissible error: 5%. PWM signal input level\nrange: Feng value from 4.5V to 10V level, jump needle at 5V. Class level\nsignal mainly for conventional industrial control CARDS (e.g. MACH3 cards), 5V\nCPU interface. Fengfeng value between 12V and 24V level, jump needle at 24V.\nClass level signal mainly for conventional PLC interface. Wiring instructions:\nVCC: Working power 12V-30V GND: working performance.v PWM: input PWM signal\npositive pole. GND: the input signal is negative end. VOUT: 0 to 10V output\nvoltage. GND: Output Voltage Instructions: After power on, there is no input\nsignal, the output is 0V. Electricity for the first time it is best to perform\na calibration debugging: find a 50% duty cycle of access to the PWM signal\nGND, according to the relative amplitude jump needle. The output voltage can\nbe adjusted by adjusting the duty cycle. The precision could be controlled by\nadjusting the potentiometer. Application: 1. PWM rotary voltage module can\nconvert PWM digital signal into 0-10V analogue signals. Can be used in the PLC\nor other industrial panel switch signal interface. 2. By adjusting the PWM\nduty cycle to adjust the output voltage. 3. Module size is small, easy to use\nin different places. Box contents: 2 x PWM rotary voltage module 0% -100% PWM\nturn to 0V-10V voltage module\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eModule Operating Voltage: DC 12V - 30V (Current Requirement: \u0026gt;100mA)\u003c\/li\u003e\n \u003cli\u003eThis PWM to voltage module can convert the digital PWM signal into an analog signal 0~10V.\u003c\/li\u003e\n \u003cli\u003eEasy to use, can be passed to fine tuning potentiometer.\u003c\/li\u003e\n \u003cli\u003eBy short circuit, select the PWM signal input level range.\u003c\/li\u003e\n \u003cli\u003eThe signal input port uses optical coupling isolation to ensure anti-interference ability.\u003c\/li\u003e\n \u003c\/ul\u003e"}
