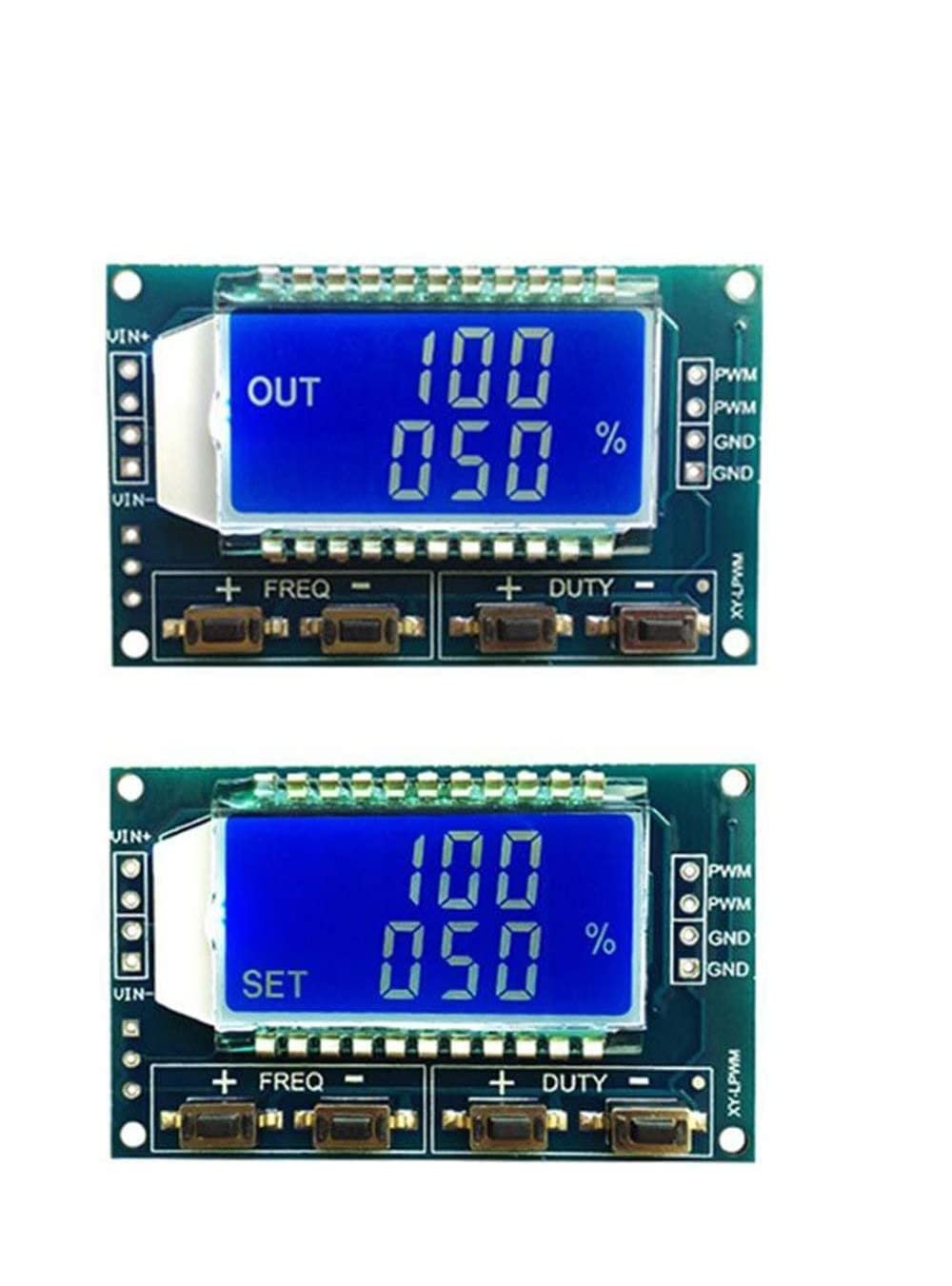

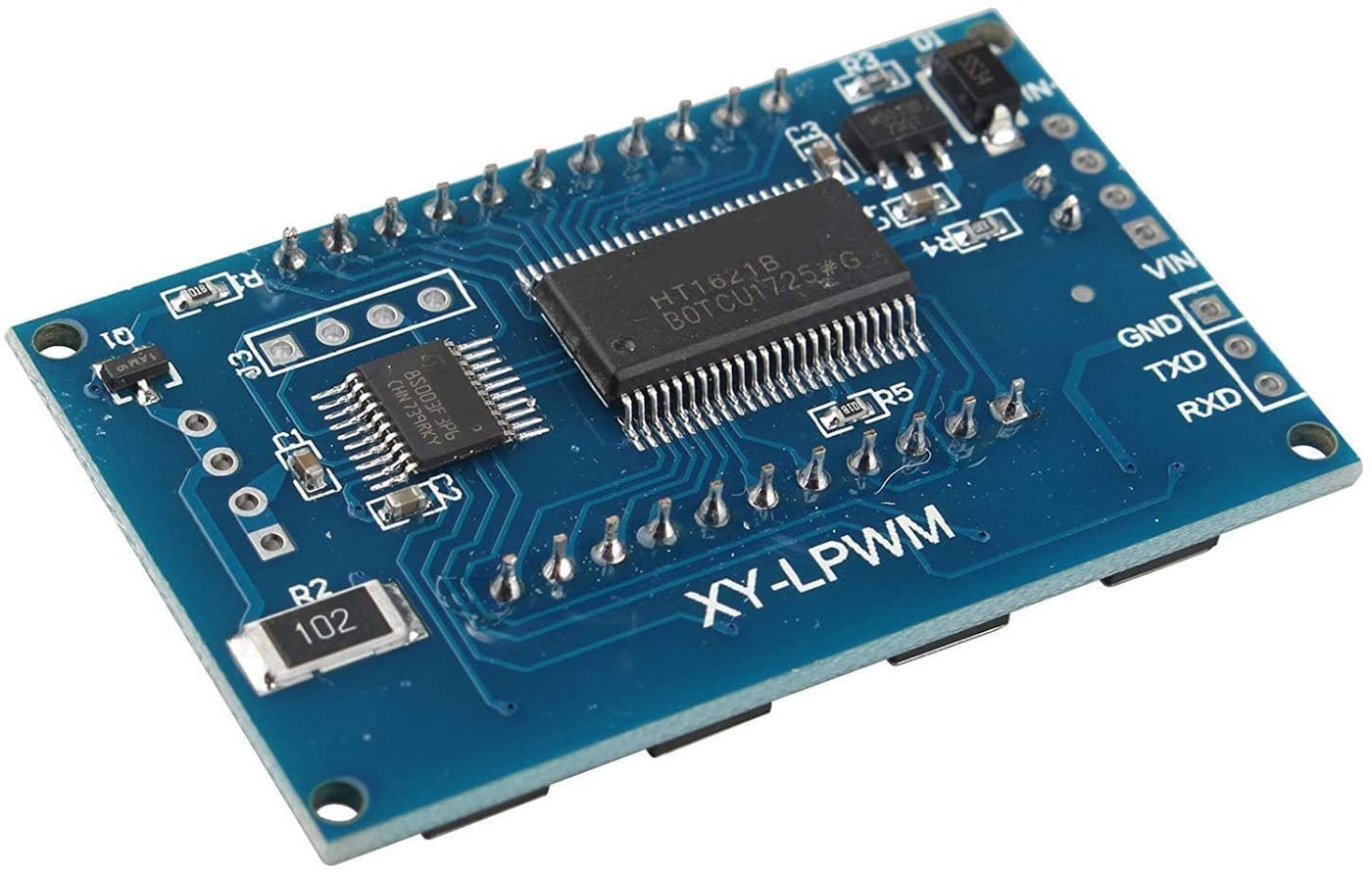

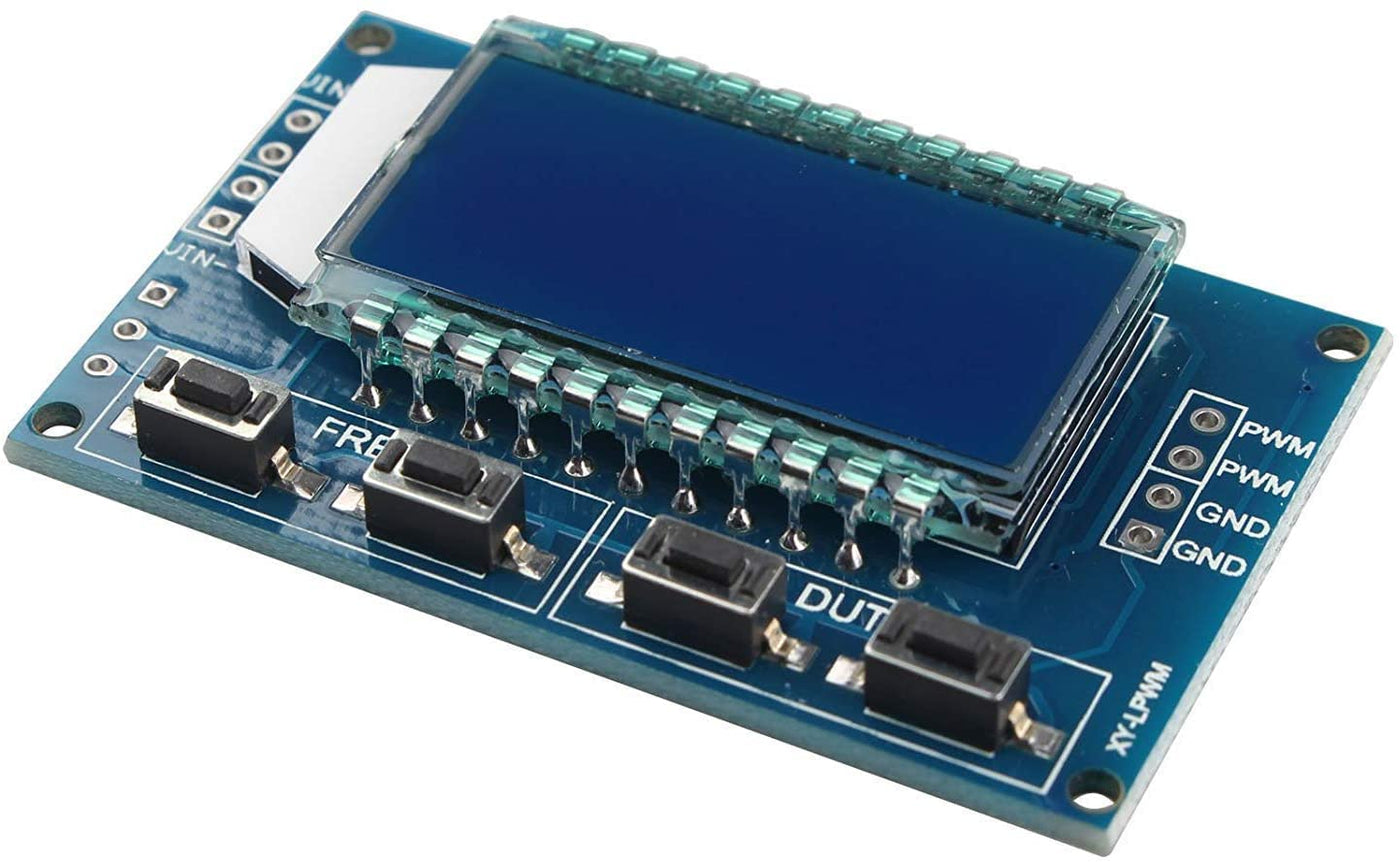

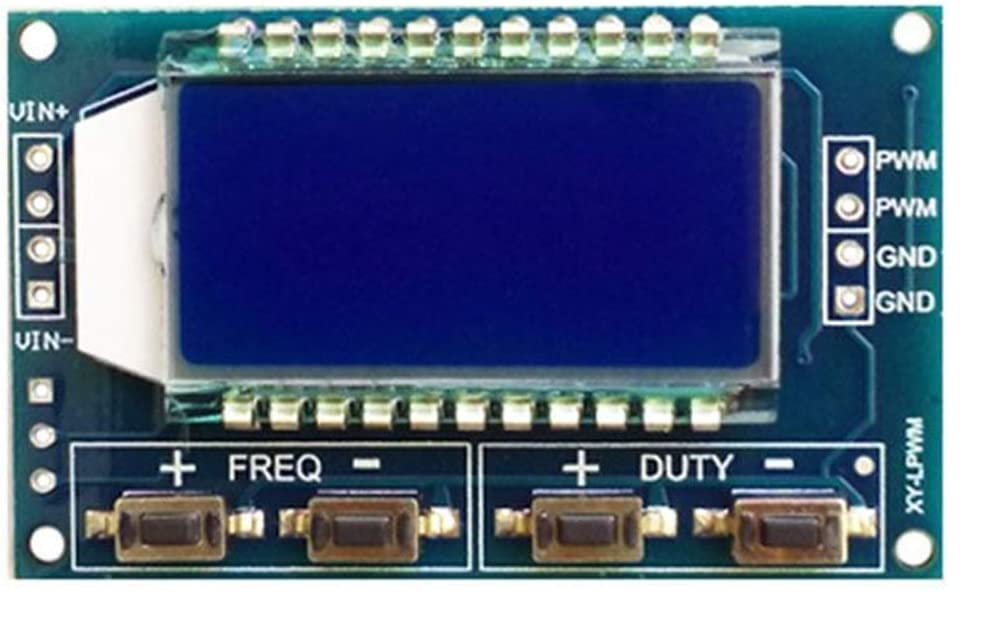

{"id":8115115753652,"title":"PWM Pulse Rate Duty Cycle Adjustable Module Square Wave Rectangular Wave Signal Generator XY-LPWM","handle":"pwm-pulse-rate-duty-cycle-adjustable-module-square-wave-rectangular-wave-signal-generator-xy-lpwm","description":"\u003ch3\u003ePWM Pulse Rate Duty Cycle Adjustable Module Square Wave Rectangular Wave Signal Generator XY-LPWM\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eDescription: The module has four independent buttons that are used to adjust\nthe frequency and turn on cycle and short press (fast increase or decrease),\nvery simple, set the parameters automatically save, power failure lost.\nSpecifications: Working Voltage: 3.3~30V Frequency range: 1Hz ~ 150KHz;\nFrequency Accuracy: The accuracy in each range is approx. 2% Signal\nresilience: the output current can be approx. 5 ~ 30 mA. Output amplitude: PWM\namplitude corresponds to the supply voltage; Ambient temperature: -20 ~ +70\ndegrees Celsius. Material: Metal Size: 52 x 32 mm. Colour: blue. Quantity:1PC\nPackage includes: 1 x Rectangular Wave Signal Generator\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eLCD liquid crystal display frequency and switch-on cycle, very clear, PWM output can be set separately frequency and button cycle.\u003c\/li\u003e\n \u003cli\u003eThe module has four independent buttons that are used to adjust the frequency and turn on cycle and short press (fast increase or decrease), very simple, set the parameters automatically save, power failure lost.\u003c\/li\u003e\n \u003cli\u003eUsed as a square wave signal generator, generates square wave signal for experimental development and use.\u003c\/li\u003e\n \u003cli\u003eUsed to produce a square wave signal that controls the motor driver; generates adjustable pulse for MCU use.\u003c\/li\u003e\n \u003cli\u003eWorking Voltage: 3.3~30V; Frequency Range: 1HZ~150KHz; Frequency Accuracy: Accuracy in each range is about 2%\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2026-09-02T12:14:41+10:00","created_at":"2026-09-01T22:38:47+10:00","vendor":"Fasizi","type":"Function Generators","tags":["industrial_DE_Aug2026"],"price":9900,"price_min":9900,"price_max":9900,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44374830350516,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B09Z2CLYWG","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"PWM Pulse Rate Duty Cycle Adjustable Module Square Wave Rectangular Wave Signal Generator XY-LPWM","public_title":null,"options":["Default Title"],"price":9900,"weight":10,"compare_at_price":null,"inventory_management":"shopify","barcode":"798339965700","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/de-B09Z2CLYWG_8f06709f-bd39-4f67-be98-9c5343344d46.jpg?v=1788266330","\/\/auspowers.com\/cdn\/shop\/files\/61pY_PQnHIL_029aa14d-c739-43b1-be47-3e2f0e85cd31.jpg?v=1788266330","\/\/auspowers.com\/cdn\/shop\/files\/611cvP_SnqL_5603630e-bd78-4655-af29-5aca077d8c09.jpg?v=1788266330","\/\/auspowers.com\/cdn\/shop\/files\/61pesWxye8L_f58b2740-9460-42c3-90de-bc26fd6bf230.jpg?v=1788266330"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/de-B09Z2CLYWG_8f06709f-bd39-4f67-be98-9c5343344d46.jpg?v=1788266330","options":["Title"],"media":[{"alt":null,"id":33272196858036,"position":1,"preview_image":{"aspect_ratio":1.618,"height":618,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/de-B09Z2CLYWG_8f06709f-bd39-4f67-be98-9c5343344d46.jpg?v=1788266330"},"aspect_ratio":1.618,"height":618,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/de-B09Z2CLYWG_8f06709f-bd39-4f67-be98-9c5343344d46.jpg?v=1788266330","width":1000},{"alt":null,"id":33272196890804,"position":2,"preview_image":{"aspect_ratio":0.74,"height":1351,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61pY_PQnHIL_029aa14d-c739-43b1-be47-3e2f0e85cd31.jpg?v=1788266330"},"aspect_ratio":0.74,"height":1351,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61pY_PQnHIL_029aa14d-c739-43b1-be47-3e2f0e85cd31.jpg?v=1788266330","width":1000},{"alt":null,"id":33272196923572,"position":3,"preview_image":{"aspect_ratio":1.572,"height":923,"width":1451,"src":"\/\/auspowers.com\/cdn\/shop\/files\/611cvP_SnqL_5603630e-bd78-4655-af29-5aca077d8c09.jpg?v=1788266330"},"aspect_ratio":1.572,"height":923,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/611cvP_SnqL_5603630e-bd78-4655-af29-5aca077d8c09.jpg?v=1788266330","width":1451},{"alt":null,"id":33272196956340,"position":4,"preview_image":{"aspect_ratio":1.622,"height":890,"width":1444,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61pesWxye8L_f58b2740-9460-42c3-90de-bc26fd6bf230.jpg?v=1788266330"},"aspect_ratio":1.622,"height":890,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61pesWxye8L_f58b2740-9460-42c3-90de-bc26fd6bf230.jpg?v=1788266330","width":1444}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003ePWM Pulse Rate Duty Cycle Adjustable Module Square Wave Rectangular Wave Signal Generator XY-LPWM\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eDescription: The module has four independent buttons that are used to adjust\nthe frequency and turn on cycle and short press (fast increase or decrease),\nvery simple, set the parameters automatically save, power failure lost.\nSpecifications: Working Voltage: 3.3~30V Frequency range: 1Hz ~ 150KHz;\nFrequency Accuracy: The accuracy in each range is approx. 2% Signal\nresilience: the output current can be approx. 5 ~ 30 mA. Output amplitude: PWM\namplitude corresponds to the supply voltage; Ambient temperature: -20 ~ +70\ndegrees Celsius. Material: Metal Size: 52 x 32 mm. Colour: blue. Quantity:1PC\nPackage includes: 1 x Rectangular Wave Signal Generator\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eLCD liquid crystal display frequency and switch-on cycle, very clear, PWM output can be set separately frequency and button cycle.\u003c\/li\u003e\n \u003cli\u003eThe module has four independent buttons that are used to adjust the frequency and turn on cycle and short press (fast increase or decrease), very simple, set the parameters automatically save, power failure lost.\u003c\/li\u003e\n \u003cli\u003eUsed as a square wave signal generator, generates square wave signal for experimental development and use.\u003c\/li\u003e\n \u003cli\u003eUsed to produce a square wave signal that controls the motor driver; generates adjustable pulse for MCU use.\u003c\/li\u003e\n \u003cli\u003eWorking Voltage: 3.3~30V; Frequency Range: 1HZ~150KHz; Frequency Accuracy: Accuracy in each range is about 2%\u003c\/li\u003e\n \u003c\/ul\u003e"}
