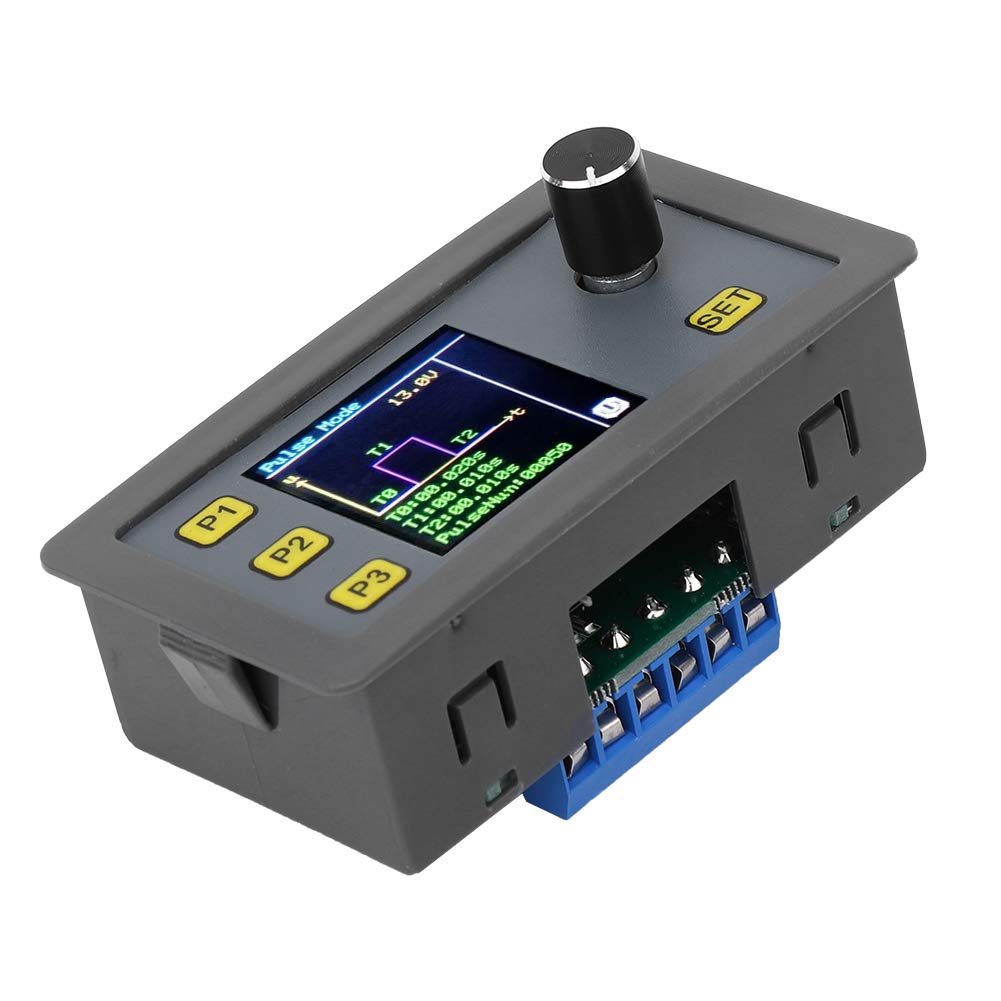

{"id":8034516795572,"title":"PWM Pulse Frequency Generator 4-20mA 2-10V Signal Generator Module Sine WSFG-06 Multifunctional Adjustable Signal Generator Without RS485","handle":"pwm-pulse-frequency-generator-4-20ma-2-10v-signal-generator-module-sine-wsfg-06-multifunctional-adjustable-signal-generator-without-rs485","description":"\u003ch3\u003ePWM Pulse Frequency Generator 4-20mA 2-10V Signal Generator Module Sine WSFG-06 Multifunctional Adjustable Signal Generator Without RS485\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003eSpecification: Item Type: Signal Generator Module Model: WSFG-06 Supply\r\nVoltage: 7-24V Product Function: PWM Mode, Pulse Mode, Source Mode, Sine Wave\r\nMode PWM Mode: Voltage, frequency, duty cycle are adjustable, accuracy up to\r\n0.1%; voltage range: 1-24V, frequency range: 1-150KHZ, duty cycle range: 0-\r\nPulse Mode: Initial delay time T0: 0-60S, high level time T1: 0-60S, low level\r\ntime T2: 0-60S, pulse number PulseNun: 1-60000 Signal Source Mode: Voltage\r\nsource 2-10V, current source 4-20mA Sine Wave Mode: 1-1000Hz Signal Load\r\nCapacity: Output current up to 30mA (Note: This product outputs signal source,\r\ncan not directly drive the high power load) Ambient Temperature: -10-+70°C\r\nModule Size: 79x43x41mm \/ 3.11x1.69x1.61in Opening Size: 76x39mm \/ 2.99x1.54in\r\nPackage List:1 x Signal Generator Module\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003eMulti-function adjustable signal generator: support PWM mode, pulse mode, signal source mode, sine mode and other modes.\u003c\/li\u003e\r\n \u003cli\u003ePWM mode: voltage, frequency and duty cycle are adjustable, the accuracy can reach 0.1%; voltage range: 1-24V, frequency range: 1-150KHZ, duty cycle range: 0-.\u003c\/li\u003e\r\n \u003cli\u003ePulse Mode: Initial delay time T0: 0-60S, high level time T1: 0-60S, low level time T2: 0-60S, pulse number PulseNun: 1-60000\u003c\/li\u003e\r\n \u003cli\u003eSignal load capacity: The output current is up to 30mA (Note: This product outputs a signal source and cannot directly drive high-power loads)\u003c\/li\u003e\r\n \u003cli\u003eClear display screen, simple control panel layout. Module size: 79x43x41mm \/ 3.11x1.69x1.61in\u003c\/li\u003e\r\n \u003c\/ul\u003e","published_at":"2026-02-28T19:43:30+11:00","created_at":"2026-02-28T19:43:27+11:00","vendor":"BORDSTRACT","type":"Function Generators","tags":["industrial_selected_Nov2025"],"price":14300,"price_min":14300,"price_max":14300,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44154549993652,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B09XBCZKL3","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"PWM Pulse Frequency Generator 4-20mA 2-10V Signal Generator Module Sine WSFG-06 Multifunctional Adjustable Signal Generator Without RS485","public_title":null,"options":["Default Title"],"price":14300,"weight":10,"compare_at_price":null,"inventory_management":"shopify","barcode":"740809850849","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/B09XBCZKL3.jpg?v=1775787093","\/\/auspowers.com\/cdn\/shop\/files\/61WEB7Ebm5L_8da0e799-7705-495c-ae41-8665c54d140f.jpg?v=1772268209","\/\/auspowers.com\/cdn\/shop\/files\/61oHqvv7qyL_e775b332-5ace-4be2-afd3-46f25568704f.jpg?v=1772268209","\/\/auspowers.com\/cdn\/shop\/files\/61-UznS0KJL_3f2e73fd-36ea-41eb-a008-42987cf1d60f.jpg?v=1772268209","\/\/auspowers.com\/cdn\/shop\/files\/51ofZacyqTL_eebf2ea5-47a1-48c6-89ae-9354b45b3c92.jpg?v=1772268209","\/\/auspowers.com\/cdn\/shop\/files\/51fvvRx5s6L_0eb80223-1757-4301-bd4b-28d62a895c21.jpg?v=1772268209","\/\/auspowers.com\/cdn\/shop\/files\/51hw4pOYN3L_46ef9016-e409-44a6-a3e5-54b9192bfe69.jpg?v=1772268209","\/\/auspowers.com\/cdn\/shop\/files\/512-a7UqV2L_26cf9e9e-bb47-4190-9dc8-d943ad23e889.jpg?v=1772268209","\/\/auspowers.com\/cdn\/shop\/files\/51TPaUtPLrL_d7f67ae8-060b-4181-9052-6aa0851d1f60.jpg?v=1772268209"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/B09XBCZKL3.jpg?v=1775787093","options":["Title"],"media":[{"alt":"[Australia - AusPower] - PWM Pulse Frequency Generator 4-20mA 2-10V Signal Generator Module Sine WSFG-06 Multifunctional Adjustable Signal Generator Without RS485 ","id":32724235223220,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/B09XBCZKL3.jpg?v=1775787093"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/B09XBCZKL3.jpg?v=1775787093","width":1001},{"alt":"[Australia - AusPower] - PWM Pulse Frequency Generator 4-20mA 2-10V Signal Generator Module Sine WSFG-06 Multifunctional Adjustable Signal Generator Without RS485 ","id":32724235255988,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61WEB7Ebm5L_8da0e799-7705-495c-ae41-8665c54d140f.jpg?v=1772268209"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61WEB7Ebm5L_8da0e799-7705-495c-ae41-8665c54d140f.jpg?v=1772268209","width":1001},{"alt":"[Australia - AusPower] - PWM Pulse Frequency Generator 4-20mA 2-10V Signal Generator Module Sine WSFG-06 Multifunctional Adjustable Signal Generator Without RS485 ","id":32724235288756,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61oHqvv7qyL_e775b332-5ace-4be2-afd3-46f25568704f.jpg?v=1772268209"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61oHqvv7qyL_e775b332-5ace-4be2-afd3-46f25568704f.jpg?v=1772268209","width":1001},{"alt":"[Australia - AusPower] - PWM Pulse Frequency Generator 4-20mA 2-10V Signal Generator Module Sine WSFG-06 Multifunctional Adjustable Signal Generator Without RS485 ","id":32724235321524,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61-UznS0KJL_3f2e73fd-36ea-41eb-a008-42987cf1d60f.jpg?v=1772268209"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61-UznS0KJL_3f2e73fd-36ea-41eb-a008-42987cf1d60f.jpg?v=1772268209","width":1001},{"alt":"[Australia - AusPower] - PWM Pulse Frequency Generator 4-20mA 2-10V Signal Generator Module Sine WSFG-06 Multifunctional Adjustable Signal Generator Without RS485 ","id":32724235354292,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51ofZacyqTL_eebf2ea5-47a1-48c6-89ae-9354b45b3c92.jpg?v=1772268209"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51ofZacyqTL_eebf2ea5-47a1-48c6-89ae-9354b45b3c92.jpg?v=1772268209","width":1001},{"alt":"[Australia - AusPower] - PWM Pulse Frequency Generator 4-20mA 2-10V Signal Generator Module Sine WSFG-06 Multifunctional Adjustable Signal Generator Without RS485 ","id":32724235387060,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51fvvRx5s6L_0eb80223-1757-4301-bd4b-28d62a895c21.jpg?v=1772268209"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51fvvRx5s6L_0eb80223-1757-4301-bd4b-28d62a895c21.jpg?v=1772268209","width":1001},{"alt":"[Australia - AusPower] - PWM Pulse Frequency Generator 4-20mA 2-10V Signal Generator Module Sine WSFG-06 Multifunctional Adjustable Signal Generator Without RS485 ","id":32724235419828,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51hw4pOYN3L_46ef9016-e409-44a6-a3e5-54b9192bfe69.jpg?v=1772268209"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51hw4pOYN3L_46ef9016-e409-44a6-a3e5-54b9192bfe69.jpg?v=1772268209","width":1001},{"alt":"[Australia - AusPower] - PWM Pulse Frequency Generator 4-20mA 2-10V Signal Generator Module Sine WSFG-06 Multifunctional Adjustable Signal Generator Without RS485 ","id":32724235452596,"position":8,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/512-a7UqV2L_26cf9e9e-bb47-4190-9dc8-d943ad23e889.jpg?v=1772268209"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/512-a7UqV2L_26cf9e9e-bb47-4190-9dc8-d943ad23e889.jpg?v=1772268209","width":1001},{"alt":"[Australia - AusPower] - PWM Pulse Frequency Generator 4-20mA 2-10V Signal Generator Module Sine WSFG-06 Multifunctional Adjustable Signal Generator Without RS485 ","id":32724235485364,"position":9,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51TPaUtPLrL_d7f67ae8-060b-4181-9052-6aa0851d1f60.jpg?v=1772268209"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51TPaUtPLrL_d7f67ae8-060b-4181-9052-6aa0851d1f60.jpg?v=1772268209","width":1001}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003ePWM Pulse Frequency Generator 4-20mA 2-10V Signal Generator Module Sine WSFG-06 Multifunctional Adjustable Signal Generator Without RS485\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003eSpecification: Item Type: Signal Generator Module Model: WSFG-06 Supply\r\nVoltage: 7-24V Product Function: PWM Mode, Pulse Mode, Source Mode, Sine Wave\r\nMode PWM Mode: Voltage, frequency, duty cycle are adjustable, accuracy up to\r\n0.1%; voltage range: 1-24V, frequency range: 1-150KHZ, duty cycle range: 0-\r\nPulse Mode: Initial delay time T0: 0-60S, high level time T1: 0-60S, low level\r\ntime T2: 0-60S, pulse number PulseNun: 1-60000 Signal Source Mode: Voltage\r\nsource 2-10V, current source 4-20mA Sine Wave Mode: 1-1000Hz Signal Load\r\nCapacity: Output current up to 30mA (Note: This product outputs signal source,\r\ncan not directly drive the high power load) Ambient Temperature: -10-+70°C\r\nModule Size: 79x43x41mm \/ 3.11x1.69x1.61in Opening Size: 76x39mm \/ 2.99x1.54in\r\nPackage List:1 x Signal Generator Module\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003eMulti-function adjustable signal generator: support PWM mode, pulse mode, signal source mode, sine mode and other modes.\u003c\/li\u003e\r\n \u003cli\u003ePWM mode: voltage, frequency and duty cycle are adjustable, the accuracy can reach 0.1%; voltage range: 1-24V, frequency range: 1-150KHZ, duty cycle range: 0-.\u003c\/li\u003e\r\n \u003cli\u003ePulse Mode: Initial delay time T0: 0-60S, high level time T1: 0-60S, low level time T2: 0-60S, pulse number PulseNun: 1-60000\u003c\/li\u003e\r\n \u003cli\u003eSignal load capacity: The output current is up to 30mA (Note: This product outputs a signal source and cannot directly drive high-power loads)\u003c\/li\u003e\r\n \u003cli\u003eClear display screen, simple control panel layout. Module size: 79x43x41mm \/ 3.11x1.69x1.61in\u003c\/li\u003e\r\n \u003c\/ul\u003e"}
