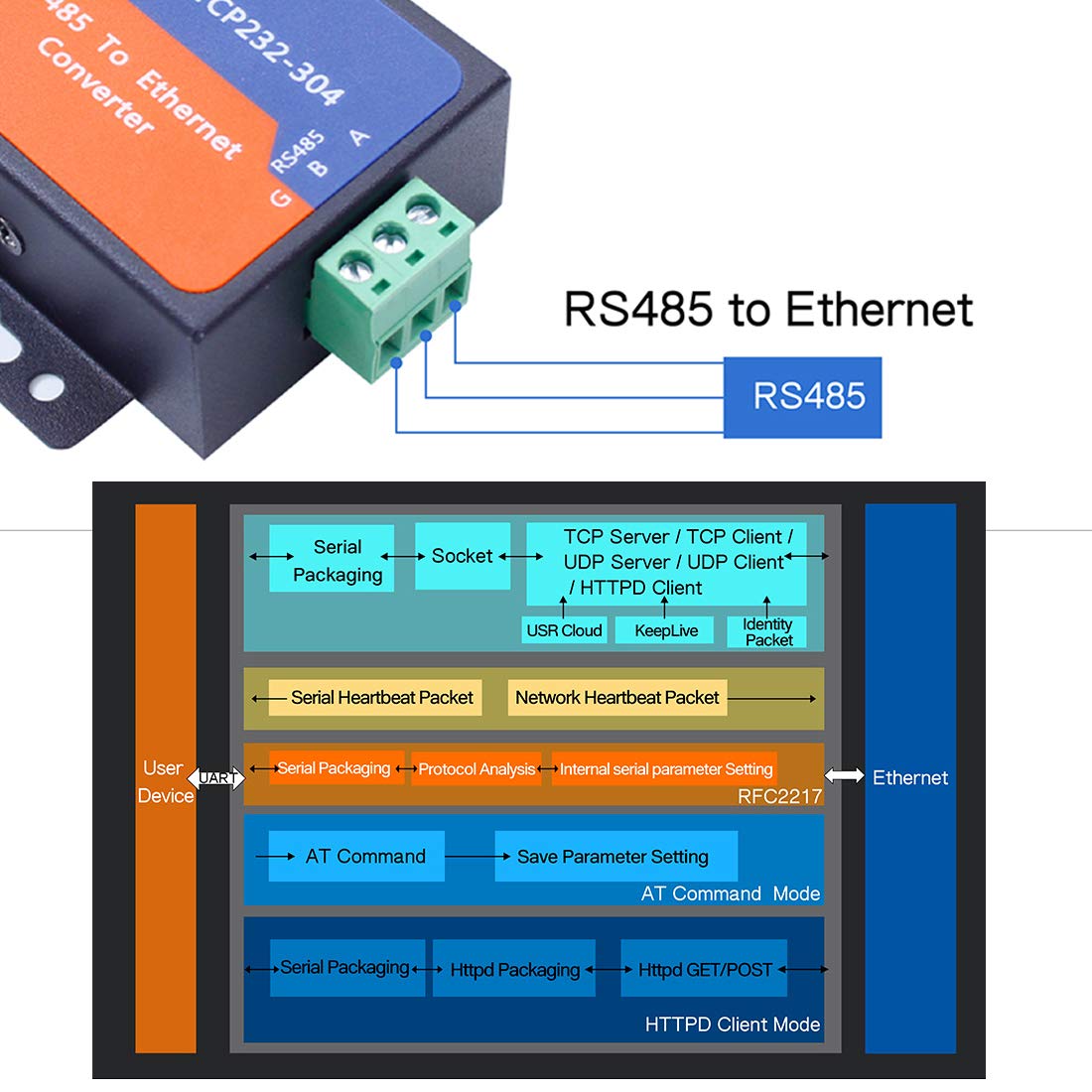

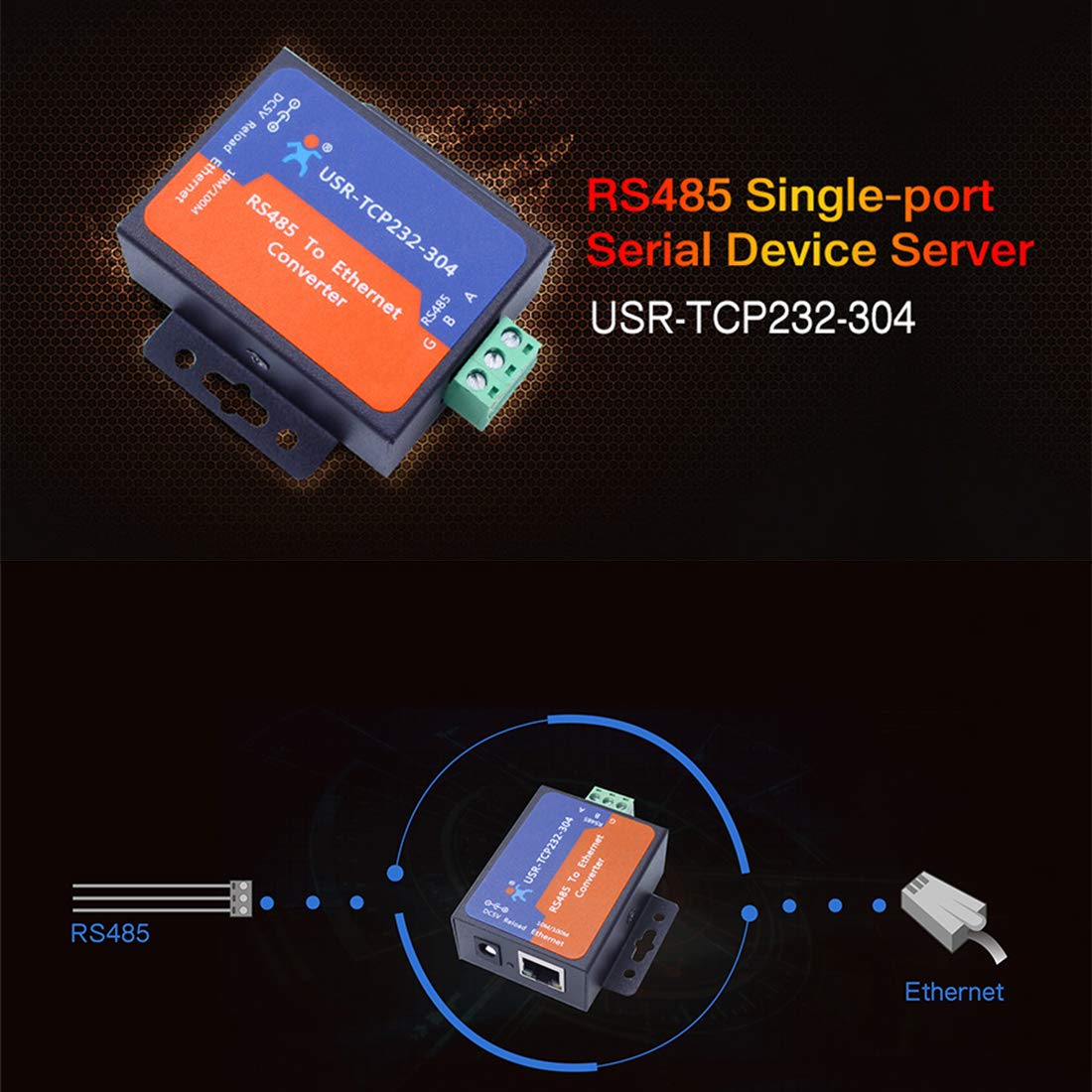

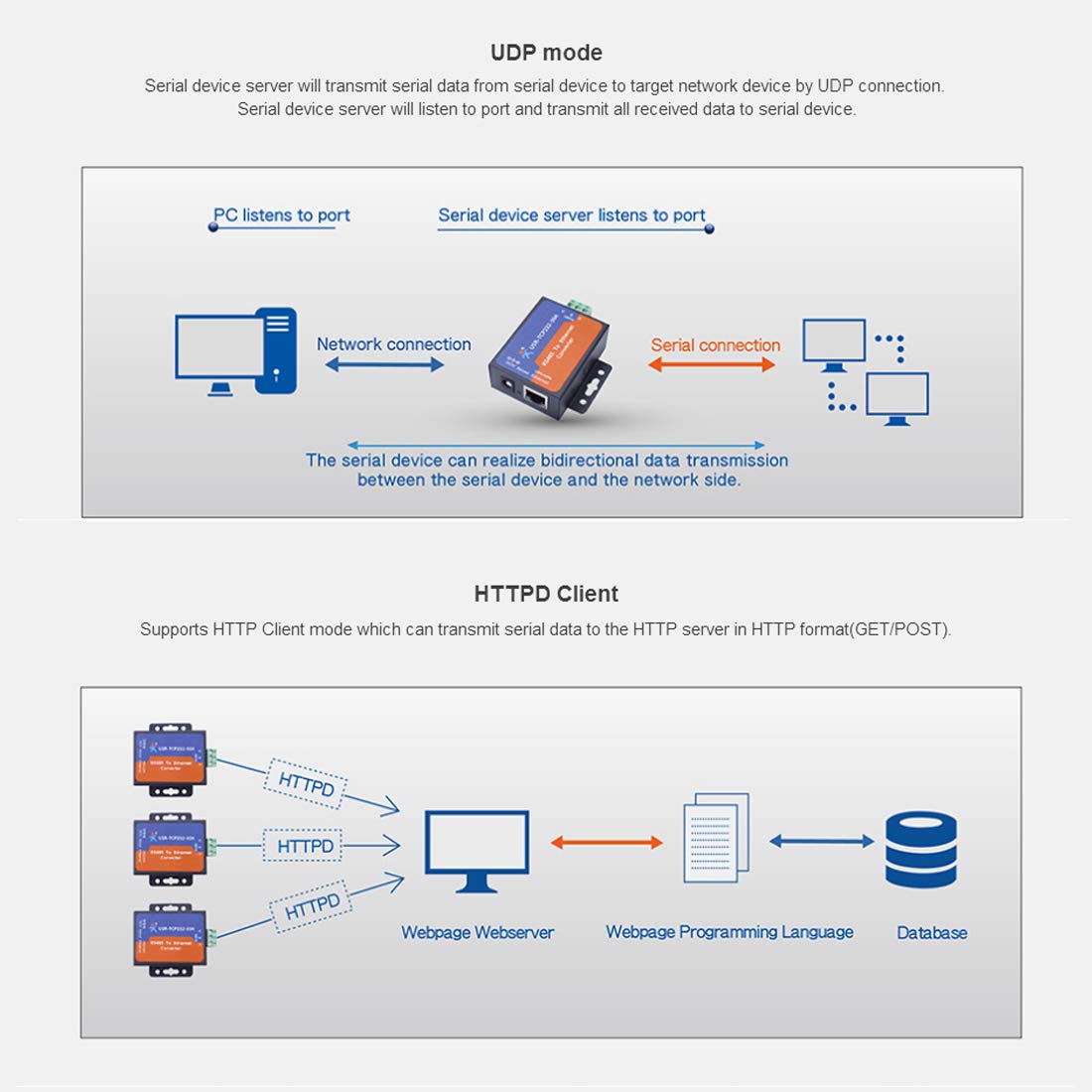

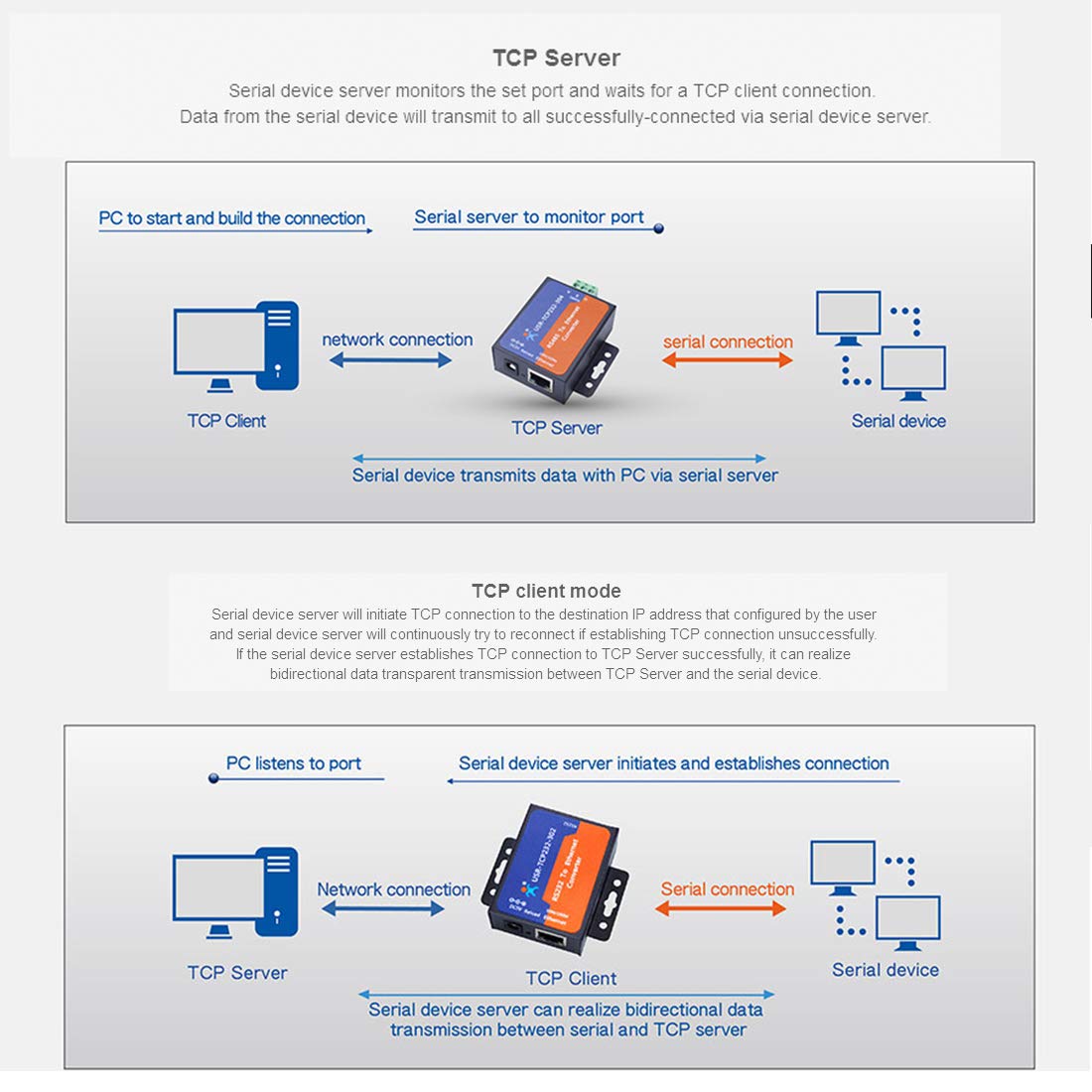

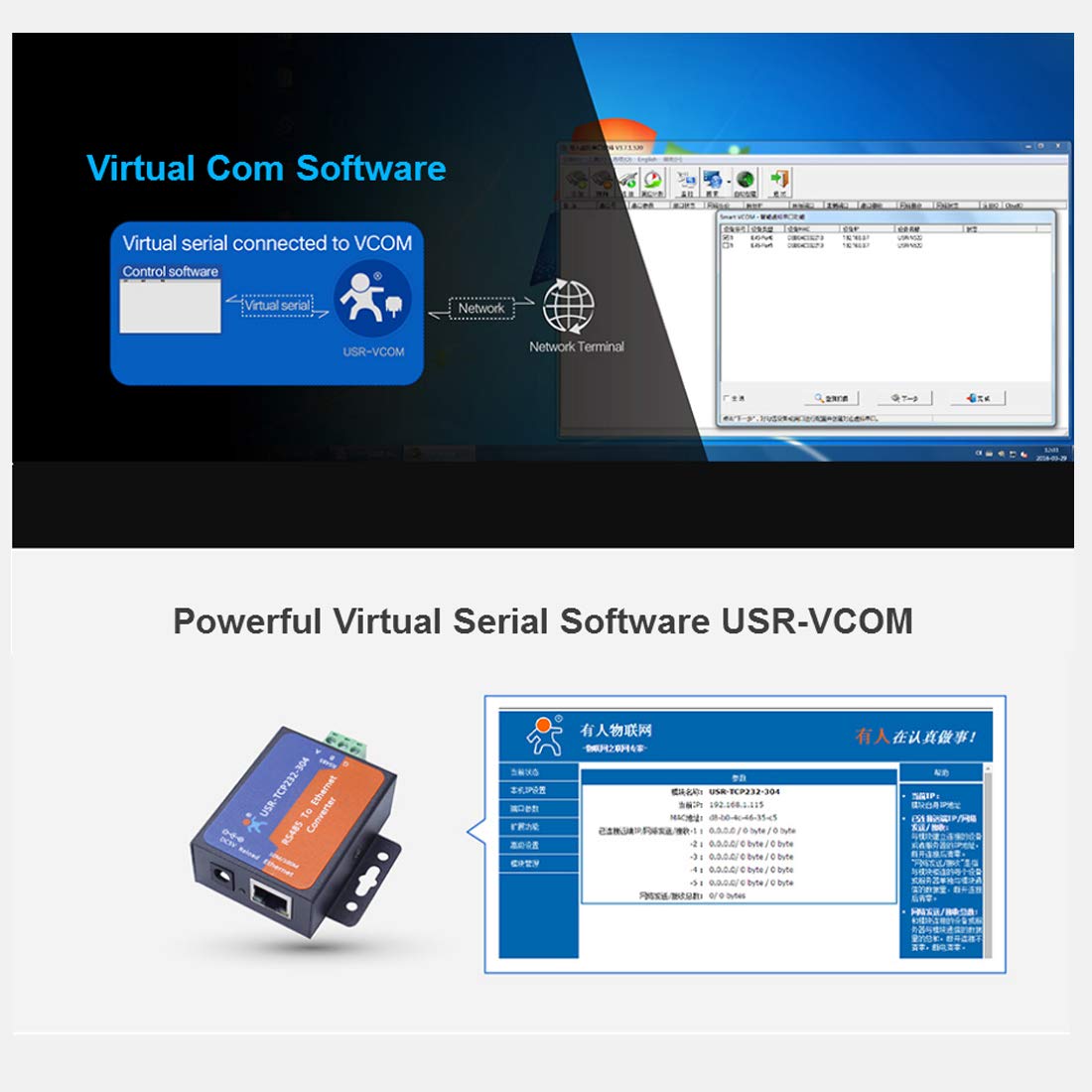

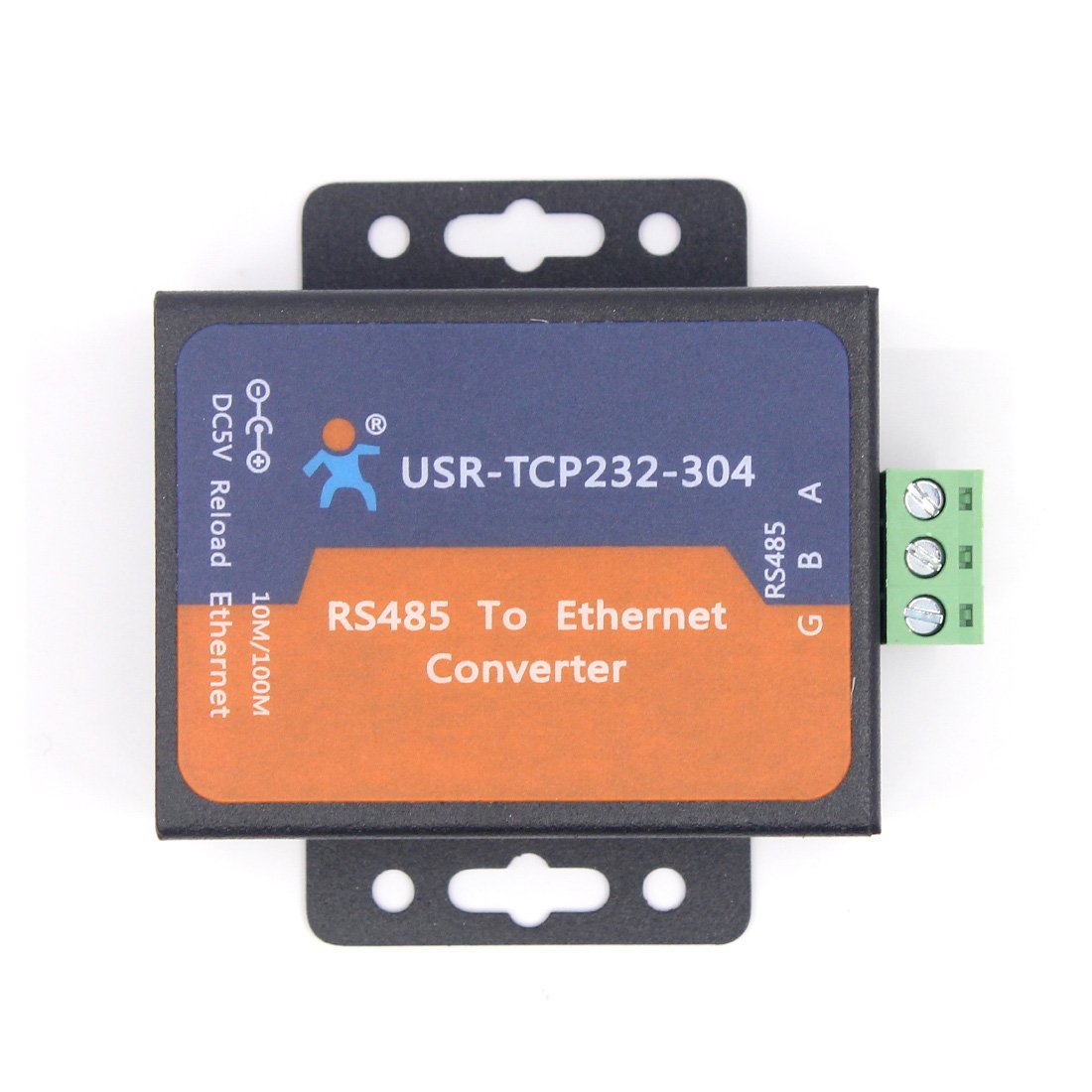

{"id":7232959316148,"title":"PUSR USR-TCP232-304 Serial RS485 to TCP\/IP Ethernet Server Converter Module with Built-in Webpage DHCP\/DNS Supported","handle":"pusr-usr-tcp232-304-serial-rs485-to-tcp-ip-ethernet-server-converter-module-with-built-in-webpage-dhcp-dns-supported","description":" \u003ch1\u003ePUSR USR-TCP232-304 Serial RS485 to TCP\/IP Ethernet Server Converter Module with Built-in Webpage DHCP\/DNS Supported\u003c\/h1\u003e\n \u003ch3\u003e\n\u003cspan class=\"glyphicon glyphicon-list-alt\"\u003e\u003c\/span\u003e Description\u003c\/h3\u003e\n \u003cp\u003ePUSR USR-TCP232-304 Serial RS485 to TCP\/IP Ethernet Server Converter Module\nwith Built-in Webpage DHCP\/DNS Supported Features of RS485 Ethernet Server\nSupport DHCP, automatically obtain an IP address and query IP address through\nserial setting protocol. Support DNS function Set parameters through webpage\nUpgrade firmware via network Auto-MDI\/MDIX, RJ45 port with 10\/100Mbps Serial\nport baud rate from 600 bps to 230.4 Kbps, Check bit of None, Odd, Even, Mark\nand Space Work mode: TCP Server, TCP Client, UDP Client, UDP Server, HTTPD\nClient Support virtual serial port and provide corresponding software USR-VCOM\nHeartbeat package mechanism to ensure connection is reliable, put an end to\ndead link User-defined registration package mechanism, check connection status\nand use as custom packet header Under TCP Server mode, Client number ranges\nfrom 1 to 16; default number is 4 The global unique MA-C address bought from\nIEEE, user can define M--AC address Restore factory default Across the\ngateway, switches, routers Can work in LAN, also can work in the Internet\n(external network) Provide PC TCP\/IP socket programming example such as\nVB,C++,De--lphi,An--droid and I--OS Support customization Application Field of\nRS485 Ethernet Server Industrial data transmission, industrial automation\nsecurity and protection monitoring, public security Smart home, power control,\nenvironmental monitoring, intelligent agriculture Door check on work\nattendance system, POS system, rice selling system Building automation system,\npower monitoring, self-service banking system, telecom machine room monitoring\u003c\/p\u003e\n \u003cp\u003eFeatures:\u003c\/p\u003e\n \u003cul\u003e\n \u003cli\u003eUSR-TCP232-304 can transmit data transparently between TCP\/IP and RS485. RS485 to Ethernet converters.\u003c\/li\u003e\n\u003cli\u003eSupport DHCP, automatically obtain an IP address and query IP address through serial setting protocol\u003c\/li\u003e\n\u003cli\u003eSerial port baud rate from 600 bps to 230.4 Kbps, Check bit of None, Odd, Even, Mark and Space ; Auto-MDI\/MDIX, RJ45 port with 10\/100Mbps.\u003c\/li\u003e\n\u003cli\u003eCan work in LAN, also can work in the Internet (external network) ; Support virtual serial port and provide corresponding software USR-VCOM.\u003c\/li\u003e\n\u003cli\u003eWork mode: TCP Server, TCP Client, UDP Client, UDP Server, HTTPD Client\u003c\/li\u003e\n \u003c\/ul\u003e\n\n\n ","published_at":"2022-08-22T02:15:51+10:00","created_at":"2022-08-22T02:16:00+10:00","vendor":"PUSR","type":"Serial Adapters","tags":["electronics3"],"price":20100,"price_min":20100,"price_max":20100,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":41774446543028,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B09DCT1YDR","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"PUSR USR-TCP232-304 Serial RS485 to TCP\/IP Ethernet Server Converter Module with Built-in Webpage DHCP\/DNS Supported","public_title":null,"options":["Default Title"],"price":20100,"weight":209,"compare_at_price":null,"inventory_management":null,"barcode":"YRQ14870","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/products\/B09DCT1YDR.jpg?v=1661152109","\/\/auspowers.com\/cdn\/shop\/products\/61skRzALFUL_fcf098fd-cf1f-493f-ab46-736903c2b7ce.jpg?v=1661098560","\/\/auspowers.com\/cdn\/shop\/products\/61imFJpMX5L_06920a1b-6a68-4a3a-acf5-477e8367fa9a.jpg?v=1661098560","\/\/auspowers.com\/cdn\/shop\/products\/612-crCd7aL_17b6ac78-dbcb-40cb-a3f3-cb837e719f53.jpg?v=1661098560","\/\/auspowers.com\/cdn\/shop\/products\/61J-04FJihL_d5c8160d-0ce7-49c4-ad95-e98cddd8d5c8.jpg?v=1661098560","\/\/auspowers.com\/cdn\/shop\/products\/61lEhPVeh0L_d9d3f3a5-f2c2-4645-9bc7-c5ce766efce8.jpg?v=1661098560","\/\/auspowers.com\/cdn\/shop\/products\/61_40FpPvYL_e71eb3fe-c4c6-4f36-9ca0-0825f8c23acb.jpg?v=1661098560","\/\/auspowers.com\/cdn\/shop\/products\/61q5PLAqyrL.jpg?v=1661098560"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/products\/B09DCT1YDR.jpg?v=1661152109","options":["Title"],"media":[{"alt":"[Australia - AusPower] - PUSR USR-TCP232-304 Serial RS485 to TCP\/IP Ethernet Server Converter Module with Built-in Webpage DHCP\/DNS Supported ","id":26900960346292,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/auspowers.com\/cdn\/shop\/products\/B09DCT1YDR.jpg?v=1661152109"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/B09DCT1YDR.jpg?v=1661152109","width":1100},{"alt":"[Australia - AusPower] - PUSR USR-TCP232-304 Serial RS485 to TCP\/IP Ethernet Server Converter Module with Built-in Webpage DHCP\/DNS Supported ","id":26894965244084,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/auspowers.com\/cdn\/shop\/products\/61skRzALFUL_fcf098fd-cf1f-493f-ab46-736903c2b7ce.jpg?v=1661098560"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/61skRzALFUL_fcf098fd-cf1f-493f-ab46-736903c2b7ce.jpg?v=1661098560","width":1100},{"alt":"[Australia - AusPower] - PUSR USR-TCP232-304 Serial RS485 to TCP\/IP Ethernet Server Converter Module with Built-in Webpage DHCP\/DNS Supported ","id":26894965276852,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/auspowers.com\/cdn\/shop\/products\/61imFJpMX5L_06920a1b-6a68-4a3a-acf5-477e8367fa9a.jpg?v=1661098560"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/61imFJpMX5L_06920a1b-6a68-4a3a-acf5-477e8367fa9a.jpg?v=1661098560","width":1100},{"alt":"[Australia - AusPower] - PUSR USR-TCP232-304 Serial RS485 to TCP\/IP Ethernet Server Converter Module with Built-in Webpage DHCP\/DNS Supported ","id":26894965309620,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/auspowers.com\/cdn\/shop\/products\/612-crCd7aL_17b6ac78-dbcb-40cb-a3f3-cb837e719f53.jpg?v=1661098560"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/612-crCd7aL_17b6ac78-dbcb-40cb-a3f3-cb837e719f53.jpg?v=1661098560","width":1100},{"alt":"[Australia - AusPower] - PUSR USR-TCP232-304 Serial RS485 to TCP\/IP Ethernet Server Converter Module with Built-in Webpage DHCP\/DNS Supported ","id":26894965342388,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/auspowers.com\/cdn\/shop\/products\/61J-04FJihL_d5c8160d-0ce7-49c4-ad95-e98cddd8d5c8.jpg?v=1661098560"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/61J-04FJihL_d5c8160d-0ce7-49c4-ad95-e98cddd8d5c8.jpg?v=1661098560","width":1100},{"alt":"[Australia - AusPower] - PUSR USR-TCP232-304 Serial RS485 to TCP\/IP Ethernet Server Converter Module with Built-in Webpage DHCP\/DNS Supported ","id":26894965375156,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/auspowers.com\/cdn\/shop\/products\/61lEhPVeh0L_d9d3f3a5-f2c2-4645-9bc7-c5ce766efce8.jpg?v=1661098560"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/61lEhPVeh0L_d9d3f3a5-f2c2-4645-9bc7-c5ce766efce8.jpg?v=1661098560","width":1100},{"alt":"[Australia - AusPower] - PUSR USR-TCP232-304 Serial RS485 to TCP\/IP Ethernet Server Converter Module with Built-in Webpage DHCP\/DNS Supported ","id":26894965407924,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/auspowers.com\/cdn\/shop\/products\/61_40FpPvYL_e71eb3fe-c4c6-4f36-9ca0-0825f8c23acb.jpg?v=1661098560"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/61_40FpPvYL_e71eb3fe-c4c6-4f36-9ca0-0825f8c23acb.jpg?v=1661098560","width":1100},{"alt":"[Australia - AusPower] - PUSR USR-TCP232-304 Serial RS485 to TCP\/IP Ethernet Server Converter Module with Built-in Webpage DHCP\/DNS Supported ","id":26894965440692,"position":8,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/auspowers.com\/cdn\/shop\/products\/61q5PLAqyrL.jpg?v=1661098560"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/61q5PLAqyrL.jpg?v=1661098560","width":1100}],"requires_selling_plan":false,"selling_plan_groups":[],"content":" \u003ch1\u003ePUSR USR-TCP232-304 Serial RS485 to TCP\/IP Ethernet Server Converter Module with Built-in Webpage DHCP\/DNS Supported\u003c\/h1\u003e\n \u003ch3\u003e\n\u003cspan class=\"glyphicon glyphicon-list-alt\"\u003e\u003c\/span\u003e Description\u003c\/h3\u003e\n \u003cp\u003ePUSR USR-TCP232-304 Serial RS485 to TCP\/IP Ethernet Server Converter Module\nwith Built-in Webpage DHCP\/DNS Supported Features of RS485 Ethernet Server\nSupport DHCP, automatically obtain an IP address and query IP address through\nserial setting protocol. Support DNS function Set parameters through webpage\nUpgrade firmware via network Auto-MDI\/MDIX, RJ45 port with 10\/100Mbps Serial\nport baud rate from 600 bps to 230.4 Kbps, Check bit of None, Odd, Even, Mark\nand Space Work mode: TCP Server, TCP Client, UDP Client, UDP Server, HTTPD\nClient Support virtual serial port and provide corresponding software USR-VCOM\nHeartbeat package mechanism to ensure connection is reliable, put an end to\ndead link User-defined registration package mechanism, check connection status\nand use as custom packet header Under TCP Server mode, Client number ranges\nfrom 1 to 16; default number is 4 The global unique MA-C address bought from\nIEEE, user can define M--AC address Restore factory default Across the\ngateway, switches, routers Can work in LAN, also can work in the Internet\n(external network) Provide PC TCP\/IP socket programming example such as\nVB,C++,De--lphi,An--droid and I--OS Support customization Application Field of\nRS485 Ethernet Server Industrial data transmission, industrial automation\nsecurity and protection monitoring, public security Smart home, power control,\nenvironmental monitoring, intelligent agriculture Door check on work\nattendance system, POS system, rice selling system Building automation system,\npower monitoring, self-service banking system, telecom machine room monitoring\u003c\/p\u003e\n \u003cp\u003eFeatures:\u003c\/p\u003e\n \u003cul\u003e\n \u003cli\u003eUSR-TCP232-304 can transmit data transparently between TCP\/IP and RS485. RS485 to Ethernet converters.\u003c\/li\u003e\n\u003cli\u003eSupport DHCP, automatically obtain an IP address and query IP address through serial setting protocol\u003c\/li\u003e\n\u003cli\u003eSerial port baud rate from 600 bps to 230.4 Kbps, Check bit of None, Odd, Even, Mark and Space ; Auto-MDI\/MDIX, RJ45 port with 10\/100Mbps.\u003c\/li\u003e\n\u003cli\u003eCan work in LAN, also can work in the Internet (external network) ; Support virtual serial port and provide corresponding software USR-VCOM.\u003c\/li\u003e\n\u003cli\u003eWork mode: TCP Server, TCP Client, UDP Client, UDP Server, HTTPD Client\u003c\/li\u003e\n \u003c\/ul\u003e\n\n\n "}
