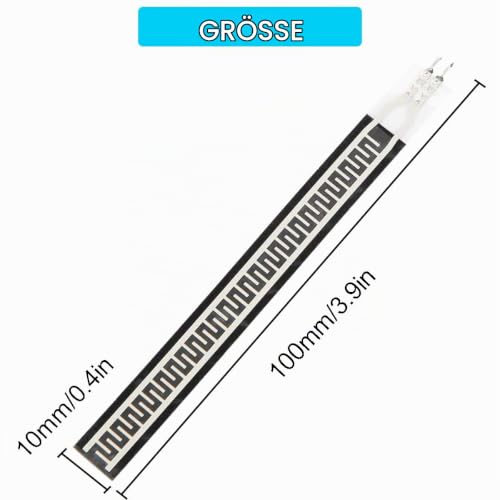

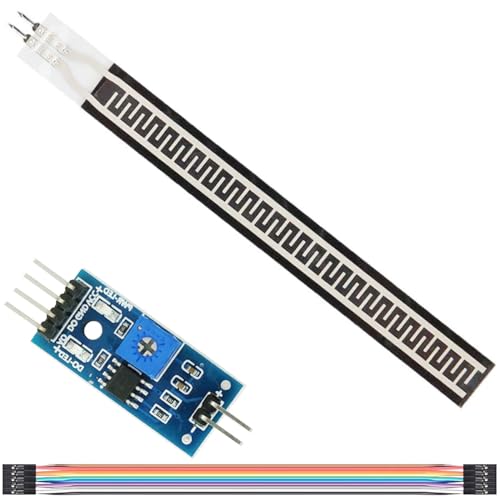

{"id":8115285459124,"title":"Pressure Sensor SF15-150 ZD10-100 Resistance Pressure + Linear Voltage Converter Module with DuPont Cable for Arduino 51 MCU STM32 Voltage conversion","handle":"pressure-sensor-sf15-150-zd10-100-resistance-pressure-linear-voltage-converter-module-with-dupont-cable-for-arduino-51-mcu-stm32-voltage-conversion","description":"\u003ch3\u003ePressure Sensor SF15-150 ZD10-100 Resistance Pressure + Linear Voltage Converter Module with DuPont Cable for Arduino 51 MCU STM32\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eProduct description: Specification:(ZD10-100) Model: ZD10-100. Length: 100\nmm\/3.9 inches. Width:10mm\/04in Range: 0 ~ 500 g. Thickness: less than 0.25 mm.\nResponse point: less than 20 g. Test voltage: typical DC 3.3 V. Durability:\nmore than 1 million times. Response time: less than 10ms. Recovery time: less\nthan 15ms. Working temperature: 20°C ~ 60°C. EMI: no. ESD: not sensitive.\nLinear voltage conversion module: Conversion accuracy: ± 0.01 V. Feedback\nresistance adjustment range: 0-300K. Adjustable potentiometer rotation angle:\n260°, ±20°. Size:1432mm Power supply: 3.3-5 V. Output voltage range: 0-3.3V.\nFeatures: (1) High output linearity. (2) High measurement sensitivity. (3) The\noutput magnification is adjustable, suitable for various types of sensors (4)\nCompatible with 5V, 3.3V measurement system Package includes: 1 x\nZD10-100(RP-L-110) thin film pressure sensor. 1 x linear voltage conversion\nmodule. 1 x 10 pin female to female DuPont cable\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eWorking Principle: This pressure sensor converts the pressure exerted in the thin film area of the FSR sensor into the resistance value change to obtain pressure information.\u003c\/li\u003e\n \u003cli\u003eZD10-100: The sensor is lightweight, thin and bend-resistant, highly sensitive, long service life and has the dual functions waterproof and pressure sensitivity\u003c\/li\u003e\n \u003cli\u003eLinear Voltage Transformer ModuleIt has the characteristics of high output linearity and high measurement sensitivity; the output magnification is adjustable and suitable for different sensor types.\u003c\/li\u003e\n \u003cli\u003eApplication: Widely used in detecting various things in life - such as standing up monitoring, smart breathing belt, sleep monitoring, electronic shelves, etc.\u003c\/li\u003e\n \u003cli\u003eReference routine: If you need to refer to the routine, you can visit the address\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2026-09-02T11:13:26+10:00","created_at":"2026-09-01T23:48:24+10:00","vendor":"Youmile","type":"Pressure Probes \u0026 Sensors","tags":["industrial_DE_Aug2026"],"price":11800,"price_min":11800,"price_max":11800,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44375005855924,"title":"Voltage conversion","option1":"Voltage conversion","option2":null,"option3":null,"sku":"de-B09KPDFW9F","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Pressure Sensor SF15-150 ZD10-100 Resistance Pressure + Linear Voltage Converter Module with DuPont Cable for Arduino 51 MCU STM32 Voltage conversion - Voltage conversion","public_title":"Voltage conversion","options":["Voltage conversion"],"price":11800,"weight":20,"compare_at_price":null,"inventory_management":"shopify","barcode":"JK-YM-276","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/de-B09KPDFW9F.jpg?v=1788270506","\/\/auspowers.com\/cdn\/shop\/files\/41h2OufMNML.jpg?v=1788270506","\/\/auspowers.com\/cdn\/shop\/files\/31VGmI_RtL.jpg?v=1788270506","\/\/auspowers.com\/cdn\/shop\/files\/41c9HYsNNOL.jpg?v=1788270506","\/\/auspowers.com\/cdn\/shop\/files\/41kfdWyx4gL.jpg?v=1788270506","\/\/auspowers.com\/cdn\/shop\/files\/41u3NQSPcUL.jpg?v=1788270506","\/\/auspowers.com\/cdn\/shop\/files\/518tvG_wvfL.jpg?v=1788270506"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/de-B09KPDFW9F.jpg?v=1788270506","options":["Colour Name"],"media":[{"alt":null,"id":33273232556212,"position":1,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/de-B09KPDFW9F.jpg?v=1788270506"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/de-B09KPDFW9F.jpg?v=1788270506","width":500},{"alt":null,"id":33273232588980,"position":2,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/41h2OufMNML.jpg?v=1788270506"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/41h2OufMNML.jpg?v=1788270506","width":500},{"alt":null,"id":33273232621748,"position":3,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/31VGmI_RtL.jpg?v=1788270506"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/31VGmI_RtL.jpg?v=1788270506","width":500},{"alt":null,"id":33273232654516,"position":4,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/41c9HYsNNOL.jpg?v=1788270506"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/41c9HYsNNOL.jpg?v=1788270506","width":500},{"alt":null,"id":33273232687284,"position":5,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/41kfdWyx4gL.jpg?v=1788270506"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/41kfdWyx4gL.jpg?v=1788270506","width":500},{"alt":null,"id":33273232720052,"position":6,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/41u3NQSPcUL.jpg?v=1788270506"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/41u3NQSPcUL.jpg?v=1788270506","width":500},{"alt":null,"id":33273232752820,"position":7,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/518tvG_wvfL.jpg?v=1788270506"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/518tvG_wvfL.jpg?v=1788270506","width":500}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003ePressure Sensor SF15-150 ZD10-100 Resistance Pressure + Linear Voltage Converter Module with DuPont Cable for Arduino 51 MCU STM32\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eProduct description: Specification:(ZD10-100) Model: ZD10-100. Length: 100\nmm\/3.9 inches. Width:10mm\/04in Range: 0 ~ 500 g. Thickness: less than 0.25 mm.\nResponse point: less than 20 g. Test voltage: typical DC 3.3 V. Durability:\nmore than 1 million times. Response time: less than 10ms. Recovery time: less\nthan 15ms. Working temperature: 20°C ~ 60°C. EMI: no. ESD: not sensitive.\nLinear voltage conversion module: Conversion accuracy: ± 0.01 V. Feedback\nresistance adjustment range: 0-300K. Adjustable potentiometer rotation angle:\n260°, ±20°. Size:1432mm Power supply: 3.3-5 V. Output voltage range: 0-3.3V.\nFeatures: (1) High output linearity. (2) High measurement sensitivity. (3) The\noutput magnification is adjustable, suitable for various types of sensors (4)\nCompatible with 5V, 3.3V measurement system Package includes: 1 x\nZD10-100(RP-L-110) thin film pressure sensor. 1 x linear voltage conversion\nmodule. 1 x 10 pin female to female DuPont cable\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eWorking Principle: This pressure sensor converts the pressure exerted in the thin film area of the FSR sensor into the resistance value change to obtain pressure information.\u003c\/li\u003e\n \u003cli\u003eZD10-100: The sensor is lightweight, thin and bend-resistant, highly sensitive, long service life and has the dual functions waterproof and pressure sensitivity\u003c\/li\u003e\n \u003cli\u003eLinear Voltage Transformer ModuleIt has the characteristics of high output linearity and high measurement sensitivity; the output magnification is adjustable and suitable for different sensor types.\u003c\/li\u003e\n \u003cli\u003eApplication: Widely used in detecting various things in life - such as standing up monitoring, smart breathing belt, sleep monitoring, electronic shelves, etc.\u003c\/li\u003e\n \u003cli\u003eReference routine: If you need to refer to the routine, you can visit the address\u003c\/li\u003e\n \u003c\/ul\u003e"}
