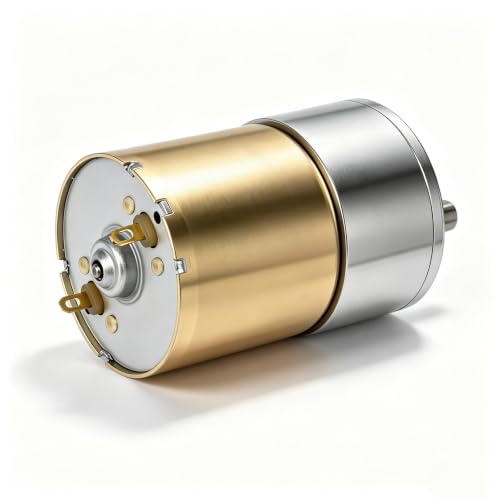

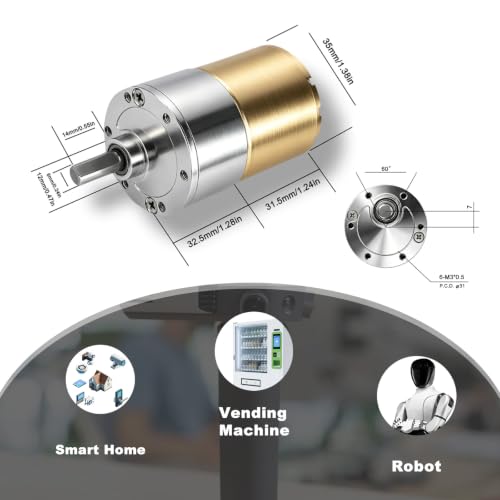

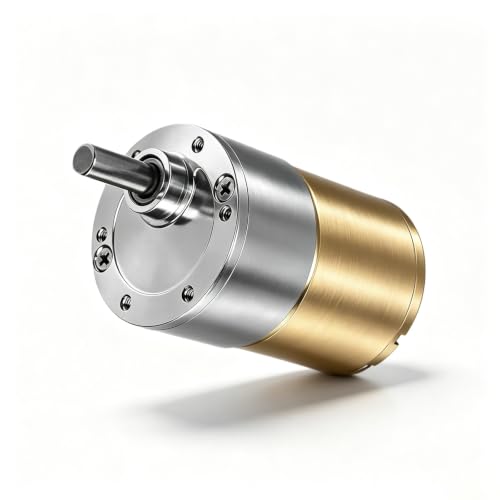

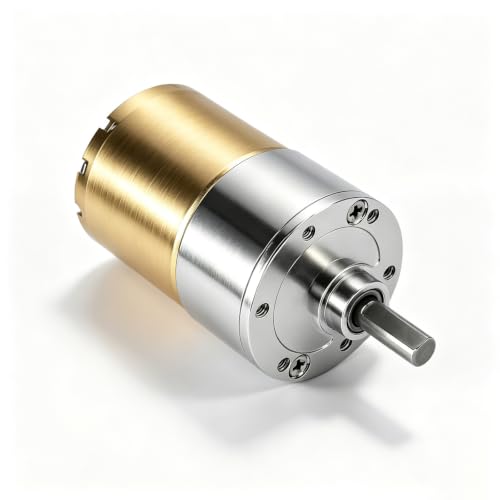

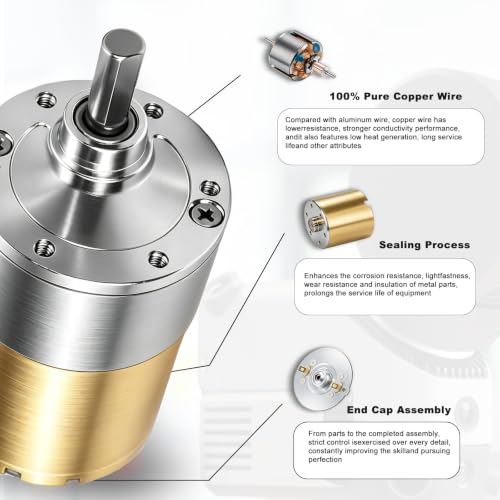

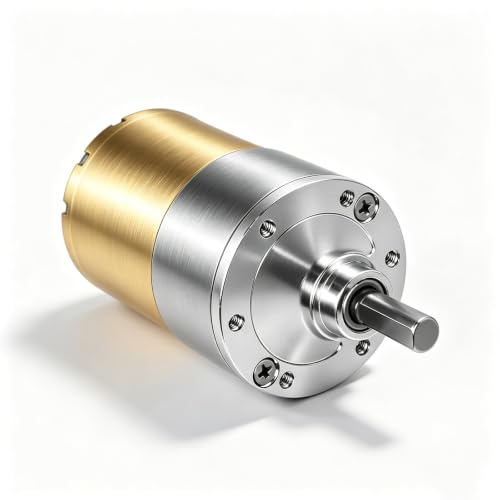

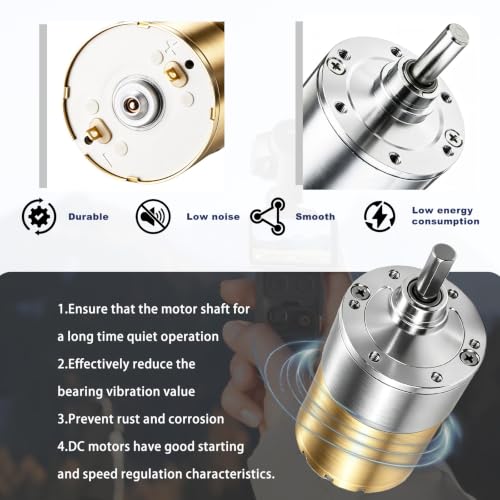

{"id":8115602358452,"title":"Podazz DC 12V 550RPM Gear Motor High Torque Electric Micro Speed Reduction Geared Motor Centric Output Shaft 37mm Diameter Gearbox","handle":"podazz-dc-12v-550rpm-gear-motor-high-torque-electric-micro-speed-reduction-geared-motor-centric-output-shaft-37mm-diameter-gearbox","description":"\u003ch3\u003ePodazz DC 12V 550RPM Gear Motor High Torque Electric Micro Speed Reduction Geared Motor Centric Output Shaft 37mm Diameter Gearbox\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eSpecifications: Rated Voltage: 12V Speed: 550RPM Material: Metal Rated Torque:\n0.7Kg.cm Reduction Ratio: 1:9 Rated Current: 0.5A Type D Output Shaft\nDimensions: Shaft Diameter: 6mm (0.24in) Shaft End Extension Length: 12mm\n(0.47in) Reference Dimension from Shaft Center to Flange Face: 14mm (0.55in)\nGearbox Dimensions: Gearbox Outer Diameter: 31.5mm (1.24in) Gearbox Axial\nLength (including flange): 32.5mm (1.28in) Motor Dimensions: Motor Outer\nDiameter: 35mm (1.38in) Motor Axial Length: 31.5mm (1.24in) Mounting Hole\nSize: M3 (not included) Application: Vending equipments, pan camera, slot\nmachine, money detector, coin refund devices, automatic doors, peritoneal\nmachine, toys motor etc. Packages: - 1 x DC Geared Motor PLEASE NOTE: 1. Use\ntolerance: Pay attention to the use of voltage and current range, otherwise\nthe motor performance and motor life will decline. 2. Handling motors: Gently,\nas far as possible the use of motor shell part. 3. Motor wiring: Red lead to\nthe positive electrode, black lead to the negative pole, if reversed, the\nmotor rotation in the opposite direction. 4. Overload: As far as possible\nwithin the specified load range, prohibit motor blocking or close to the stall\nstate for too long time to runs. Otherwise, the motor will burn out. 5. Motor\nstorage: -- Storage temperature: 0℃ - 40℃; -- Storage humidity: 15% -90% RH;\n-- Avoid placing in high temperature, high humidity and corrosive gases. 6.\nMotor use temperature: 0℃ - 70℃\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eALL-METAL GEARS: High-temperature resistance, high abrasion resistance, strong load capacity, sturdy and durable, effectively protect the gear box motor body.\u003c\/li\u003e\n \u003cli\u003ePURE COPPER WIRE CORE ROTOR: With precision winding technology, the geared motor power instant increased by 30%.\u003c\/li\u003e\n \u003cli\u003eD SHAPED OUTPUT SHAFT: Using high hardness steel, good toughness, impact resistance, the quality of the bearing and the service life of the gear motor are improved, extremely durable.\u003c\/li\u003e\n \u003cli\u003ePOSITIVE-NEGATIVE ROTATION: You also can adjust the speed, but the motor speed can only be reduced, can not be raised. Low noise and high torque, such as 10rpm can drive 15 kilograms.\u003c\/li\u003e\n \u003cli\u003eWIDELY USED: DC geared motors are generally used in the manufacture of miniature geared motors for smart homes, banknote counters, printers, and automated equipment.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2026-09-03T00:36:42+10:00","created_at":"2026-09-02T20:18:49+10:00","vendor":"Podazz","type":"Gearboxes, Gearheads \u0026 Speed Reducers","tags":["industrial_UK_Aug2026"],"price":17500,"price_min":17500,"price_max":17500,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44375691985076,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"uk-B0GX623LHL","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Podazz DC 12V 550RPM Gear Motor High Torque Electric Micro Speed Reduction Geared Motor Centric Output Shaft 37mm Diameter Gearbox","public_title":null,"options":["Default Title"],"price":17500,"weight":200,"compare_at_price":null,"inventory_management":"shopify","barcode":"Gear Motor","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/uk-B0GX623LHL.jpg?v=1788344331","\/\/auspowers.com\/cdn\/shop\/files\/41K8bwP6TcL.jpg?v=1788344331","\/\/auspowers.com\/cdn\/shop\/files\/41nvva4nuHL.jpg?v=1788344331","\/\/auspowers.com\/cdn\/shop\/files\/51Q-FtYCJOL.jpg?v=1788344331","\/\/auspowers.com\/cdn\/shop\/files\/51ZuuiHYi4L.jpg?v=1788344331","\/\/auspowers.com\/cdn\/shop\/files\/41qXxNkL7EL.jpg?v=1788344331","\/\/auspowers.com\/cdn\/shop\/files\/41nXfl5FgeL.jpg?v=1788344331"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/uk-B0GX623LHL.jpg?v=1788344331","options":["Title"],"media":[{"alt":null,"id":33276580200628,"position":1,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/uk-B0GX623LHL.jpg?v=1788344331"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/uk-B0GX623LHL.jpg?v=1788344331","width":500},{"alt":null,"id":33276580233396,"position":2,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/41K8bwP6TcL.jpg?v=1788344331"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/41K8bwP6TcL.jpg?v=1788344331","width":500},{"alt":null,"id":33276580266164,"position":3,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/41nvva4nuHL.jpg?v=1788344331"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/41nvva4nuHL.jpg?v=1788344331","width":500},{"alt":null,"id":33276580298932,"position":4,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51Q-FtYCJOL.jpg?v=1788344331"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51Q-FtYCJOL.jpg?v=1788344331","width":500},{"alt":null,"id":33276580331700,"position":5,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51ZuuiHYi4L.jpg?v=1788344331"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51ZuuiHYi4L.jpg?v=1788344331","width":500},{"alt":null,"id":33276580364468,"position":6,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/41qXxNkL7EL.jpg?v=1788344331"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/41qXxNkL7EL.jpg?v=1788344331","width":500},{"alt":null,"id":33276580397236,"position":7,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/41nXfl5FgeL.jpg?v=1788344331"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/41nXfl5FgeL.jpg?v=1788344331","width":500}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003ePodazz DC 12V 550RPM Gear Motor High Torque Electric Micro Speed Reduction Geared Motor Centric Output Shaft 37mm Diameter Gearbox\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eSpecifications: Rated Voltage: 12V Speed: 550RPM Material: Metal Rated Torque:\n0.7Kg.cm Reduction Ratio: 1:9 Rated Current: 0.5A Type D Output Shaft\nDimensions: Shaft Diameter: 6mm (0.24in) Shaft End Extension Length: 12mm\n(0.47in) Reference Dimension from Shaft Center to Flange Face: 14mm (0.55in)\nGearbox Dimensions: Gearbox Outer Diameter: 31.5mm (1.24in) Gearbox Axial\nLength (including flange): 32.5mm (1.28in) Motor Dimensions: Motor Outer\nDiameter: 35mm (1.38in) Motor Axial Length: 31.5mm (1.24in) Mounting Hole\nSize: M3 (not included) Application: Vending equipments, pan camera, slot\nmachine, money detector, coin refund devices, automatic doors, peritoneal\nmachine, toys motor etc. Packages: - 1 x DC Geared Motor PLEASE NOTE: 1. Use\ntolerance: Pay attention to the use of voltage and current range, otherwise\nthe motor performance and motor life will decline. 2. Handling motors: Gently,\nas far as possible the use of motor shell part. 3. Motor wiring: Red lead to\nthe positive electrode, black lead to the negative pole, if reversed, the\nmotor rotation in the opposite direction. 4. Overload: As far as possible\nwithin the specified load range, prohibit motor blocking or close to the stall\nstate for too long time to runs. Otherwise, the motor will burn out. 5. Motor\nstorage: -- Storage temperature: 0℃ - 40℃; -- Storage humidity: 15% -90% RH;\n-- Avoid placing in high temperature, high humidity and corrosive gases. 6.\nMotor use temperature: 0℃ - 70℃\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eALL-METAL GEARS: High-temperature resistance, high abrasion resistance, strong load capacity, sturdy and durable, effectively protect the gear box motor body.\u003c\/li\u003e\n \u003cli\u003ePURE COPPER WIRE CORE ROTOR: With precision winding technology, the geared motor power instant increased by 30%.\u003c\/li\u003e\n \u003cli\u003eD SHAPED OUTPUT SHAFT: Using high hardness steel, good toughness, impact resistance, the quality of the bearing and the service life of the gear motor are improved, extremely durable.\u003c\/li\u003e\n \u003cli\u003ePOSITIVE-NEGATIVE ROTATION: You also can adjust the speed, but the motor speed can only be reduced, can not be raised. Low noise and high torque, such as 10rpm can drive 15 kilograms.\u003c\/li\u003e\n \u003cli\u003eWIDELY USED: DC geared motors are generally used in the manufacture of miniature geared motors for smart homes, banknote counters, printers, and automated equipment.\u003c\/li\u003e\n \u003c\/ul\u003e"}
