PID Temperature Controller Set, PID Temperature Controllers Thermostat Regulator, SSR 40DA Solid State Relay AC 100 to 240V, White Heat Sink and K Type Sensor Thermocouple
PID Temperature Controller Set, PID Temperature Controllers Thermostat Regulator, SSR 40DA Solid State Relay AC 100 to 240V, White Heat Sink and K Type Sensor Thermocouple

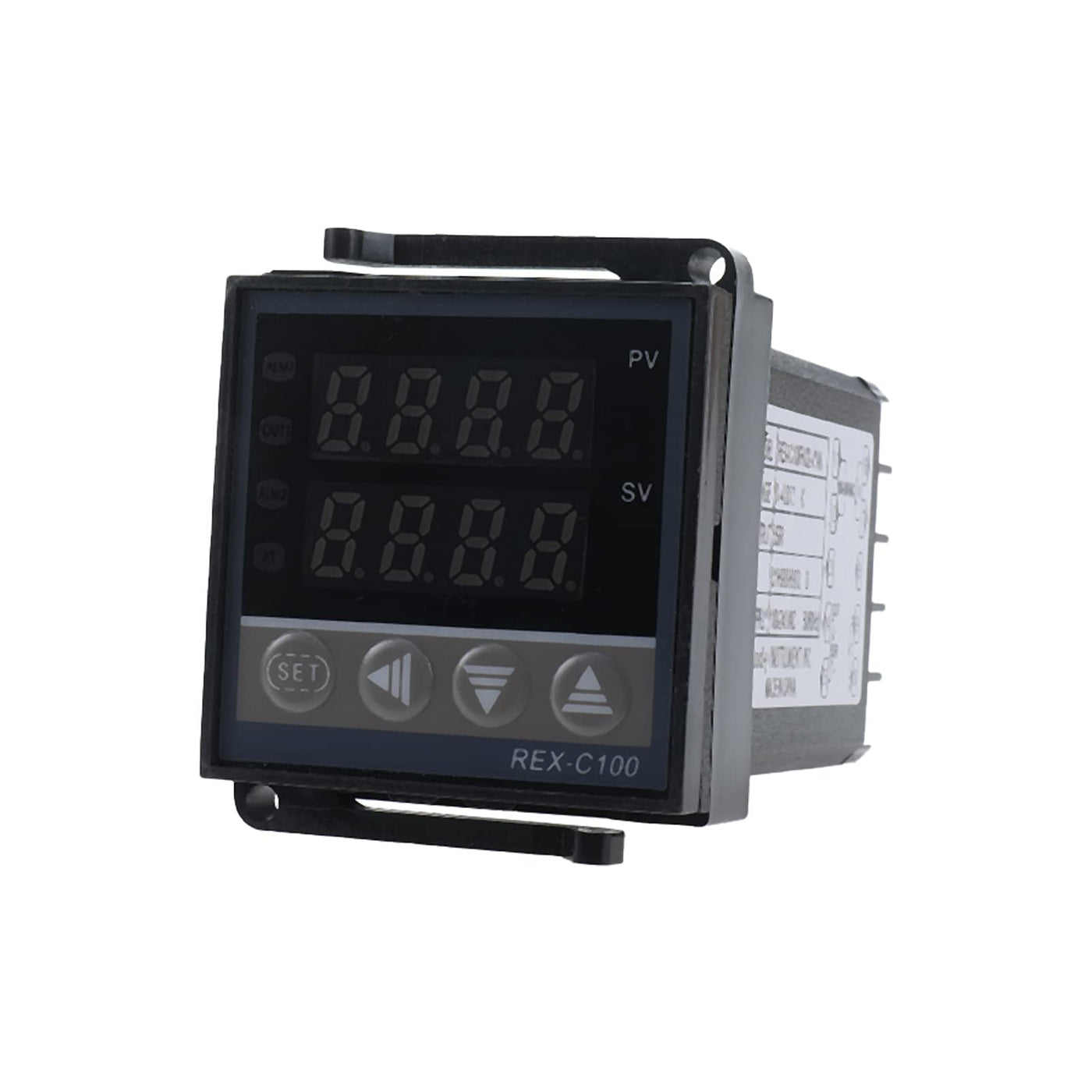

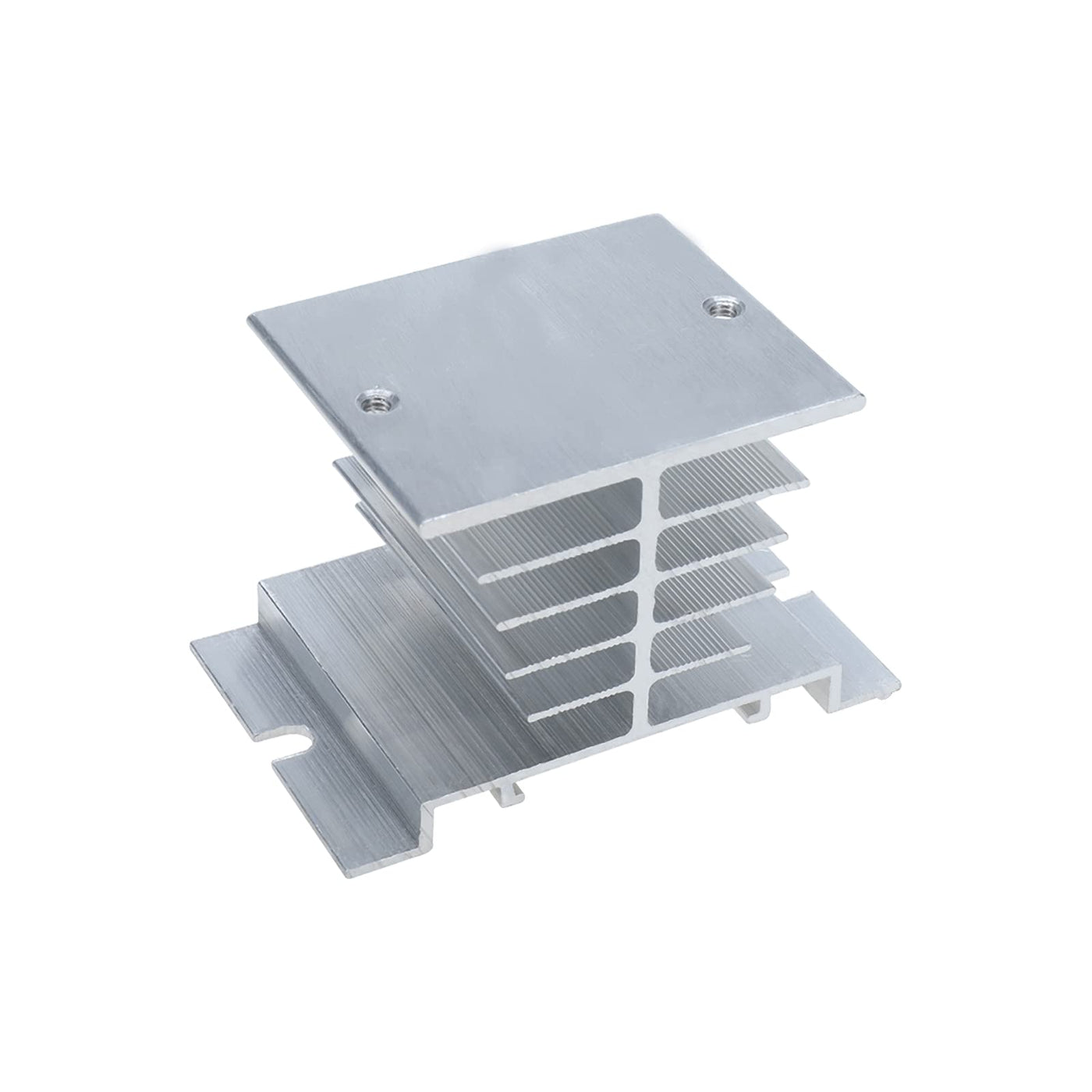

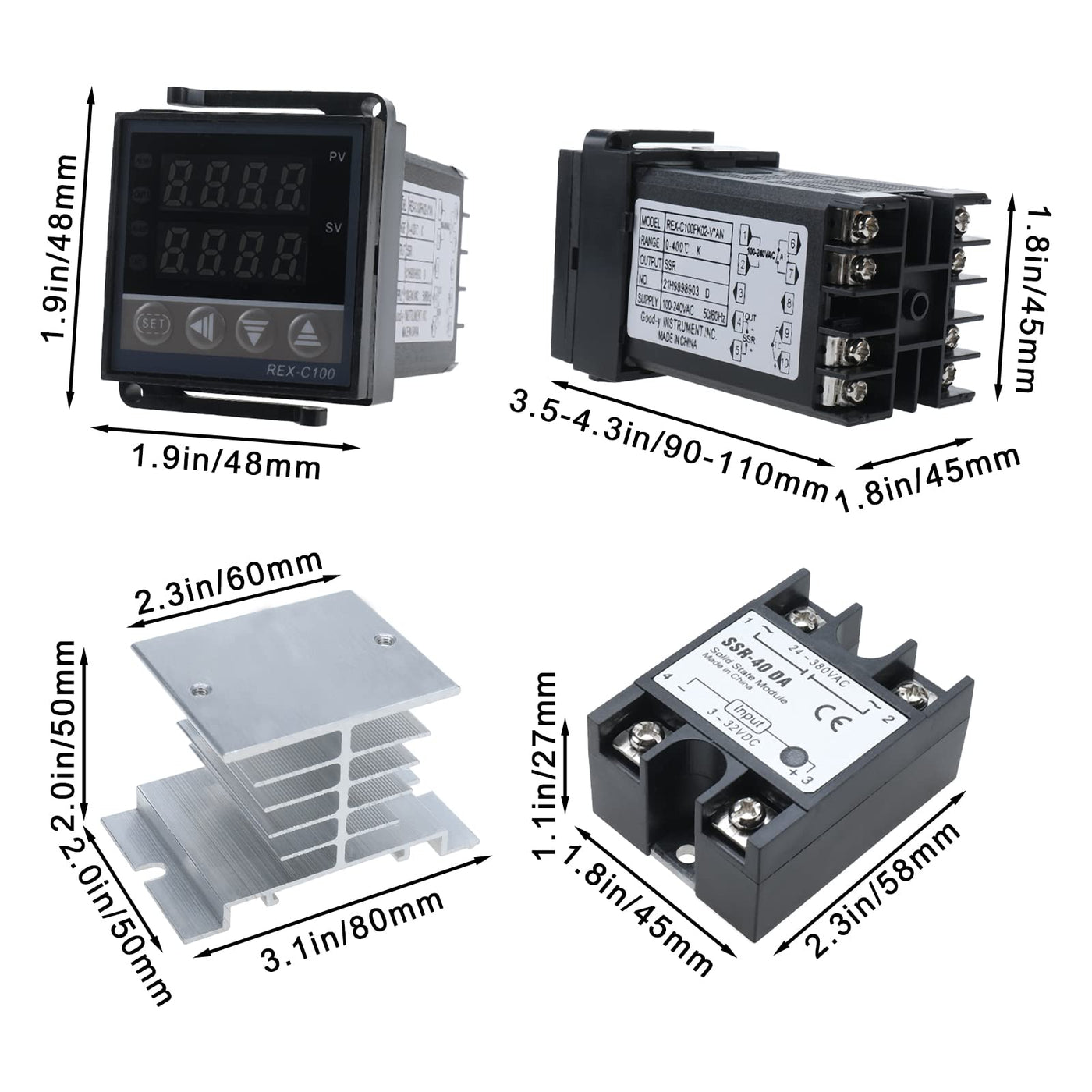

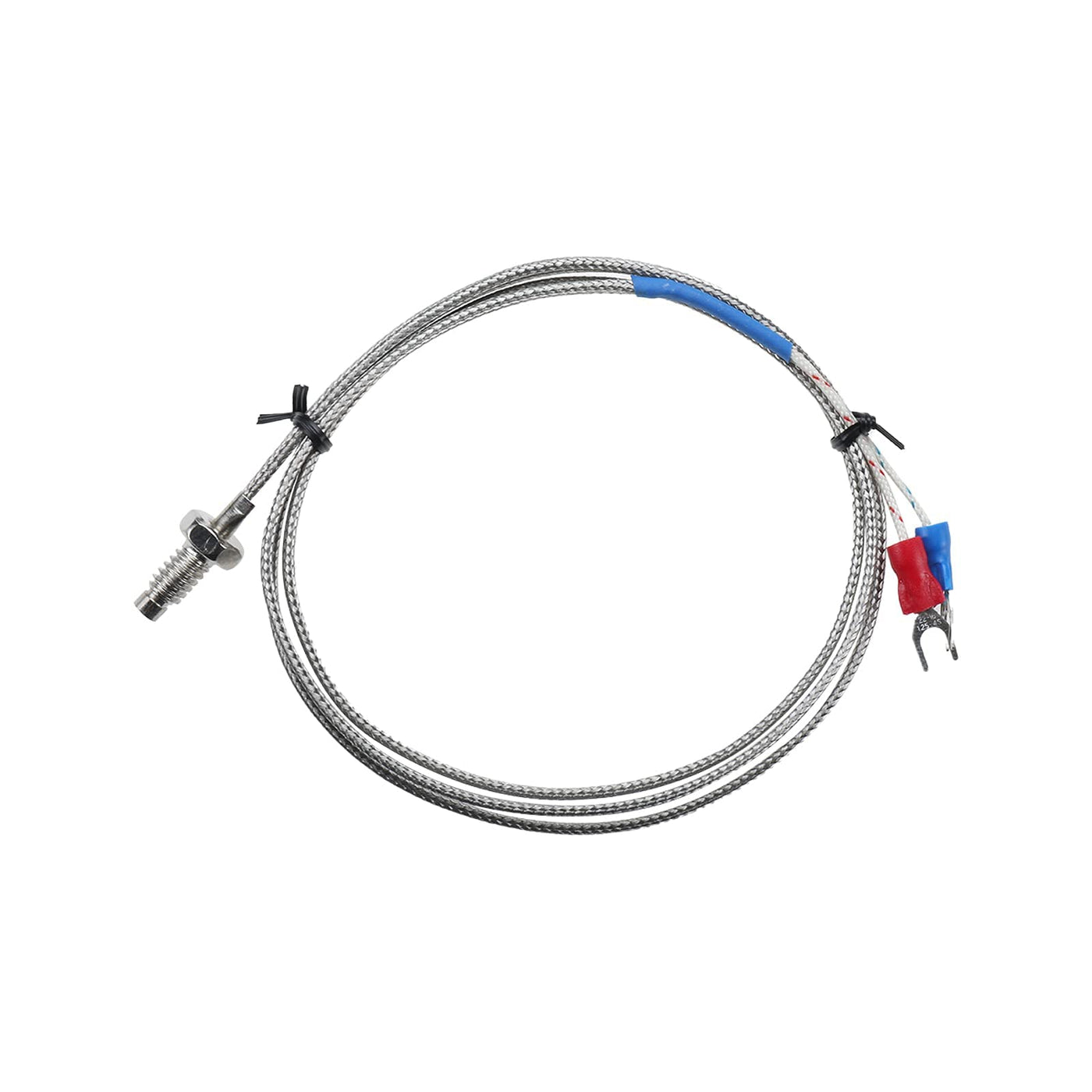

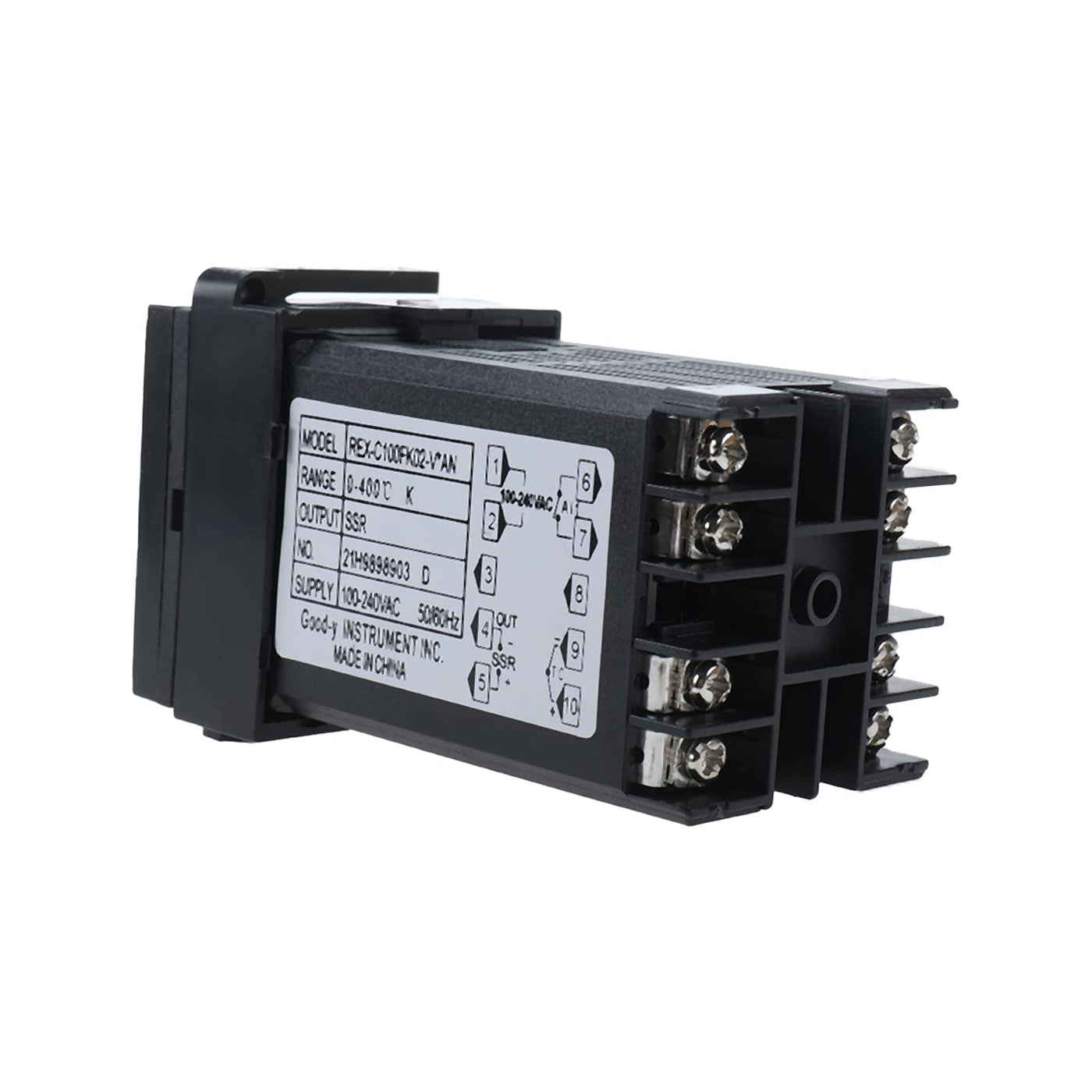

NORJIN PID Temperature Controller SetREX-C100 Temperature Controller- 3 Digit setup values, Power: AC 100-240-V 50/60HZ- Measuring accuracy:±0.5%FS- Detective temperature r-ange: 0 to 400℃- Cold-end compensation tolerance: ±2℃(can be modified by software in 0~50℃)- Resolution: 14 bit; Sampling cycle: 0.5 Sec- Process value (PV), Setting value (SV)- Output, and self-tuning can be indicated by: L-ED- .PIN control (including ON/OFF, step-type PID and continuous PID)- Proportional band (P): 0~full r-ange (ON/OFF control when set to 0)40A SSR Solid State RelayLoad Voltage: 24~380VAC Load Current: 40A Input Voltage: DC 3~32VK Type ThermocoupleLength: 39.3in/1mSensor Dia: 0.18inch (4.5mm)Temperature rang :0-400℃External Shielding: Insulated ShieldingInternal Insulation: FiberglassWhite Heat SinkMaterial: Aluminum alloy Screw Thread:M4Size:3.1x2x2in / 80x50x50mm(L W H)Package Included:1 x PID Temperature Controller 1x 40A SSR Solid State Relay1 x K type Thermocouple1 x White Heat Sink
Product Features
- PID Temperature Controllers Power: 100-240V AC 50/60HZ. Detection accuracy: 0.5% FS, detection temperature range from 0 to 400. It also supports Centigrade and Fahrenheit reading

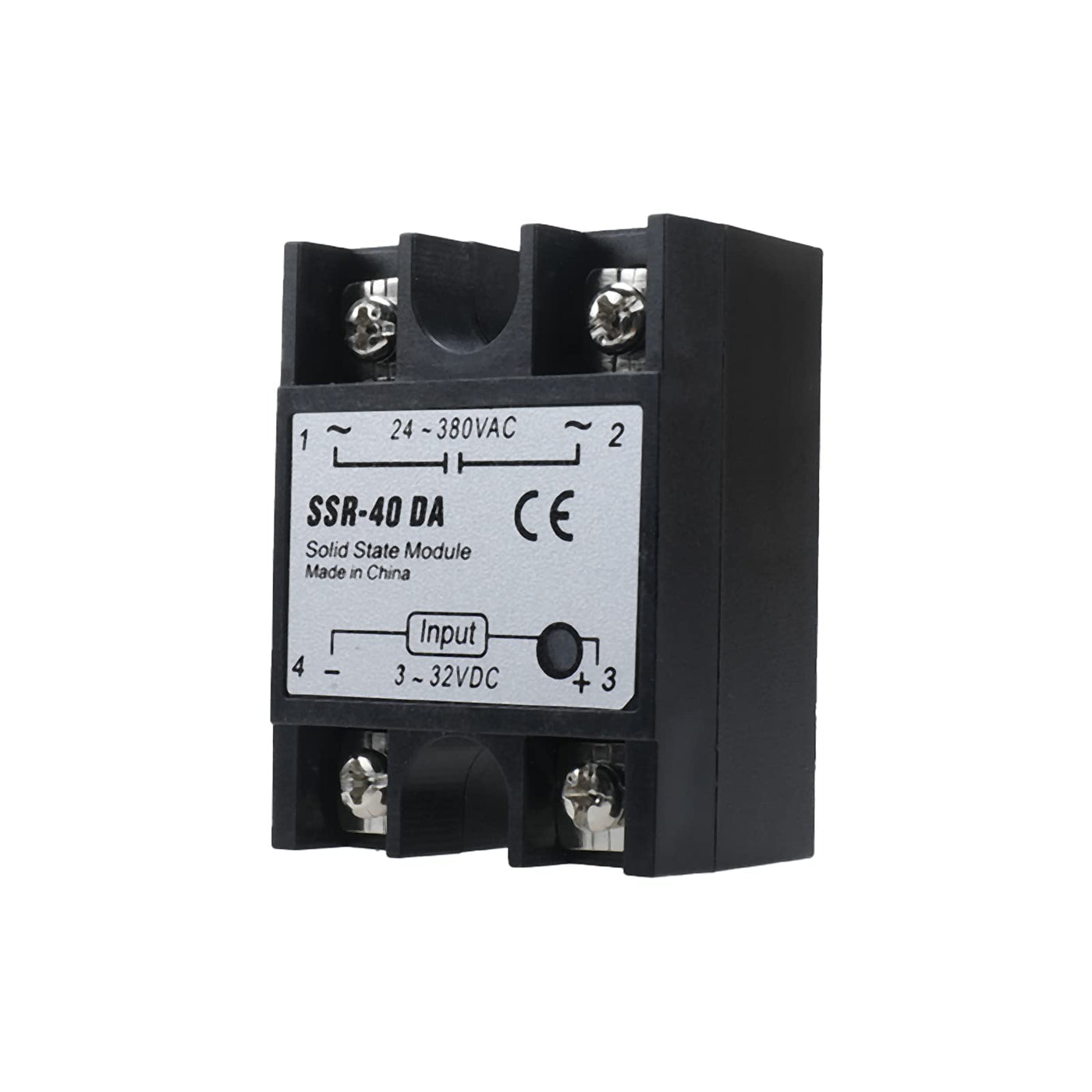

- SSR Output A 40DA SSR is included.Load Voltage: 24~380VAC Load Current: 40A Input Voltage: DC 3~32V. PID and ON/OFF Control Mode with high standard self-adjust function

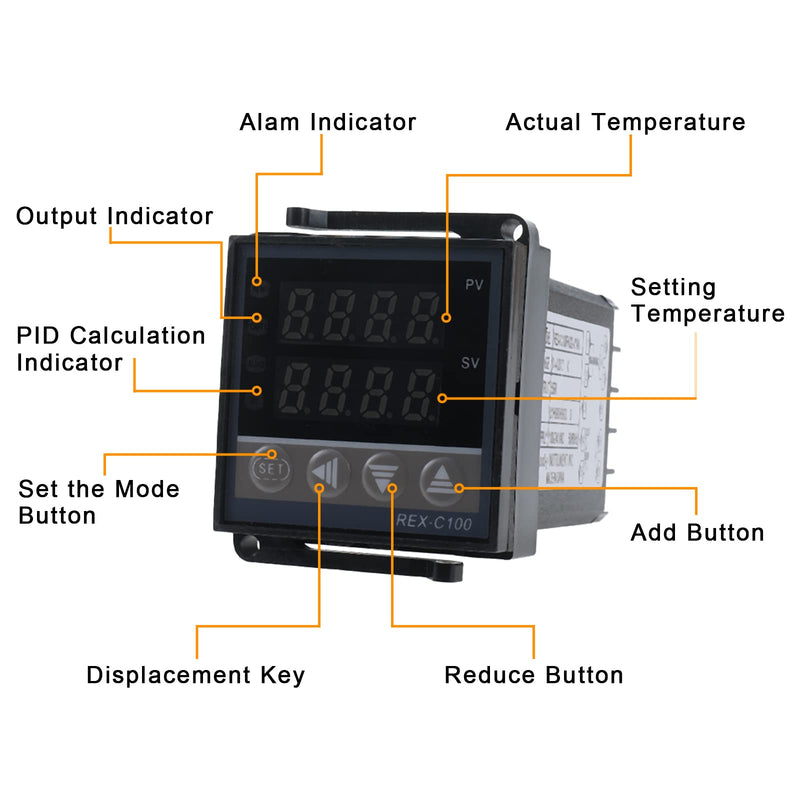

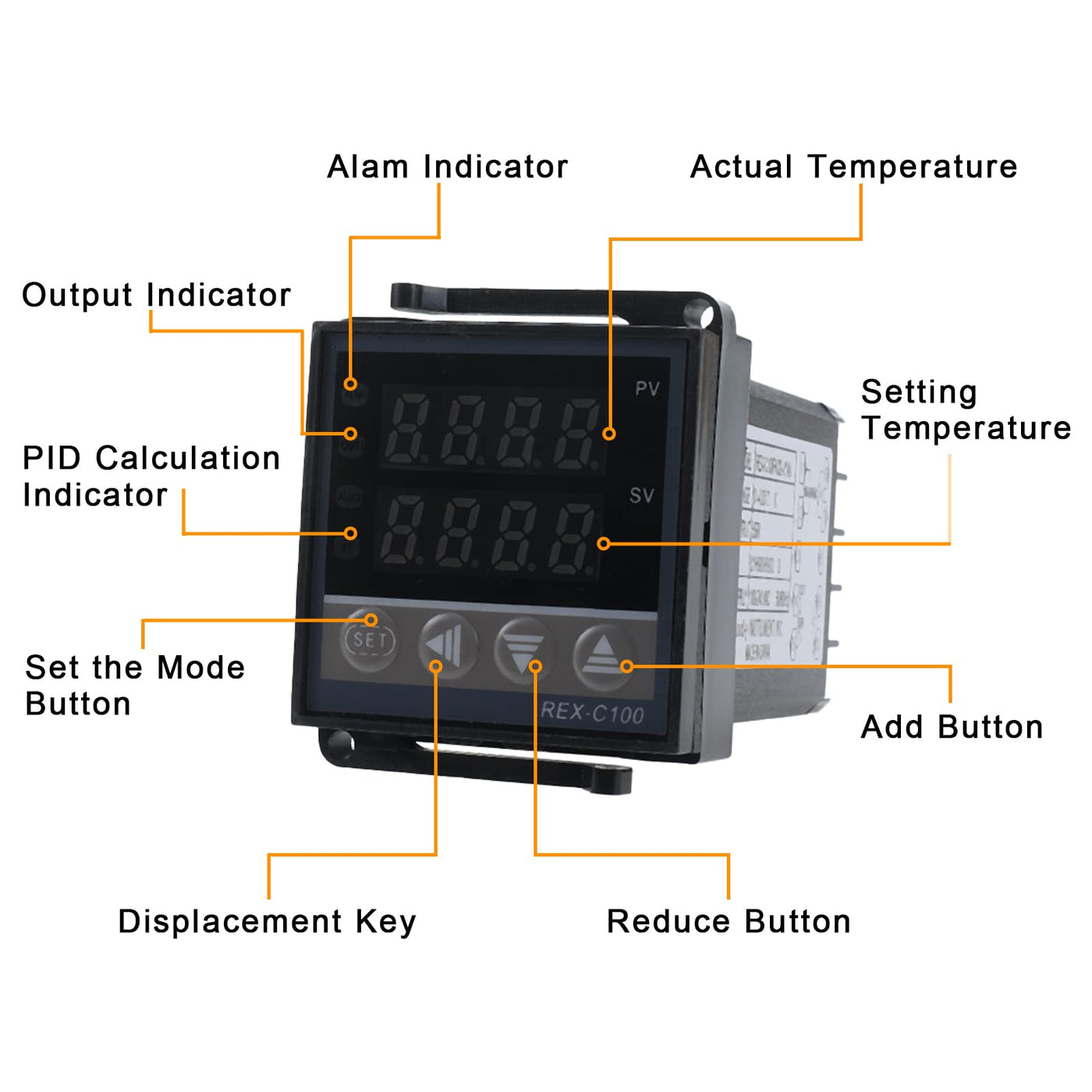

- 2 Temp Displaying WindowsPID temperature controller have 2 Temp Displaying Windows, the real-time temperature and the setpoint are shown at the same time
- Multi-function This PID Temperature Thermostat can be used for temperature measurement, thermostatic control, temperature switch, temperature alarm.

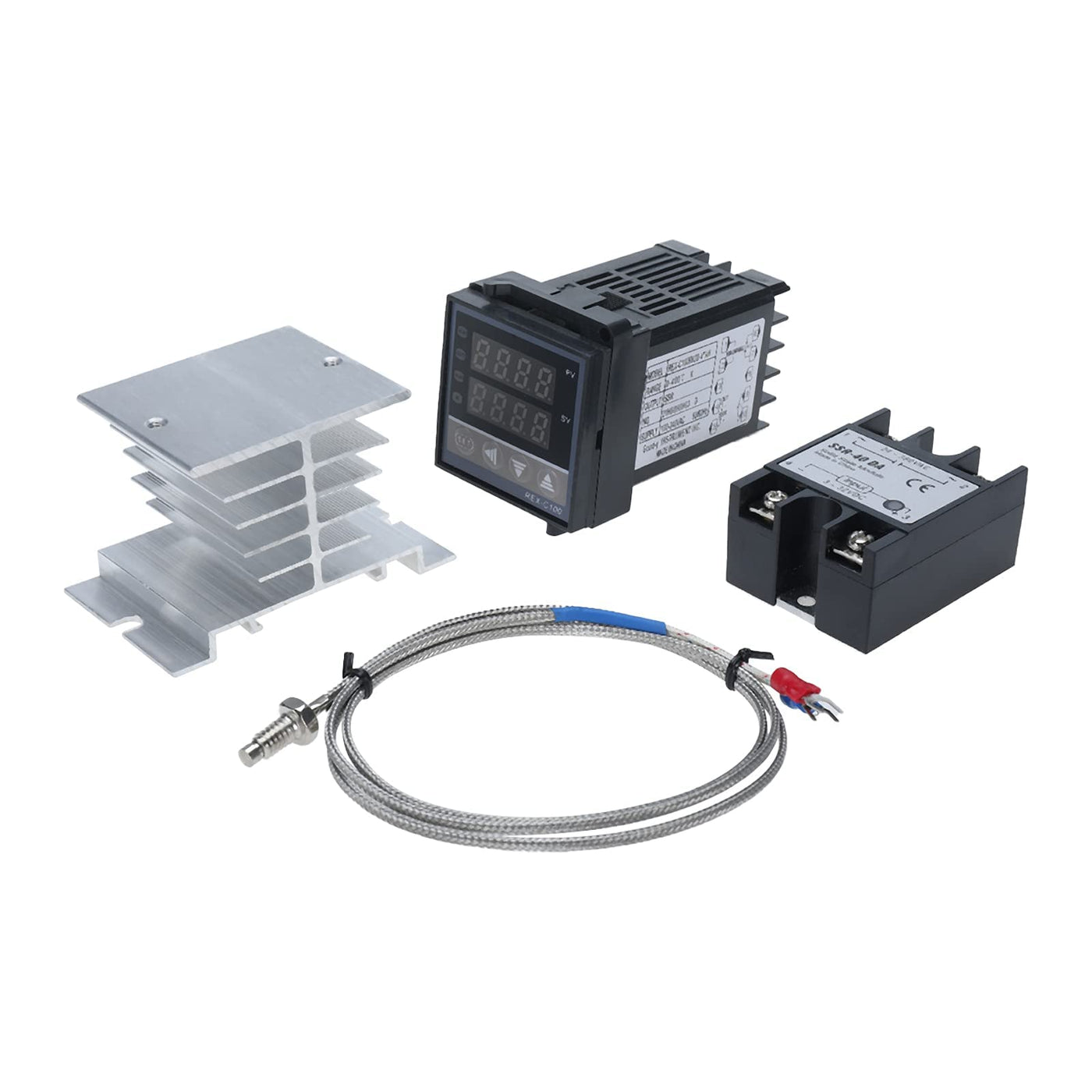

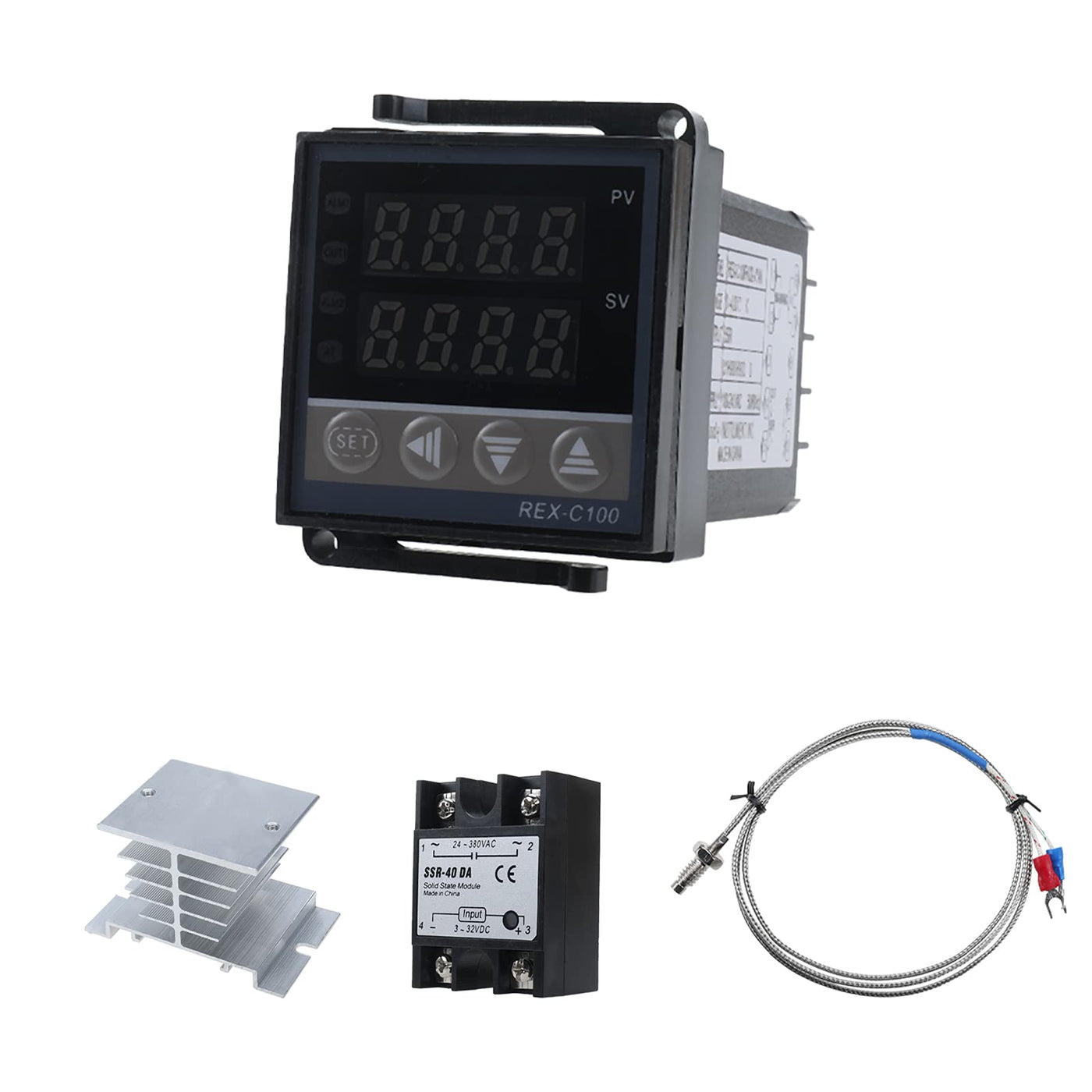

- Pacakge Content: PID Temperature Controller Set includes 1 x 40A SSR, 1 x K sensor, 1x White Heat Sink and 1x Manual. Widely used in electric power, chemical industry, injection ing, food, incubators, ovens and other equipment.
