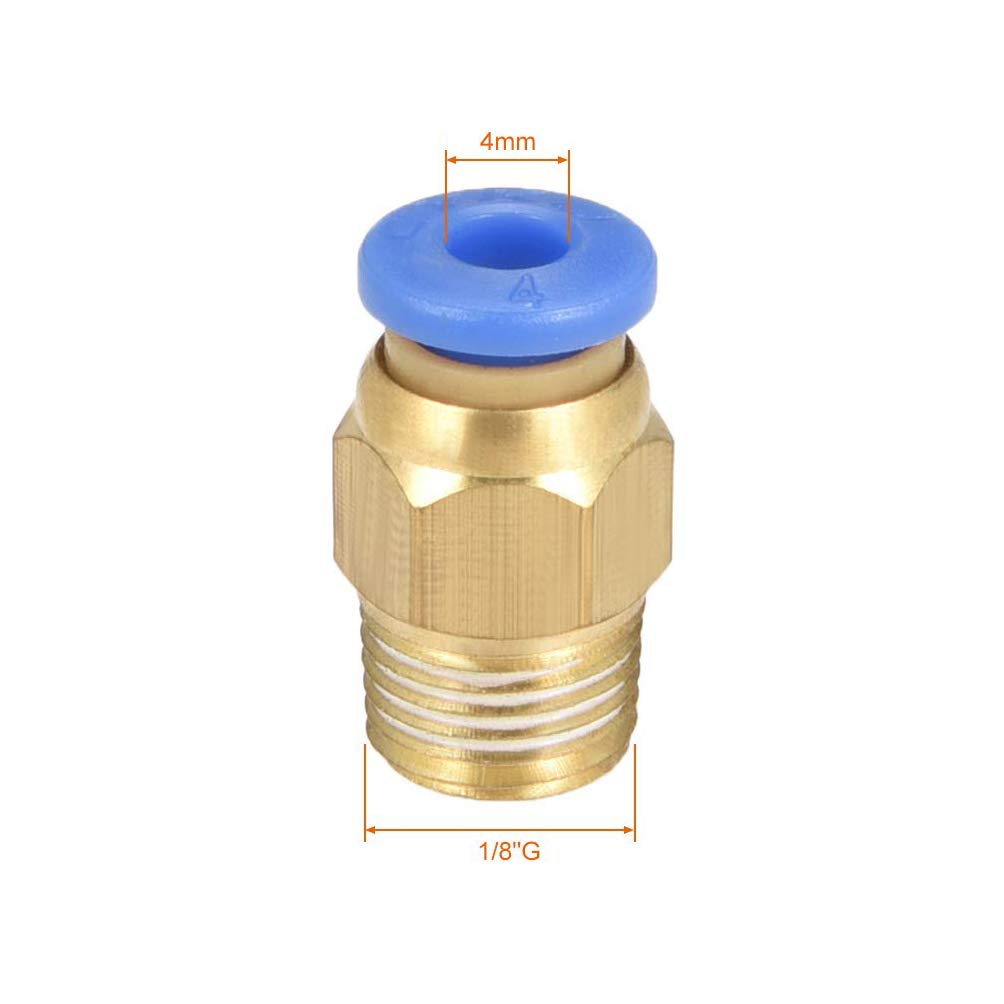

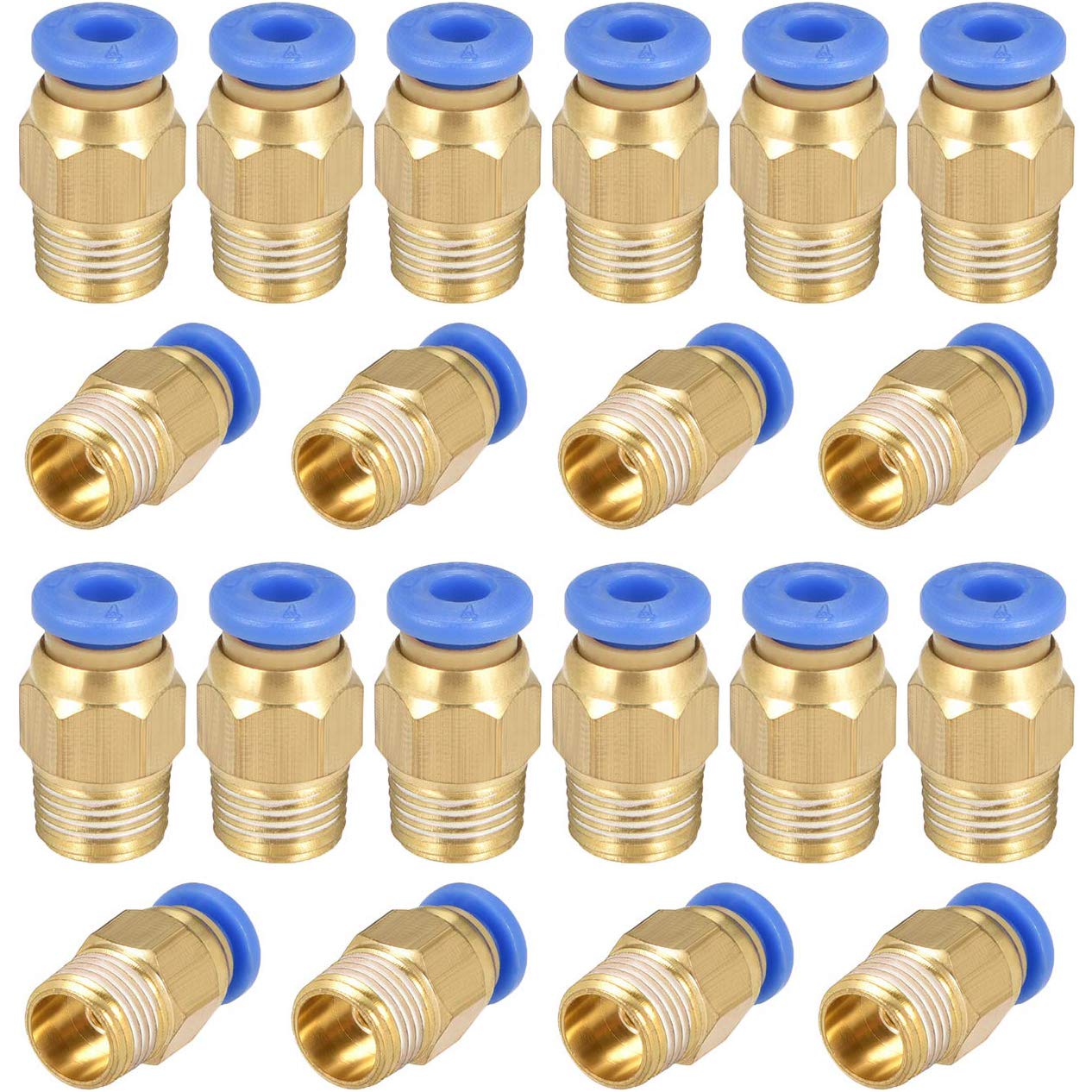

{"id":7142843613364,"title":"PC4-01 Push to Connect Fittings, 4mm Tube OD x 1\/8” G Thread, Straight Pneumatic Quick Fitting Air Line Connector 20Pcs 4mm OD x 1\/8” G","handle":"pc4-01-push-to-connect-fittings-4mm-tube-od-x-1-8-g-thread-straight-pneumatic-quick-fitting-air-line-connector-20pcs-4mm-od-x-1-8-g","description":"\u003ch3\u003ePC4-01 Push to Connect Fittings, 4mm Tube OD x 1\/8” G Thread, Straight Pneumatic Quick Fitting Air Line Connector 20Pcs\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eSpecification: Product Name: Quick Fitting Model: PC4-01 Size: 20mm x 10mm\/\n0.78” x 0.39” (L x W） Operating Pressure: 0-0.9Mpa(0-9.2kgf\/cm²) Max Working\nPressure: 1.32Mpa(13.5kgf\/cm²) Operating Temperature: 0-60 Degree Celsius Tube\nSize (OD): 4mm(5\/32”) Thread Size: 1\/8\" G Color: Gold, Blue Material: Brass,\nPlastic Installation: 1. Cut the pipe flat without slope 2. When inserting the\npipe into the connector, it must be inserted into the end, otherwise leakage\nmay occur. 3. After inserting, try to pull out the tube. If it can't be pulled\nout, it means it is connected. 4. When loosening the tube, first confirm that\nthe tube is not under pressure and then press the end cap evenly to the\nbottom. Package Content: 20Pcs of PC4-01 Quick Fitting\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eProduct Name: Push To Connect Quick Fitting; Model: PC4-01; Tube And Thread Size: 4mm(5\/32) Outer Diameter X 1\/8\" G Thread\u003c\/li\u003e\n \u003cli\u003eOperating Pressure: 0-0.9MPa; Max Working Pressure: 1.32MPa; Working Temperature: 0 - 60 Degrees Celsius\u003c\/li\u003e\n \u003cli\u003eType: One end is a push to connect tube connector, the other end is a male G thread, and a good release cap that can withstand greater and stronger pressure without tripping.\u003c\/li\u003e\n \u003cli\u003eAdvantage: Wear-resistant, light weight, anti-crushing, anti-pressure, anti-corrosion, good sealing performance and long service life.\u003c\/li\u003e\n \u003cli\u003eConnect Tube Materials: Designed to connect polyethylene, nylon and PU tubes. Quick and simple installation.\u003c\/li\u003e\n \u003c\/ul\u003e\n\n","published_at":"2022-05-25T06:12:02+10:00","created_at":"2022-05-25T06:12:09+10:00","vendor":"NACX","type":"Push-to-Connect Fittings","tags":["industrial"],"price":14500,"price_min":14500,"price_max":14500,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":41526790455476,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B07TTZM73Y","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"PC4-01 Push to Connect Fittings, 4mm Tube OD x 1\/8” G Thread, Straight Pneumatic Quick Fitting Air Line Connector 20Pcs 4mm OD x 1\/8” G","public_title":null,"options":["Default Title"],"price":14500,"weight":103,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/products\/B07TTZM73Y.jpg?v=1653461940","\/\/auspowers.com\/cdn\/shop\/products\/51at6klV6xL.jpg?v=1653423129","\/\/auspowers.com\/cdn\/shop\/products\/51R-QnB6PQL.jpg?v=1653423129","\/\/auspowers.com\/cdn\/shop\/products\/61LiIHShj7L.jpg?v=1653423129","\/\/auspowers.com\/cdn\/shop\/products\/51W4oVGvXjL.jpg?v=1653423129","\/\/auspowers.com\/cdn\/shop\/products\/51sepE_IsoL.jpg?v=1653423129","\/\/auspowers.com\/cdn\/shop\/products\/61x4acfVl0L.jpg?v=1653423129"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/products\/B07TTZM73Y.jpg?v=1653461940","options":["Title"],"media":[{"alt":"[Australia - AusPower] - PC4-01 Push to Connect Fittings, 4mm Tube OD x 1\/8” G Thread, Straight Pneumatic Quick Fitting Air Line Connector 20Pcs 4mm OD x 1\/8” G ","id":25964996755636,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1266,"width":1266,"src":"\/\/auspowers.com\/cdn\/shop\/products\/B07TTZM73Y.jpg?v=1653461940"},"aspect_ratio":1.0,"height":1266,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/B07TTZM73Y.jpg?v=1653461940","width":1266},{"alt":"[Australia - AusPower] - PC4-01 Push to Connect Fittings, 4mm Tube OD x 1\/8” G Thread, Straight Pneumatic Quick Fitting Air Line Connector 20Pcs 4mm OD x 1\/8” G ","id":25960032436404,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1004,"width":1004,"src":"\/\/auspowers.com\/cdn\/shop\/products\/51at6klV6xL.jpg?v=1653423129"},"aspect_ratio":1.0,"height":1004,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/51at6klV6xL.jpg?v=1653423129","width":1004},{"alt":"[Australia - AusPower] - PC4-01 Push to Connect Fittings, 4mm Tube OD x 1\/8” G Thread, Straight Pneumatic Quick Fitting Air Line Connector 20Pcs 4mm OD x 1\/8” G ","id":25960032469172,"position":3,"preview_image":{"aspect_ratio":1.001,"height":1029,"width":1030,"src":"\/\/auspowers.com\/cdn\/shop\/products\/51R-QnB6PQL.jpg?v=1653423129"},"aspect_ratio":1.001,"height":1029,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/51R-QnB6PQL.jpg?v=1653423129","width":1030},{"alt":"[Australia - AusPower] - PC4-01 Push to Connect Fittings, 4mm Tube OD x 1\/8” G Thread, Straight Pneumatic Quick Fitting Air Line Connector 20Pcs 4mm OD x 1\/8” G ","id":25960032501940,"position":4,"preview_image":{"aspect_ratio":0.899,"height":1112,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/products\/61LiIHShj7L.jpg?v=1653423129"},"aspect_ratio":0.899,"height":1112,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/61LiIHShj7L.jpg?v=1653423129","width":1000},{"alt":"[Australia - AusPower] - PC4-01 Push to Connect Fittings, 4mm Tube OD x 1\/8” G Thread, Straight Pneumatic Quick Fitting Air Line Connector 20Pcs 4mm OD x 1\/8” G ","id":25960032534708,"position":5,"preview_image":{"aspect_ratio":1.001,"height":1000,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/products\/51W4oVGvXjL.jpg?v=1653423129"},"aspect_ratio":1.001,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/51W4oVGvXjL.jpg?v=1653423129","width":1001},{"alt":"[Australia - AusPower] - PC4-01 Push to Connect Fittings, 4mm Tube OD x 1\/8” G Thread, Straight Pneumatic Quick Fitting Air Line Connector 20Pcs 4mm OD x 1\/8” G ","id":25960032567476,"position":6,"preview_image":{"aspect_ratio":0.941,"height":1063,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/products\/51sepE_IsoL.jpg?v=1653423129"},"aspect_ratio":0.941,"height":1063,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/51sepE_IsoL.jpg?v=1653423129","width":1000},{"alt":"[Australia - AusPower] - PC4-01 Push to Connect Fittings, 4mm Tube OD x 1\/8” G Thread, Straight Pneumatic Quick Fitting Air Line Connector 20Pcs 4mm OD x 1\/8” G ","id":25960032600244,"position":7,"preview_image":{"aspect_ratio":0.841,"height":1000,"width":841,"src":"\/\/auspowers.com\/cdn\/shop\/products\/61x4acfVl0L.jpg?v=1653423129"},"aspect_ratio":0.841,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/61x4acfVl0L.jpg?v=1653423129","width":841}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003ePC4-01 Push to Connect Fittings, 4mm Tube OD x 1\/8” G Thread, Straight Pneumatic Quick Fitting Air Line Connector 20Pcs\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eSpecification: Product Name: Quick Fitting Model: PC4-01 Size: 20mm x 10mm\/\n0.78” x 0.39” (L x W） Operating Pressure: 0-0.9Mpa(0-9.2kgf\/cm²) Max Working\nPressure: 1.32Mpa(13.5kgf\/cm²) Operating Temperature: 0-60 Degree Celsius Tube\nSize (OD): 4mm(5\/32”) Thread Size: 1\/8\" G Color: Gold, Blue Material: Brass,\nPlastic Installation: 1. Cut the pipe flat without slope 2. When inserting the\npipe into the connector, it must be inserted into the end, otherwise leakage\nmay occur. 3. After inserting, try to pull out the tube. If it can't be pulled\nout, it means it is connected. 4. When loosening the tube, first confirm that\nthe tube is not under pressure and then press the end cap evenly to the\nbottom. Package Content: 20Pcs of PC4-01 Quick Fitting\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eProduct Name: Push To Connect Quick Fitting; Model: PC4-01; Tube And Thread Size: 4mm(5\/32) Outer Diameter X 1\/8\" G Thread\u003c\/li\u003e\n \u003cli\u003eOperating Pressure: 0-0.9MPa; Max Working Pressure: 1.32MPa; Working Temperature: 0 - 60 Degrees Celsius\u003c\/li\u003e\n \u003cli\u003eType: One end is a push to connect tube connector, the other end is a male G thread, and a good release cap that can withstand greater and stronger pressure without tripping.\u003c\/li\u003e\n \u003cli\u003eAdvantage: Wear-resistant, light weight, anti-crushing, anti-pressure, anti-corrosion, good sealing performance and long service life.\u003c\/li\u003e\n \u003cli\u003eConnect Tube Materials: Designed to connect polyethylene, nylon and PU tubes. Quick and simple installation.\u003c\/li\u003e\n \u003c\/ul\u003e\n\n"}
