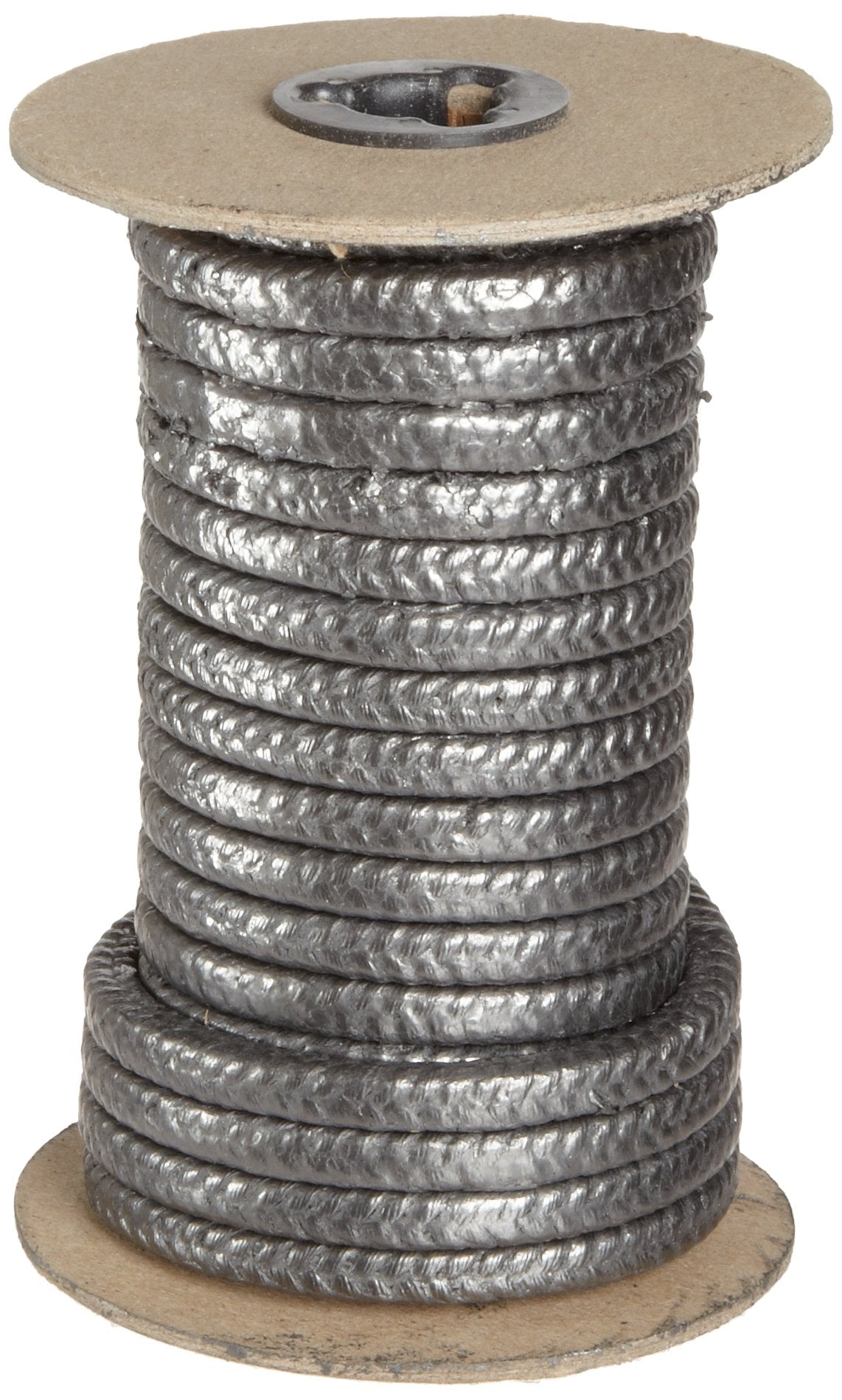

{"id":7135975866548,"title":"Palmetto 1555 Series Graphite Filament Compression Packing Seal, Dull Gray, 5\/16\" Square, 10' Length 5\/16\" 10 Feet 1","handle":"palmetto-1555-series-graphite-filament-compression-packing-seal-dull-gray-5-16-square-10-length-5-16-10-feet-1","description":"\u003ch3\u003ePalmetto 1555 Series Graphite Filament Compression Packing Seal, Dull Gray, 5\/16\" Square, 10' Length\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eThis Palmetto style 1555 graphite filament compression packing with a graphite\ncoating and a solid lubricant protects rotating and reciprocating shafts,\nvalves, and agitators from fluid leaks in severe service and high-speed\napplications. The interwoven braided packing seal is made of a 99-percent\nassay graphite filament impregnated with fine graphite particles. Graphite\nresists high temperatures and pressures, exhibits a low coefficient of\nfriction, and transfers heat away from the shaft to prevent glazing and\nscoring, reducing leakage and extending the packing and sleeve life. The\ngraphite coating further reduces frictional heat to allow for higher shaft\nspeeds and higher temperatures. The packing seal contains a solid lubricant\nthat provides a bearing film between the shaft and seal to prevent any wicking\nor fraying. This packing seal is compatible with media in the pH range of\n1-14, except for strong oxidizers in the 1-2 pH range, such as oleum,\nfluorine, and fuming nitric acid. It has a maximum pressure limit of 3,500\npounds per square inch (psi), a pressure-velocity (PV) factor of 800,000, and\na shaft speed of 4,000 feet per minute (fpm). It operates to a maximum\ntemperature of 1,200 degrees F (650 degrees C) in steam, 800 degrees F (427\ndegrees C) in oxidizing atmospheres, and 6,000 degrees F (3,300 degrees C) in\nnon-oxidizing atmospheres. Style 1555 is suitable for use in rotating and\nreciprocating equipment such as digesters, boiler feed pumps, and chemical\npumps.Specifications Maximum temperature in non-oxidizing atmospheres 6,000\ndegrees F (3,300 degrees C) Maximum temperature in oxidizing atmospheres 800\ndegrees F (427 degrees C) Maximum temperature in steam 1,200 degrees F (650\ndegrees C) pH range 1-14, except strong oxidizers in the 1-2 pH range Pressure\nlimit 3,500 psi (241 bar) PV factor 800,000 Shaft speed 4,000 fpm (20.3\nm\/s)Rope seals provide a pressure seal to help retain fluids and gases in a\nwide variety of commercial and industrial applications. They have a round,\nsquare, or rectangular cross section, and come in various braided designs\nincluding braid-over-braid, braid-over-core, laminated, twisted, or\ninterwoven. Rope seals can be manufactured from a single material or a\ncombination of materials that suit specific pressure, temperature, speed, and\nchemical applications. Some rope seals are impregnated with lubricant and have\nreinforced cores for improved performance in specific environments, such as\nextremely high temperatures. They can be used to create a static seal in fixed\nor slow-moving applications like expansion joints, doors, and valves, or a\ndynamic seal in equipment with reciprocating, rotating, or oscillating\nmovement like centrifugal pumps, rotating stems, and blowers. Rope seals come\nin uncut lengths on spools or as precut molded rings. They are used in\nnumerous industries including agriculture, oil and gas, automotive, aerospace,\nconstruction, and consumer goods.Palmetto Inc. manufactures packing products\nfor pumps and valves, such as compression packing seals, packing tools, gasket\nsheets, and fillers. The company, founded in 1872, is headquartered in Denton,\nMD.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eCompression packing seal protects rotating and reciprocating equipment from fluid leaks in severe service and high-speed applications\u003c\/li\u003e\n \u003cli\u003eGraphite filament impregnated with graphite particles dissipates frictional heat away from the shaft, enabling high shaft speeds and reducing leakage\u003c\/li\u003e\n \u003cli\u003eSolid lubricant provides a bearing film to prevent wicking and fraying\u003c\/li\u003e\n \u003cli\u003eMaximum pressure limit of 3,500 psi\u003c\/li\u003e\n \u003cli\u003eOperates up to 1,200 degrees F in steam; 800 F in oxidizing atmospheres; 6,000 F in non-oxidizing atmospheres\u003c\/li\u003e\n \u003c\/ul\u003e\n\n","published_at":"2022-05-17T22:33:03+10:00","created_at":"2022-05-17T22:33:05+10:00","vendor":"Palmetto Packings","type":"Rope Seals","tags":["industrial"],"price":31300,"price_min":31300,"price_max":31300,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":41502298472628,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B0087UAZ5K","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Palmetto 1555 Series Graphite Filament Compression Packing Seal, Dull Gray, 5\/16\" Square, 10' Length 5\/16\" 10 Feet 1","public_title":null,"options":["Default Title"],"price":31300,"weight":318,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/products\/B0087UAZ5K.jpg?v=1652859139"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/products\/B0087UAZ5K.jpg?v=1652859139","options":["Title"],"media":[{"alt":"[Australia - AusPower] - Palmetto 1555 Series Graphite Filament Compression Packing Seal, Dull Gray, 5\/16\" Square, 10' Length 5\/16\" 10 Feet 1 ","id":25893584732340,"position":1,"preview_image":{"aspect_ratio":0.601,"height":1899,"width":1142,"src":"\/\/auspowers.com\/cdn\/shop\/products\/B0087UAZ5K.jpg?v=1652859139"},"aspect_ratio":0.601,"height":1899,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/B0087UAZ5K.jpg?v=1652859139","width":1142}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003ePalmetto 1555 Series Graphite Filament Compression Packing Seal, Dull Gray, 5\/16\" Square, 10' Length\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eThis Palmetto style 1555 graphite filament compression packing with a graphite\ncoating and a solid lubricant protects rotating and reciprocating shafts,\nvalves, and agitators from fluid leaks in severe service and high-speed\napplications. The interwoven braided packing seal is made of a 99-percent\nassay graphite filament impregnated with fine graphite particles. Graphite\nresists high temperatures and pressures, exhibits a low coefficient of\nfriction, and transfers heat away from the shaft to prevent glazing and\nscoring, reducing leakage and extending the packing and sleeve life. The\ngraphite coating further reduces frictional heat to allow for higher shaft\nspeeds and higher temperatures. The packing seal contains a solid lubricant\nthat provides a bearing film between the shaft and seal to prevent any wicking\nor fraying. This packing seal is compatible with media in the pH range of\n1-14, except for strong oxidizers in the 1-2 pH range, such as oleum,\nfluorine, and fuming nitric acid. It has a maximum pressure limit of 3,500\npounds per square inch (psi), a pressure-velocity (PV) factor of 800,000, and\na shaft speed of 4,000 feet per minute (fpm). It operates to a maximum\ntemperature of 1,200 degrees F (650 degrees C) in steam, 800 degrees F (427\ndegrees C) in oxidizing atmospheres, and 6,000 degrees F (3,300 degrees C) in\nnon-oxidizing atmospheres. Style 1555 is suitable for use in rotating and\nreciprocating equipment such as digesters, boiler feed pumps, and chemical\npumps.Specifications Maximum temperature in non-oxidizing atmospheres 6,000\ndegrees F (3,300 degrees C) Maximum temperature in oxidizing atmospheres 800\ndegrees F (427 degrees C) Maximum temperature in steam 1,200 degrees F (650\ndegrees C) pH range 1-14, except strong oxidizers in the 1-2 pH range Pressure\nlimit 3,500 psi (241 bar) PV factor 800,000 Shaft speed 4,000 fpm (20.3\nm\/s)Rope seals provide a pressure seal to help retain fluids and gases in a\nwide variety of commercial and industrial applications. They have a round,\nsquare, or rectangular cross section, and come in various braided designs\nincluding braid-over-braid, braid-over-core, laminated, twisted, or\ninterwoven. Rope seals can be manufactured from a single material or a\ncombination of materials that suit specific pressure, temperature, speed, and\nchemical applications. Some rope seals are impregnated with lubricant and have\nreinforced cores for improved performance in specific environments, such as\nextremely high temperatures. They can be used to create a static seal in fixed\nor slow-moving applications like expansion joints, doors, and valves, or a\ndynamic seal in equipment with reciprocating, rotating, or oscillating\nmovement like centrifugal pumps, rotating stems, and blowers. Rope seals come\nin uncut lengths on spools or as precut molded rings. They are used in\nnumerous industries including agriculture, oil and gas, automotive, aerospace,\nconstruction, and consumer goods.Palmetto Inc. manufactures packing products\nfor pumps and valves, such as compression packing seals, packing tools, gasket\nsheets, and fillers. The company, founded in 1872, is headquartered in Denton,\nMD.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eCompression packing seal protects rotating and reciprocating equipment from fluid leaks in severe service and high-speed applications\u003c\/li\u003e\n \u003cli\u003eGraphite filament impregnated with graphite particles dissipates frictional heat away from the shaft, enabling high shaft speeds and reducing leakage\u003c\/li\u003e\n \u003cli\u003eSolid lubricant provides a bearing film to prevent wicking and fraying\u003c\/li\u003e\n \u003cli\u003eMaximum pressure limit of 3,500 psi\u003c\/li\u003e\n \u003cli\u003eOperates up to 1,200 degrees F in steam; 800 F in oxidizing atmospheres; 6,000 F in non-oxidizing atmospheres\u003c\/li\u003e\n \u003c\/ul\u003e\n\n"}
