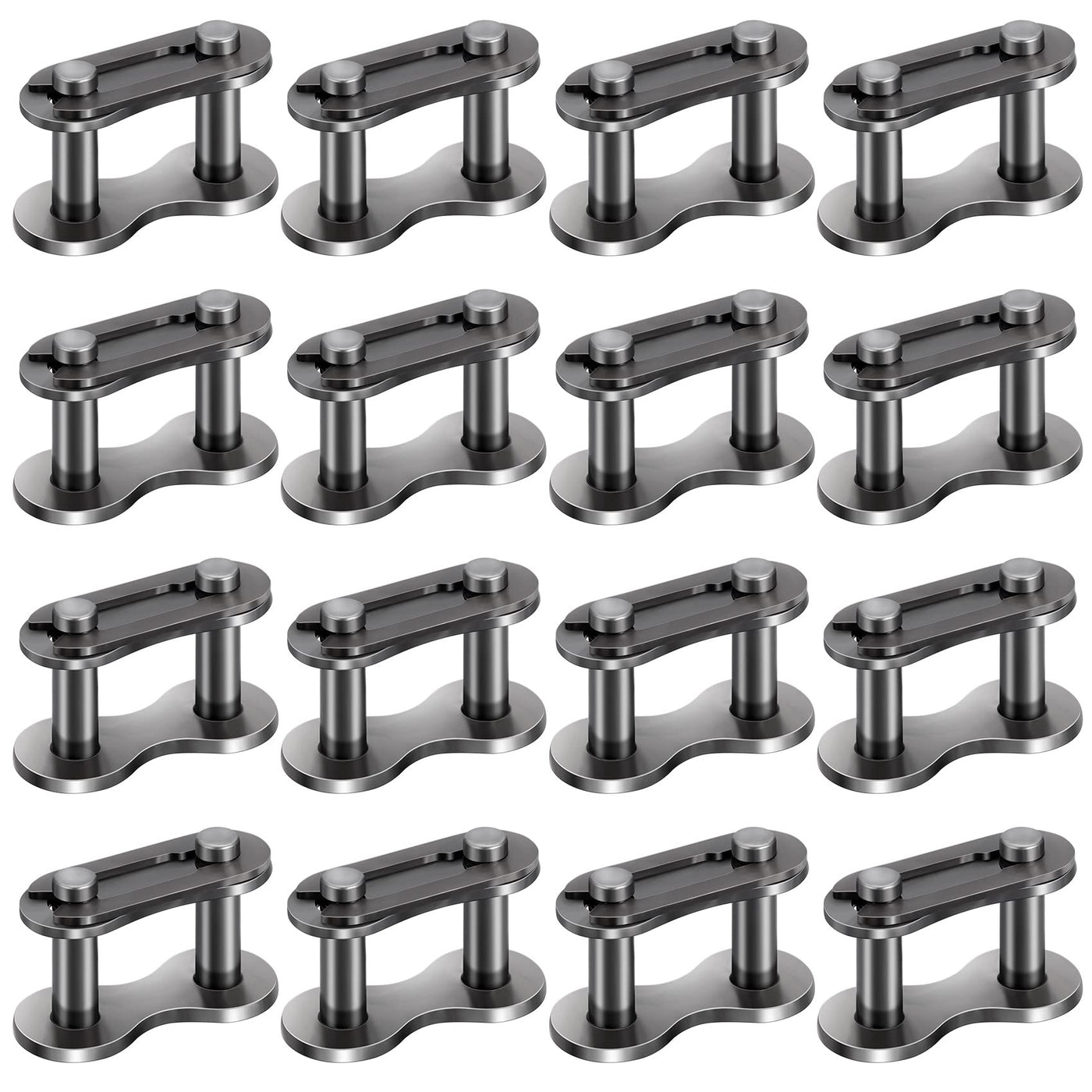

PAGOW 16PCS #41 Roller Chain Connecting Links, Master Manganese Steel Connector Heavy Duty for Bycicles, Mini Bikes, Motorcycles, Go-Karts, Home and Industrial Machinery #41 16PCS
PAGOW 16PCS #41 Roller Chain Connecting Links, Master Manganese Steel Connector Heavy Duty for Bycicles, Mini Bikes, Motorcycles, Go-Karts, Home and Industrial Machinery
41 Roller Chain ANSI Chain No.: 41 Pitch (P): 0.5 inch (12.7 mm) Roller Diameter (d1 max): 0.306 inch (7.77 mm) Width Between Inner Plates (b1 min): 0.246 inch (6.25 mm) Pin Diameter (d2 max): 0.141 inch (3.58 mm) Pin Lenght (L max): 0.541 inch (13.75 mm) Pin Lenght (Lc max): 0.590 inch (15.00 mm) Inner Plate Depth (h2 max): 0.390 inch (9.91 mm) Plate Thickness (T max): 0.051 inch (1.30 mm) Ultimate Tensile Strenght (Q min): 6.67/1516 kN/LB Average Tensile Strenght (Qo): 12.8 kN Weight (q): 0.276 lb/ft (0.41 kg/m)
Product Features
- - ANSI Chain No.: #41NP Single Strand
- -Upgraded material: using upgraded manganese steel, more durable
- - Pitch (P): 0.5 inch (12.7 mm)
- - Package contains: 16pcs 41 Roller Chain
