  1. Home

Pack of 50 PC817 Transistor Output Optocoupler PC817C DIP-4 2.54 mm Pitch + 50 Pieces Round DIP IC Chip Socket 2.54 mm Double Row 4-pin for DIY Optocoupler Tests, Repair and Replacement

In Stock. Leaves warehouse within 2 - 3 business days

$118.00 AUD
Maximum quantity available reached.
Start shopping today and enjoy free shipping on every purchase.
More detailed product descriptions
Free Shipping Australia Wide
100% Safe & Secure Checkout
100 Days Return Policy *
1 Year Warranty *

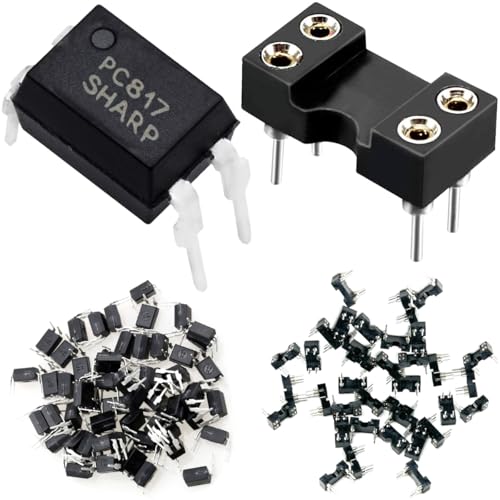

Pack of 50 PC817 Transistor Output Optocoupler PC817C DIP-4 2.54 mm Pitch + 50 Pieces Round DIP IC Chip Socket 2.54 mm Double Row 4-pin for DIY Optocoupler Tests, Repair and Replacement

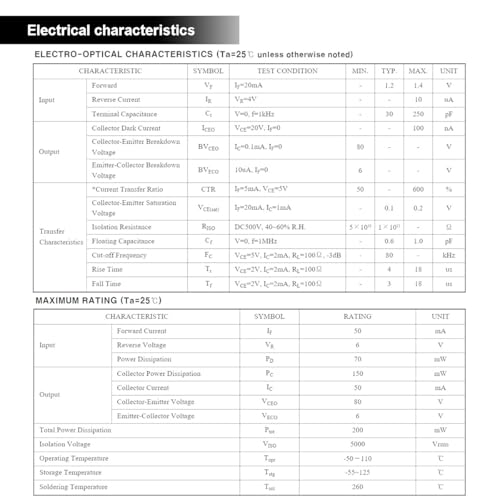

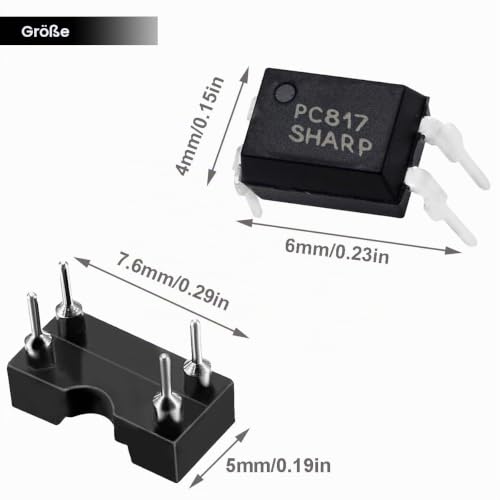

PC817 Specification: Current transmission rate: (CTR: minimum 50%, IF = 5mA, V CE = 5V). High isolation voltage between input and output is 5000V effective value. Forward current (ICEO): 50 mA. Forward peak current (ICE max): 1A. Reverse voltage: 6 V. Power consumption: 70 mW. Collector emitter voltage: 35 V. Emitter collector voltage: 6 V. Collector current: 50 mA. Collector power consumption: 150mW. Total power consumption: 200 mW. Working temperature: -30℃~+100℃. Collector emitter saturation voltage: 0.1V (typical value). DIP-4 IC Chip Socket Specification: Material: plastic, metal. Pitch: 2.54 mm / 0.1 inch. Row to Row Distance(Approx): 7.6mm/ 0.3" Number of pins: 4. Size(Approx): 10 x 5 x 7.5mm/ 0.39" x 0.2" x 0.3"(LWH) Package includes: 50 x PC817 transistor output optocoupler 50 x round DIP-4 IC sockets

Product Features

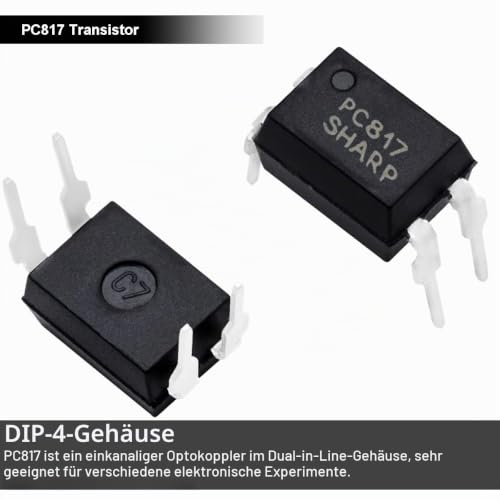

  • What it does: PC817 is a single-channel optocoupler with double inline housing, which is very suitable for various electronic experiments.
  • Features: The PC817 optocoupler has a high isolation voltage between input and output and double transfer mould packaging.

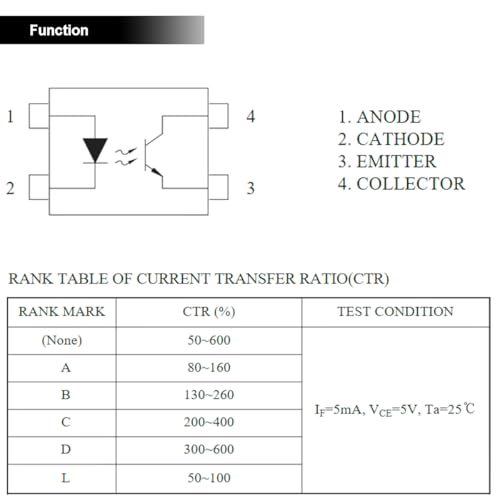

  • Power transfer rate: (CTR: at least 50%, IF=5mA, VCE=5V); High isolation voltage between input and output 5000V RMS.
  • DIP-4 IC socket: when the chip needs to be replaced or installed, simply remove the connection between the IC socket and the chip. Can be welded and disassembled repeatedly.
  • Easy installation: The IC socket is the carrier between the PCB and the chip, allowing the optocoupler PC817 to be pulled and inserted without soldering it to the PCB.
  • Application Widely used in computer terminals, SCR systems, meters, copiers, ticket machines and home appliances.
  • Package includes: 50 x PC817 transistor output optocoupler; 50 x round DIP-4 IC socket.
