Pack of 2 5 kg Load Cell Weight Sensors Digital Scales Load Cell + 2 Pieces HX711 Load Cell Weight Sensor Module for Arduino Microcontroller DIY (5 kg + HX711) 5 kg + HX711

In Stock. Leaves warehouse within 2 - 3 business days

$121.00 AUD
Maximum quantity available reached.
Start shopping today and enjoy free shipping on every purchase.
More detailed product descriptions
Free Shipping Australia Wide
100% Safe & Secure Checkout
100 Days Return Policy *
1 Year Warranty *

Pack of 2 5 kg Load Cell Weight Sensors Digital Scales Load Cell + 2 Pieces HX711 Load Cell Weight Sensor Module for Arduino Microcontroller DIY (5 kg + HX711)

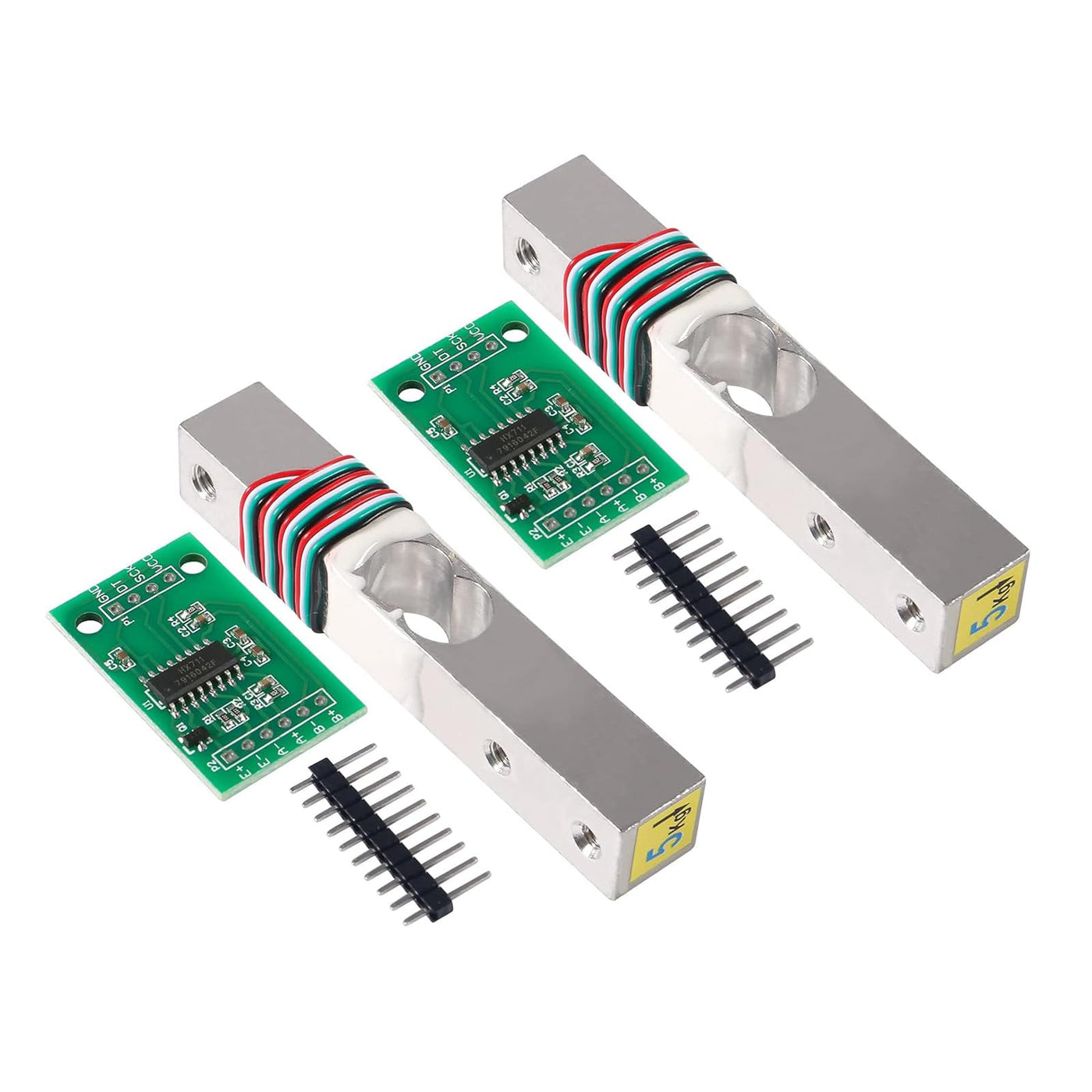

Features: ✔ Two selectable differential input channels. ✔ Active, low-noise on-chip PGA with selectable gain of 3264 and 128. ✔ On-chip power supply controller for analogue power supply of load cells and ADC. ✔ On-chip oscillator that requires no external components, with optional external quartz ✔ On-chip power-on reset. ✔ Easy digital control and serial interface: pin controlled control, no programming required ✔ Selectable output data rate of 10 PLC or 80 SPS. ✔ Simultaneous 50 and 60 Hz supply suppression. ✔ Power consumption including on-chip analog power supply controller: normal operation <1.5mA, shutdown <1uA ✔ Operating voltage range: 2.6~5.5V ✔ Operating temperature range: -20 degrees to +85 degrees. Connection instructions: Red to E+ Black to E Green to A+ White to A- Package includes: 2 x load cell weight sensor 5 kg. 2 x HX711 AD weighing module.

Product Features

  • Load cell, easy to use. At 5-10V drive voltage, the change in force is output directly as a voltage signal.

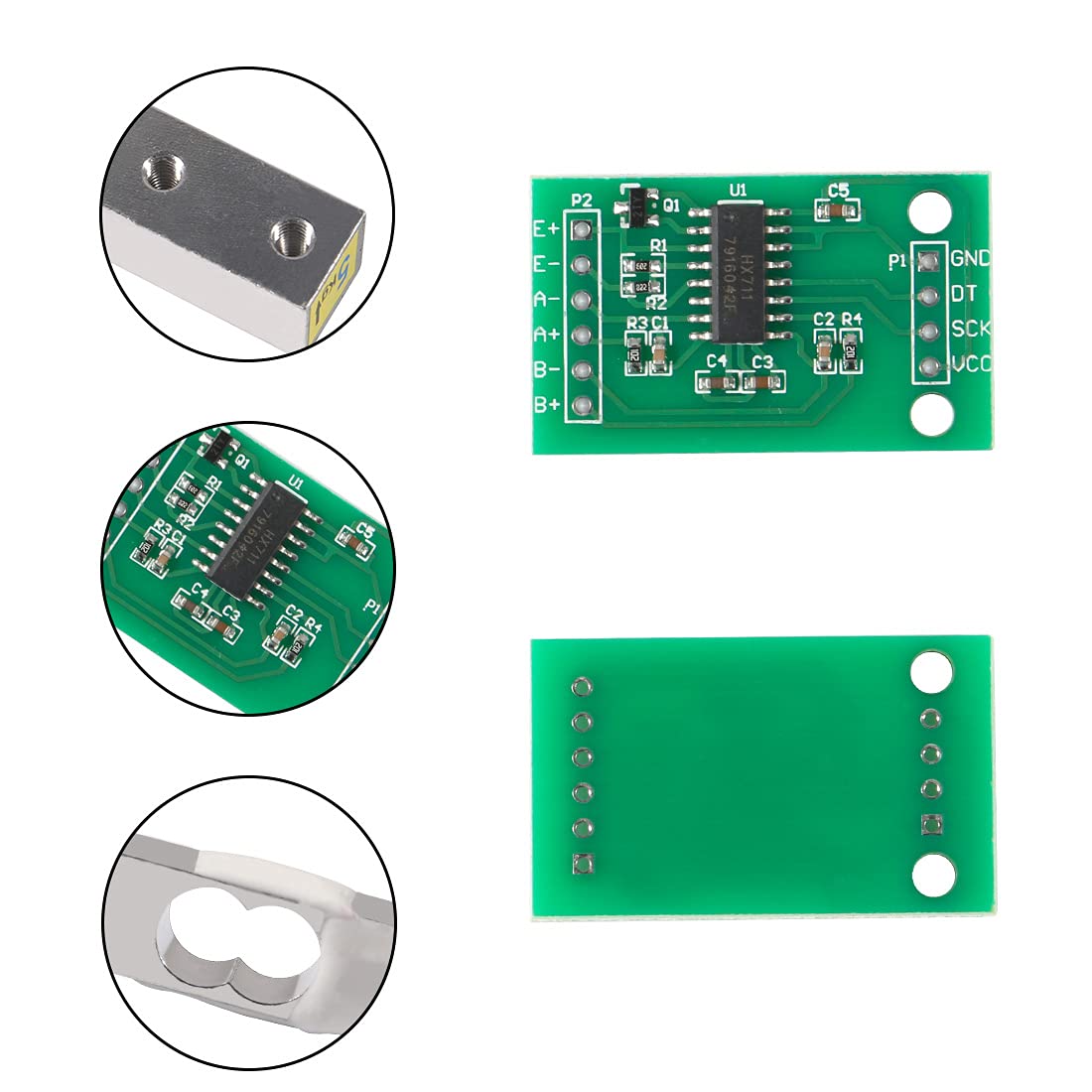

  • The HX711 AD weighing module uses the HX711 24-digit high-precision A/D converter chip, which is specially designed for high-precision digital scales.

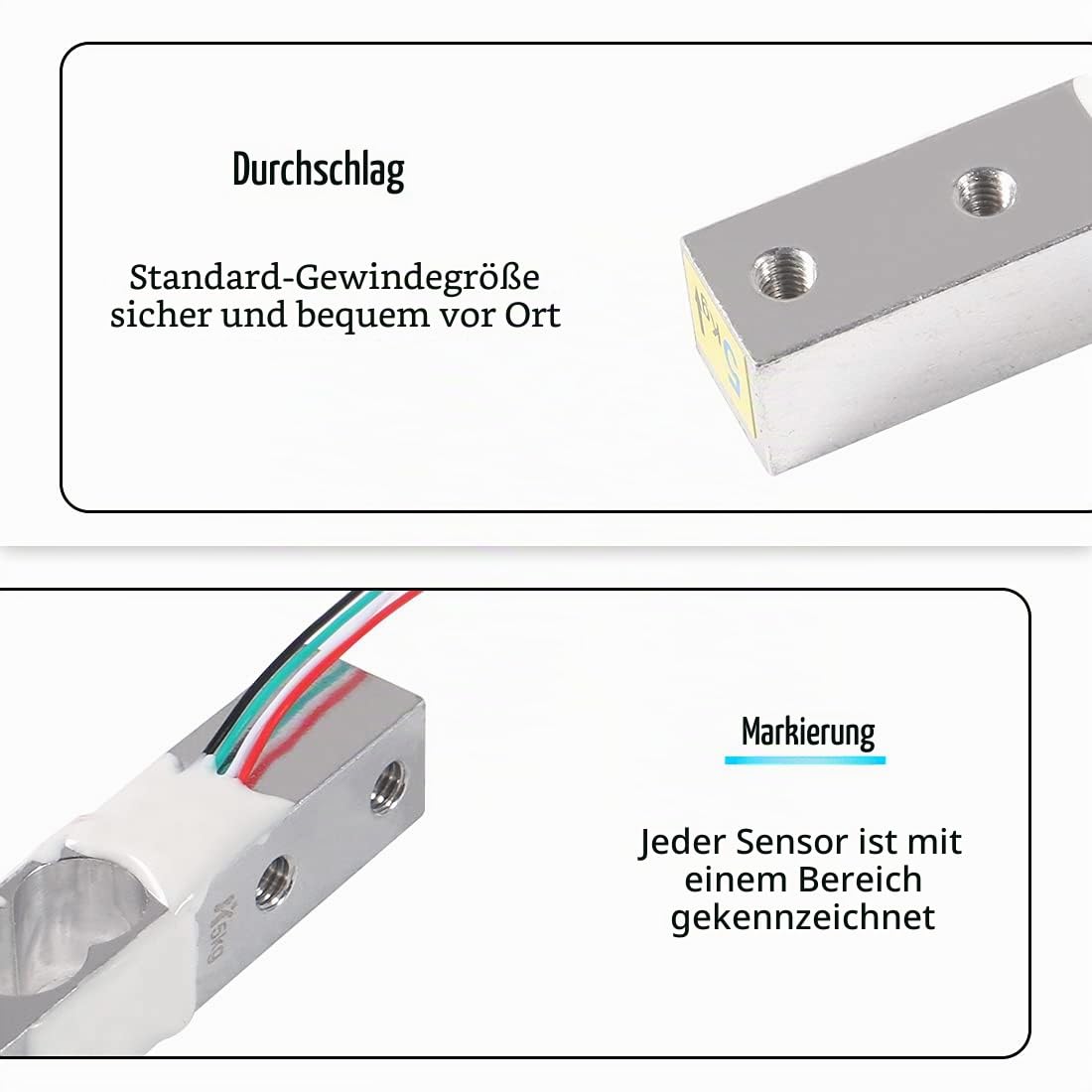

  • Load cell sensor, durable aluminum alloy construction with strain gauge, pre-assembled with strain relieved wires. Accurately measures forces from 0-5kg

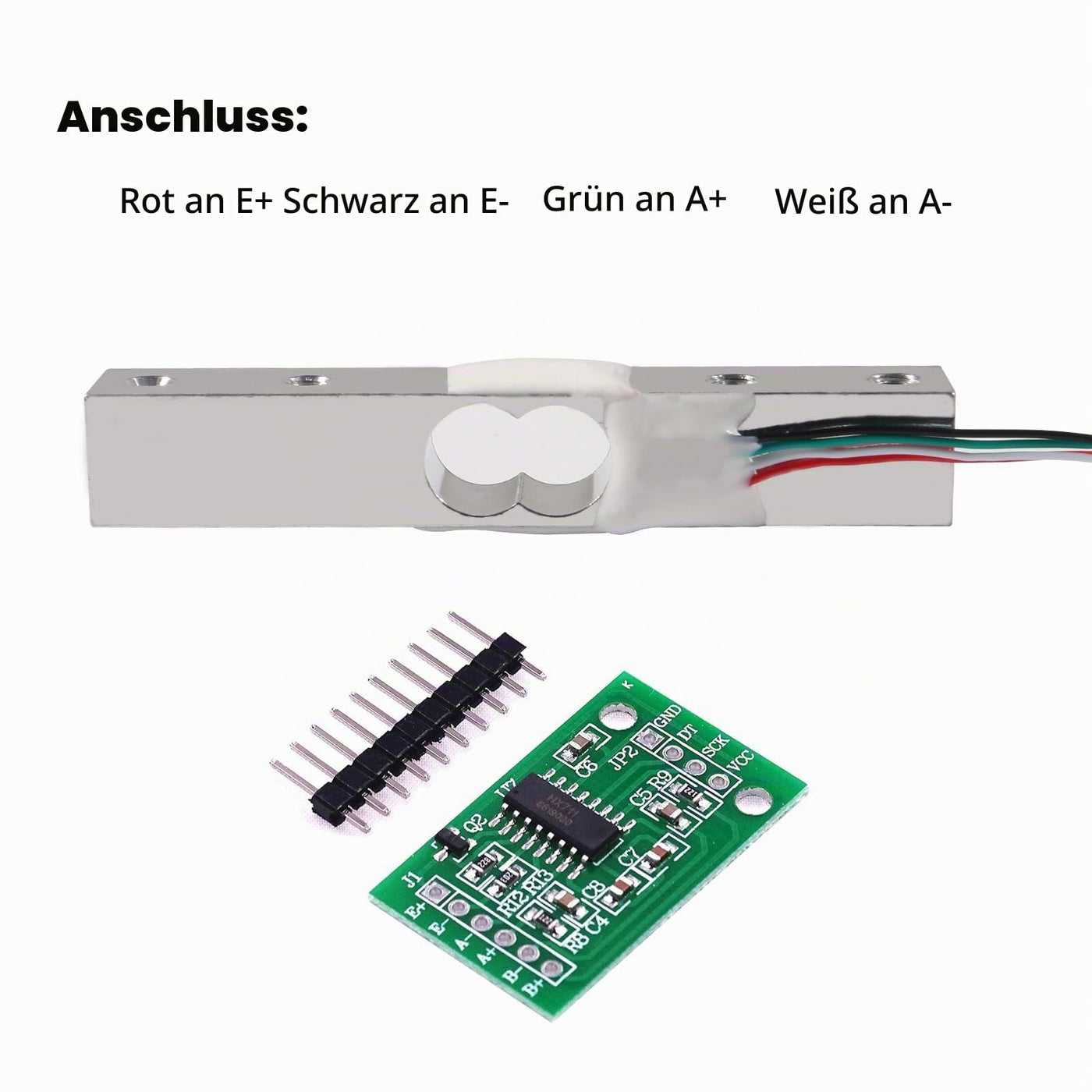

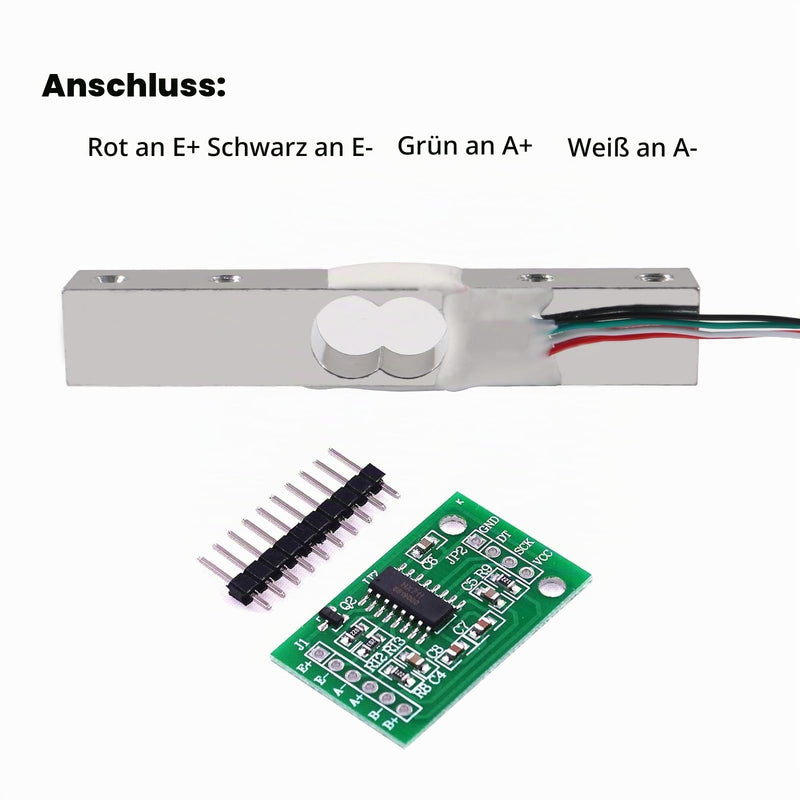

  • Four lines, easy to use, 5-10V drive voltage applied, the force is directly output as voltage change signal. You need to connect the load cell to the HX711 module: Red to E+, Black to E, Green on A+, White to A-.
  • On-chip power supply controller for load cell and ADC analog power supply, on-chip oscillator that requires no external components, with optional external quartz.
