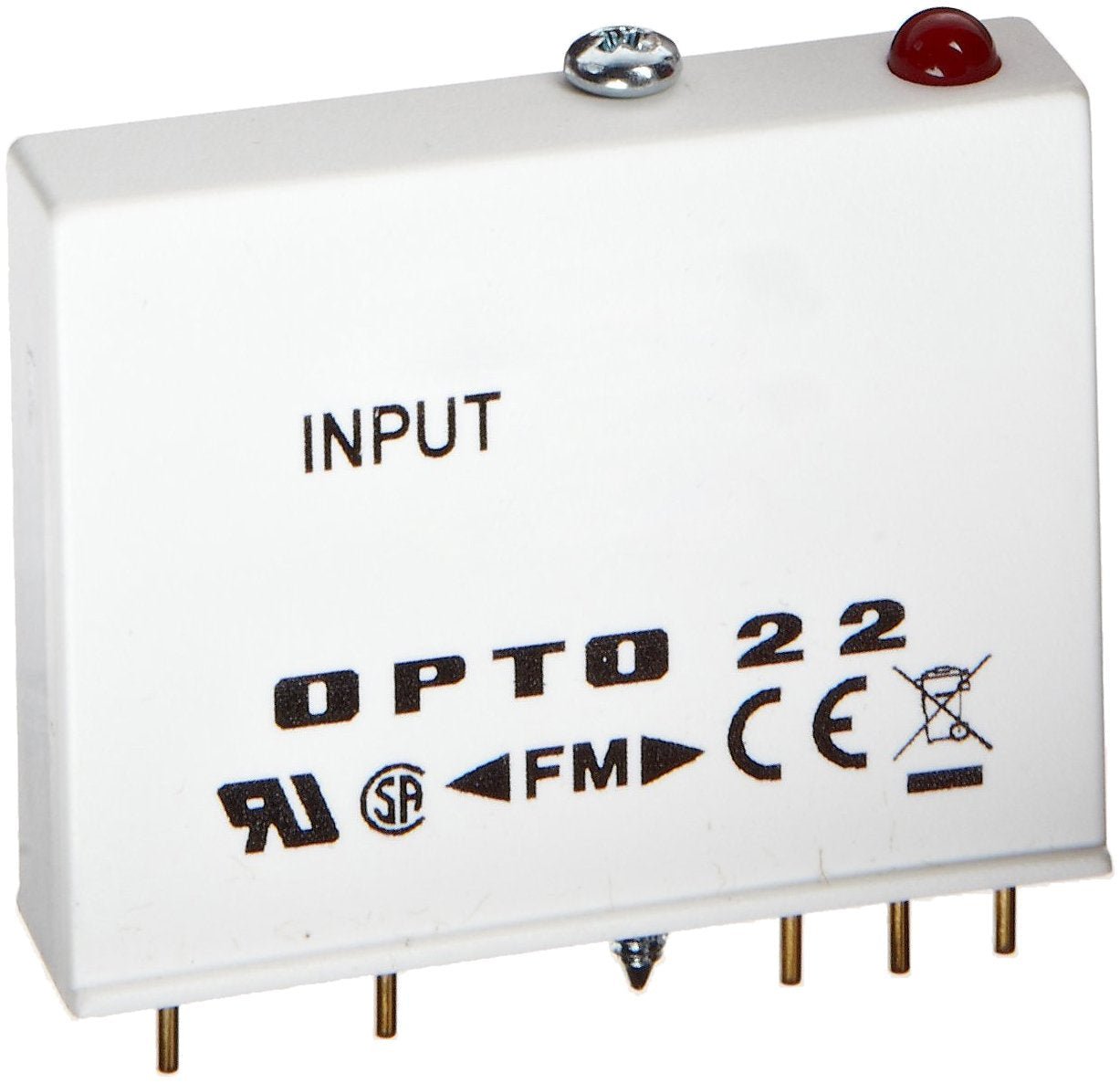

{"id":7173057675444,"title":"Opto 22 G4IDC5K G4 DC Input with Very High Speed, 2.5-16 VDC, 5 VDC Logic, 4000 Volts I\/O Isolation, 0.025 ms Turn-On\/Off Time, 30 mA Input Current","handle":"opto-22-g4idc5k-g4-dc-input-with-very-high-speed-2-5-16-vdc-5-vdc-logic-4000-volts-i-o-isolation-0-025-ms-turn-on-off-time-30-ma-input-current","description":"\u003ch3\u003eOpto 22 G4IDC5K G4 DC Input with Very High Speed, 2.5-16 VDC, 5 VDC Logic, 4000 Volts I\/O Isolation, 0.025 ms Turn-On\/Off Time, 30 mA Input Current\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eOpto 22's G4 DC input modules are used to detect on\/off DC voltage levels.\nEach module provides up to 4000 volts (transient) of optical isolation between\nfield inputs and the logic output of the circuit. Typical applications for DC\ninput modules include sensing the presence or absence of voltage and sensing\ncontact closure from sources such as proximity switches, limit switches,\nselector switches, push buttons, photoelectric switches, and TTL-compatible\ndevices. This module is designed with filtering on the input and a hysteresis\namplifier, providing high noise rejection and transient-free, \"clean\"\nswitching. The G4IDC5K is a fast-switching module used to detect signals\nproduced by photoelectric switches and TTL devices. The low-cost G4IDC5D is\nused for data acquisition.Underwriters Laboratory, Canadian Standards\nAssociation, Factory Mutual, IEC 950: 1991-09\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003e4000 Volts transient optical isolation; built-in LED status indicator\u003c\/li\u003e\n \u003cli\u003eSmall footprint design, reducing mounting space by approximately 50 percent\u003c\/li\u003e\n \u003cli\u003eBuilt-in filtering for transient suppression and noise rejection; operating temperature: -30 degree C to 70 degree C\u003c\/li\u003e\n \u003cli\u003eUL recognized, CSA certified, CE approved, passes NEMA showering Arc test (ICS 2-230)\u003c\/li\u003e\n \u003cli\u003eMeets IEEE surge withstand specification (IEEE-472)\u003c\/li\u003e\n \u003c\/ul\u003e\n\n","published_at":"2022-06-28T23:40:20+10:00","created_at":"2022-06-28T23:40:21+10:00","vendor":"Opto 22","type":"IO Modules","tags":["industrial"],"price":12000,"price_min":12000,"price_max":12000,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":41615807086772,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B00597UXBU","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Opto 22 G4IDC5K G4 DC Input with Very High Speed, 2.5-16 VDC, 5 VDC Logic, 4000 Volts I\/O Isolation, 0.025 ms Turn-On\/Off Time, 30 mA Input Current","public_title":null,"options":["Default Title"],"price":12000,"weight":23,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/products\/B00597UXBU.jpg?v=1656487587"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/products\/B00597UXBU.jpg?v=1656487587","options":["Title"],"media":[{"alt":"[Australia - AusPower] - Opto 22 G4IDC5K G4 DC Input with Very High Speed, 2.5-16 VDC, 5 VDC Logic, 4000 Volts I\/O Isolation, 0.025 ms Turn-On\/Off Time, 30 mA Input Current ","id":26335663325364,"position":1,"preview_image":{"aspect_ratio":1.035,"height":1186,"width":1227,"src":"\/\/auspowers.com\/cdn\/shop\/products\/B00597UXBU.jpg?v=1656487587"},"aspect_ratio":1.035,"height":1186,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/B00597UXBU.jpg?v=1656487587","width":1227}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eOpto 22 G4IDC5K G4 DC Input with Very High Speed, 2.5-16 VDC, 5 VDC Logic, 4000 Volts I\/O Isolation, 0.025 ms Turn-On\/Off Time, 30 mA Input Current\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eOpto 22's G4 DC input modules are used to detect on\/off DC voltage levels.\nEach module provides up to 4000 volts (transient) of optical isolation between\nfield inputs and the logic output of the circuit. Typical applications for DC\ninput modules include sensing the presence or absence of voltage and sensing\ncontact closure from sources such as proximity switches, limit switches,\nselector switches, push buttons, photoelectric switches, and TTL-compatible\ndevices. This module is designed with filtering on the input and a hysteresis\namplifier, providing high noise rejection and transient-free, \"clean\"\nswitching. The G4IDC5K is a fast-switching module used to detect signals\nproduced by photoelectric switches and TTL devices. The low-cost G4IDC5D is\nused for data acquisition.Underwriters Laboratory, Canadian Standards\nAssociation, Factory Mutual, IEC 950: 1991-09\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003e4000 Volts transient optical isolation; built-in LED status indicator\u003c\/li\u003e\n \u003cli\u003eSmall footprint design, reducing mounting space by approximately 50 percent\u003c\/li\u003e\n \u003cli\u003eBuilt-in filtering for transient suppression and noise rejection; operating temperature: -30 degree C to 70 degree C\u003c\/li\u003e\n \u003cli\u003eUL recognized, CSA certified, CE approved, passes NEMA showering Arc test (ICS 2-230)\u003c\/li\u003e\n \u003cli\u003eMeets IEEE surge withstand specification (IEEE-472)\u003c\/li\u003e\n \u003c\/ul\u003e\n\n"}
