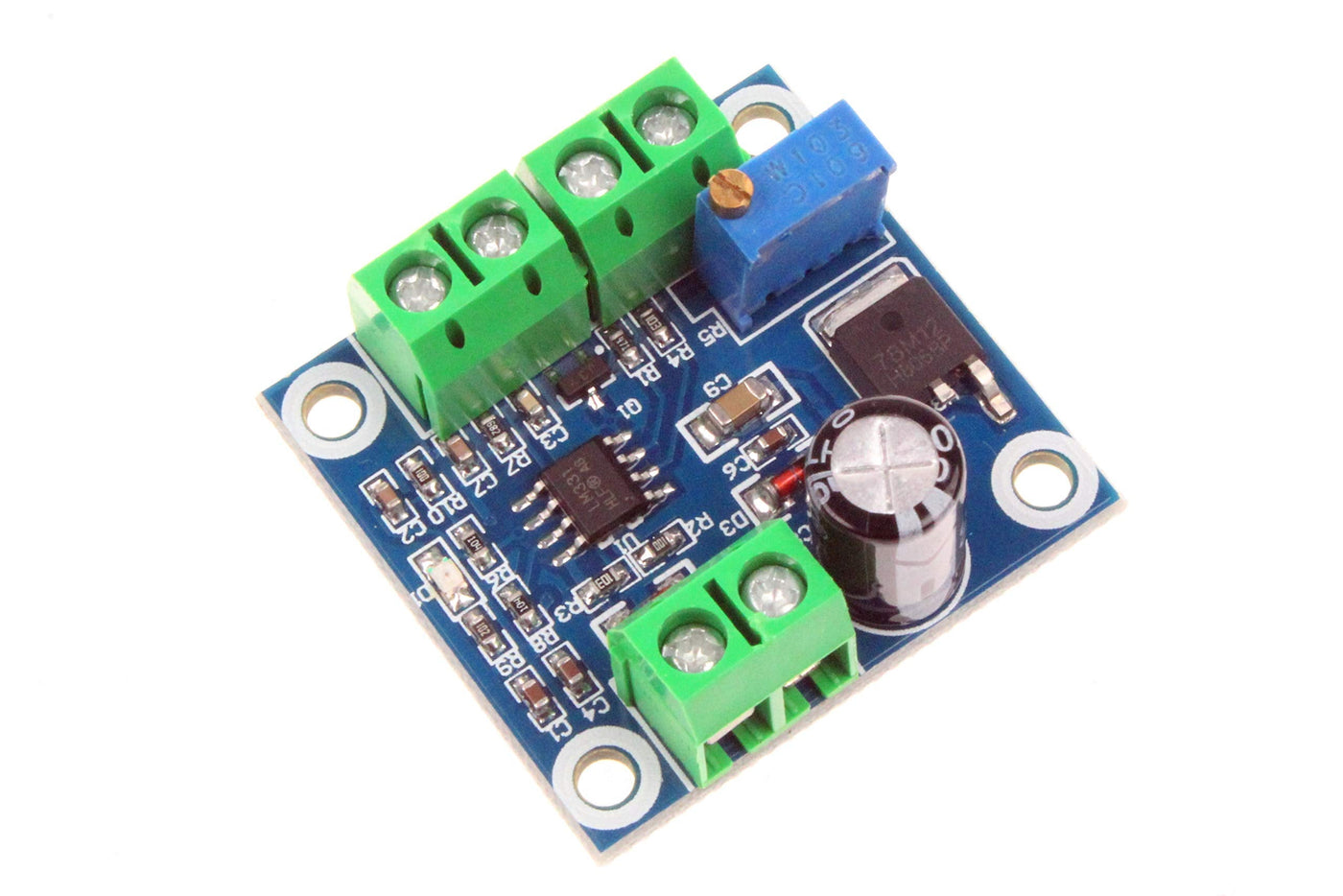

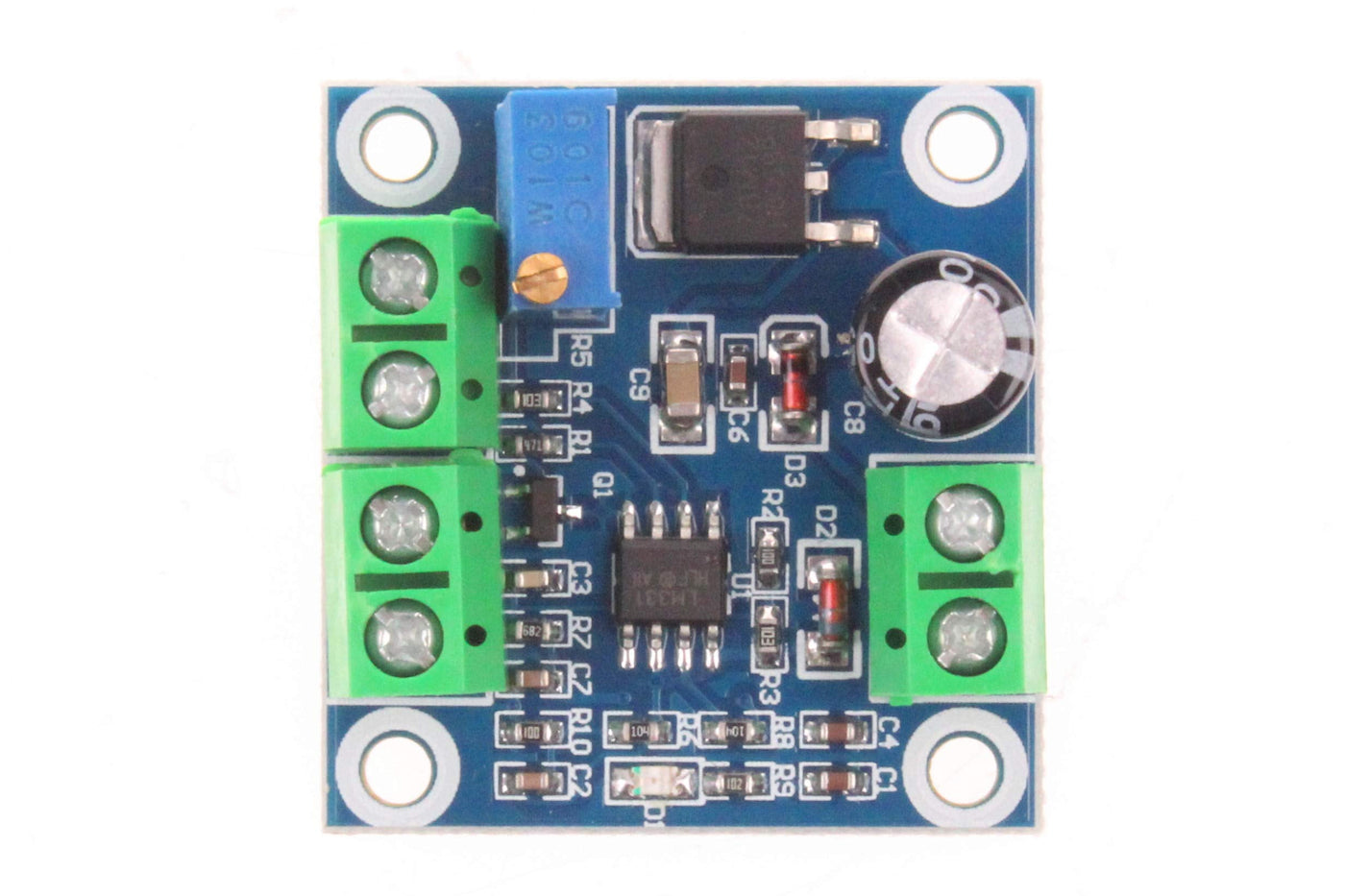

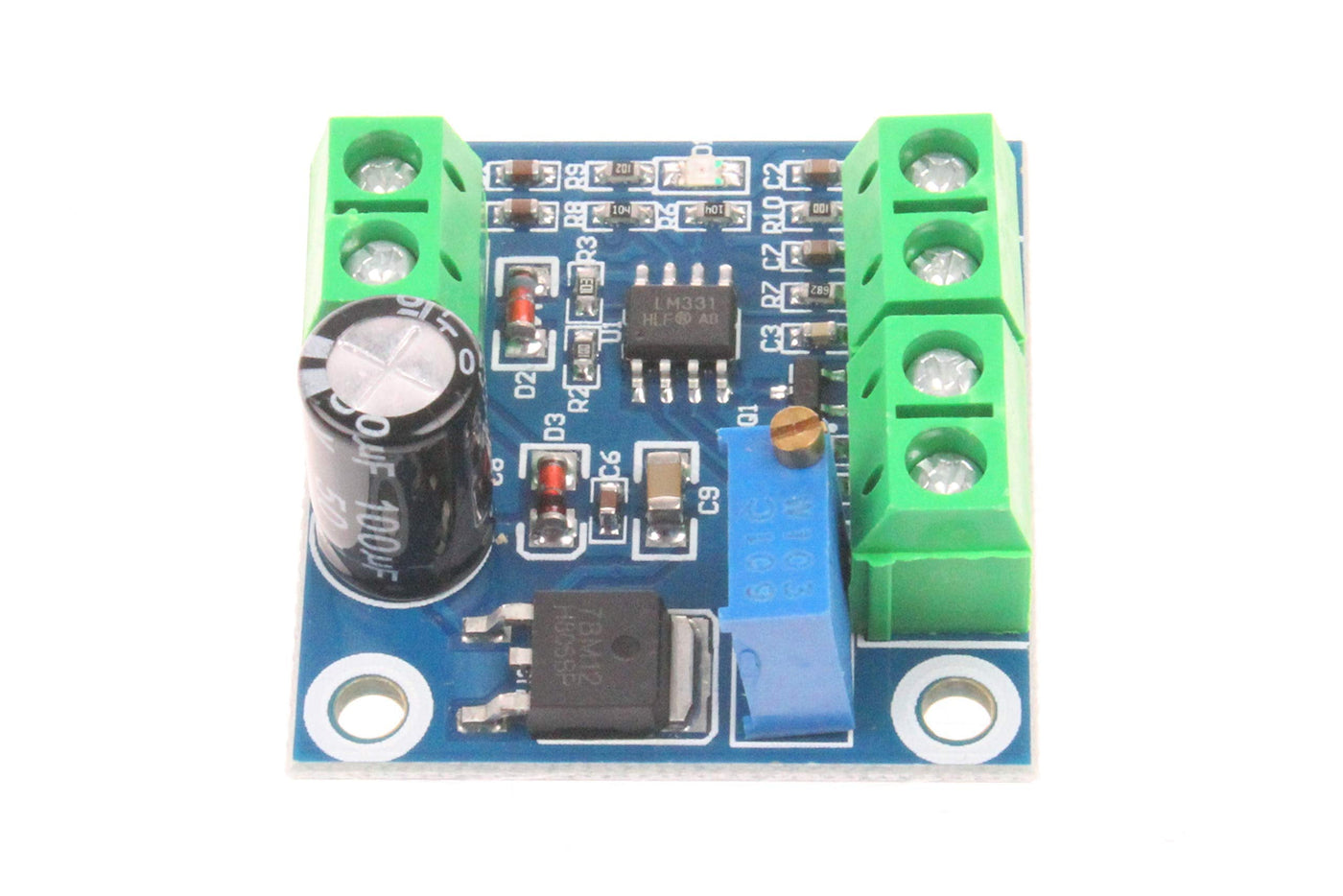

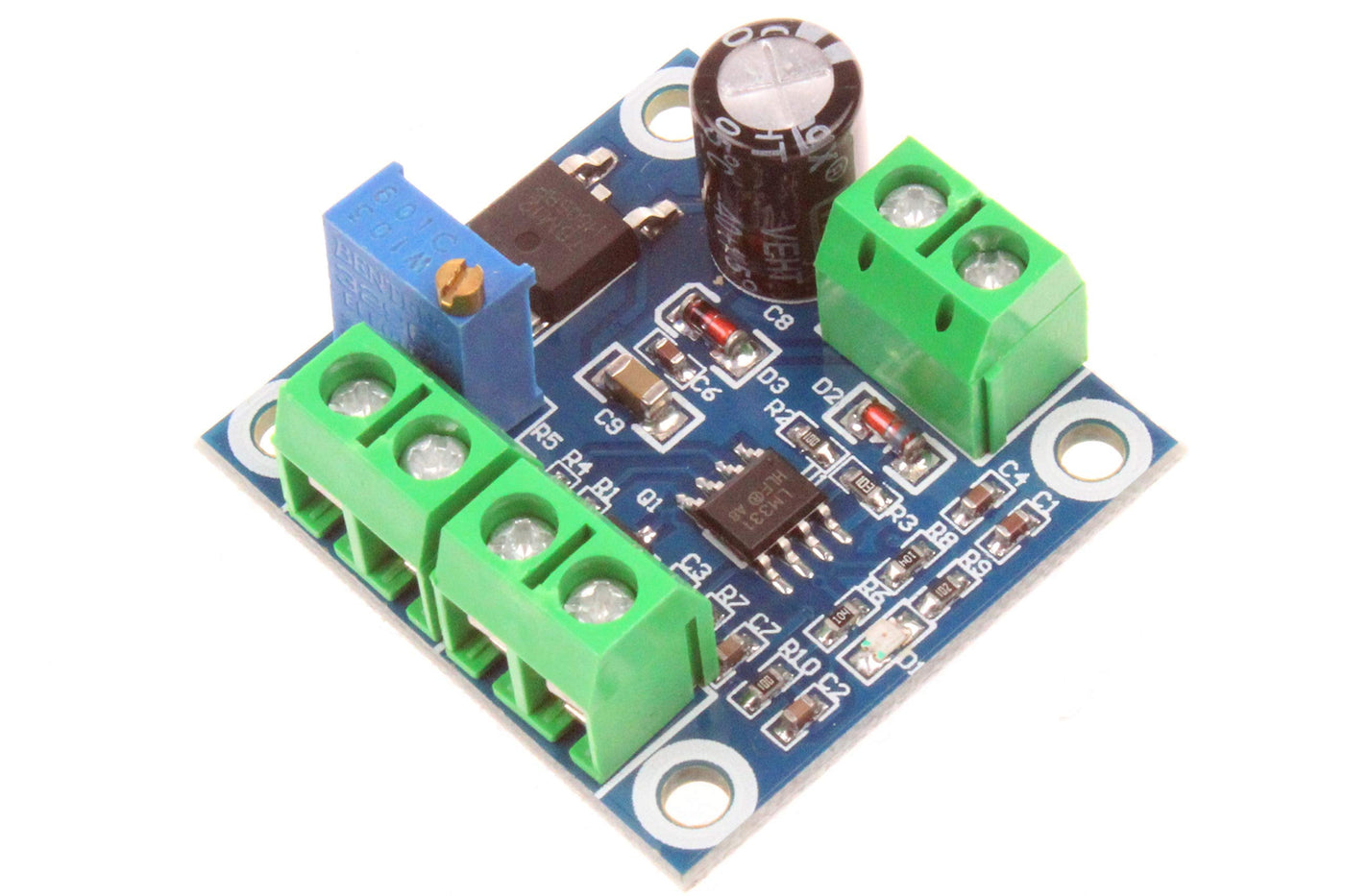

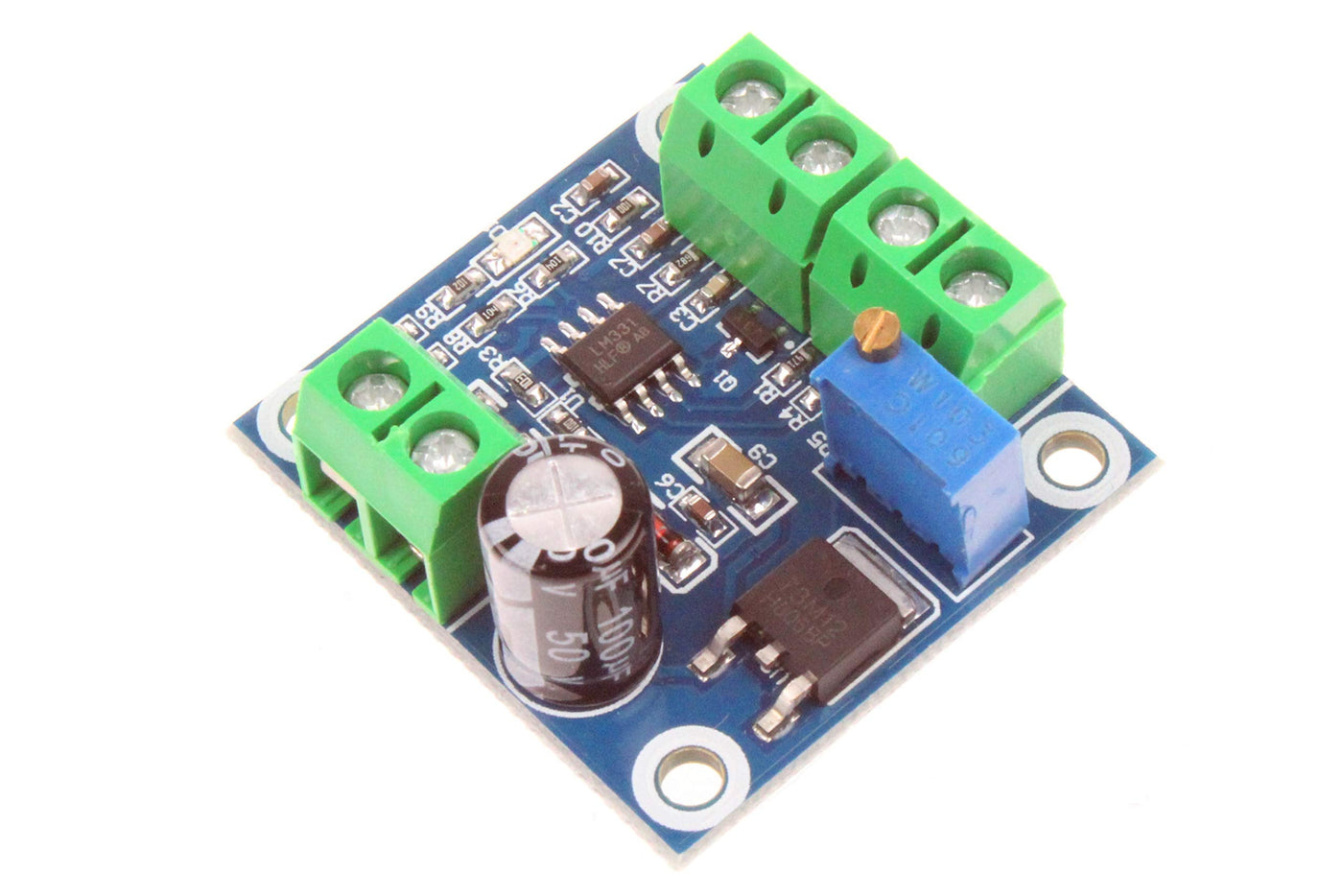

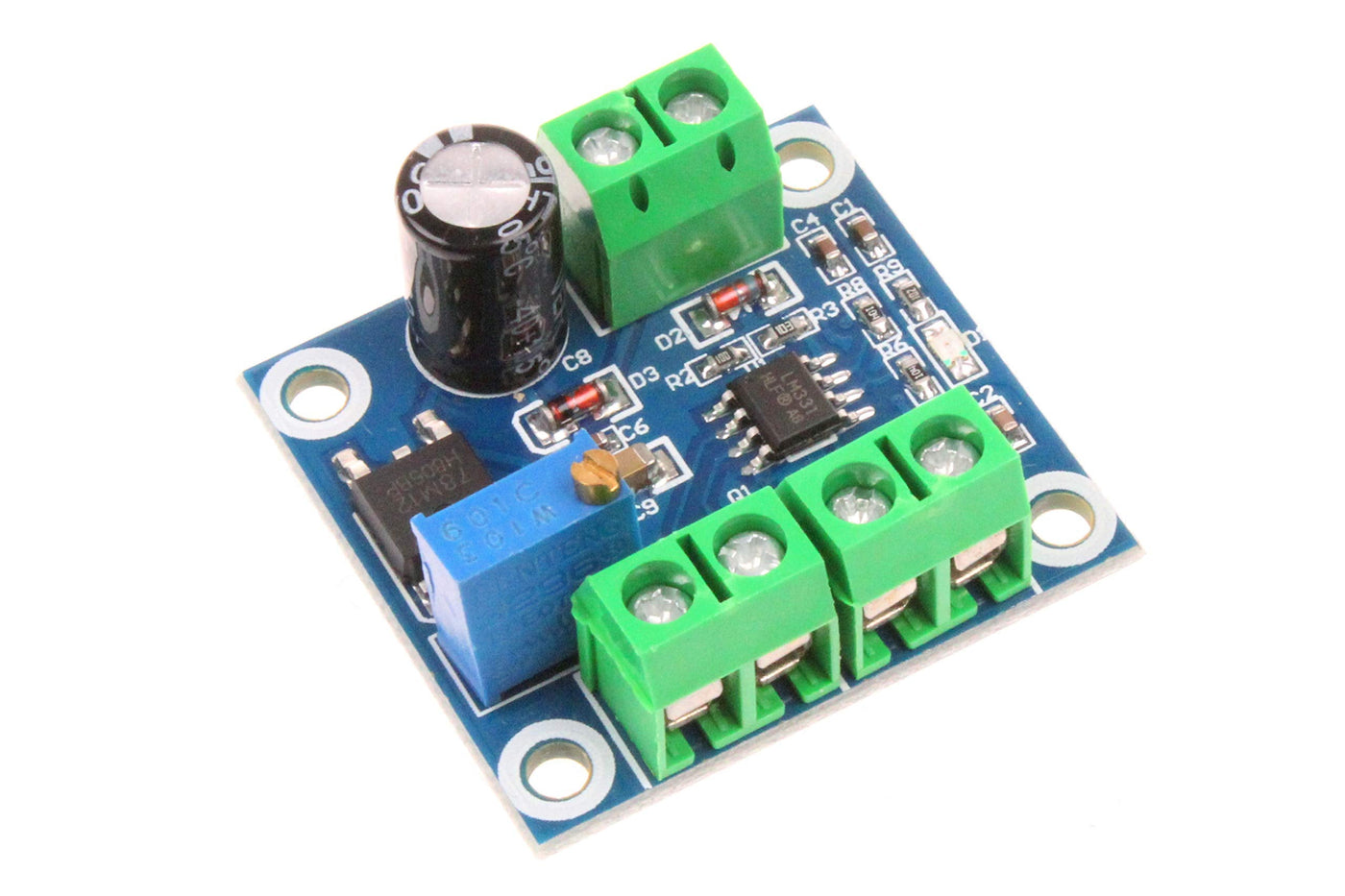

{"id":7177697165492,"title":"NOYITO Voltage to Frequency Module 0-10V to 0-10KHz Signal Conversion Module","handle":"noyito-voltage-to-frequency-module-0-10v-to-0-10khz-signal-conversion-module","description":"\u003ch3\u003eNOYITO Voltage to Frequency Module 0-10V to 0-10KHz Signal Conversion Module\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eFeatures 1. Input voltage, output frequency signal. 2. The output signal can\nbe fine-tuned, and the potentiometer can be adjusted to calibrate the\ncorresponding relationship between voltage and frequency. 3. The output of\nthis module can be supplied to the driver as a pulse signal. When it is used\nwith the driver, the common anode wiring is required. The relevant wiring\ninstructions are as follows: OC-OUT: To connect the drive's PUL- terminal or\nPUL terminal 12-30V: Connect to the PUL+ terminal of the driver or the common\nterminal +5V. Technical Parameter: Working voltage: 13.5V-30V. Input\ncontrollable voltage range: 0-10V. Output frequency range: 0-10KHz. 3.\nHardware introduction and description Wiring Instructions: VCC: Power supply\n+. GND: Power supply ground - . IN+: input voltage signal +. IN-: input\nvoltage signal - . OCOUT: Signal collector output port (use this output port\nwhen matching the driver). FOUT: Frequency output port (general frequency\noutput port). Two separate outputs, OC-OUT is NPN, FREQ-OUT is IC output. The\ncommon cathode is used with the \"-\" GND of the power supply. When the common\nanode is connected, it is used together with the power supply \"+\" VCC. When\nthe common anode is connected, if it is 13-24V power supply, a 2.7KR resistor\nshould be connected in series, and if it is DC12V power supply, a 330R\nresistor should be connected in series. Module Working Instructions: Connect\nthe positive and negative of the 0-10V voltage signal to IN+ and IN-\nrespectively, and there is a corresponding frequency signal output between\nFOUT and GND. Correspondence between input and output: 1V = 1KHz. 10V = 10KHz.\nIf there is a deviation in the corresponding relationship during use, you can\nadjust the potentiometer on the board to calibrate Package Included: 1Pcs\nNOYITO Voltage to Frequency Module\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eNOYITO voltage-to-frequency module is a module that can generate different frequencies depending on the input voltage. It can convert 0-10V voltage into a frequency pulse signal of 0-10KHz.\u003c\/li\u003e\n \u003cli\u003eWorking voltage: 13.5V-30V.\u003c\/li\u003e\n \u003cli\u003eInput voltage range: 0-10V.\u003c\/li\u003e\n \u003cli\u003eOutput frequency range: 0-10KHz.\u003c\/li\u003e\n \u003cli\u003eThe output signal can be fine-tuned, and the potentiometer can be adjusted to calibrate the correspondence between voltage and frequency.\u003c\/li\u003e\n \u003c\/ul\u003e\n\n","published_at":"2022-07-02T04:23:18+10:00","created_at":"2022-07-02T04:23:26+10:00","vendor":"NOYITO","type":"Controls","tags":["industrial"],"price":11200,"price_min":11200,"price_max":11200,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":41625828393140,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B081RKN8FZ","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"NOYITO Voltage to Frequency Module 0-10V to 0-10KHz Signal Conversion Module","public_title":null,"options":["Default Title"],"price":11200,"weight":9,"compare_at_price":null,"inventory_management":null,"barcode":"0680613663610","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/products\/B081RKN8FZ.jpg?v=1656744139","\/\/auspowers.com\/cdn\/shop\/products\/71OTAh8l_2L.jpg?v=1656699806","\/\/auspowers.com\/cdn\/shop\/products\/71XxRwfC-uL.jpg?v=1656699806","\/\/auspowers.com\/cdn\/shop\/products\/71-P8_9VzlL.jpg?v=1656699806","\/\/auspowers.com\/cdn\/shop\/products\/81sXNrI-bML.jpg?v=1656699806","\/\/auspowers.com\/cdn\/shop\/products\/71_MSkCu2CL.jpg?v=1656699806"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/products\/B081RKN8FZ.jpg?v=1656744139","options":["Title"],"media":[{"alt":"[Australia - AusPower] - NOYITO Voltage to Frequency Module 0-10V to 0-10KHz Signal Conversion Module ","id":26375925366964,"position":1,"preview_image":{"aspect_ratio":1.5,"height":1707,"width":2560,"src":"\/\/auspowers.com\/cdn\/shop\/products\/B081RKN8FZ.jpg?v=1656744139"},"aspect_ratio":1.5,"height":1707,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/B081RKN8FZ.jpg?v=1656744139","width":2560},{"alt":"[Australia - AusPower] - NOYITO Voltage to Frequency Module 0-10V to 0-10KHz Signal Conversion Module ","id":26370995355828,"position":2,"preview_image":{"aspect_ratio":1.5,"height":1707,"width":2560,"src":"\/\/auspowers.com\/cdn\/shop\/products\/71OTAh8l_2L.jpg?v=1656699806"},"aspect_ratio":1.5,"height":1707,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/71OTAh8l_2L.jpg?v=1656699806","width":2560},{"alt":"[Australia - AusPower] - NOYITO Voltage to Frequency Module 0-10V to 0-10KHz Signal Conversion Module ","id":26370995388596,"position":3,"preview_image":{"aspect_ratio":1.5,"height":1707,"width":2560,"src":"\/\/auspowers.com\/cdn\/shop\/products\/71XxRwfC-uL.jpg?v=1656699806"},"aspect_ratio":1.5,"height":1707,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/71XxRwfC-uL.jpg?v=1656699806","width":2560},{"alt":"[Australia - AusPower] - NOYITO Voltage to Frequency Module 0-10V to 0-10KHz Signal Conversion Module ","id":26370995421364,"position":4,"preview_image":{"aspect_ratio":1.501,"height":1706,"width":2560,"src":"\/\/auspowers.com\/cdn\/shop\/products\/71-P8_9VzlL.jpg?v=1656699806"},"aspect_ratio":1.501,"height":1706,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/71-P8_9VzlL.jpg?v=1656699806","width":2560},{"alt":"[Australia - AusPower] - NOYITO Voltage to Frequency Module 0-10V to 0-10KHz Signal Conversion Module ","id":26370995454132,"position":5,"preview_image":{"aspect_ratio":1.501,"height":1706,"width":2560,"src":"\/\/auspowers.com\/cdn\/shop\/products\/81sXNrI-bML.jpg?v=1656699806"},"aspect_ratio":1.501,"height":1706,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/81sXNrI-bML.jpg?v=1656699806","width":2560},{"alt":"[Australia - AusPower] - NOYITO Voltage to Frequency Module 0-10V to 0-10KHz Signal Conversion Module ","id":26370995486900,"position":6,"preview_image":{"aspect_ratio":1.5,"height":1644,"width":2466,"src":"\/\/auspowers.com\/cdn\/shop\/products\/71_MSkCu2CL.jpg?v=1656699806"},"aspect_ratio":1.5,"height":1644,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/71_MSkCu2CL.jpg?v=1656699806","width":2466}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eNOYITO Voltage to Frequency Module 0-10V to 0-10KHz Signal Conversion Module\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eFeatures 1. Input voltage, output frequency signal. 2. The output signal can\nbe fine-tuned, and the potentiometer can be adjusted to calibrate the\ncorresponding relationship between voltage and frequency. 3. The output of\nthis module can be supplied to the driver as a pulse signal. When it is used\nwith the driver, the common anode wiring is required. The relevant wiring\ninstructions are as follows: OC-OUT: To connect the drive's PUL- terminal or\nPUL terminal 12-30V: Connect to the PUL+ terminal of the driver or the common\nterminal +5V. Technical Parameter: Working voltage: 13.5V-30V. Input\ncontrollable voltage range: 0-10V. Output frequency range: 0-10KHz. 3.\nHardware introduction and description Wiring Instructions: VCC: Power supply\n+. GND: Power supply ground - . IN+: input voltage signal +. IN-: input\nvoltage signal - . OCOUT: Signal collector output port (use this output port\nwhen matching the driver). FOUT: Frequency output port (general frequency\noutput port). Two separate outputs, OC-OUT is NPN, FREQ-OUT is IC output. The\ncommon cathode is used with the \"-\" GND of the power supply. When the common\nanode is connected, it is used together with the power supply \"+\" VCC. When\nthe common anode is connected, if it is 13-24V power supply, a 2.7KR resistor\nshould be connected in series, and if it is DC12V power supply, a 330R\nresistor should be connected in series. Module Working Instructions: Connect\nthe positive and negative of the 0-10V voltage signal to IN+ and IN-\nrespectively, and there is a corresponding frequency signal output between\nFOUT and GND. Correspondence between input and output: 1V = 1KHz. 10V = 10KHz.\nIf there is a deviation in the corresponding relationship during use, you can\nadjust the potentiometer on the board to calibrate Package Included: 1Pcs\nNOYITO Voltage to Frequency Module\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eNOYITO voltage-to-frequency module is a module that can generate different frequencies depending on the input voltage. It can convert 0-10V voltage into a frequency pulse signal of 0-10KHz.\u003c\/li\u003e\n \u003cli\u003eWorking voltage: 13.5V-30V.\u003c\/li\u003e\n \u003cli\u003eInput voltage range: 0-10V.\u003c\/li\u003e\n \u003cli\u003eOutput frequency range: 0-10KHz.\u003c\/li\u003e\n \u003cli\u003eThe output signal can be fine-tuned, and the potentiometer can be adjusted to calibrate the correspondence between voltage and frequency.\u003c\/li\u003e\n \u003c\/ul\u003e\n\n"}
