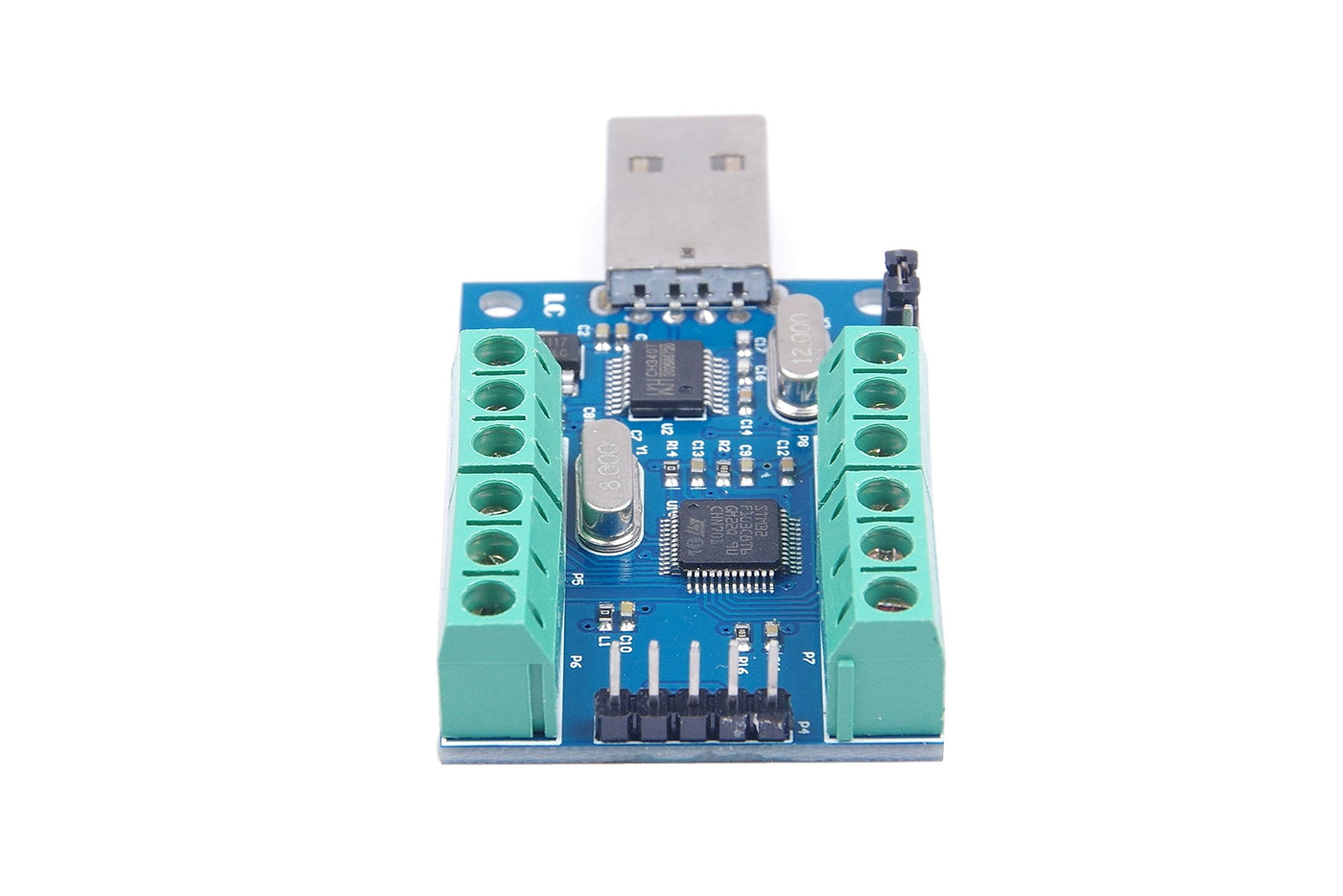

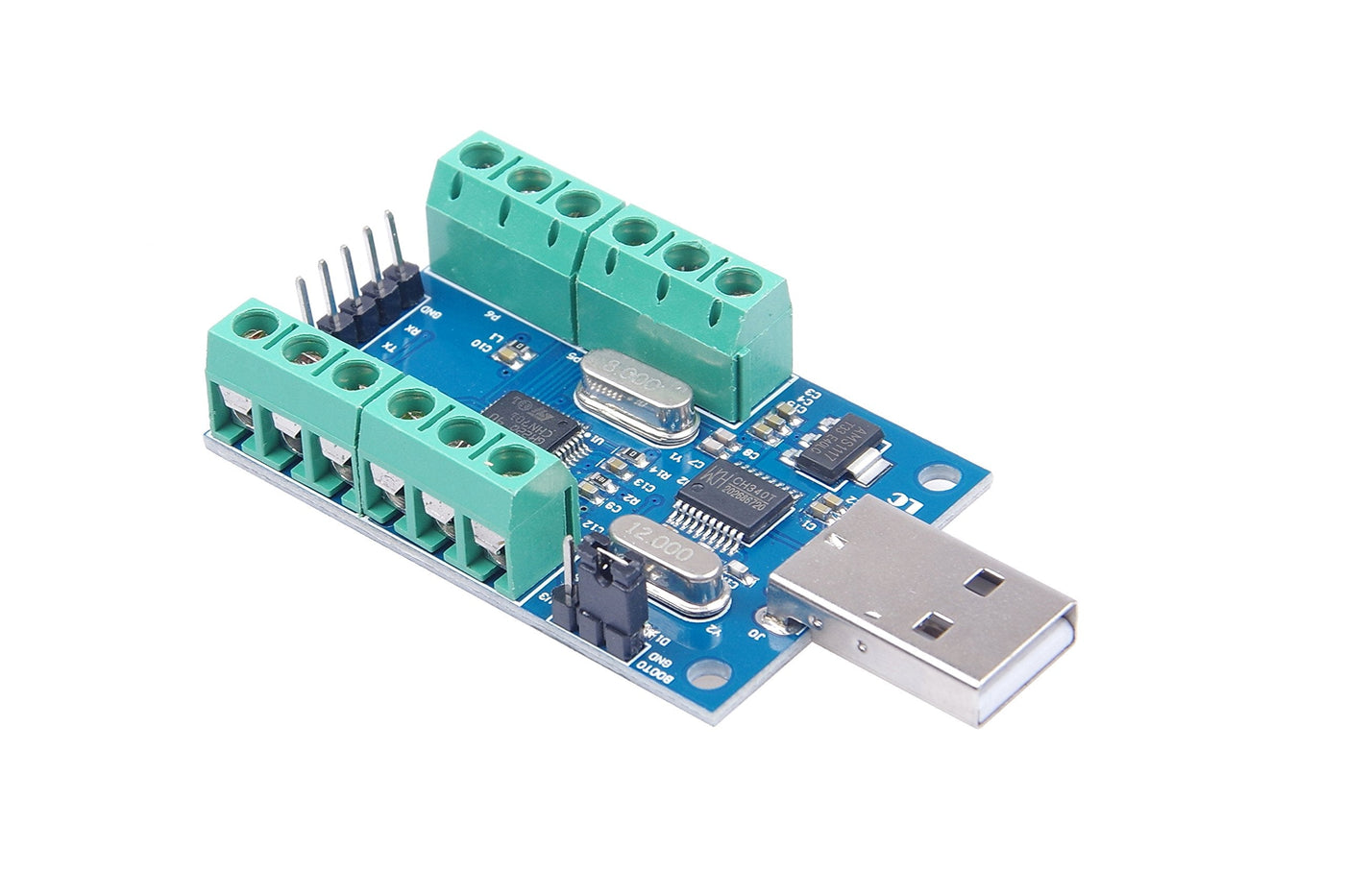

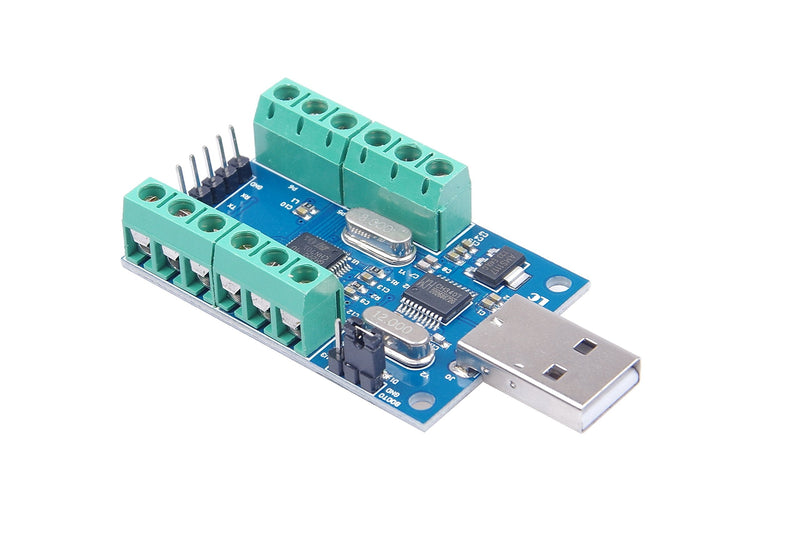

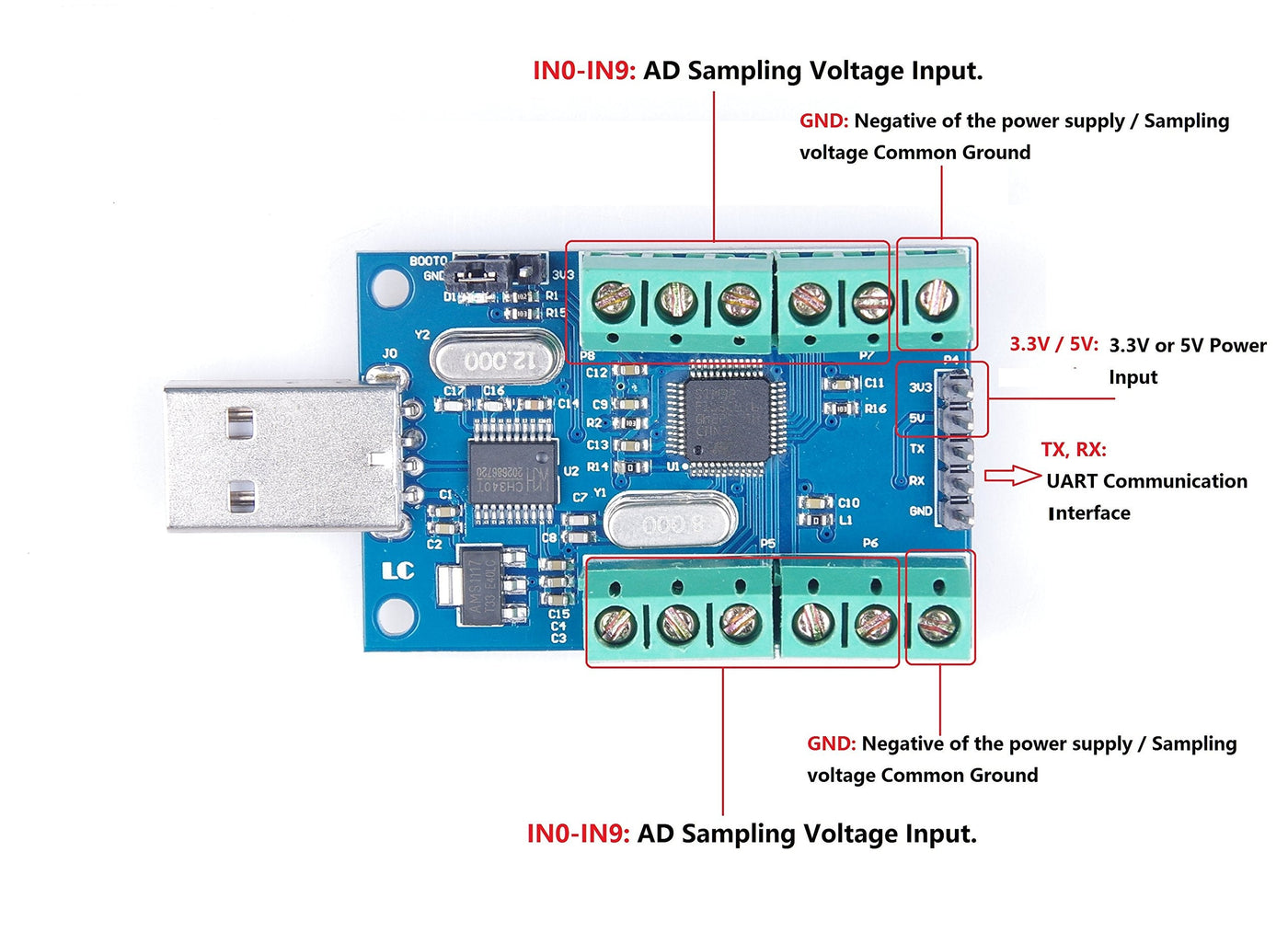

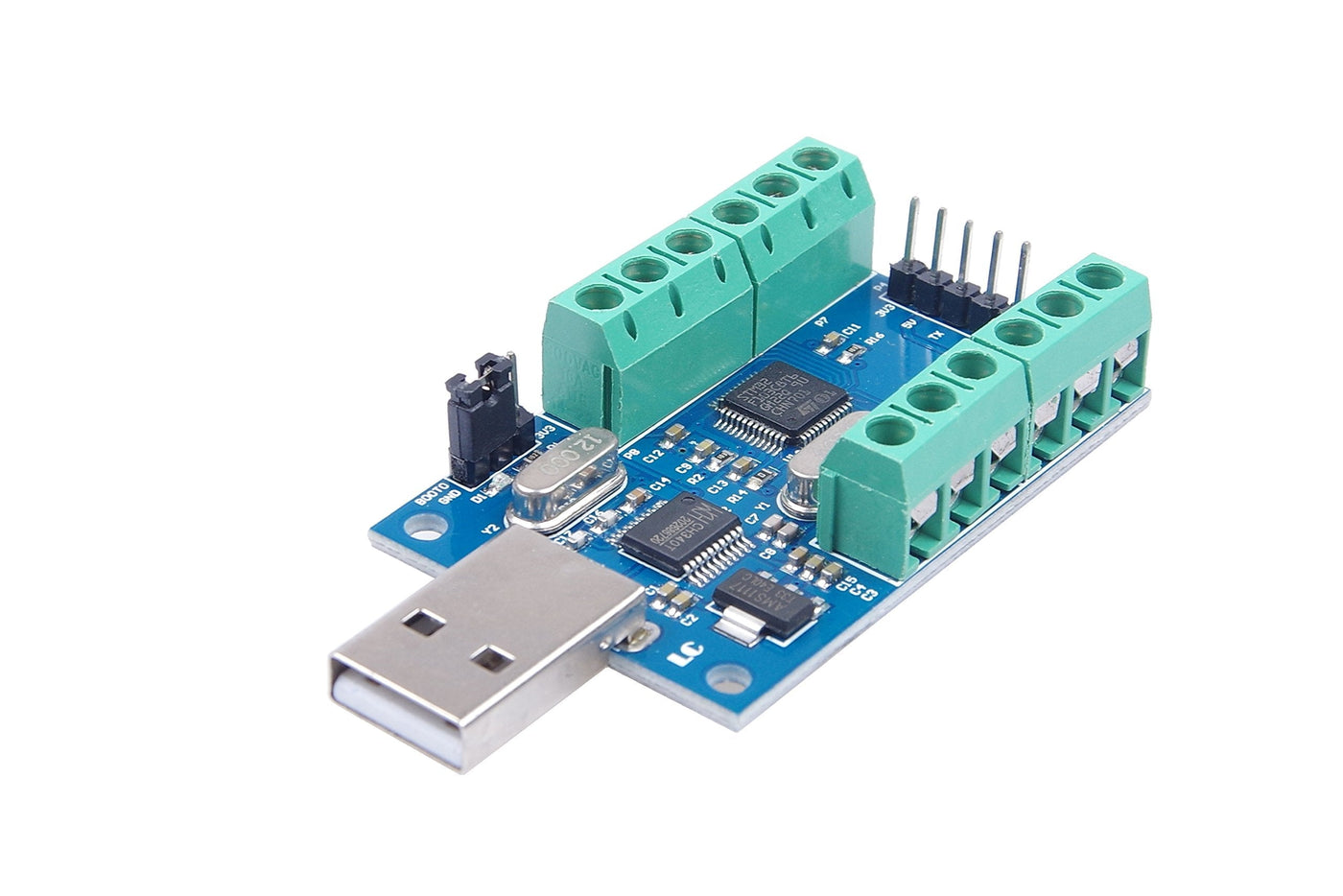

{"id":7247971745972,"title":"NOYITO USB 10-Channel 12-Bit AD Data Acquisition Module STM32 UART Communication USB to Serial Chip CH340 ADC Module","handle":"noyito-usb-10-channel-12-bit-ad-data-acquisition-module-stm32-uart-communication-usb-to-serial-chip-ch340-adc-module","description":" \u003ch1\u003eNOYITO USB 10-Channel 12-Bit AD Data Acquisition Module STM32 UART Communication USB to Serial Chip CH340 ADC Module\u003c\/h1\u003e\n \u003ch3\u003e\n\u003cspan class=\"glyphicon glyphicon-list-alt\"\u003e\u003c\/span\u003e Description\u003c\/h3\u003e\n \u003cp\u003eProduct Features: On-board STM32F103C8T6 master chip; On-board CH340 serial\nport USB chip, convenient to view AD sampling result on PC through USB;\nReserved UART serial communication interface, can be connected MCU; Analog\ninput channels: 10 channels single-ended input; (For pin description, please\nrefer to the picture) Sampling input voltage range: 0-3.3V; Power supply\nvoltage: 3.3V \/ 5.0V; Resolution: 12 Bit; Size: 50 40mm (L W), (length\ndoes not contain USB plug) USB to Serial Chip CH340： Overview CH340 is a USB\nbus adapter chip, to achieve USB to serial port, USB to IrDA infrared or USB\nto print port. In the serial port mode, CH340 provides common MODEM contact\nsignal, which is used to extend the asynchronous serial port for the computer\nor directly upgrade the ordinary serial port device to the USB bus. Features\nFull-speed USB device interface, compatible with USB V2.0, peripheral\ncomponents only need crystals and capacitors. Emulation standard serial port,\nused to upgrade the original serial peripherals, or through USB additional\nserial port. Computer-side Windows operating system serial applications are\nfully compatible, without modification. Hardware full duplex serial port,\nbuilt-in send and receive buffer, support communication baud rate 50bps ~\n2Mbps. Support common MODEM contact signal RTS, DTR, DCD, RI, DSR, CTS.\nThrough the addition of level conversion devices, providing RS232, RS485,\nRS422 and other interfaces. Support IrDA standard SIR infrared communication,\nsupport baud rate 2400bps to 115200bps. CH341 software compatible, you can\ndirectly use the CH341 driver. Supports 5V supply voltage and 3.3V supply\nvoltage. Package Included: 1USB 10-Channel 12-Bit AD Data Acquisition Module\u003c\/p\u003e\n \u003cp\u003eFeatures:\u003c\/p\u003e\n \u003cul\u003e\n \u003cli\u003eOn-board STM32F103C8T6 master chip;\u003c\/li\u003e\n\u003cli\u003eOn-board CH340 serial port USB chip, convenient to view AD sampling result on PC through USB;\u003c\/li\u003e\n\u003cli\u003eReserved UART serial communication interface, can be connected MCU;\u003c\/li\u003e\n\u003cli\u003eAnalog input channels: 10 channels single-ended input; (For pin description, please refer to the picture).\u003c\/li\u003e\n\u003cli\u003eSampling input voltage range: 0-3.3V; Power supply voltage: 3.3V \/ 5.0V; Resolution: 12 Bit;\u003c\/li\u003e\n \u003c\/ul\u003e\n\n\n ","published_at":"2022-09-04T19:28:47+10:00","created_at":"2022-09-04T19:28:56+10:00","vendor":"NOYITO","type":"Serial Adapters","tags":["electronics3"],"price":13800,"price_min":13800,"price_max":13800,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":41825601749172,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B075GHTCTS","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"NOYITO USB 10-Channel 12-Bit AD Data Acquisition Module STM32 UART Communication USB to Serial Chip CH340 ADC Module","public_title":null,"options":["Default Title"],"price":13800,"weight":24,"compare_at_price":null,"inventory_management":null,"barcode":"612957707422","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/products\/B075GHTCTS.jpg?v=1662359858","\/\/auspowers.com\/cdn\/shop\/products\/81rmF0OpimL.jpg?v=1662283736","\/\/auspowers.com\/cdn\/shop\/products\/611SGgek3JL.jpg?v=1662283736","\/\/auspowers.com\/cdn\/shop\/products\/91XIT1Q6D7L.jpg?v=1662283736","\/\/auspowers.com\/cdn\/shop\/products\/81SbckdL5_L.jpg?v=1662283736","\/\/auspowers.com\/cdn\/shop\/products\/71IirgnEtUL.jpg?v=1662283736","\/\/auspowers.com\/cdn\/shop\/products\/71ELo1aCIqL.jpg?v=1662283737"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/products\/B075GHTCTS.jpg?v=1662359858","options":["Title"],"media":[{"alt":"[Australia - AusPower] - NOYITO USB 10-Channel 12-Bit AD Data Acquisition Module STM32 UART Communication USB to Serial Chip CH340 ADC Module ","id":27053451870388,"position":1,"preview_image":{"aspect_ratio":1.5,"height":1707,"width":2560,"src":"\/\/auspowers.com\/cdn\/shop\/products\/B075GHTCTS.jpg?v=1662359858"},"aspect_ratio":1.5,"height":1707,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/B075GHTCTS.jpg?v=1662359858","width":2560},{"alt":"[Australia - AusPower] - NOYITO USB 10-Channel 12-Bit AD Data Acquisition Module STM32 UART Communication USB to Serial Chip CH340 ADC Module ","id":27045352538292,"position":2,"preview_image":{"aspect_ratio":1.364,"height":1877,"width":2560,"src":"\/\/auspowers.com\/cdn\/shop\/products\/81rmF0OpimL.jpg?v=1662283736"},"aspect_ratio":1.364,"height":1877,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/81rmF0OpimL.jpg?v=1662283736","width":2560},{"alt":"[Australia - AusPower] - NOYITO USB 10-Channel 12-Bit AD Data Acquisition Module STM32 UART Communication USB to Serial Chip CH340 ADC Module ","id":27045352571060,"position":3,"preview_image":{"aspect_ratio":1.729,"height":730,"width":1262,"src":"\/\/auspowers.com\/cdn\/shop\/products\/611SGgek3JL.jpg?v=1662283736"},"aspect_ratio":1.729,"height":730,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/611SGgek3JL.jpg?v=1662283736","width":1262},{"alt":"[Australia - AusPower] - NOYITO USB 10-Channel 12-Bit AD Data Acquisition Module STM32 UART Communication USB to Serial Chip CH340 ADC Module ","id":27045352603828,"position":4,"preview_image":{"aspect_ratio":0.664,"height":2560,"width":1700,"src":"\/\/auspowers.com\/cdn\/shop\/products\/91XIT1Q6D7L.jpg?v=1662283736"},"aspect_ratio":0.664,"height":2560,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/91XIT1Q6D7L.jpg?v=1662283736","width":1700},{"alt":"[Australia - AusPower] - NOYITO USB 10-Channel 12-Bit AD Data Acquisition Module STM32 UART Communication USB to Serial Chip CH340 ADC Module ","id":27045352636596,"position":5,"preview_image":{"aspect_ratio":1.501,"height":1706,"width":2560,"src":"\/\/auspowers.com\/cdn\/shop\/products\/81SbckdL5_L.jpg?v=1662283736"},"aspect_ratio":1.501,"height":1706,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/81SbckdL5_L.jpg?v=1662283736","width":2560},{"alt":"[Australia - AusPower] - NOYITO USB 10-Channel 12-Bit AD Data Acquisition Module STM32 UART Communication USB to Serial Chip CH340 ADC Module ","id":27045352669364,"position":6,"preview_image":{"aspect_ratio":1.5,"height":1707,"width":2560,"src":"\/\/auspowers.com\/cdn\/shop\/products\/71IirgnEtUL.jpg?v=1662283736"},"aspect_ratio":1.5,"height":1707,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/71IirgnEtUL.jpg?v=1662283736","width":2560},{"alt":"[Australia - AusPower] - NOYITO USB 10-Channel 12-Bit AD Data Acquisition Module STM32 UART Communication USB to Serial Chip CH340 ADC Module ","id":27045352702132,"position":7,"preview_image":{"aspect_ratio":1.501,"height":1706,"width":2560,"src":"\/\/auspowers.com\/cdn\/shop\/products\/71ELo1aCIqL.jpg?v=1662283737"},"aspect_ratio":1.501,"height":1706,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/71ELo1aCIqL.jpg?v=1662283737","width":2560}],"requires_selling_plan":false,"selling_plan_groups":[],"content":" \u003ch1\u003eNOYITO USB 10-Channel 12-Bit AD Data Acquisition Module STM32 UART Communication USB to Serial Chip CH340 ADC Module\u003c\/h1\u003e\n \u003ch3\u003e\n\u003cspan class=\"glyphicon glyphicon-list-alt\"\u003e\u003c\/span\u003e Description\u003c\/h3\u003e\n \u003cp\u003eProduct Features: On-board STM32F103C8T6 master chip; On-board CH340 serial\nport USB chip, convenient to view AD sampling result on PC through USB;\nReserved UART serial communication interface, can be connected MCU; Analog\ninput channels: 10 channels single-ended input; (For pin description, please\nrefer to the picture) Sampling input voltage range: 0-3.3V; Power supply\nvoltage: 3.3V \/ 5.0V; Resolution: 12 Bit; Size: 50 40mm (L W), (length\ndoes not contain USB plug) USB to Serial Chip CH340： Overview CH340 is a USB\nbus adapter chip, to achieve USB to serial port, USB to IrDA infrared or USB\nto print port. In the serial port mode, CH340 provides common MODEM contact\nsignal, which is used to extend the asynchronous serial port for the computer\nor directly upgrade the ordinary serial port device to the USB bus. Features\nFull-speed USB device interface, compatible with USB V2.0, peripheral\ncomponents only need crystals and capacitors. Emulation standard serial port,\nused to upgrade the original serial peripherals, or through USB additional\nserial port. Computer-side Windows operating system serial applications are\nfully compatible, without modification. Hardware full duplex serial port,\nbuilt-in send and receive buffer, support communication baud rate 50bps ~\n2Mbps. Support common MODEM contact signal RTS, DTR, DCD, RI, DSR, CTS.\nThrough the addition of level conversion devices, providing RS232, RS485,\nRS422 and other interfaces. Support IrDA standard SIR infrared communication,\nsupport baud rate 2400bps to 115200bps. CH341 software compatible, you can\ndirectly use the CH341 driver. Supports 5V supply voltage and 3.3V supply\nvoltage. Package Included: 1USB 10-Channel 12-Bit AD Data Acquisition Module\u003c\/p\u003e\n \u003cp\u003eFeatures:\u003c\/p\u003e\n \u003cul\u003e\n \u003cli\u003eOn-board STM32F103C8T6 master chip;\u003c\/li\u003e\n\u003cli\u003eOn-board CH340 serial port USB chip, convenient to view AD sampling result on PC through USB;\u003c\/li\u003e\n\u003cli\u003eReserved UART serial communication interface, can be connected MCU;\u003c\/li\u003e\n\u003cli\u003eAnalog input channels: 10 channels single-ended input; (For pin description, please refer to the picture).\u003c\/li\u003e\n\u003cli\u003eSampling input voltage range: 0-3.3V; Power supply voltage: 3.3V \/ 5.0V; Resolution: 12 Bit;\u003c\/li\u003e\n \u003c\/ul\u003e\n\n\n "}
